Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15274222) - 2022 - CRC - 11/2/21

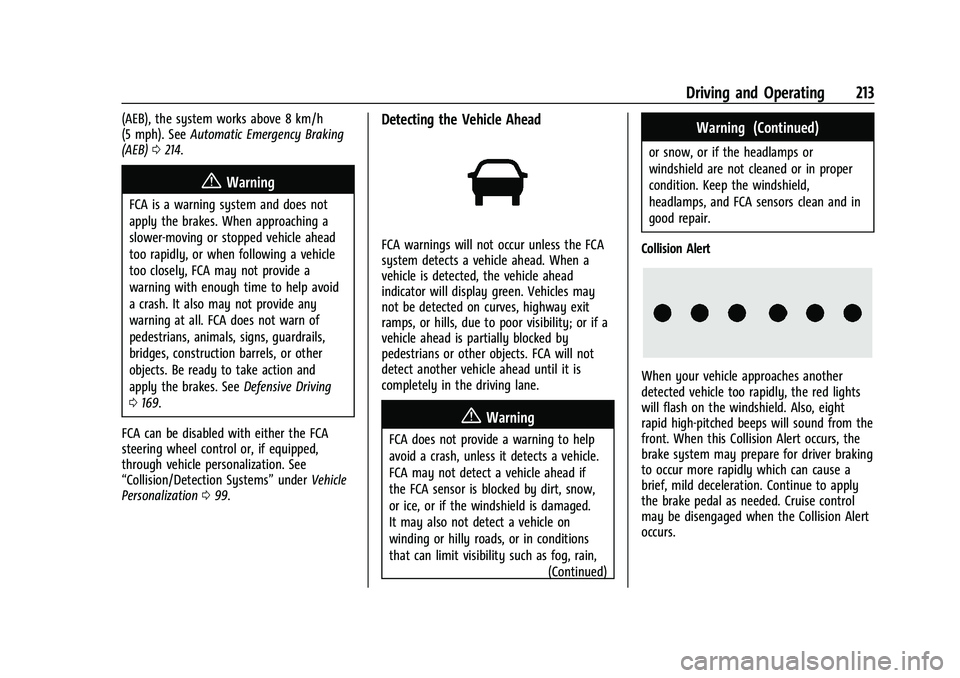

Driving and Operating 213
(AEB), the system works above 8 km/h
(5 mph). SeeAutomatic Emergency Braking
(AEB) 0214.
{Warning
FCA is a warning system and does not
apply the brakes. When approaching a
slower-moving or stopped vehicle ahead
too rapidly, or when following a vehicle
too closely, FCA may not provide a
warning with enough time to help avoid
a crash. It also may not provide any
warning at all. FCA does not warn of
pedestrians, animals, signs, guardrails,
bridges, construction barrels, or other
objects. Be ready to take action and
apply the brakes. See Defensive Driving
0 169.
FCA can be disabled with either the FCA
steering wheel control or, if equipped,
through vehicle personalization. See
“Collision/Detection Systems” underVehicle
Personalization 099.
Detecting the Vehicle Ahead
FCA warnings will not occur unless the FCA
system detects a vehicle ahead. When a
vehicle is detected, the vehicle ahead
indicator will display green. Vehicles may
not be detected on curves, highway exit
ramps, or hills, due to poor visibility; or if a
vehicle ahead is partially blocked by
pedestrians or other objects. FCA will not
detect another vehicle ahead until it is
completely in the driving lane.
{Warning
FCA does not provide a warning to help
avoid a crash, unless it detects a vehicle.
FCA may not detect a vehicle ahead if
the FCA sensor is blocked by dirt, snow,
or ice, or if the windshield is damaged.
It may also not detect a vehicle on
winding or hilly roads, or in conditions
that can limit visibility such as fog, rain,
(Continued)
Warning (Continued)
or snow, or if the headlamps or
windshield are not cleaned or in proper
condition. Keep the windshield,
headlamps, and FCA sensors clean and in
good repair.
Collision Alert
When your vehicle approaches another
detected vehicle too rapidly, the red lights
will flash on the windshield. Also, eight
rapid high-pitched beeps will sound from the
front. When this Collision Alert occurs, the
brake system may prepare for driver braking
to occur more rapidly which can cause a
brief, mild deceleration. Continue to apply
the brake pedal as needed. Cruise control
may be disengaged when the Collision Alert
occurs.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15274222) - 2022 - CRC - 11/2/21
Vehicle Care 299
Caution
If the other vehicle does not have a
12-volt system with a negative ground,
both vehicles can be damaged. Only use
a vehicle that has a 12-volt system with a
negative ground for jump starting.
2. Position the two vehicles so that they are not touching.
3. Set the parking brake firmly and put the shift lever in P (Park) with an automatic
transmission, or N (Neutral) with a
manual transmission.
Caution
If any accessories are left on or plugged
in during the jump starting procedure,
they could be damaged. The repairs
would not be covered by the vehicle
warranty. Whenever possible, turn off or
unplug all accessories on either vehicle
when jump starting.
4. Turn the ignition off. Turn off all lights and accessories in both vehicles, except
the hazard warning flashers if needed.
{Warning
An electric fan can start up even when
the engine is not running and can injure
you. Keep hands, clothing, and tools
away from any underhood electric fan.
{Warning
Using a match near a battery can cause
battery gas to explode. People have been
hurt doing this, and some have been
blinded. Use a flashlight if you need
more light.
Battery fluid contains acid that can burn
you. Do not get it on you. If you
accidentally get it in your eyes or on
your skin, flush the place with water and
get medical help immediately.
{Warning
Fans or other moving engine parts can
injure you badly. Keep your hands away
from moving parts once the engine is
running. 5. Connect one end of the red positive (+)
cable to the discharged battery
positive (+) terminal.
6. Connect the other end of the red positive (+) cable to the good battery
positive (+) terminal.
7. Connect one end of the black negative (–) cable to the good battery negative
(–) terminal.
8. Connect the other end of the black negative (–) cable to the discharged
battery negative (–) grounding point.
9. Start the engine in the vehicle with the good battery and run the engine at idle
speed for at least four minutes.
10. Try to start the vehicle that had the dead battery. If it will not start after a
few tries, it probably needs service.
Caution
If the jumper cables are connected or
removed in the wrong order, electrical
shorting may occur and damage the
vehicle. The repairs would not be covered
by the vehicle warranty. Always connect
and remove the jumper cables in the
correct order, making sure that the cables
do not touch each other or other metal.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15274222) - 2022 - CRC - 11/2/21
354 Index
Fuses (cont'd)Fuses and Circuit Breakers . . . . . . . . . . . . . 262
Instrument Panel Fuse Block . . . . . . . . . . . 267
G
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Gauges
Engine Coolant Temperature . . . . . . . . . . . . 85
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Warning Lights and Indicators . . . . . . . . . . 81
General Information Service and Maintenance . . . . . . . . . . . . . . 313
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Global Positioning System (GPS) . . . . . . . . . . 133
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 334
Guidance Problems with the Route . . . . . . . . . . . . . . 133
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Hazard Warning Flashers . . . . . . . . . . . . . . . . 104
HD Radio Technology . . . . . . . . . . . . . . . . . . . . . 117 Head Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Headlamps
Aiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 257
Daytime Running Lamps (DRL) . . . . . . . . . 103
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Headlamps, Front Turn Signal,Sidemarker, and Parking Lamps . . . . . . 258
High-Beam On Light . . . . . . . . . . . . . . . . . . . . 93
High/Low Beam Changer . . . . . . . . . . . . . . 103
Lamps On Reminder . . . . . . . . . . . . . . . . . . . . 93
Heated Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . 76
Heated Front Seats . . . . . . . . . . . . . . . . . . . . . . . .25
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .162, 164
High-Beam On Light . . . . . . . . . . . . . . . . . . . . . . 93
Hill and Mountain Roads . . . . . . . . . . . . . . . . 176
Hill Descent Control (HDC) . . . . . . . . . . . . . . . 204
Hill Descent Control Light . . . . . . . . . . . . . . . . . 90
Hill Start Assist (HSA) . . . . . . . . . . . . . . . . . . . . 201
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
How to Wear Seat Belts Properly . . . . . . . . . 28
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .162, 164
I
If the System Needs Service . . . . . . . . . . . . . .134
Ignition Positions . . . . . . . . . . . . . . . . . . . . . . . . 184
Ignition Transmission Lock Check . . . . . . . . 255
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Indicator Vehicle Ahead . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Infants and Young Children, Restraints . . . . 45
Information Publication Ordering . . . . . . . . . . . . . . . . . . . 338
Infotainment System . . . . . . . . . . . . . . . . . . . . .341
Instrument Cluster . . . . . . . . . . . . . . . . . . . . . . . . .81
Instrument Panel Overview . . . . . . . . . . . . . . . . 4
Interior Rearview Mirrors . . . . . . . . . . . . . . . . . .18
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 1, 109
J
Jack Auxiliary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Jump Starting - North America . . . . . . . . . . . 297
K
Keyless Entry
Remote (RKE) System . . . . . . . . . . . . . . . . . . . . 9
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
L
Labeling, Tire Sidewall . . . . . . . . . . . . . . . . . . . . 271

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15274222) - 2022 - CRC - 11/2/21
Index 355
LampsDaytime Running (DRL) . . . . . . . . . . . . . . . . 103
Dome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Exterior Cargo . . . . . . . . . . . . . . . . . . . . . . . . . 105
Exterior Controls . . . . . . . . . . . . . . . . . . . . . . . 102
Exterior Lamps Off Reminder . . . . . . . . . . 103
Exterior Lighting Battery Saver . . . . . . . . 108
Malfunction Indicator (Check
Engine) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
On Reminder . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Lane Departure Warning (LDW) . . . . . . . . . . . 215
Lane Departure Warning Light . . . . . . . . . . . . 90
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . . . . . . 30
LATCH System Replacing Parts after a Crash . . . . . . . . . . . 64
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Illumination Control . . . . . . . . . . . . . . . . . . . 106
Lights Airbag Readiness . . . . . . . . . . . . . . . . . . . . . . . 86
Antilock Brake System (ABS)Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Brake System Warning . . . . . . . . . . . . . . . . . 88
Charging System . . . . . . . . . . . . . . . . . . . . . . . 87 Lights (cont'd)
Check Engine (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Door Ajar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Engine Oil Pressure . . . . . . . . . . . . . . . . . . . . . 92
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Four-Wheel-Drive . . . . . . . . . . . . . . . . . . . . . . . 89
Front Fog Lamp . . . . . . . . . . . . . . . . . . . . . . . . . 93
High-Beam On . . . . . . . . . . . . . . . . . . . . . . . . . . 93
High/Low Beam Changer . . . . . . . . . . . . . . 103
Hill Descent Control . . . . . . . . . . . . . . . . . . . . 90
Lane Departure Warning . . . . . . . . . . . . . . . . 90
Low Fuel Warning . . . . . . . . . . . . . . . . . . . . . . 92
Seat Belt Reminders . . . . . . . . . . . . . . . . . . . . 85
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
StabiliTrak OFF . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Tow/Haul Mode . . . . . . . . . . . . . . . . . . . . . . . . 90
Traction Control System (TCS)/StabiliTrak . . . . . . . . . . . . . . . . . . . . . . 91
Traction Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Limited-Slip Differential . . . . . . . . . . . . . . . . . . 205
Locking Front Axle . . . . . . . . . . . . . . . . . . . . . . . 206
Locking Rear Axle . . . . . . . . . . . . . . . . . . . . . . . . 205
Locks Automatic Door . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . 12 Locks (cont'd)
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Lockout Protection . . . . . . . . . . . . . . . . . . . . . . . 13
Power Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Low Fuel Warning Light . . . . . . . . . . . . . . . . . . 92
Lower Anchors and Tethers for Children (LATCH System) . . . . . . . . . . . . . . . . . 51
Lumbar Adjustment . . . . . . . . . . . . . . . . . . . . . . . 24 Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 326
Maintenance and Care Additional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320
Maintenance Schedule . . . . . . . . . . . . . . . . . . . .314 Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . 323
Malfunction Indicator Lamp . . . . . . . . . . . . . . . 87
Manual Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Manual Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Map Data Updates . . . . . . . . . . . . . . . . . . . . . . . .134
Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Media Avoiding Untrusted Devices . . . . . . . . . . . . . 119

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15274222) - 2022 - CRC - 11/2/21
360 Index
Vehicle (cont'd)Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Speed Messages . . . . . . . . . . . . . . . . . . . . . . . . 99
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300
Vehicle Ahead Indicator . . . . . . . . . . . . . . . . . . . 90
Vehicle Care Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
Vehicle Data Recording and Privacy . . . . . . 340
Vehicle Positioning . . . . . . . . . . . . . . . . . . . . . . . 133
Ventilation, Air . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Voice Recognition . . . . . . . . . . . . . . . . . . . . . . . . .134
W
Warning Brake System Light . . . . . . . . . . . . . . . . . . . . . 88
Caution and Danger . . . . . . . . . . . . . . . . . . . . . 2
Lane Departure (LDW) . . . . . . . . . . . . . . . . . 215
Warning Lights, Gauges, and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Warnings Hazard Flashers . . . . . . . . . . . . . . . . . . . . . . . . 104
Washer Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Wheels Alignment and Tire Balance . . . . . . . . . . . . 284
Different Size . . . . . . . . . . . . . . . . . . . . . . . . . . 283
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
When It Is Time for New Tires . . . . . . . . . . . .281 Where to Put the Restraint . . . . . . . . . . . . . . . 49
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Windshield Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Wiper/Washer . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Winter Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Winter Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
Wiper Blade Replacement . . . . . . . . . . . . . . . . 256
Wireless Charging . . . . . . . . . . . . . . . . . . . . . . . . 79
