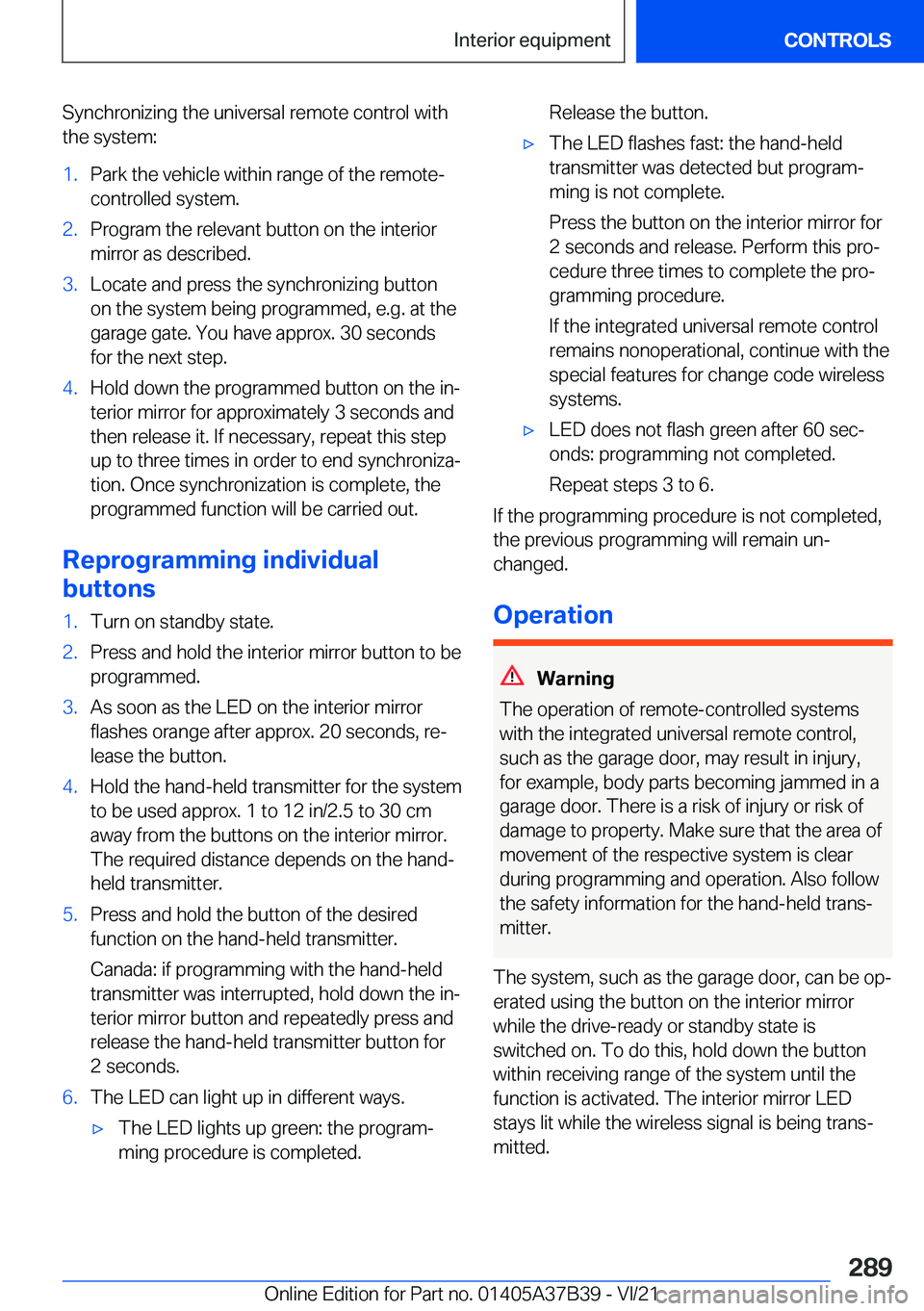

Synchronizing
the
universal
remote
control
with
the
system:1.Park
the
vehicle
within
range
of
the
remote-
controlled
system.2.Program
the
relevant
button
on
the
interior
mirror
as
described.3.Locate
and
press
the
synchronizing
button
on
the
system
being
programmed,
e.g.
at
the
garage
gate.
You
have
approx.
30
seconds for
the
next
step.4.Hold
down
the
programmed
button
on
the
in#jterior
mirror
for
approximately
3
seconds
andthen
release
it.
If
necessary,
repeat
this
step
up
to
three
times
in
order
to
end
synchroniza#j
tion.
Once
synchronization
is
complete,
the programmed
function
will
be
carried
out.
Reprogramming
individual
buttons
1.Turn
on
standby
state.2.Press
and
hold
the
interior
mirror
button
to
be programmed.3.As
soon
as
the
LED
on
the
interior
mirror
flashes
orange
after
approx.
20
seconds,
re#j
lease
the
button.4.Hold
the
hand-held
transmitter
for
the
system to
be
used
approx.
1
to
12
in/2.5
to
30
cmaway
from
the
buttons
on
the
interior
mirror.The
required
distance
depends
on
the
hand-held
transmitter.5.Press
and
hold
the
button
of
the
desired
function
on
the
hand-held
transmitter.
Canada:
if
programming
with
the
hand-held
transmitter
was
interrupted,
hold
down
the
in#j
terior
mirror
button
and
repeatedly
press
and
release
the
hand-held
transmitter
button
for
2
seconds.6.The
LED
can
light
up
in
different
ways.'xThe
LED
lights
up
green:
the
program#j
ming
procedure
is
completed.Release
the
button.'xThe
LED
flashes
fast:
the
hand-held
transmitter
was
detected
but
program#j
ming
is
not
complete.
Press
the
button
on
the
interior
mirror
for
2
seconds
and
release.
Perform
this
pro#j
cedure
three
times
to
complete
the
pro#j
gramming
procedure.
If
the
integrated
universal
remote
control remains
nonoperational,
continue
with
the
special
features
for
change
code
wireless
systems.'xLED
does
not
flash
green
after
60
sec#j
onds:
programming
not
completed.
Repeat
steps
3
to
6.
If
the
programming
procedure
is
not
completed, the
previous
programming
will
remain
un#j
changed.
Operation
Warning
The
operation
of
remote-controlled
systems with
the
integrated
universal
remote
control,
such
as
the
garage
door,
may
result
in
injury, for
example,
body
parts
becoming
jammed
in
agarage
door.
There
is
a
risk
of
injury
or
risk
ofdamage
to
property.
Make
sure
that
the
area
of
movement
of
the
respective
system
is
clear during
programming
and
operation.
Also
follow
the
safety
information
for
the
hand-held
trans#j
mitter.
The
system,
such
as
the
garage
door,
can
be
op#j
erated
using
the
button
on
the
interior
mirror while
the
drive-ready
or
standby
state
isswitched
on.
To
do
this,
hold
down
the
button
within
receiving
range
of
the
system
until
the
function
is
activated.
The
interior
mirror
LED
stays
lit
while
the
wireless
signal
is
being
trans#j mitted.
Seite
289*nterior
equipmentCONTROLS289
Online
Edition
for
Part
no.
01405A37B39
-
VI/21

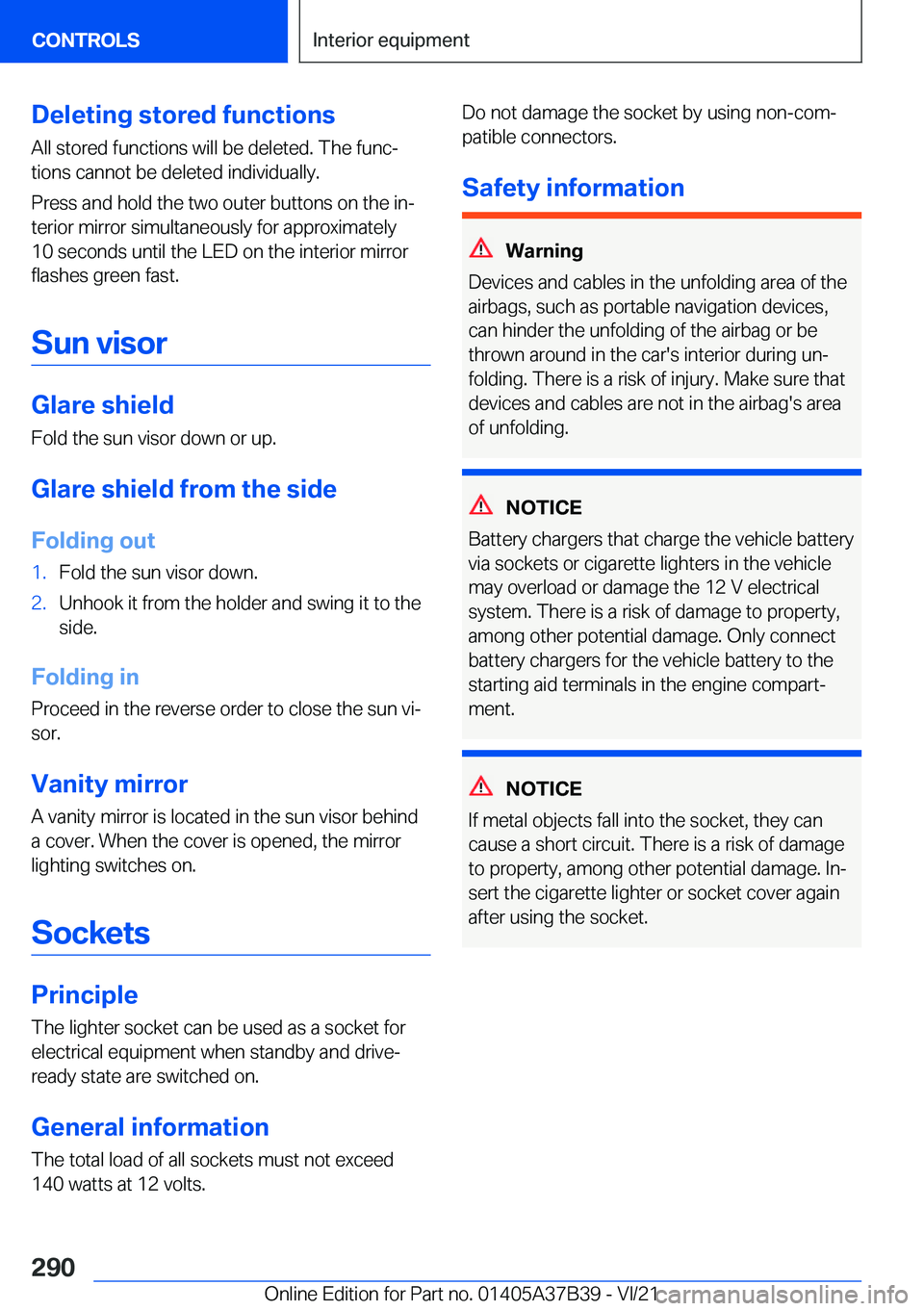

Deleting
stored
functions
All
stored
functions
will
be
deleted.
The
func#j
tions
cannot
be
deleted
individually.
Press
and
hold
the
two
outer
buttons
on
the
in#jterior
mirror
simultaneously
for
approximately
10
seconds
until
the
LED
on
the
interior
mirror flashes
green
fast.
Sun
visor
Glare
shield
Fold
the
sun
visor
down
or
up.
Glare
shield
from
the
side Folding
out
1.Fold
the
sun
visor
down.2.Unhook
it
from
the
holder
and
swing
it
to
theside.
Folding
in
Proceed
in
the
reverse
order
to
close
the
sun
vi#j sor.
Vanity
mirror
A
vanity
mirror
is
located
in
the
sun
visor
behind
a
cover.
When
the
cover
is
opened,
the
mirror
lighting
switches
on.
Sockets
Principle
The
lighter
socket
can
be
used
as
a
socket
for
electrical
equipment
when
standby
and
drive- ready
state
are
switched
on.
General
information
The
total
load
of
all
sockets
must
not
exceed
140
watts
at
12
volts.
Do
not
damage
the
socket
by
using
non-com#j patible
connectors.
Safety
information
Warning
Devices
and
cables
in
the
unfolding
area
of
the
airbags,
such
as
portable
navigation
devices,
can
hinder
the
unfolding
of
the
airbag
or
be
thrown
around
in
the
car's
interior
during
un#j
folding.
There
is
a
risk
of
injury.
Make
sure
that
devices
and
cables
are
not
in
the
airbag's
area
of
unfolding.
NOTICE
Battery
chargers
that
charge
the
vehicle
battery via
sockets
or
cigarette
lighters
in
the
vehicle may
overload
or
damage
the
12
V
electricalsystem.
There
is
a
risk
of
damage
to
property,among
other
potential
damage.
Only
connectbattery
chargers
for
the
vehicle
battery
to
the
starting
aid
terminals
in
the
engine
compart#j
ment.
NOTICE
If
metal
objects
fall
into
the
socket,
they
can
cause
a
short
circuit.
There
is
a
risk
of
damage to
property,
among
other
potential
damage.
In#jsert
the
cigarette
lighter
or
socket
cover
againafter
using
the
socket.
Seite
290CONTROLS*nterior
equipment290
Online
Edition
for
Part
no.
01405A37B39
-
VI/21

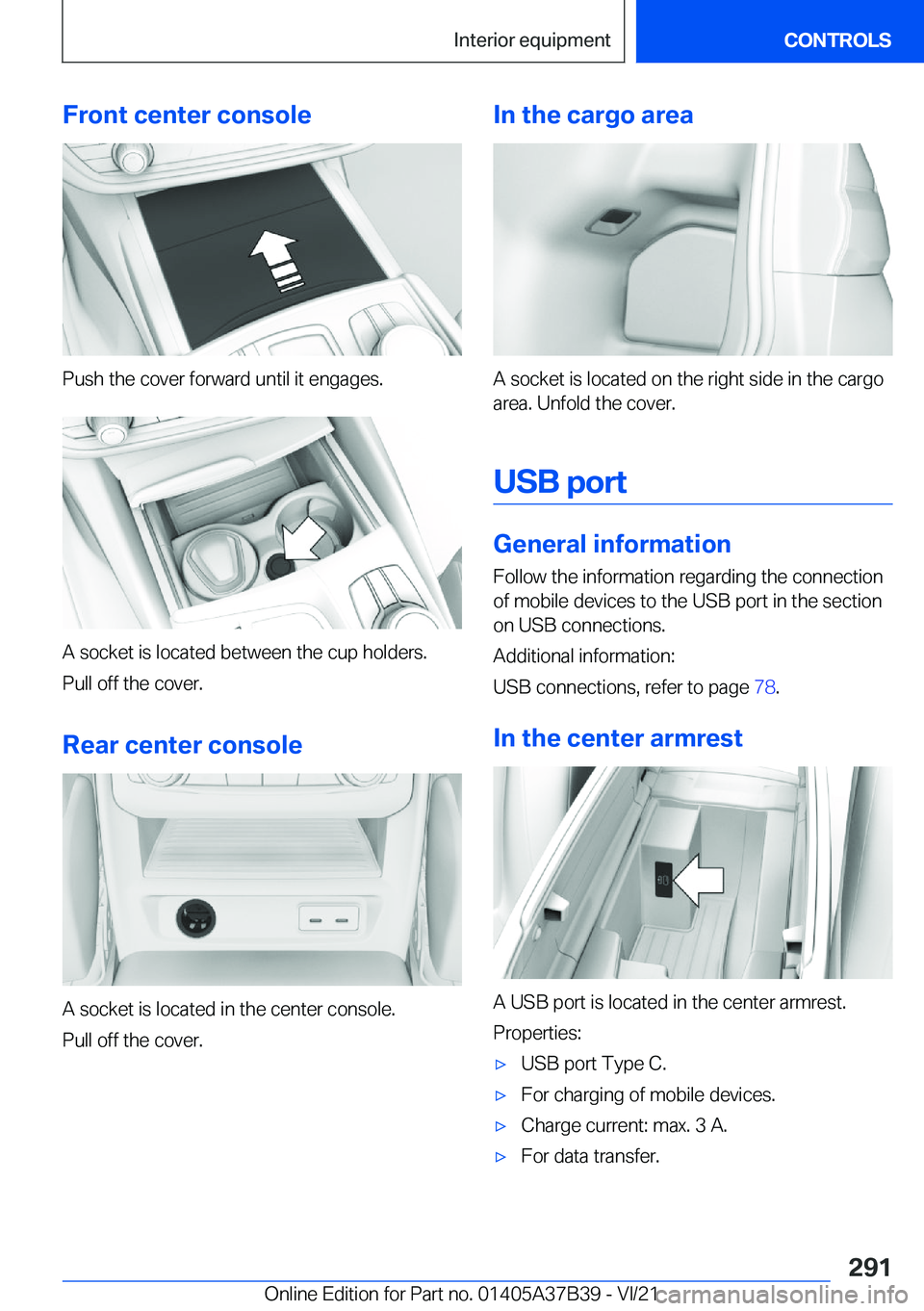

Front
center
console
Push
the
cover
forward
until
it
engages.
A
socket
is
located
between
the
cup
holders.Pull
off
the
cover.
Rear
center
console
A
socket
is
located
in
the
center
console.
Pull
off
the
cover.
In
the
cargo
area
A
socket
is
located
on
the
right
side
in
the
cargo area.
Unfold
the
cover.
USB
port
General
information Follow
the
information
regarding
the
connection
of
mobile
devices
to
the
USB
port
in
the
section on
USB
connections.
Additional
information:
USB
connections,
refer
to
page
78.
In
the
center
armrest
A
USB
port
is
located
in
the
center
armrest. Properties:
'xUSB
port
Type
C.'xFor
charging
of
mobile
devices.'xCharge
current:
max.
3
A.'xFor
data
transfer.Seite
291*nterior
equipmentCONTROLS291
Online
Edition
for
Part
no.
01405A37B39
-
VI/21

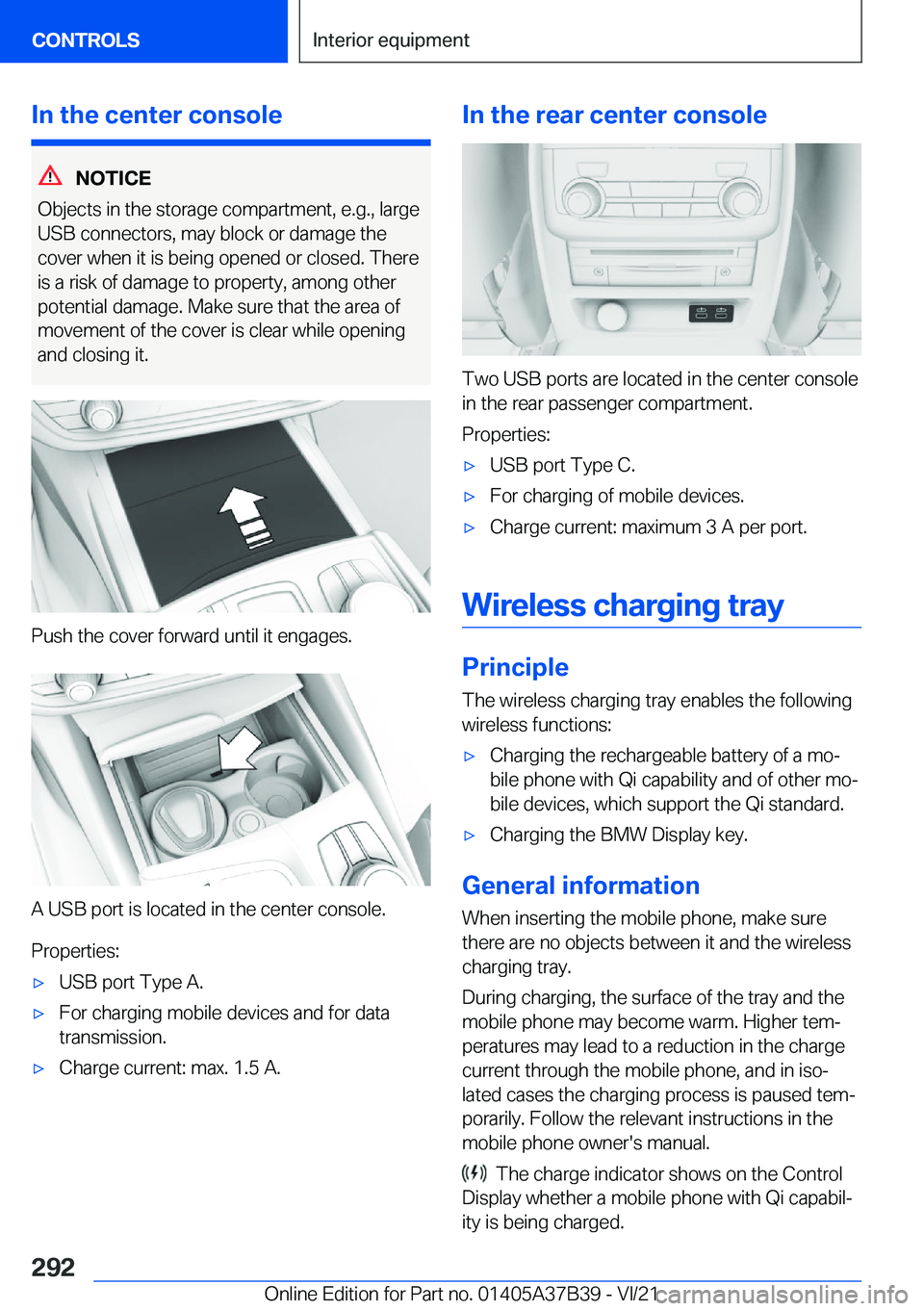

In
the
center
console
NOTICE
Objects
in
the
storage
compartment,
e.g.,
large USB
connectors,
may
block
or
damage
the
cover
when
it
is
being
opened
or
closed.
There
is
a
risk
of
damage
to
property,
among
other
potential
damage.
Make
sure
that
the
area
of
movement
of
the
cover
is
clear
while
opening
and
closing
it.
Push
the
cover
forward
until
it
engages.
A
USB
port
is
located
in
the
center
console.
Properties:
'xUSB
port
Type
A.'xFor
charging
mobile
devices
and
for
data transmission.'xCharge
current:
max.
1.5
A.In
the
rear
center
console
Two
USB
ports
are
located
in
the
center
consolein
the
rear
passenger
compartment.
Properties:
'xUSB
port
Type
C.'xFor
charging
of
mobile
devices.'xCharge
current:
maximum
3
A
per
port.
Wireless
charging
tray
Principle
The
wireless
charging
tray
enables
the
following
wireless
functions:
'xCharging
the
rechargeable
battery
of
a
mo#j
bile
phone
with
Qi
capability
and
of
other
mo#j
bile
devices,
which
support
the
Qi
standard.'xCharging
the
BMW
Display
key.
General
information
When
inserting
the
mobile
phone,
make
surethere
are
no
objects
between
it
and
the
wireless
charging
tray.
During
charging,
the
surface
of
the
tray
and
the mobile
phone
may
become
warm.
Higher
tem#j peratures
may
lead
to
a
reduction
in
the
chargecurrent
through
the
mobile
phone,
and
in
iso#jlated
cases
the
charging
process
is
paused
tem#jporarily.
Follow
the
relevant
instructions
in
the
mobile
phone
owner's
manual.


The
charge
indicator
shows
on
the
Control
Display
whether
a
mobile
phone
with
Qi
capabil#j
ity
is
being
charged.
Seite
292CONTROLS*nterior
equipment292
Online
Edition
for
Part
no.
01405A37B39
-
VI/21

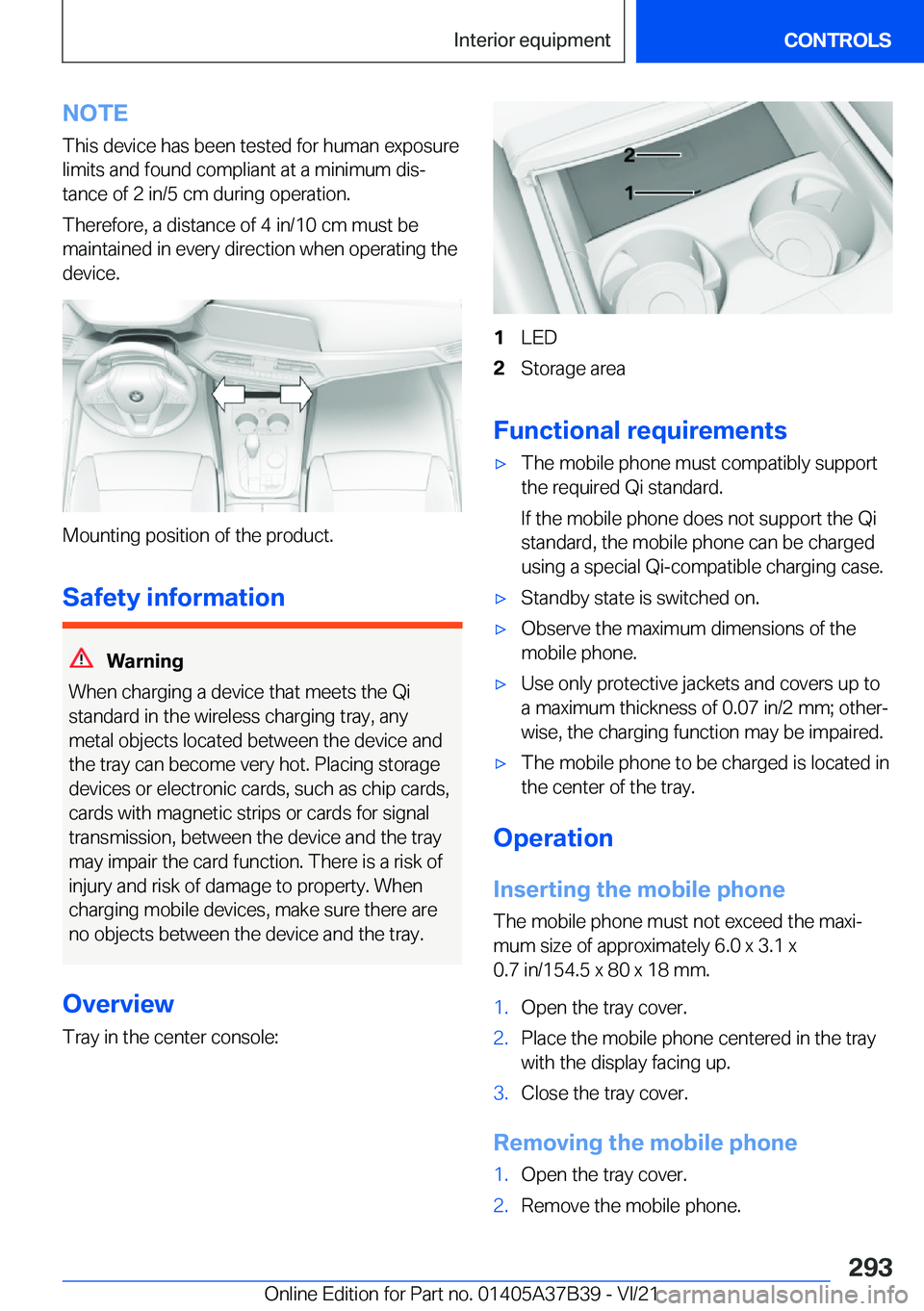

NOTEThis
device
has
been
tested
for
human
exposure
limits
and
found
compliant
at
a
minimum
dis#j tance
of
2
in/5
cm
during
operation.
Therefore,
a
distance
of
4
in/10
cm
must
be
maintained
in
every
direction
when
operating
the device.
Mounting
position
of
the
product.
Safety
information
Warning
When
charging
a
device
that
meets
the
Qi standard
in
the
wireless
charging
tray,
any
metal
objects
located
between
the
device
and
the
tray
can
become
very
hot.
Placing
storage
devices
or
electronic
cards,
such
as
chip
cards,
cards
with
magnetic
strips
or
cards
for
signal
transmission,
between
the
device
and
the
tray may
impair
the
card
function.
There
is
a
risk
of
injury
and
risk
of
damage
to
property.
When
charging
mobile
devices,
make
sure
there
are
no
objects
between
the
device
and
the
tray.
Overview
Tray
in
the
center
console:
1LED2Storage
area
Functional
requirements
'xThe
mobile
phone
must
compatibly
support
the
required
Qi
standard.
If
the
mobile
phone
does
not
support
the
Qi
standard,
the
mobile
phone
can
be
charged
using
a
special
Qi-compatible
charging
case.'xStandby
state
is
switched
on.'xObserve
the
maximum
dimensions
of
the
mobile
phone.'xUse
only
protective
jackets
and
covers
up
to
a
maximum
thickness
of
0.07
in/2
mm;
other#j wise,
the
charging
function
may
be
impaired.'xThe
mobile
phone
to
be
charged
is
located
in
the
center
of
the
tray.
Operation
Inserting
the
mobile
phone The
mobile
phone
must
not
exceed
the
maxi#j
mum
size
of
approximately
6.0
x
3.1
x
0.7
in/154.5
x
80
x
18
mm.
1.Open
the
tray
cover.2.Place
the
mobile
phone
centered
in
the
tray
with
the
display
facing
up.3.Close
the
tray
cover.
Removing
the
mobile
phone
1.Open
the
tray
cover.2.Remove
the
mobile
phone.Seite
293*nterior
equipmentCONTROLS293
Online
Edition
for
Part
no.
01405A37B39
-
VI/21

LED
displaysColorMeaningBlueThe
mobile
phone
is
charging.
The
blue
LED
stays
illuminated
once
the
inserted
mobile
phone
with
Qi
ca#j
pability
is
fully
charged.OrangeThe
mobile
phone
is
not
charging.
Temperature
on
the
mobile
phone
possibly
too
high
or
foreign
object
in
charging
tray.RedThe
mobile
phone
is
not
charging.
Contact
a
dealer#ss
service
center
or another
qualified
service
center
or
re#j
pair
shop.
Forgotten
warning
General
information
If
the
vehicle
is
equipped
with
the
forgotten
warning
function,
a
warning
can
be
output
if
a
mobile
phone
with
Qi
capability
was
forgotten
in
the
wireless
charging
tray
when
leaving
the
vehi#j
cle.
The
forgotten
warning
is
displayed
in
the
instru#j
ment
cluster.
Activating
1."CAR"2."Settings"3."General
settings"4."Wireless
charging
tray"5.Activate
reminder.
System
limits At
high
temperatures
on
the
mobile
phone
or
inthe
vehicle,
the
charging
functions
of
the
mobile
phone
may
be
limited
and
some
functions
may no
longer
work.
LTE-Compensator
-
Information
and
User
Manual
Your
car
is
equipped
with
a
wireless
charging
tray
(WCA)
to
charge
your
mobile
phone
and connect
it
to
the
mobile
network.
To
ensure
thebest
possible
connection
a
signal
booster
(LTE-Compensator)
is
used
in
conjunction
with
the
WCA.
The
following
paragraphs
refer
to
this booster:
This
is
a
CONSUMER
device.
BEFORE
USE,
you
MUST
REGISTER
THIS
DE#j VICE
with
your
wireless
provider
and
have
your
provider's
consent.
Most
wireless
providers
con#j
sent
to
the
use
of
Compensators.
Some
provid#j
ers
may
not
consent
to
the
use
of
this
device
on
their
network.
If
you
are
unsure,
contact
your
provider.
You
MUST
operate
this
device
with
ap#j
proved
antennas
and
cables
as
specified
by
the
manufacturer.
Antennas
MUST
be
installed
at least
20
cm
(8
inches)
from
any
person.
You
MUST
cease
operating
this
device
immediately
if
requested
by
the
FCC
or
a
licensed
wireless
service
provider.
Warning
E911
location
informa#j
tion
may
not
be
provided
or
may
be
inaccurate
for
calls
served
by
using
this
device.
Please
observe
additionally
the
following
infor#j
mation'xSprint
Nextel
will
allow
consumers
to
register their
signal
boosters
by
calling
their
toll-freenumber.'xT-Mobile
online
registration
link:
(www.T-Mo#jbile.com/BoosterRegistration);
(https://saqat.t-
mobile.com/sites/SignalBooster#).'xVerizon#ss
online
registration
link:
(http:// www.verizonwireless.com/wcms/consumer/
register-signal-booster.html).'xAT&T
online
registration
link
(https://
securec45.securewebsession.com/attsignal#j
booster.com/).'xU.S.Cellular
online
registration
link
(http://
www.uscellular.com/uscellular/support/fcc- booster-registration.jsp).Seite
294CONTROLS*nterior
equipment294
Online
Edition
for
Part
no.
01405A37B39
-
VI/21

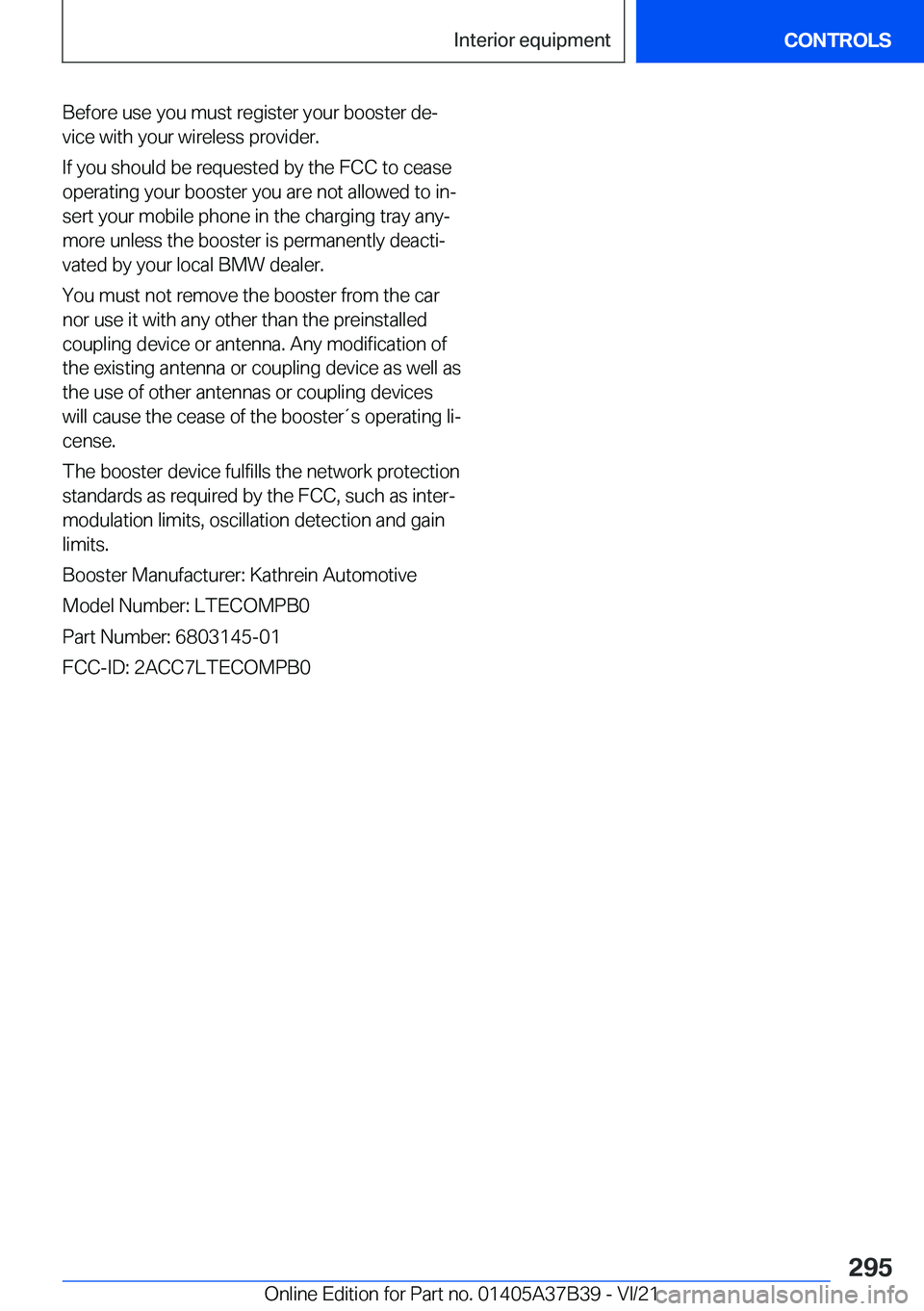

Before
use
you
must
register
your
booster
de#jvice
with
your
wireless
provider.
If
you
should
be
requested
by
the
FCC
to
cease operating
your
booster
you
are
not
allowed
to
in#jsert
your
mobile
phone
in
the
charging
tray
any#j
more
unless
the
booster
is
permanently
deacti#j
vated
by
your
local
BMW
dealer.
You
must
not
remove
the
booster
from
the
car nor
use
it
with
any
other
than
the
preinstalled
coupling
device
or
antenna.
Any
modification
of
the
existing
antenna
or
coupling
device
as
well
as
the
use
of
other
antennas
or
coupling
devices
will
cause
the
cease
of
the
boosterts
operating
li#j
cense.
The
booster
device
fulfills
the
network
protection standards
as
required
by
the
FCC,
such
as
inter#j modulation
limits,
oscillation
detection
and
gainlimits.
Booster
Manufacturer:
Kathrein
Automotive Model
Number:
LTECOMPB0
Part
Number:
6803145-01
FCC-ID:
2ACC7LTECOMPB0Seite
295*nterior
equipmentCONTROLS295
Online
Edition
for
Part
no.
01405A37B39
-
VI/21

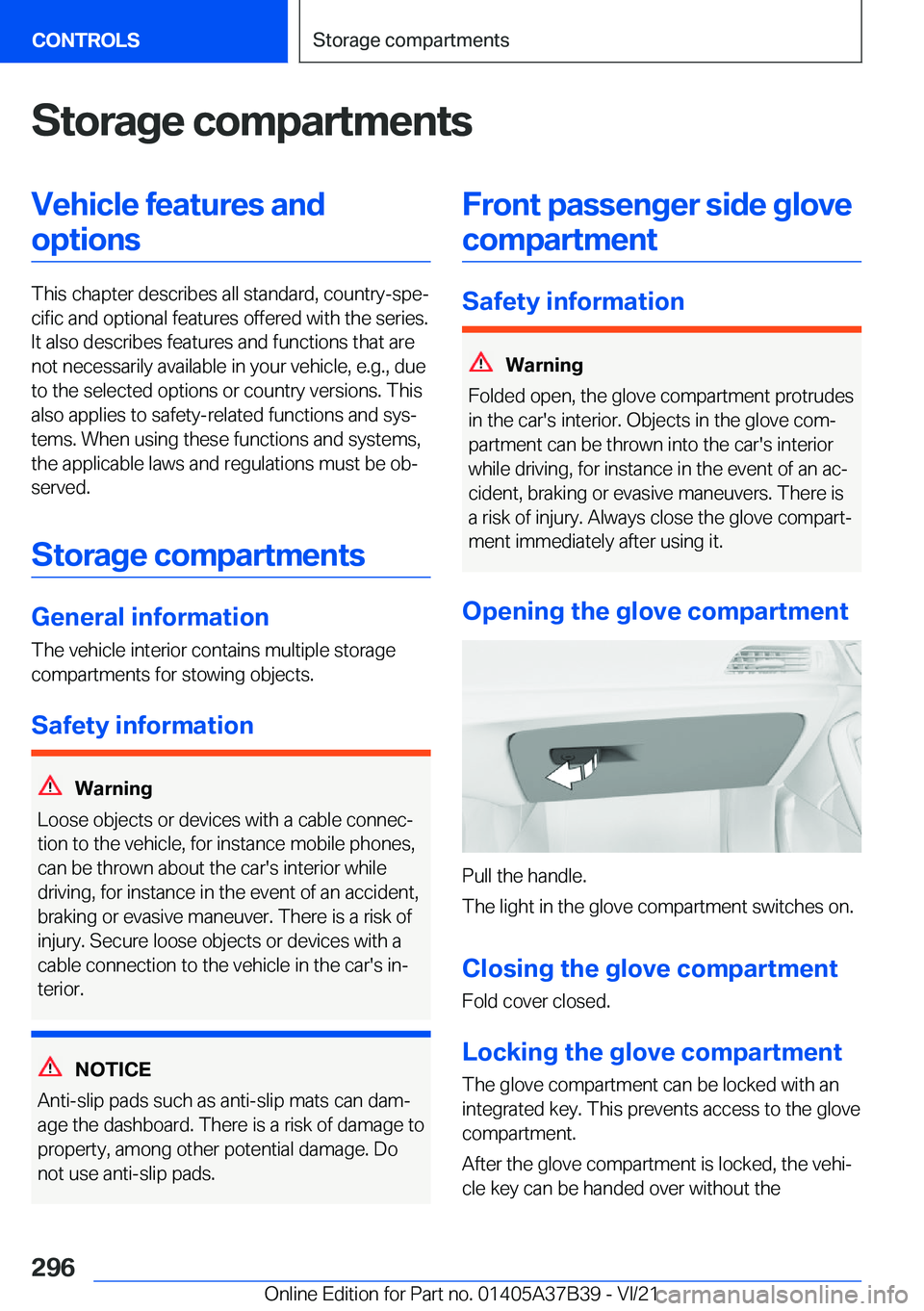

Storage
compartmentsVehicle
features
andoptions
This
chapter
describes
all
standard,
country-spe#jcific
and
optional
features
offered
with
the
series. It
also
describes
features
and
functions
that
are
not
necessarily
available
in
your
vehicle,
e.g.,
due to
the
selected
options
or
country
versions.
Thisalso
applies
to
safety-related
functions
and
sys#j
tems.
When
using
these
functions
and
systems,
the
applicable
laws
and
regulations
must
be
ob#j
served.
Storage
compartments
General
information The
vehicle
interior
contains
multiple
storage
compartments
for
stowing
objects.
Safety
information
Warning
Loose
objects
or
devices
with
a
cable
connec#j
tion
to
the
vehicle,
for
instance
mobile
phones, can
be
thrown
about
the
car's
interior
whiledriving,
for
instance
in
the
event
of
an
accident,braking
or
evasive
maneuver.
There
is
a
risk
of
injury.
Secure
loose
objects
or
devices
with
a cable
connection
to
the
vehicle
in
the
car's
in#j
terior.
NOTICE
Anti-slip
pads
such
as
anti-slip
mats
can
dam#j
age
the
dashboard.
There
is
a
risk
of
damage
to property,
among
other
potential
damage.
Do
not
use
anti-slip
pads.
Front
passenger
side
glove
compartment
Safety
information
Warning
Folded
open,
the
glove
compartment
protrudes
in
the
car's
interior.
Objects
in
the
glove
com#j
partment
can
be
thrown
into
the
car's
interior while
driving,
for
instance
in
the
event
of
an
ac#j
cident,
braking
or
evasive
maneuvers.
There
is a
risk
of
injury.
Always
close
the
glove
compart#jment
immediately
after
using
it.
Opening
the
glove
compartment
Pull
the
handle.
The
light
in
the
glove
compartment
switches
on.
Closing
the
glove
compartment
Fold
cover
closed.
Locking
the
glove
compartment The
glove
compartment
can
be
locked
with
anintegrated
key.
This
prevents
access
to
the
glovecompartment.
After
the
glove
compartment
is
locked,
the
vehi#j cle
key
can
be
handed
over
without
the
Seite
296CONTROLSStorage
compartments296
Online
Edition
for
Part
no.
01405A37B39
-
VI/21
