2022 ACURA TLX Owners Manual

623
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
■Circuit protected and fuse rating
■Driver’s Side Interior Fuse Box
Fuse Label
Fuse Box
Circuit ProtectedAmps
1−−
2L SIDE DOOR UNLOCK10 A
3R SIDE DOOR UNLOCK10 A
4ACC10 A
5−−
6SRS10 A
7−−
8R H/L HI10 A
9SMART10 A
10POWER DISTRIBUTION
MODULE10 A
11L SIDE DOOR LOCK10 A
12DR DOOR LOCK(10 A)
13R SIDE DOOR LOCK10 A
14A/C10 A
15DRL10 A
16CTR ACC SOCKET20 A
17HAZARD10 A
18L H/L HI10 A
19HORN15 A
20IMG10 A
21DR DOOR UNLOCK(10 A)
22−−
23−−
24−−
25−−
26−−
27−−
28−−
29FUSE BOX ENGINE COMPARTMENT20 A
30−−
Circuit ProtectedAmps
31−−
32RADIO15 A
33−−
34−−
35ACG10 A
36METER10 A
37OPTION10 A
38MOONROOF20 A
39−−
40−−
41−−
42HEATED STEERING WHEEL*(10 A)
43−−
44−−
45TCU10 A
46SRS10 A
47−−
48SBW10 A
49DOOR LOCK20 A
50FRONT ACC SOCKET20 A
51REAR R P/W20 A
52RR L P/W20 A
53AS P/W20 A
54DRIVER P/W20 A
55−−
Circuit ProtectedAmps
* Not available on all models
22 ACURA TLX-31TGV6100.book 623 \b

624
uuFuses uFuse Locations
Handling the Unexpected
Located on the left side of cargo area.
Remove the cover by pushing on the tab.
Fuse locations are shown on the cover.
Locate the fuse in question by the fuse
number and box cover number.
■Rear Fuse Box
Fuse BoxCover
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1PASSENGER P/SEAT 230 A
2BMS10 A
3ACTIVE EXHAUST VALVE*(15 A)
44WD*(10 A)
5PASSENGER P/SEAT 130 A
6PASSENGER P/SEAT 330 A
7ACTIVE DAMPER SYSTEM*(15 A)
8−−
9−−
10−−
11−−
12FUEL PUMP30 A
13−−
14REAR DEFROSTER40 A
154WD*(30 A)
16−−
17IG MAIN 230 A
18−−
19−−
* Not available on all models
22 ACURA TLX-31TGV6100.book 624 \b

625
uuFuses uFuse Locations
Handling the Unexpected
Located under the trunk room near the +
terminal on the battery.
■Trunk Room Fuse Box
Positive Battery
Terminal Cover
Pull up on the trunk floor lid strap, and
remove the tool case.
2 Getting Ready to Temporarily Repair
the Flat Tire P. 582
Pull up on the trunk floor lid strap, unscrew
the wing bolt, and remove the tool case.
Then, remove the compact spare tire and
battery cover.
2Checking the Battery P. 564
Remove the cover on the + terminal (as
shown).
Replacement of this fuse should be done by
a dealer.
Models without optional spare tire
Models with optional spare tire
All models
■Circuit protected and fuse rating
Circuit ProtectedAmps
aBattery450 A
b−150 A
cJump Start Box200 A
d−80 A
eRear Box 170 A
fFuse Box 260 A
gRear Box 270 A
22 ACURA TLX-31TGV6100.book 625 \b

626
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlight s and all accessories
off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.
5. Check the fuses on the battery in the trunk
room.
u If the fuse is blown, have it replaced by a
dealer.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label. 2 Fuse Locations P. 620
Replace fuse with a spare fuse of the same specified
amperage.
There is a fuse puller on the back of the engine
compartment fuse box cover type A.
Combined Fuse Blown Fuse
Fuse Puller
Blown Fuse
22 ACURA TLX-31TGV6100.book 626 \b

627
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flatbed equipment
The operator loads your vehicle on the back of a truck.
This is the only way you can safely transport your vehicle.
Any other towing method will dama ge the vehicle's drive system.
■Flatbed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flatbed equipment.
2 Parking Brake P. 485
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
2WD models
AWD models
2WD models
22 ACURA TLX-31TGV6100.book 627 \b

628
Handling the Unexpected
If You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the trunk.
2. Pull the release cord towards you.
u The release cord unlocks the fuel fill door
when it is pulled.
3. Open the fuel fill door.
2 How to Refuel P. 516
■What to Do If Unable to Unlock the Fuel Fill Door1If You Cannot Unlock the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Release Cord
22 ACURA TLX-31TGV6100.book 628 \b

629
Handling the Unexpected

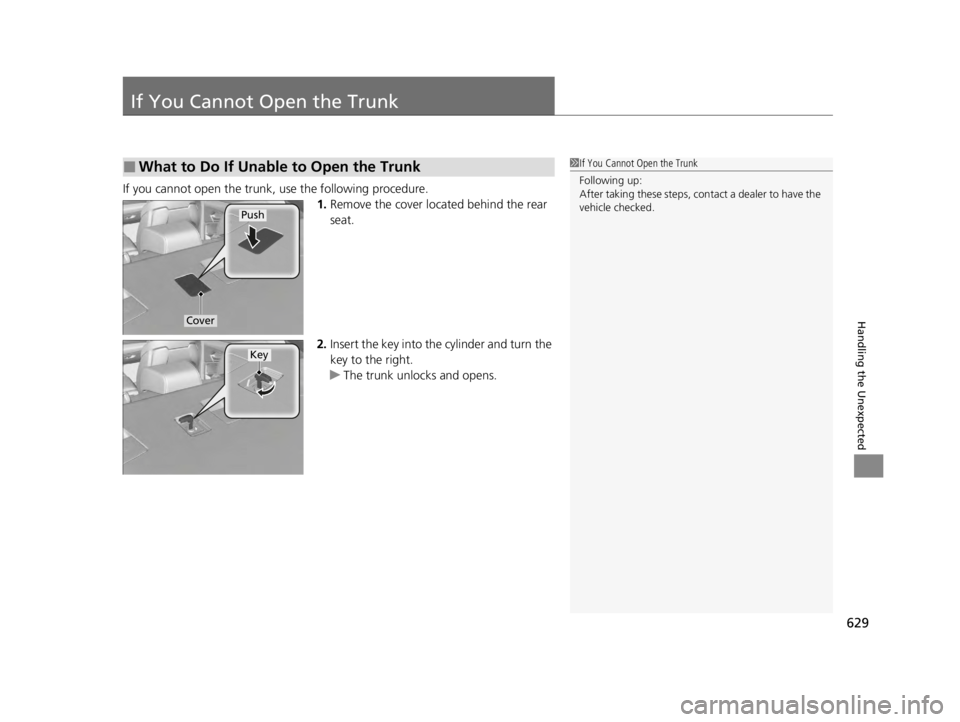

If You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure.1.Remove the cover located behind the rear
seat.
2. Insert the key into the cylinder and turn the
key to the right.
u The trunk unlocks and opens.
■What to Do If Unable to Open the Trunk1If You Cannot Open the Trunk
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
Push
Cover
Key
22 ACURA TLX-31TGV6100.book 629 \b

630
Handling the Unexpected
Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.1.Turn off the engine.
2. Press on the edge of the fuel fill door to
make it pop up slightly.
u The fuel fill door opens.
2 How to Refuel P. 516
3.Take the funnel out of the tool case in the
trunk.
2 Types of Tools P. 580
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel systemM
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuelM
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.Funnel
22 ACURA TLX-31TGV6100.book 630 \b
