2022 ACURA RDX Owners Manual

79
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 80
Multi-Information Display Warning and Information Messages .................... 107
Gauges and Displays Gauges ............................................ 136
Multi-Information Display ................ 137
Head-Up Display
*............................ 148
* Not available on all models
22 ACURA RDX-31TJB6300.book 79 ページ ２０２１年８月２日　月曜日　午前１１時０分

80
Instrument Panel
Indicators
M (sequential mode)
Indicator/Gear
Selection Indicator P. 87
Parking Brake and
Brake System
Indicator (Red)
Parking Brake and
Brake System
Indicator (Amber)
U.S.
Canada
U.S.
Canada Automatic Brake
Hold System Indicator
Automatic Brake Hold
IndicatorU.S.
Canada
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being perf ormed. They go off a few seconds later or after the engine
has started. If an indicator does not come on or turn off, th ere may be a malfunction in the corresponding system. To resolve the issue, follow the instructions in the
owner's manual.
 P. 81*1
Malfunction Indicator
Lamp
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Seat Belt Reminder
Indicator
Low Fuel Indicator
(Amber)
Vehicle Stability AssistTM
(VSA®) System Indicator
Vehicle Stability Assist
TM
(VSA®) OFF Indicator
Supplemental Restraint
System Indicator
Auto High-Beam
Indicator
Low Tire Pressure/TPMS
Indicator Electric Power Steering
(EPS) System Indicator
Turn Signal and Hazard
Warning Indicators
Lights On Indicator High Beam Indicator
Fog Light Indicator*
Maintenance Minder
Indicator
System Message Indicator

P. 83
 P. 85
 P. 85
 P. 86
 P. 87*1 *1

P. 97
*1
*1
Gear Position Indicator P. 87
Transmission System
Indicator P. 88
 P. 93
 P. 94 
P. 94
 P. 95
 P. 98

P. 96
*1
*1
*1
 P. 96
*1 P. 95
 P. 98
*1
 P. 98
 P. 98
 P. 101

P. 98
Immobilizer System
Indicator P. 99
Security System Alarm
Indicator  P. 99
 P. 100
*1
*1 *1
Super Handling-All Wheel
DriveTM ( SH-AWD ®)
System Indicator* P. 101*1
Cruise Mode Indicator
(White/Green) P. 101
Auto Idle Stop Suspend
Indicator
Auto Idle Stop System
Indicator (Amber)
Auto Idle Stop Indicator
(Green) P. 90
 P. 90
 P. 90
Adaptive Cruise Control
(ACC) with Low Speed
Follow Indicator (Amber)
Auto Idle Stop OFF
Indicator  P. 90
 P. 102
 P. 102
 P. 102
 P. 102
 P. 103
 P. 106
Adaptive Cruise Control
(ACC) with Low Speed
Follow Indicator (White/
Green)
Lane Keeping Assist System
(LKAS) Indicator (Amber)
Lane Keeping Assist System
(LKAS) Indicator (White/
Green)
Safety Support Indicator
(Amber)
Safety Support Indicator
(Green/Gray)
*1
*1
*1
* Not available on all models
22 ACURA RDX-31TJB6300.book 80 ページ ２０２１年８月２日　月曜日　午前１１時０分

81
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System
Indicator (Red)
●Comes on when the parking brake
is applied, and goes off when it is
released.●The beeper sounds and the indicator
comes on if you drive with the parking
brake applied.
●Comes on for about 30 seconds when you
apply the electric parking brake while the
power mode is in ACCESSORY or VEHICLE
OFF, then goes off.
●Stays on for about 30 seconds when you
set the power mode to VEHICLE OFF while
the electric parking brake is applied, then
goes off.
•Comes on if there is a problem with
the brake system.•Comes on along with the Parking
Brake and Brake System Indicator
(amber) - Immediately stop in a safe
place. Contact a dealer for repair. The
brake pedal becomes harder to operate.
Depress the pedal further than you
normally do.
2 If the Brake System Indicator (Red)
Comes On or Blinks at the Same Time
When the Brake System Indicator
(Amber) Comes On P. 671
•Comes on along with the ABS
indicator - Have your vehicle checked by
a dealer.
2 If the Brake System Indicator (Red)
Comes On or Blinks P. 669
U.S.
Canada
(Red)
22 ACURA RDX-31TJB6300.book 81 ページ ２０２１年８月２日　月曜日　午前１１時０分

82
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System
Indicator (Red)
•Comes on if there is a problem with
the brake system.• Blinks and the Parking Brake and
Brake System Indicator (amber) comes
on at the same time - There is a
problem with the electric parking brake
system. The parking brake may not be set.
Avoid using the parking brake and have
your vehicle checked by a dealer
immediately.
2 If the Brake System Indicator (Red)
Comes On or Blinks at the Same Time
When the Brake System Indicator
(Amber) Comes On P. 671
●Comes on when the brake fluid
level is low.●Comes on while driving - Make sure the
parking brake is released. Check the brake
fluid level.
2 What to do when the indicator
comes on while driving P. 669
U.S.
Canada
(Red)
22 ACURA RDX-31TJB6300.book 82 ページ ２０２１年８月２日　月曜日　午前１１時０分

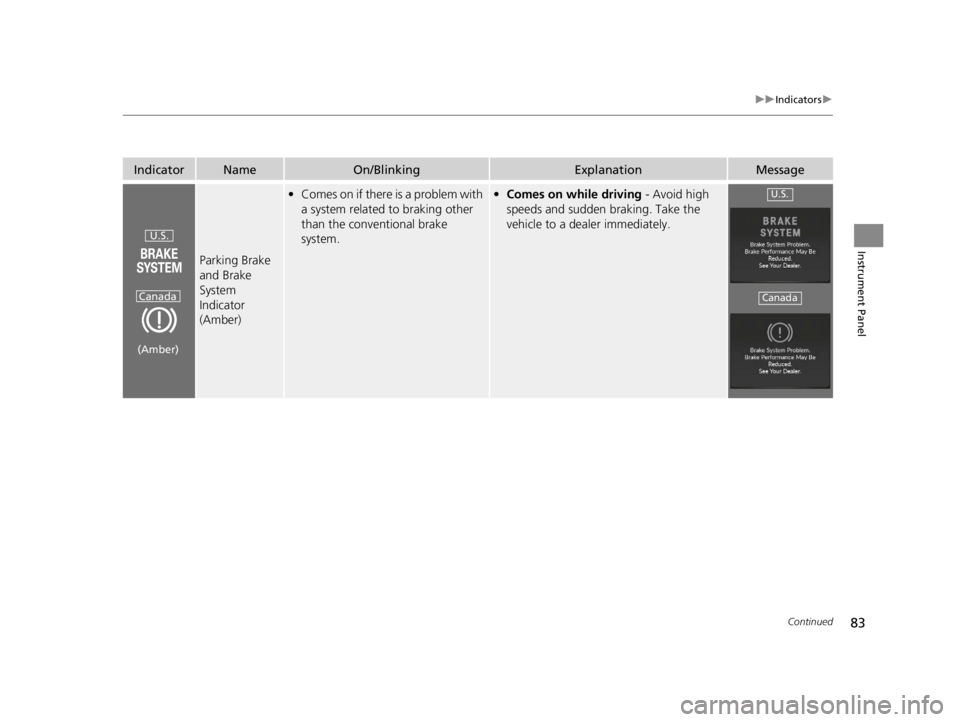

83
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System
Indicator
(Amber)
•Comes on if there is a problem with
a system related to braking other
than the conventional brake
system.•Comes on while driving - Avoid high
speeds and sudden braking. Take the
vehicle to a dealer immediately.
U.S.
Canada
(Amber)
U.S.
Canada
22 ACURA RDX-31TJB6300.book 83 ページ ２０２１年８月２日　月曜日　午前１１時０分

84
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System
Indicator
(Amber)
●Comes on if there is a problem with
the electric parking brake system
and/or the automatic brake hold
system.●Stays on constantly - Avoid using the
parking brake and have your vehicle
checked by a dealer immediately.
U.S.
Canada
(Amber)
U.S.
Canada
22 ACURA RDX-31TJB6300.book 84 ページ ２０２１年８月２日　月曜日　午前１１時０分

85
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System
Indicator
(Amber)
●Comes on if there is a problem with
the radar sensor.
●Indicator may come on temporarily
when the Maximum Load Limit is
exceeded.
●Make sure the total load is within the
Maximum Load Limit.
2Maximum Load Limit P. 433●Stays on constantly - Have your vehicle
checked by a dealer.
—
Automatic
Brake Hold
System
Indicator
●Comes on when the automatic
brake hold system is on.
2 Automatic Brake Hold P. 550
Automatic
Brake Hold
Indicator
●Comes on when the automatic
brake hold is activated.
2Automatic Brake Hold P. 550—
U.S.
Canada
(Amber)
U.S.
Canada
22 ACURA RDX-31TJB6300.book 85 ページ ２０２１年８月２日　月曜日　午前１１時０分

86
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Malfunction
Indicator Lamp
•After you have set the power mode
to ON, the vehicle performs system
checks. However, if the readiness
codes have not been set by that
time, this indicator will blink five
times and then go off.• Readiness codes are part of the on-board
diagnostics for the emissions control
systems.
2 Testing of Readiness Codes P. 691
●Comes on if there is a problem with
the emissions control systems.
●Blinks when a misfire in the engine’s
cylinders is detected.
2 If the Malfunction Indicator Lamp
Comes On or Blinks P. 668
22 ACURA RDX-31TJB6300.book 86 ページ ２０２１年８月２日　月曜日　午前１１時０分
