2021 YAMAHA YXZ1000R Engine

FOR YOUR SAFETY –
PRE-OPERATION CHECKS .................... 6-1Front and rear brakes ........................... 6-3
Clutch ................................................... 6-3
Fuel ....................................................... 6-4
Engine oil .............................................. 6-6
Transmission ........................................ 6-6
Coolant ................................................. 6-6
Final gear .............................................. 6-6
Differential gear .................................... 6-6
Accelerator pedal ................................. 6-7
Seat belts ............................................. 6-7
Passenger handhold ............................ 6-7
Steering ................................................ 6-7
Shift lever.............................................. 6-8
Fittings and fasteners ........................... 6-8
Instruments, lights and switches .......... 6-8
Control cables ...................................... 6-8
Tires ...................................................... 6-8
OPERATION ............................................ 7-1 Engine break-in .................................... 7-1
Starting the engine ............................... 7-2 Shift lever operation and reverse
driving .................................................7-3
Selecting the drive mode ......................7-7
Parking ..................................................7-9
Loading .................................................7-9
BASIC GUIDE FOR SAFE USE ...............8-1 KNOW YOUR VEHICLE ........................8-1
LEARNING TO OPERATE YOUR VEHICLE ...........................................8-12
PERIODIC MAINTENANCE AND
ADJUSTMENT .........................................9-1 Owner’s Manual and tool kit .................9-2
Maintenance charts ..............................9-4
Hood ...................................................9-10
Panels .................................................9-10
Engine oil and oil filter.........................9-16
Why Yamalube....................................9-27
Transmission oil ..................................9-27
Final gear oil .......................................9-30
Differential gear oil ..............................9-32
Coolant ...............................................9-34UB5J7CE0.book Page 2 Thursday, November 26, 2020 1:37 PM

2-7
2
WARNING
AVERTISSEMENT
Moving parts can crush
and cut.
Do not operate engine
with guard removed.
2HC-77762-00
Les pièces mobiles
peuvent entrainer des
coupures et des blessures
par écrasement.
Ne pas faire fonctionner le
moteur si le carter de
protection est déposé.
E10
E5
B4F-F817K-00
11 910UB5J7CE0.book Page 7 Thursday, November 26, 2020 1:37 PM

3-6
3
Do not operate the vehicle in fast-flowing water or water deeper than 40 cm (16 in). If you must
cross shallow, slow-moving water, choose your path carefully to avoid sharp drop-offs, large
rocks, or slippery surfaces. Operating this vehi cle through deep or fast-flowing water can lead
to loss of control or overturn. To reduce your risk of drowning or other injuries, use care when
crossing through water.
 When loaded with cargo:
• Drive more slowly than normal and allow more room to stop.
• Avoid hills and rough terrain. Use caution when carrying a load up or downhill.
Avoid carbon monoxide poisoning
All engine exhaust contains carbon monoxide, a deadly gas. Breathing carbon monoxide can
cause headaches, dizziness, drowsiness, nausea, confusion, and eventually death.
Carbon monoxide is a colorless, odorless, tastel ess gas which may be present even if you do not
see or smell any engine exhaust. Deadly levels of carbon monoxide can collect rapidly and you
can quickly be overcome and unable to save yourself. Also, deadly levels of carbon monoxide
can linger for hours or days in enclosed or poorly-ventilated areas. If you experience any symp-
toms of carbon monoxide poisoning, leave the area immediately, get fresh air, and SEEK MED-
ICAL TREATMENT.
 Do not run engine indoors. Even if you try to ventilate engine exhaust with fans or open win-
dows and doors, carbon monoxide can rapidly reach dangerous levels.
 Do not run engine in poorly ventilated or part ially enclosed areas such as barns, garages, or
carports.UB5J7CE0.book Page 6 Thursday, November 26, 2020 1:37 PM

3-7
3
Do not run engine outdoors where engine exhaust can be drawn into a building through open-
ings such as windows and doors.
Genuine Yamaha Accessories
Choosing accessories for your YXZ1000E is an important decision. Genuine Yamaha Accesso-
ries, which are available only from a Yamaha de aler, have been designed, tested, and approved
by Yamaha for use on your YXZ1000E.
Many companies with no connect ion to Yamaha manufacture parts and accessories or offer oth-
er modifications for Yamaha vehicles. Yamaha is no t in a position to test the products that these
aftermarket companies produce. Therefore, Yamaha can neither endorse nor recommend the
use of accessories not sold by Yamaha or modifications not specifically recommended by
Yamaha, even if sold and installed by a Yamaha dealer.
Aftermarket parts, accessories, and modifications
While you may find aftermarket products similar in design and quality to genuine Yamaha Acces-
sories, recognize that some aftermarket accessori es or modifications are not suitable because
of potential safety hazards to yo u or others. Installing aftermarke t products or having other mod-
ifications performed to your YXZ1000E that change any of the vehicle’s design or operation char-
acteristics can put you and others at greater risk of serious injury or death. You are responsible
for injuries related to changes in the vehicle.UB5J7CE0.book Page 7 Thursday, November 26, 2020 1:37 PM

4-1
4
EBU31170
DESCRIPTION

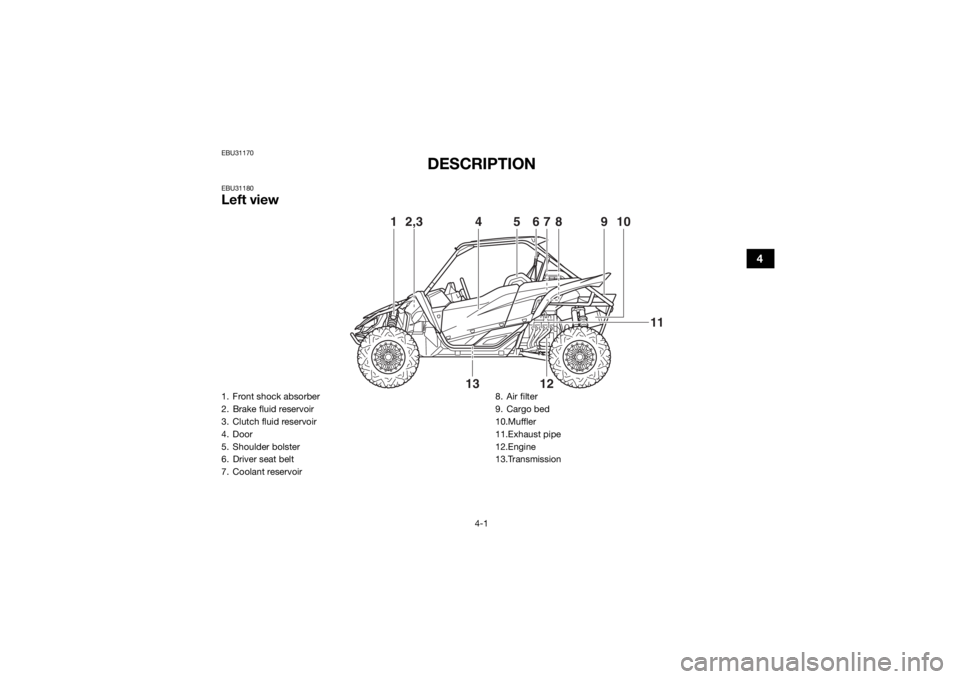

EBU31180Left view
1 2,3 4 5 6
9
12
137
810
11
1. Front shock absorber
2. Brake fluid reservoir
3. Clutch fluid reservoir
4. Door
5. Shoulder bolster
6. Driver seat belt
7. Coolant reservoir 8. Air filter
9. Cargo bed
10.Muffler
11.Exhaust pipe
12.Engine
13.TransmissionUB5J7CE0.book Page 1 Thursday, November 26, 2020 1:37 PM

4-2
4
EBU31190Right view
3
4,5
6
7
1
8
2
1. Rear shock absorber
2. Engine oil tank
3. Passenger seat belt
4. Battery
5. Fuses
6. Sun top
7. Headlight
8. Fuel tank capUB5J7CE0.book Page 2 Thursday, November 26, 2020 1:37 PM

5-1
5
EBU3121DINSTRUMENT AND CONTROL FUNCTIONSEBU31221Main switchEBU31232On position “ ”
All electrical circuits are supplied with power.
The key cannot be removed.
TIPThe operation of the indicator and warning
lights, and the multi-function meter can be
confirmed at this time. EBU31241Off position “ ”
All electrical circuits are switched off. The key
can be removed.EBU31251Start position “ ”
The electric starter is engaged by turning and
holding the key in this position. Release the
key when the engine starts.
1. Main switch
2. Off position “ ”
3. On position “ ”
4. Start position “ ”
1
2
3
4
UB5J7CE0.book Page 1 Thursday, November 26, 2020 1:37 PM

5-2
5
EBU31269Indicator lights and warning lights
EBU35450Neutral indicator light “N”
This indicator light comes on when the trans-
mission is in the neutral position.EBU35460Reverse indicator light “R”
This indicator light co mes on when the trans-
mission is in the reverse position.
1. Shift light
2. Electric Power Steering warning light “EPS”
3. Differential gear lock in dicator light “DIFF. LOCK”
4. Parking brake indicator light “(P)”
5. Reverse indicator light “R”
6. Neutral indicator light “N”
7. Engine trouble warning light “ ”
8. High beam indicator light “ ”
9. Coolant temperature warning light “ ”
10.Drivetrain icon “ / ”
1
2
3
45
6
78
10
9
1. Helmet reminder light ç é
2. Seat belt reminder light ç é
12
UB5J7CE0.book Page 2 Thursday, November 26, 2020 1:37 PM
