Periodic maintenance an d a djustment
6-14
6
EAU85450
Why Yamalu beYAMALUBE oil is a Genuine YAMAHA
Part born of the engineers’ passion
and belief that engine oil is an impor-
tant liquid engine component. We form
teams of specialists in the fields of me-
chanical engineering, chemistry, elec-
tronics and track testing, and have
them develop the engine together with
the oil it will use. Yamalube oils take full
advantage of the base oil’s qualities
and blend in the ideal balance of addi-
tives to make sure the final oil clears
our performance standards. Thus,
Yamalube mineral, semisynthetic and synthetic oils have their own distinct
characters and value. Yamaha’s expe-
rience gained over many years of re-
search and development into oil since
the 1960’s helps make Yamalube the
best choice for your Yamaha engine.
EAUS1203
CoolantThe coolant level should be checked
regularly. In addition, the coolant must
be changed at the intervals specified in
the periodic maintenance chart.TIPIf genuine Yamaha coolant is not avail-
able, use an ethylene glycol antifreeze
containing corrosion inhibitors for alu-
minum engines and mix with distilled
water at a 1:1 ratio.
EAU20097
To check the coolant level
Since the coolant level varies with en-
gine temperature, check when the en-
gine is cold. 1. Park the vehicle on a level surface. 2. With the vehicle in an upright posi-
tion, look at the coolant level in the
reservoir.
3. If the coolant is at or below the mi- nimum level mark, remove the
coolant reservoir cap. WARNING!
Remove only the coolant reser-
voir cap. Never attempt to re-
move the ra diator cap when the
en gine is hot.
[EWA15162]
Recommen ded coolant:
YAMALUBE coolant
Coolant quantity: Coolant reservoir (max level mark):0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator (including all routes): 1.60 L (1.69 US qt, 1.41 Imp.qt)
1. Coolant reservoir
2. Maximum level mark
3. Minimum level mark
L F
231
UBEHEAE0.book Page 14 Thursday, January 21, 2021 5:45 PM

Periodic maintenance an d a djustment
6-15
6 4. Add coolant to the maximum level
mark. NOTICE: If coolant is not
availa ble, use distille d water or
soft tap water instea d. Do not
use har d water or salt water
since it is harmful to the en gine.
If water has been used instead
of coolant, replace it with cool-
ant as soon as possi ble, other-
wise the coolin g system will not
b e protecte d a gainst frost an d
corrosion. If water has been
a dde d to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant as
soon as possi ble, otherwise the
effectiveness of the coolant will
b e re duce d.
[ECA10473]
5. Install the coolant reservoir cap.
EAU33032
Chan gin g the coolant
The coolant must be changed at the in-
tervals specified in the periodic main-
tenance and lubrication chart. Have a
Yamaha dealer change the coolant.
WARNING! Never attempt to remove the ra diator cap when the en gine is
hot.
[EWA10382] EAUM4270
Replacin
g the air filter ele-
ment an d cleanin g the check
hoseThe air filter element must be replaced
at the intervals specified in the periodic
maintenance chart. Replace the air fil-
ter element more frequently if you often
ride the rain or dusty areas. In addition,
the air filter check hose should be fre-
quently checked and cleaned if neces-
sary.
To replace the air filter element
1. Remove the seat. (See page 3-20.)
2. Remove the air filter case cover by removing the screws, remove the
screw securing the air filter ele-
ment and then pull it out.
1. Coolant reservoir cap
1
UBEHEAE0.book Page 15 Thursday, January 21, 2021 5:45 PM

Periodic maintenance an d a djustment
6-16
6
3. Check the air filter for damage or dirt and replace it if necessary.
NOTICE
ECA21220
The air filter element must be
replaced at the intervals speci-
fie d in the perio dic maintenance
chart.
 The air filter element shoul d b e
replaced more frequently if you
often ri de in the rain or dusty ar-
eas.
 The air filter cannot be cleaned
b y blowin g it with compresse d
air. It must be replace d.4. Insert the air filter element into the
air filter case and secure it with the
screw. NOTICE: Make sure that
the air filter element is properly seated
in the air filter case. The
en gine shoul d never b e operat-
e d without the air filter element
installe d, otherwise the pis-
ton(s) an d/or cylin der(s) may
b ecome excessively worn.
[ECA10482]
5. Install the air filter case cover by
installing the screws.
6. Install the seat.
To clean the air filter check hose 1. Remove the air filter check hose under the air filter case.
2. Remove the hose, clean it, and then install it in its original position.
1. Air filter case cover
2. Screw
1. Screw
2. Air filter element
1
212
1. Air filter element
1
1. Air filter check hose
1
UBEHEAE0.book Page 16 Thursday, January 21, 2021 5:45 PM

Periodic maintenance an d a djustment
6-17
6
EAU21386
Checkin g the throttle grip free
playMeasure the throttle grip free play as
shown.
Periodically check the throttle grip free
play and, if necessary, have a Yamaha
dealer adjust it.
EAU21403
Valve clearanceThe valves are an important engine
component, and since valve clearance
changes with use, they must be
checked and adjusted at the intervals
specified in the periodic maintenance
chart. Unadjusted valves can result in
improper air-fuel mixture, engine
noise, and eventually engine damage.
To prevent this from occurring, have
your Yamaha dealer check and adjust
the valve clearance at regular intervals.TIPThis service must be performed when
the engine is cold.
EAUM4220
TiresTires are the only contact between the
vehicle and the road. Safety in all con-
ditions of riding depends on a relatively
small area of road contact. Therefore, it
is essential to maintain the tires in good
condition at all times and replace them
at the appropriate time with the speci-
fied tires.
Tire air pressure
The tire air pressure should be
checked and, if necessary, adjusted
before each ride.
WARNING
EWA10504
Operation of this vehicle with im-
proper tire pressure may cause se-
vere injury or death from loss of
control.  The tire air pressure must be
checked and a djuste d on col d
tires (i.e., when the temperature
of the tires equals the am bient
temperature).
 The tire air pressure must be
a d juste d in accor dance with the
ri din g speed and with the total
1. Throttle grip free playThrottle g rip free play:
3.0–5.0 mm (0.12–0.20 in)
1
UBEHEAE0.book Page 17 Thursday, January 21, 2021 5:45 PM

Periodic maintenance an d a djustment
6-18
6
wei
ght of ri der, passen ger, car-
g o, an d accessories approve d
for this mo del.
WARNING
EWA10512
Never overload your vehicle. Opera-
tion of an overloa ded vehicle coul d
cause an acci dent.
Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail
or glass fragments in it, or if the side-
wall is cracked, have a Yamaha dealer
replace the tire immediately.TIPThe tire tread depth limits may differ
from country to country. Always com-
ply with the local regulations.
WARNING
EWA17960
 It is d angerous to ri de with a
worn-out tire. When a tire trea d
d epth reaches the specified lim-
it, have a Yamaha dealer re-
place the tire immed iately.
 The replacement of all wheel
and b rake-relate d parts, inclu d-
in g the tires, shoul d b e left to a
Yamaha dealer, who has the
necessary professional knowl-
e dg e an d experience.
 It is not recommen ded to patch
a puncture d tu be. If unavoi d-
a b le, however, patch the tu be
very carefully an d replace it as
soon as possi ble with a hi gh-
quality pro duct.
 Ride at mo derate spee ds after
chan gin g a tire since the tire
surface must first b e “broken
in” for it to d evelop its optimal
characteristics.Tire information
This model is equipped with tube tires.
Col d tire air pressure:
1 person: Front: 220 kPa (2.20 kgf/cm², 32 psi)
Rear: 250 kPa (2.50 kgf/cm², 36 psi)
2 persons:
Front: 220 kPa (2.20 kgf/cm², 32 psi)
Rear:
250 kPa (2.50 kgf/cm², 36 psi)
Off-roa d ri din g:
Front:
200 kPa (2.00 kgf/cm², 29 psi)
Rear: 200 kPa (2.00 kgf/cm², 29 psi)
Maximum loa d:
Veh ic le: 190 kg (419 lb)
The vehicle’s maximum load is the
combined weight of the rider, pas-
senger, cargo, and any accessories.
1. Tire sidewall
2. Tire tread depth
Minimum tire trea d d epth (front an d
rear): 1.6 mm (0.06 in)
12
UBEHEAE0.book Page 18 Thursday, January 21, 2021 5:45 PM

Periodic maintenance an d a djustment
6-19
6 Tires age, even if they have not been
used or have only been used occasion-
ally. Cracking of the tread and sidewall
rubber, sometimes accompanied by
carcass deformation, is an evidence of
ageing. Old and aged tires shall be
checked by tire specialists to ascertain
their suitability for further use.
WARNING
EWA10462
The front an
d rear tires shoul d b e of
the same make an d d esi gn, other-
wise the han dlin g characteristics of
the vehicle may be different, which
coul d lea d to an acci dent.After extensive tests, only the tires list-
ed below have been approved for this
model by Yamaha. The listed optional tire is designed for
more off-road use than the original tire
and the maximum speed rating is dif-
ferent from the original tire.
WARNING
EWAM1060
Never excee
d the tire’s maximum
speed rating. Otherwise the tire may
b e damag ed at hi gh spee d an d
coul d lea d to an acci dent.
Front tire:
Size:
90/90 - 21 M/C 54V M+S
Speed rating:
240 km/h (149 mph)
Manufacturer/model: PIRELLI/SCORPION RALLY STR
A
Rear tire: Size:
150/70 R18 M/C 70V M+S
Speed rating: 240 km/h (149 mph)
Manufacturer/model: PIRELLI/SCORPION RALLY STR
Optional tire
Front tire:Size:90/90 – 21 M/C 54R M+S
Speed rating: 170 km/h (105 mph)
Manufacturer/model:
MICHELIN/ANAKEE WILD
Rear tire: Size:
150/70 R18 M/C 70R M+S
Speed rating: 170 km/h (105 mph)
Manufacturer/model: MICHELIN/ANAKEE WILD
UBEHEAE0.book Page 19 Thursday, January 21, 2021 5:45 PM

Periodic maintenance an d a djustment
6-20
6
EAU21945
Spoke wheelsTo maximize the performance, durabil-
ity, and safe operation of the vehicle,
note the following points.
 Check each wheel for cracks, de-
formation and other damage. If
any damage is found, have the
wheel inspected by your Yamaha
dealer. Do not attempt to repair or
straighten a bent or damaged
wheel.
 Check the spokes for looseness. If
any loose spokes are found, have
the wheel adjusted by your
Yamaha dealer. Improperly tight- ened spokes can cause wheel
misalignment.
 Have the wheel balanced whenev-
er the tire or tube has been re-
placed. An unbalanced wheel can
result in adverse handling charac-
teristics and shortened tire life.
WARNING
EWA10611
The wheels on this mo del are not
d esi gne d for use with tu beless tires.
Do not attempt to use tub eless tires
on this mo del.
EAU33893
A djustin g the clutch lever free
playMeasure the clutch lever free play as
shown.
Periodically check the clutch lever free
play and, if necessary, adjust it as fol-
lows.
To increase the clutch lever free play,
turn the clutch lever free play adjusting
bolt at the clutch lever in direction (a).
To decrease the clutch lever free play,
turn the adjusting bolt in direction (b).
TIPIf the specified clutch lever free play
cannot be obtained as described
above, proceed as follows.1. Fully turn the adjusting bolt at the
clutch lever in direction (a) to loos-
en the clutch cable.
2. Loosen the locknut at the crank- case.
3. To increase the clutch lever free play, turn the clutch lever free play
adjusting nut in direction (a). To
decrease the clutch lever free
play, turn the adjusting nut in di-
rection (b).
4. Tighten the locknut.

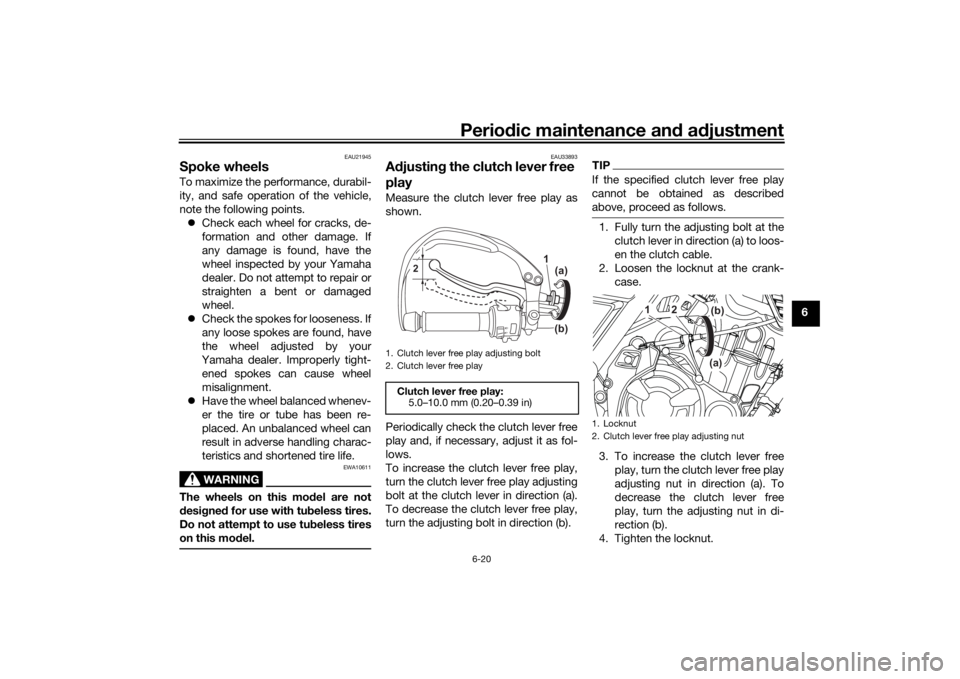

1. Clutch lever free play adjusting bolt
2. Clutch lever free play
Clutch lever free play: 5.0–10.0 mm (0.20–0.39 in)
1(a)
(b)
2
1. Locknut
2. Clutch lever free play adjusting nut
2 (b)
(a)
1
UBEHEAE0.book Page 20 Thursday, January 21, 2021 5:45 PM

Periodic maintenance an d a djustment
6-21
6
EAU37914
Checkin g the brake lever free
playThere should be no free play at the
brake lever end. If there is free play,
have a Yamaha dealer inspect the
brake system.
WARNING
EWA14212
A soft or spon gy feelin g in the b rake
lever can in dicate the presence of
air in the hy draulic system. If there is
air in the hy draulic system, have a
Yamaha dealer blee d the system be-
fore operatin g the vehicle. Air in the
hy draulic system will diminish the b
rakin g performance, which may re-
sult in loss of control and an acci-
d ent.
EAU36505
Brake li ght switchesThe brake light should come on just
before braking takes effect. The brake
light is activated by switches connect-
ed to the brake lever and brake pedal.
Since the brake light switches are
components of the anti-lock brake sys-
tem, they should only be serviced by a
Yamaha dealer.

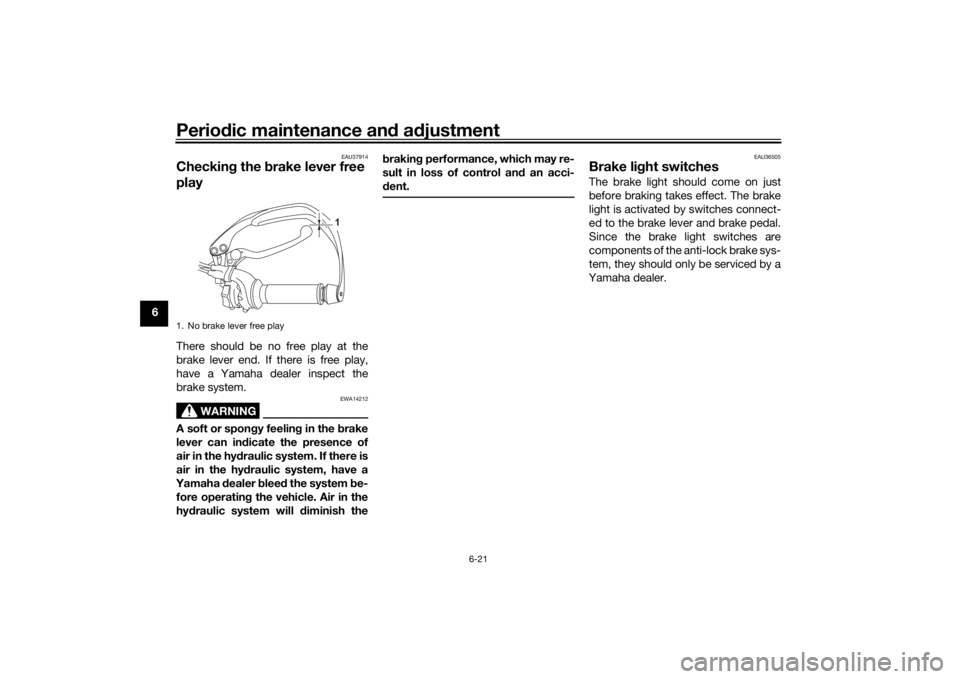

1. No brake lever free play
1
UBEHEAE0.book Page 21 Thursday, January 21, 2021 5:45 PM
