2021 VOLKSWAGEN TIGUAN Rear

Adjusting the rear bench seat
Fig. 84 Underneath the seat cushion on the rear bench seat: adjustment lever.
Fig. 85 Adjusting the rear bench seat backrest.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The rear bench seat is split 40:60. Each section can be adjusted separately.
Adjusting the rear bench seat
•Pull up the right-hand or left-hand lever in the direction of the arrow ⇒ Fig. 84 and move the
corresponding element of the rear bench seat either forwards or backwards.
•Release the lever and engage the rear bench seat element in position by pushing forwards and
backwards gently.
Adjusting the rear bench seat backrest
•Push down on the left-hand or right-hand side of the backrest with one hand and simultaneously
pull on the corresponding loop with the other hand ⇒ Fig. 85①.
Incorrect adjustment of the rear seat can cause accidents and serious injuries.
•The rear seat should be adjusted only when the vehicle is stationary as the rear seat
could otherwise move unexpectedly while the vehicle is in motion. Furthermore, an
incorrect seating position is adopted while adjusting the seat.
•The rear seat should only be adjusted when there is no one in the direct area.
WARNING
Cigarette lighters in the vehicle could be damaged or accidentally lit. This could lead to
serious burns and other injuries.
•Before adjusting the seats always ensure that there is no lighter on or near the
moveable parts of the seat.
•Before closing stowage areas or compartments always ensure that there is no lighter
in the way.
•Never stow lighters in stowage areas, compartments or on other surfaces in the
vehicle. High surface temperatures, especially in summer, may cause cigarette lighters
to self-ignite.
WARNING
•Items in the luggage compartment could cause damage when pushing the rear seat
forwards or backwards.
•When the rear seat is moved forwards, objects could move into the space between the
seat and luggage compartment floor. Remove any items or objects from this space
before pushing the rear seat back.
NOTICE

•Adjust the rear seat backrest to the required position with your hand against the spring pressure
⇒ Fig. 85②.
•Release the loop and engage the rear seat backrest in position by moving it forwards or
backwards gently.
Folding the backrests on the rear bench seat forwards and
backwards
Fig. 86 Folding the backrest forwards and backwards.
Fig. 87 In the luggage compartment: remote release lever for the left ① and the right ② parts of
the rear backrest.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The rear seat is split for folding. Each part of the rear seat backrest can be folded down to increase
the size of the luggage compartment.
Folding the rear seat backrest forwards
•Push the head restraint all the way down ⇒ Head restraints.
•Slide the rear bench seat back as far as it will go.
•Fold down the folding table if necessary.
•Pull the loop ⇒ Fig. 86 forwards in the direction of the arrow while simultaneously supporting
and folding the rear seat backrest forwards ⇒.
•Fold the rear seat backrest completely forward by hand until it locks in place.
Folding rear backrest forwards with the remote release button
•Push the head restraint all the way down ⇒ Head restraints.
•Open the boot lid ⇒ Boot lid.
•Pull the remote release lever ⇒ Fig. 87 for the section of the backrest that is to be folded
forwards.
•The corresponding backrest section of the rear seat backrest is unlocked and can be folded
forwards.
•Close the boot lid if it is open ⇒ Boot lid.
Folding back the rear seat backrest
•Use the loop to release the rear seat backrest. The rear seat backrest pops out of the catch.
•Keep pulling on the loop while folding back the rear seat rest.
•Make sure that the seat belt is not caught anywhere.
•Fold back the rear seat backrest until it is securely engaged ⇒.
•The rear seat backrest must always be securely engaged.
•If necessary, fold back the rear seat backrests.
•Adjust the head restraint if necessary.

Head restraints
Introduction
This chapter contains information on the followingsubjects:
⇒ Adjusting the head restraints
⇒ Removing and fitting head restraints
The following section describes the options for adjusting and removing the head restraints. Always
ensure that the correct sitting position is adjusted ⇒ Sitting position.
Every seat is fitted with a head restraint. The centre head restraint at the rear is designed solely for
use with the centre rear bench seat. Therefore you should not install the head restraint in any of the
other positions.
Correct head restraint setting
Adjust the head restraint so that its upper edge is at the same height as the top of the head, but not
lower than eye level. Position the back of your head as close to the head restraint as possible.
In vehicles with head restraints that can be adjusted in the longitudinal direction, push the head
restraints on the front seats as close as possible to the back of your head.
Head restraint setting for shorter people
Push the head restraint all the way down, even if the head is then underneath the top edge of the
head restraint. There may be a small gap between the head restraint and backrest in the lowest
position.
Head restraint setting for taller people
Push the head restraint up as far as it will go.

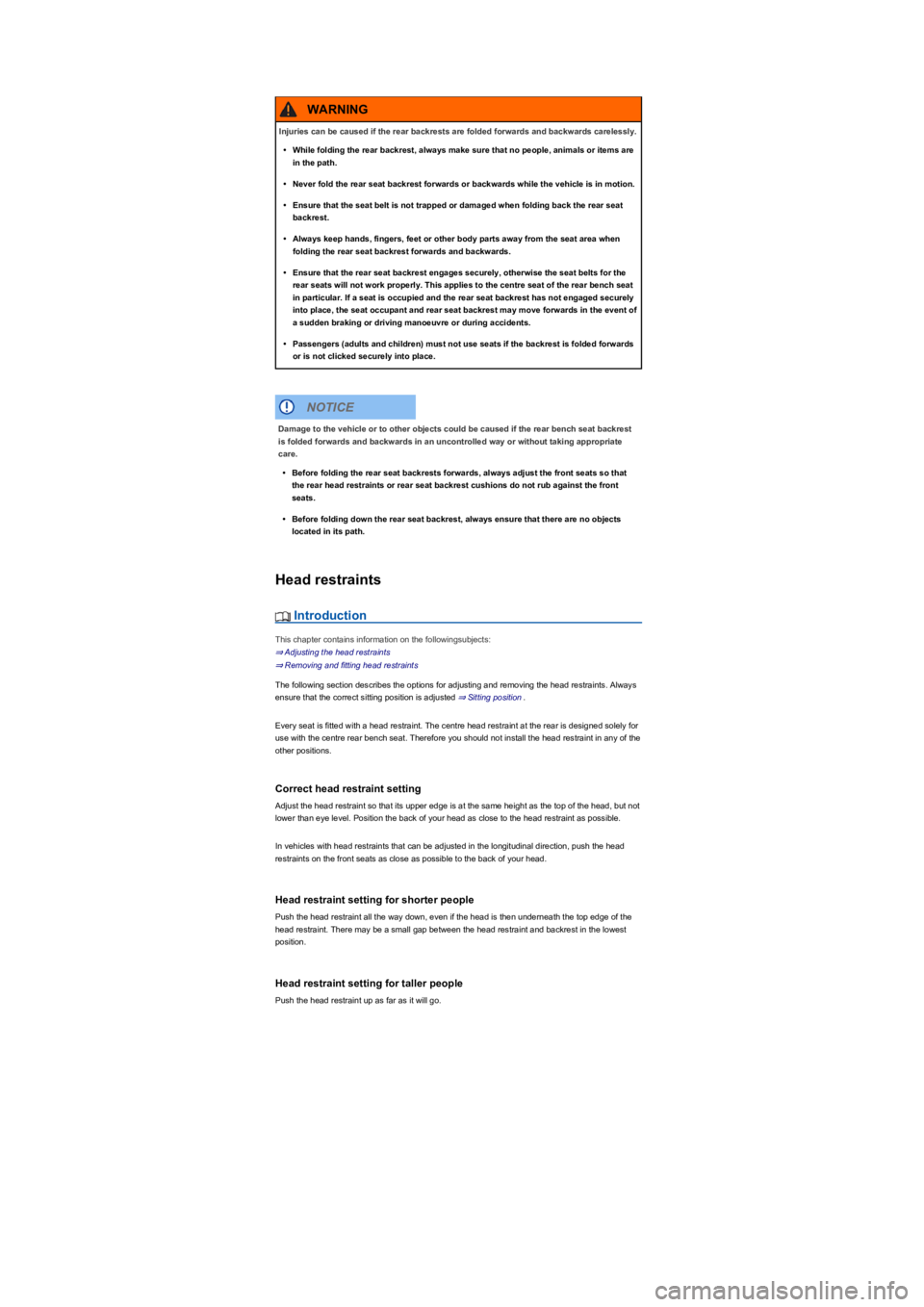

Injuries can be caused if the rear backrests are folded forwards and backwards carelessly.
•While folding the rear backrest, always make sure that no people, animals or items are
in the path.
•Never fold the rear seat backrest forwards or backwards while the vehicle is in motion.
•Ensure that the seat belt is not trapped or damaged when folding back the rear seat
backrest.
•Always keep hands, fingers, feet or other body parts away from the seat area when
folding the rear seat backrest forwards and backwards.
•Ensure that the rear seat backrest engages securely, otherwise the seat belts for the
rear seats will not work properly. This applies to the centre seat of the rear bench seat
in particular. If a seat is occupied and the rear seat backrest has not engaged securely
into place, the seat occupant and rear seat backrest may move forwards in the event of
a sudden braking or driving manoeuvre or during accidents.
•Passengers (adults and childrenyfPXVWQRWXVHVHDWVLIWKHEDFNUHVWLVIROGHGIRUZDUGV
or is not clicked securely into place.
WARNING
Damage to the vehicle or to other objects could be caused if the rear bench seat backrest
is folded forwards and backwards in an uncontrolled way or without taking appropriate
care.
•Before folding the rear seat backrests forwards, always adjust the front seats so that
the rear head restraints or rear seat backrest cushions do not rub against the front
seats.
•Before folding down the rear seat backrest, always ensure that there are no objects
located in its path.
NOTICE

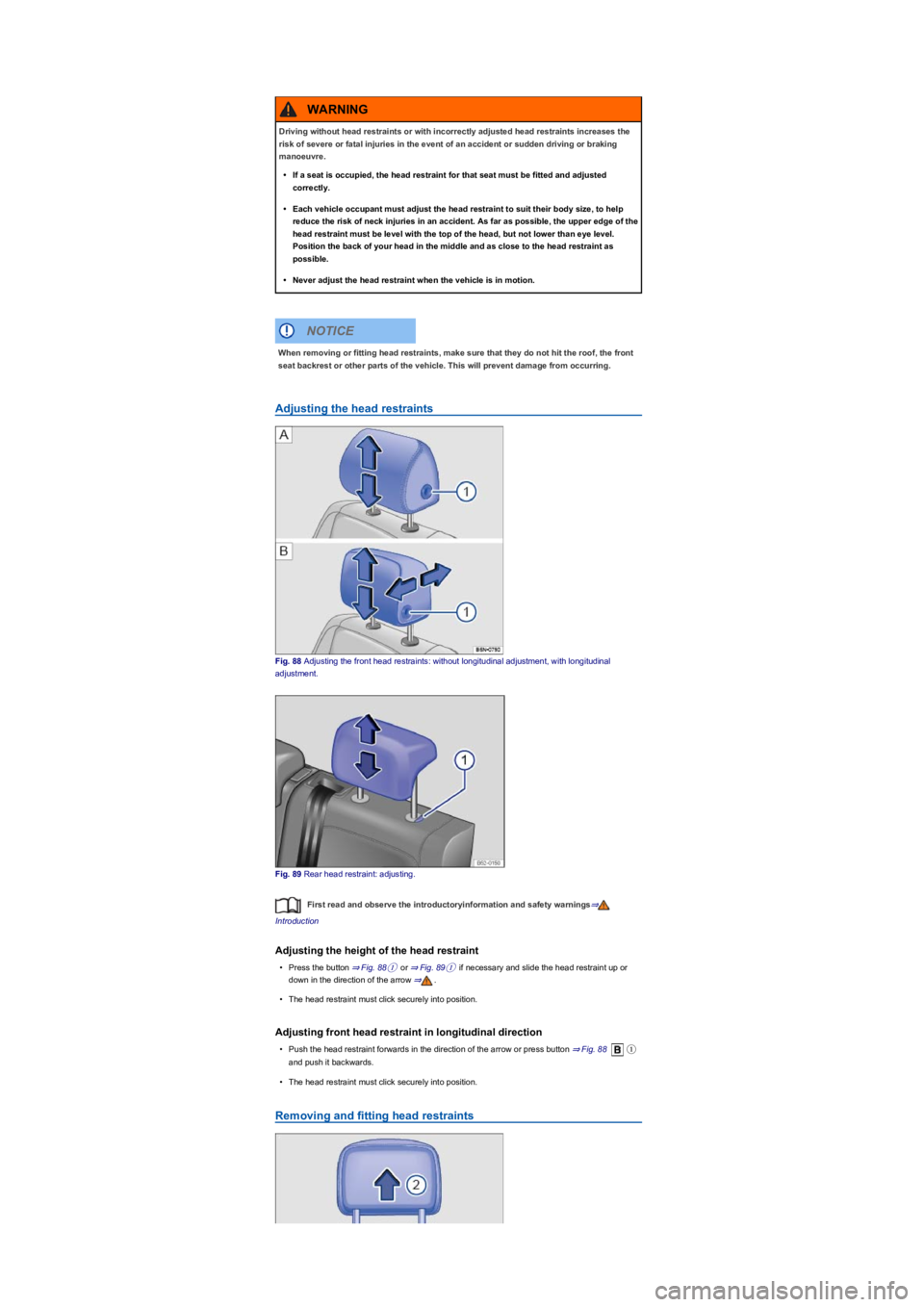

Adjusting the head restraints
Fig. 88 Adjusting the front head restraints: without longitudinal adjustment, with longitudinal
adjustment.
Fig. 89 Rear head restraint: adjusting.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Adjusting the height of the head restraint
•Press the button ⇒ Fig. 88① or ⇒ Fig. 89① if necessary and slide the head restraint up or
down in the direction of the arrow ⇒.
•The head restraint must click securely into position.
Adjusting front head restraint in longitudinal direction
•Push the head restraint forwards in the direction of the arrow or press button ⇒ Fig. 88①
and push it backwards.
•The head restraint must click securely into position.
Removing and fitting head restraints
Driving without head restraints or with incorrectly adjusted head restraints increases the
risk of severe or fatal injuries in the event of an accident or sudden driving or braking
manoeuvre.
•If a seat is occupied, the head restraint for that seat must be fitted and adjusted
correctly.
•Each vehicle occupant must adjust the head restraint to suit their body size, to help
reduce the risk of neck injuries in an accident. As far as possible, the upper edge of the
head restraint must be level with the top of the head, but not lower than eye level.
Position the back of your head in the middle and as close to the head restraint as
possible.
•Never adjust the head restraint when the vehicle is in motion.
WARNING
When removing or fitting head restraints, make sure that they do not hit the roof, the front
seat backrest or other parts of the vehicle. This will prevent damage from occurring.
NOTICE

Fig. 90 Front head restraint: removing.
Fig. 91 Rear head restraint: removing.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Removing the front head restraint
•You may need to lower the head restraint ⇒.
•To unlock it, feel for the recess in the marked area on the rear side and press in in the direction
of the arrow ⇒ Fig. 90①.
•Pull the head restraint out in the direction of the arrow ⇒ Fig. 90②.
Fitting the front head restraint
•Position the head restraint correctly over the head restraint guides and then insert into the
guides of the corresponding seat backrest.
•Slide the head restraint all the way down until the guide pins click into place.
•Adjust the head restraint so a correct sitting position can be assumed.
Removing the rear head restraints
•If necessary, adjust the backrest so that the head restraint can be removed.
•Push the head restraint all the way up ⇒.
•Pull the head restraint out fully while pressing the button ⇒ Fig. 91①.
Fitting the rear head restraints
•Release the rear seat backrest and fold the backrest forwards slightly ⇒ Rear seats.
•Position the head restraint correctly over the head restraint guides and then insert into the
guides of the corresponding seat backrest.
•Press and hold the button ⇒ Fig. 91① and push down the head restraint.
•Push back the rear seat backrest and allow it to engage securely.
•Adjust the head restraint so that a correct sitting position can be assumed ⇒ Sitting position.
Seat functions
Introduction
This chapter contains information on the followingsubjects:
⇒ Memory function
⇒ Centre armrest
⇒ Massage function
The following section describes the seat functions. Always ensure that you adjust the correct sitting
position ⇒ Sitting position.
Incorrect use of the seat functions can cause serious injuries.
•Always assume a correct sitting position before you drive and maintain this position
throughout the trip. This also applies to all passengers.
•Switch the massage function on and off only when the vehicle is stationary.
•The memory function should be adjusted only when the vehicle is stationary.
•Keep hands, fingers, feet and other body parts away from the moving parts of the
seats.
WARNING

•Vehicle stationary or moving no faster than 5 km/h: seat is moved. You can cancel the
movement at any time by touching the appropriate function button in the Infotainment system or
by pressing a button on the driver seat.
•Vehicle moving faster than 5 km/h: seat is not moved. All other setup configurations are
adopted.
If the driver door is opened later than approximately 10 minutes after unlocking the vehicle,
the driver seat and exterior mirrors are not automatically adjusted.
Some settings can be stored in the user accounts of the personalisation function and
therefore change automatically when the user account changes ⇒ Personalisation.
Only if the personalisation function is activated ⇒ Personalisation.

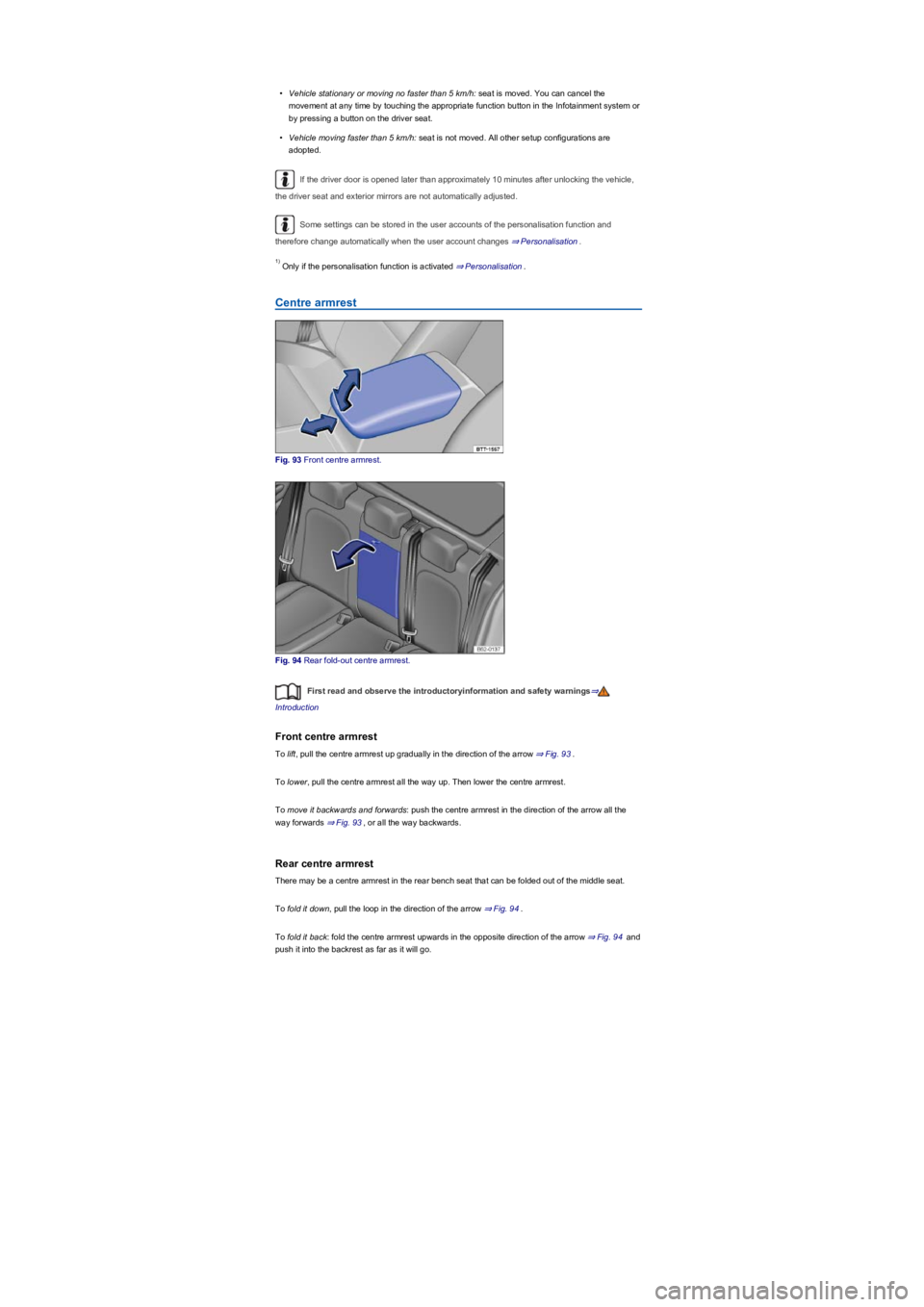

Centre armrest
Fig. 93 Front centre armrest.
Fig. 94 Rear fold-out centre armrest.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Front centre armrest
To lift, pull the centre armrest up gradually in the direction of the arrow ⇒ Fig. 93.
To lower, pull the centre armrest all the way up. Then lower the centre armrest.
To move it backwards and forwards: push the centre armrest in the direction of the arrow all the
way forwards ⇒ Fig. 93, or all the way backwards.
Rear centre armrest
There may be a centre armrest in the rear bench seat that can be folded out of the middle seat.
To fold it down, pull the loop in the direction of the arrow ⇒ Fig. 94.
To fold it back: fold the centre armrest upwards in the opposite direction of the arrow ⇒ Fig. 94 and
push it into the backrest as far as it will go.
1yf

Massage function
Fig. 95 In the lower area of the driver seat: button for massage function.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
When the massage function is switched on, the lumbar support moves and massages the lumbar
region.
The in/out position of the lumbar support can be adjusted using the appropriate switch during a
massage ⇒ Sitting position.
Switching the massage function on or off
To switch on, press the button in the seat control panel. To switch off, press the
button again.
The massage function is switched off automatically after approximately ten minutes.
Lights
Turn signals
Switching turn signals on and off
Fig. 96 On left of the steering column: turn signal and main beam lever.
•Switch on the ignition.
•Move the turn signal and main beam lever from the centre position to the following position:
Right turn signal.
Left turn signal.
•Return the turn signal and main beam lever to the basic position in order to switch off the turn
signal.
Go to a qualified workshop and have the vehicle checked if the acoustic signal does not sound
when a turn signal is switched on.
The front centre armrest can obstruct the driver's arm movements. This can cause
accidents and severe injuries.
•Always keep the stowage compartments in the centre armrest closed while the vehicle
is in motion.
•Never transport an adult or child on the centre armrest. An incorrect seating position
can cause serious injury.
WARNING
The rear centre armrest must always be folded up while the vehicle is in motion in order to
reduce the risk of injury.
•The middle seat on the rear bench seat must never be used when the centre armrest is
folded down – neither by adults nor children. An incorrect sitting position can cause
severe injuries.
WARNING

When reverse gear is engaged, the cornering light on both sides of the vehicle switches on
to provide better illumination of the area when manoeuvring.
Switching the fog lights on and off
•Switching on the front fog lights : Pull the light switch ⇒ Fig. 97 out to the first stopper.
The indicator lamp in the light switch lights up green.
•Switching on the rear fog lights : pull the light switch all the way out. The indicator lamp
in the instrument cluster lights up yellow.
•To switch the fog lights off, press in the light switch or move it to position .
If the automatic headlights are switched on and the front or rear fog lights are
switched on, the dipped beam headlights will also be switched on irrespective of the current light
conditions outside.
In vehicles with a factory-fitted towing bracket: the vehicle's rear fog lights are switched off
automatically if a trailer with rear fog lights is electrically connected to the vehicle ⇒ Trailer towing.
Light functions
Side lights
If the light switch is in position both headlights light up with side lights together with parts of
the tail light clusters, number plate lighting and the buttons in the centre console and the dash
panel. The daytime running lights also switch on when the ignition is switched on.
If the vehicle is not locked from outside (when the ignition is switched offyfWKHFRQWLQXRXVSDUNLQJ
light on both sides of the vehicle switches on automatically after ten minutes to reduce 12-volt
vehicle battery discharge ⇒ Switching the parking lights on and off.
Automatic headlights
When the light switch is in position , the vehicle lighting and the instrument and switch
lighting will switch on and off automatically depending on the light conditions. When the lights are
switched on, the indicator lamp in the light switch lights up yellow.
The automatic headlight control function is merely an aid and will not always be able to detect all
driving situations.
In vehicles with a corresponding equipment level, the switch-on time for automatic headlight control
can be adjusted in the Infotainment system in the Vehicle settings menu ⇒ Operation and
display in the Infotainment system.
Cornering light
When cornering slowly or travelling around very tight bends, a static cornering light is switched on
automatically.
Accidents and serious injuries can occur if roads are not sufficiently illuminated and other
road users have difficulty seeing the vehicle, or cannot see it at all.
•The light assist functions are designed to provide assistance only. The driver is
responsible for making sure that the vehicle lights are switched on correctly.
•Always switch the dipped beam headlights on if it is dark, raining or visibility is poor.
WARNING
The side lights or daytime running lights are not bright enough to illuminate the road
ahead and to ensure that other road users are able to see you.
•Always switch the dipped beam headlights on if it is dark, raining or visibility is poor.
•The rear lights will not be switched on with the daytime running lights. If the rear lights
are not switched on, the vehicle may not be visible to other road users if it is dark,
raining, or if visibility is poor.
WARNING
The automatic headlights function ( yfVZLWFKHVWKHGLSSHGEHDPKHDGOLJKWVRQDQG
off only when there is a change to the level of brightness.
•Switch on the dipped beam headlights manually if this is necessary due to particular
weather conditions, e.g. fog.
WARNING
