Speed range
ACC controls the vehicle in the speed range between 30 km/h (20 mphyfDQGNPKPSK\f
or 210 km/h (130 mphyf7KLVVSHHGUDQJHPD\GLIIHULQFHUWDLQPDUNHWV.
Radar sensor
ACC detects driving situations by means of the radar sensor at the front of the vehicle ⇒ Front
view. The range of the radar sensor is up to approximately 120 m.
Does the vehicle have ACC?
The vehicle is equipped with ACC if you can make settings for ACC in the vehicle settings of the
Infotainment system ⇒ Vehicle settings menu.
If the vehicle has ACC, the cruise control system is not available as an independent system.
Special driving situations
Fig. 142 On the instrument cluster display: slower vehicle detected in the left-hand lane
(illustrationyf.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Overtaking
If you indicate left (left-hand traffic: indicate rightyfWRRYHUWDNH$&&ZLOODFFHOHUDWHWKHYHKLFOHDQG
reduce the distance from the vehicle in front. Your set speed will not be exceeded.
If ACC does not detect any vehicle in front after you have changed lane, ACC will accelerate the
vehicle up to the set speed.
Stop-and-go traffic
ACC can brake vehicles with DSG dual clutch gearbox to a standstill and hold them stationary.
ACC remains active and the instrument cluster display shows ACC ready for a few seconds.
During this time the vehicle will move off again automatically as soon as the vehicle in front moves
off (depending on the vehicle equipment level and not available in all countriesyf.
•Press the button.
•Press the button or briefly press the accelerator.
The intelligent technology used in the ACC cannot overcome the laws of physics, and
functions only within the limits of the system. Never let the extra convenience tempt you
into taking safety risks when driving. Careless or unintentional use of the Adaptive Cruise
Control (ACCyfFDQFDXVHDFFLGHQWVDQGOHDGWRVHULRXVLQMXU\7KHV\VWHPLVQRWD
substitute for the full concentration of the driver.
•Adapt your speed and distance from the vehicles ahead to suit visibility, weather, road
and traffic conditions.
•Do not use the ACC in poor visibility, on steep or winding roads, on slippery road
surfaces, e.g. on snow, ice, wet roads, loose chippings, or on flooded roads.
•Never use ACC off-road or on non-surfaced roads. The ACC is designed for use on
surfaced roads only.
•ACC does not respond to stationary vehicles.
•The ACC does not react to persons, animals or vehicles crossing or approaching in the
same lane.
•Brake immediately if speed reduction by ACC is not sufficient.
•Brake immediately if a request to brake appears on the instrument cluster display.
•Brake if the vehicle starts rolling unintentionally after a request to brake.
•Be prepared to control the speed yourself at all times.
WARNING
®

Functions included in the system
The City Emergency Braking System and Pedestrian Monitoring (depending on vehicle equipmentyf
are part of Front Assist and are automatically active when Front Assist is switched on.
Warning levels and braking intervention
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Distance warning
The system detects when safety is endangered by driving too close to the vehicle in front. The
warning lamp Lit up Increase the distance.
Speed range: around 65 km/h (40 mphyfWRNPKPSK\f.
Advance warning
The system detects a possible collision with a vehicle in front or a pedestrian crossing in front of the
vehicle and prepares the vehicle for possible emergency braking.
A warning tone sounds and the warning lamp Lit up Brake or take evasive action.
Speed range: around 30 km/h (20 mphyfWRNPKPSK\f.
Urgent warning
If the driver does not react to the advance warning, the system may initiate a short braking jolt in
order to draw attention to the increasing collision risk. Brake or take evasive action.
Speed range: around 30 km/h (20 mphyfWRNPKPSK\f.
Automatic braking
If the driver also does not react to the urgent warning, the vehicle can be braked automatically with
braking force that increases in several stages. The reduced speed means that it is possible to
minimise the consequences of an accident.
Speed range: around 5 km/h (3 mphyfWRNPKPSK\f.
Braking intervention
If the system detects that the driver is braking insufficiently when there is a risk of collision, the
system can increase the braking force and help prevent a collision. The braking intervention takes
place only for as long as the brake pedal is pressed hard.
Speed range: around 5 km/h (3 mphyfWRNPKPSK\f.
The intelligent technology of Front Assist cannot overcome the laws of physics, and
functions only within the limits of the system. Never let the extra convenience afforded by
Front Assist tempt you into taking risks when driving. The driver is always responsible for
braking in time.
•If Front Assist issues a warning, brake your vehicle immediately depending on the
traffic situation or avoid the obstacle.
•Adapt your speed and distance from the vehicles ahead to suit visibility, weather, road
and traffic conditions.
•Front Assist cannot prevent accidents and serious injuries on its own.
•Front Assist can issue unnecessary warnings and carry out unwanted braking
interventions in certain complex driving situations, e.g. at traffic islands.
•Front Assist can issue unnecessary warnings and carry out unwanted braking
interventions when its function is impaired, e.g. if the radar sensor is dirty or its
position has been changed.
•Front Assist without Pedestrian Monitoring does not react to persons. In addition, the
system does not react to animals or crossing vehicles or to vehicles that are
approaching in the same lane.
•If you are unsure whether the vehicle possesses Pedestrian Monitoring, please enquire
about this at a qualified workshop before starting your journey.
•Be prepared to take over control of the vehicle yourself at all times.
WARNING

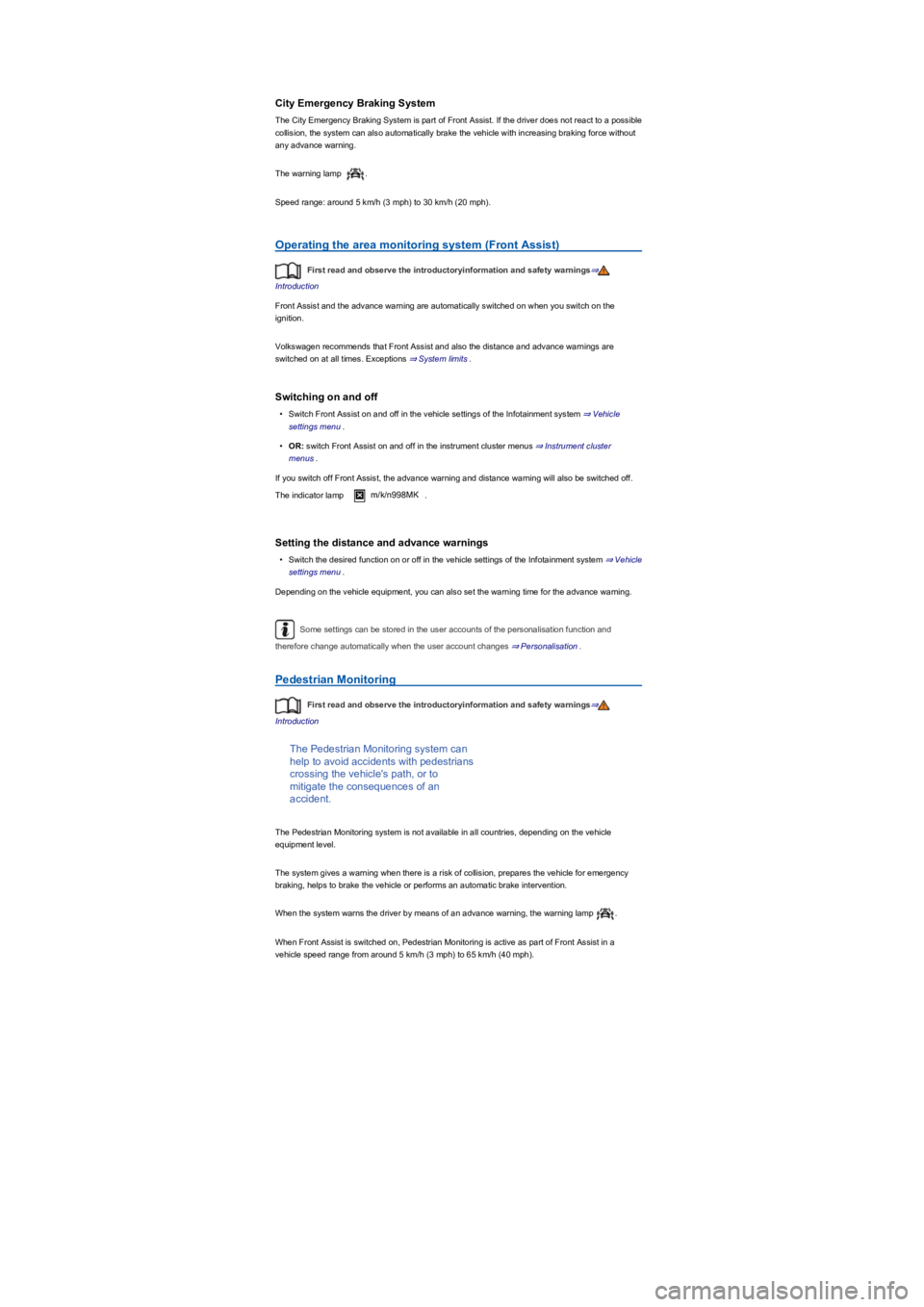

City Emergency Braking System
The City Emergency Braking System is part of Front Assist. If the driver does not react to a possible
collision, the system can also automatically brake the vehicle with increasing braking force without
any advance warning.
The warning lamp .
Speed range: around 5 km/h (3 mphyfWRNPKPSK\f.
Operating the area monitoring system (Front Assistyf
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Front Assist and the advance warning are automatically switched on when you switch on the
ignition.
Volkswagen recommends that Front Assist and also the distance and advance warnings are
switched on at all times. Exceptions ⇒ System limits.
Switching on and off
•Switch Front Assist on and off in the vehicle settings of the Infotainment system ⇒ Vehicle
settings menu.
•OR: switch Front Assist on and off in the instrument cluster menus ⇒ Instrument cluster
menus.
If you switch off Front Assist, the advance warning and distance warning will also be switched off.
The indicator lamp m/k/n998MK.
Setting the distance and advance warnings
•Switch the desired function on or off in the vehicle settings of the Infotainment system ⇒ Vehicle
settings menu.
Depending on the vehicle equipment, you can also set the warning time for the advance warning.
Some settings can be stored in the user accounts of the personalisation function and
therefore change automatically when the user account changes ⇒ Personalisation.
Pedestrian Monitoring
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The Pedestrian Monitoring system can
help to avoid accidents with pedestrians
crossing the vehicle's path, or to
mitigate the consequences of an
accident.
The Pedestrian Monitoring system is not available in all countries, depending on the vehicle
equipment level.
The system gives a warning when there is a risk of collision, prepares the vehicle for emergency
braking, helps to brake the vehicle or performs an automatic brake intervention.
When the system warns the driver by means of an advance warning, the warning lamp .
When Front Assist is switched on, Pedestrian Monitoring is active as part of Front Assist in a
vehicle speed range from around 5 km/h (3 mphyfWRNPKPSK\f.

System limits
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Front Assist has physical and system-related limitations. From the driver's perspective, some Front
Assist reactions may therefore occur unexpectedly or with a delay in certain circumstances. You
should therefore always be prepared to take full control of the vehicle if necessary.
•In tight bends.
•If the accelerator is fully depressed.
•If Front Assist is switched off or faulty.
•If TCS is switched off manually.
•If ESC is taking corrective action.
•If there is a fault in several brake lights on the vehicle or on a trailer with an electrical
connection to the vehicle ⇒.
•If the radar sensor is dirty or covered.
•If there are metal objects, e.g. tracks in the road or metal plates used in roadworks, or road
signs, above and adjacent to the road.
•If the vehicle is reversing.
•Under hard acceleration.
•In snow or heavy rain.
•In case of narrow vehicles, e.g. motorbikes.
•If vehicles are travelling slightly to the left or right of your vehicle.
•If vehicles are crossing in front of your vehicle.
•If there is oncoming traffic.
•If pedestrians are standing in front of the vehicle, approaching the vehicle, or moving in the
same direction as the vehicle.
•In complex driving situations, e.g. at traffic islands.
•In unclear traffic situations, e.g. vehicles ahead are heavily braking or turning off.
•When loads or attachment parts on other vehicles protrude to the side, rear or above the normal
dimensions of the vehicle.
Switching off Front Assist
•If the vehicle is being towed.
•If the vehicle is on a rolling road test bed.
•If the vehicle is driven in areas other than public roads.
•If the radar sensor is faulty.
•After external force on the radar sensor, e.g. after a rear-end collision.
•In the event of multiple unwanted interventions.
•If the radar sensor is covered temporarily by any auxiliary equipment, e.g. auxiliary headlights.
•If the vehicle is loaded onto a truck, car ferry or motorail train.
The intelligent Pedestrian Monitoring technology cannot overcome the laws of physics,
and functions only within the limits of the system. Never let the extra convenience
afforded by the Pedestrian Monitoring system tempt you into taking any risks when
driving. The driver is always responsible for braking in time.
•If Pedestrian Monitoring issues a warning, brake your vehicle immediately depending
on the traffic situation or avoid the pedestrian.
•The Pedestrian Monitoring system cannot prevent accidents and serious injuries on its
own.
•The Pedestrian Monitoring system can issue unnecessary warnings and carry out
unwanted braking interventions in complex driving situations, e.g. on a twisting main
road.
•The Pedestrian Monitoring system can issue unnecessary warnings and carry out
unwanted braking interventions when its function is impaired, e.g. if the radar sensor is
covered or its position has been changed.
•Be prepared to take over control of the vehicle yourself at all times.
WARNING
Failure to switch off Front Assist in the situations mentioned can result in accidents and
serious injuries.
WARNING

system decelerates the vehicle to a complete stop and switches on the electronic parking brake
automatically ⇒ Electronic parking brake.
When Emergency Assist is actively controlling the vehicle, the hazard warning lights are switched
on and the vehicle performs slight snaking movements within its lane to warn other road users.
The hazard warning lights can be deactivated by pressing the accelerator or brake, by making a
steering intervention or, depending on the situation, by pressing the button for the hazard warning
lights.
When Emergency Assist has been triggered, the system is unavailable until after the ignition has
been switched off and then on again.
Prerequisites
•The lane keeping system and ACC are switched on.
•The selector lever is in position D/S or in the Tiptronic gate.
•The system has detected a lane marking on both the right and left sides of the vehicle
⇒ Fig. 147.
Switching Emergency Assist on and off
Emergency Assist is activated automatically when the lane keeping system ⇒ Lane keeping system
(Lane Assistyf is switched on.
Conditions for deactivating Emergency Assist
The following conditions can prevent Emergency Assist from reacting, or can cause it to deactivate
automatically:
•If the driver activates the accelerator, brake or steering.
•If one of the prerequisites for operation of the lane keeping system ⇒ Lane keeping system
(Lane Assistyf or ACC ⇒ Adaptive Cruise Control (ACCyf is no longer fulfilled.
Lane change system (Side AssistyfLQFO5HDU7UDIILF
Alert
Introduction
This chapter contains information on the followingsubjects:
⇒ Driving with the lane change system
⇒ Rear Traffic Alert
⇒ Troubleshooting
The lane change system with Rear
Traffic Alert provides assistance for the
driver when checking for traffic behind
the vehicle.
Radar sensors monitor the area behind the vehicle ⇒ Vehicle overviews. The system measures the
distance and speed difference in relation to other vehicles and informs the driver by means of visual
signals in the exterior mirrors.
The intelligent technology used in Emergency Assist cannot overcome the laws of
physics, and functions only within the limits of the system. The driver is always
responsible for controlling the vehicle.
•Adapt your speed and distance from the vehicles ahead to suit visibility, weather, road
and traffic conditions.
•Your hands should always be on the steering wheel so that you can steer at any time.
•Emergency Assist cannot prevent accidents and serious injuries on its own.
•If the camera's field of view is dirty, covered or damaged, the function of the lane
keeping system may be impaired.
•Emergency Assist does not react to persons, animals or vehicles crossing or
approaching in the same lane.
WARNING
If Emergency Assist is triggered unexpectedly, it can result in accidents and serious
injuries.
•If there is a malfunction in the Emergency Assist system, switch off the lane keeping
system (Lane Assistyf7KLVZLOODOVRVZLWFKRII(PHUJHQF\$VVLVW ⇒ Lane keeping
system (Lane Assistyf.
•Go to a qualified workshop and have the system checked. Volkswagen recommends
using a Volkswagen dealership for this purpose.
WARNING

The integrated Rear Traffic Alert provides assistance when reversing out of a parking space and
manoeuvring.
System limits
Use the lane keeping system only on paved roads.
The lane change system may interpret the traffic situation incorrectly in the following driving
situations, for example:
•In tight bends.
•When driving in the middle of two lanes.
•When road lanes are of varying width.
•At the brow of a hill.
•In poor weather conditions.
•Where there are special roadside structures, e.g. high or offset crash barriers.
You can save some settings in the user accounts of the personalisation function
⇒ Personalisation.
Driving with the lane change system
Fig. 148 In the exterior mirror housing: visual displays for the lane change system.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Switching on and off
•By means of the Assist systems menu in the instrument cluster ⇒ Instrument cluster
operation.
•OR: depending on the vehicle equipment, by means of the button for the driver assist systems
⇒ Button for driver assist systems.
•OR: depending on the vehicle equipment, in the Driver assistance menu in the Infotainment
system ⇒ Operation and display in the Infotainment system.
When the lane change system is switched on, the yellow indicator lamp in the exterior mirror
housing lights up once briefly ⇒ Fig. 148.
This most recent system setting is retained even after the ignition has been switched off and on.
Function
When switched on, the lane change system is active from a speed of around 15 km/h (9 mphyf7KH
lane change system is deactivated at a vehicle speed below 10 km/h (6 mphyf.
The intelligent technology of the lane change system including Rear Traffic Alert cannot
overcome the laws of physics, and functions only within the limits of the system. Never let
the extra convenience afforded by the lane change system including Rear Traffic Alert
tempt you into taking any risks when driving. Always take care when using the lane
change system and the Rear Traffic Alert as you could otherwise cause accidents or
injuries. The system is not a substitute for the full concentration of the driver.
•Adapt your speed and distance from the vehicles ahead to suit visibility, weather, road
and traffic conditions.
•Your hands should always be on the steering wheel so that you can steer at any time.
•Pay attention to the visual displays in the exterior mirror housing and in the instrument
cluster display, and respond to the commands.
•Always pay close attention to what is happening around the vehicle.
•Never use the lane change system including Rear Traffic Alert if the radar sensors are
dirty, covered or damaged. These circumstances can impair the proper functioning of
the system.
•It may be hard to see the display in the exterior mirror in direct sunlight.
WARNING

Electronic parking brake
Operating the electronic parking brake
Fig. 151 In centre console: button for the electronic parking brake.
Switching on
•When the vehicle is stationary, pull and hold the button.
•The electronic parking brake is switched on when the indicator lamp in the button ⇒ Fig. 151
(arrowyfDQGWKH red indicator lamp on the instrument cluster display are lit up.
•Release the button.
Switching off
•Switch on the ignition.
•Depress the brake pedal and press the button or gently press the accelerator when the
engine is running.
•The indicator lamp in the button ⇒ Fig. 151 (arrowyfDQGWKH red indicator lamp in the
instrument cluster display will go out.
Automatic switch-off for the electronic parking brake when driving off
The electronic parking brake switches off automatically if one of the following situations occurs
when the driver door is closed:
•In vehicles with a DSG dual clutch gearbox: engage or change a position.
•In vehicles with a manual gearbox: fully depress the clutch before pulling off.
Moving off on steep uphill gradients or with increased vehicle weight
You can prevent the electronic parking brake from switching off automatically by pulling the
button upwards and holding it while pulling away.
If higher engine power is required to move off, the electronic parking brake will be deactivated only
when you release the button.
This can make it easier to move off with a high trailer weight ⇒ Trailer towing.
Automatic switch-on of the electronic parking brake if not activated
properly when the driver leaves the vehicle
On vehicles with DSG dual clutch gearbox, the electronic parking brake may switch itself on
automatically if the system detects that the driver has not left the vehicle correctly.
Emergency braking function
The emergency braking function should only be used in those situations where the vehicle cannot
be stopped using the foot brake ⇒!
The vehicle will brake strongly as long as the button is pulled. A signal tone can be heard
at the same time.
®
®

•Changes have been made to the paintwork around the camera or the construction has been
modified, e.g. vehicle front end or the running gear.
Response to all circumstances
•Switch off the system temporarily.
•Check whether any of the causes described below apply.
•You can switch the system back on again once you have rectified the cause of the problem.
•If the system still fails to respond as expected, have the system checked by a qualified
workshop.
Park Assist
Introduction
This chapter contains information on the followingsubjects:
⇒ Prerequisites
⇒ Looking for a parking space
⇒ Driving into a parking space
⇒ Driving out of a parking space
⇒ Troubleshooting
Park Assist shows parking spaces
which are suitable for parking and
assists the driver when driving into and
out of parking spaces.
Park Assist is an extension of Park Distance Control ⇒ Park Distance Control.
Park Assist automatically steers the vehicle. The driver must control the accelerator, gear changes
and brake!
Driving into a parking space using Park Assist takes place in the following steps:
•Look for a parking space.
•Drive into a parking space.
System limits
The sensors may not always be able to detect objects such as trailer drawbars, thin rails, fences,
posts, trees and open or opening boot lids. This can result in damage to your vehicle.
In some cases, dirt and ice on the sensors could be registered as an obstacle.
Prerequisites
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The following prerequisites must be met for driving into and out of parking spaces:
•The traction control system (TCSyfPXVWEHVZLWFKHGRQ ⇒ Brake support systems.
•Distance: maintain a distance of 0.5 – -2.0 metres when driving past the parking space.
•The parking space must have at least the dimensions required by Park Assist.
•Speed when driving past the parking space (for parking spaces parallel to the roadyfQRWDERYH
40 km/h (25 mphyf.
•Speed when driving past the parking space (for parking spaces perpendicular to the roadyfQRW
above 20 km/h (12 mphyf.
•Maximum speed: 7 km/h (4 mphyf. An automatic braking intervention can take place when
driving into a parking space.
The parking manoeuvre can be continued after the automatic brake intervention.
Fast steering wheel movements can cause serious injury.
•During the manoeuvring operation, do not reach for the steering wheel until prompted
to do so by the system.
•Exception: if a dangerous situation occurs, intervene and take over the steering.
WARNING
Park Assist uses parked vehicles, the kerb and other objects as guidance. Please ensure
that the wheels and tyres are not damaged when parking the vehicle. If necessary, stop the
parking procedure in good time to prevent damage to the vehicle.
NOTICE
