2021 TOYOTA PRIUS PRIME light

2
PRIUS PRIME_QG_OM47D86U_(U)
1. Charging operation
Charging equipment
*: If equipped, refer to “OWNER’S MANUAL”
Charging equipment and names
Charging inlet
Charging inlet light
Charging port lid
Charging indicator
Charging connector lock
switch
*
Hybrid battery (traction bat-
tery) status indicator
Charging cable
Charging port1
2
3
4
5
6
7
8

6
PRIUS PRIME_QG_OM47D86U_(U)
1. Charging operation
■Opening the charging port lid
Vehicles without smart lid &
connector locking system:
Press the rear edge of the
charging port lid (the position
shown in the illustration).
Push and take your hand away
to slightly open the charging port
lid. Then open the lid fully by
hand.
Vehicles with smart lid & con-
nector locking system:
Press the rear edge of the
charging port lid (the position
shown in the illustration) with
the doors unlocked.
Push and take your hand away
to slightly open the charging port
lid. Then open the lid fully by
hand.
While the doors are locked, only the charging port lid can be u nlocked
by carrying an electronic key and pressing the charging port li d.
Opening and closing the charging port lid

10
PRIUS PRIME_QG_OM47D86U_(U)
1. Charging operation
Before charging, always check the following items.
● The parking brake is applied.
● The headlights are switched off or set to AUTO, and lights such as
the emergency flashers and interi or lights etc. are switched off.
If these light switches are turned ON, then these features will consume
electricity, and charging time will increase.
●The power switch is off.
The time required to charge the hybrid battery (traction battery) differs
according to the charging vol tage and charging current.
*1: This is the maximum value.
*2: The time required for charging to complete depends on conditions such as
the remaining charge of the hybrid battery (traction battery), the outside
temperature and specifications of a charger (charging station).
Confirm the following before charging
Estimated charging time
Connected power sourceCharging stationHome power source
Charging voltageAC 240 VAC 120 V
Charging current*116A12A
Estimated charging
time
*2Approximately 2 hoursApproximately 5 hours 10 minutes

PRIUS PRIME_QG_OM47D86U_(U)
111. Charging operation
1
Charging operation

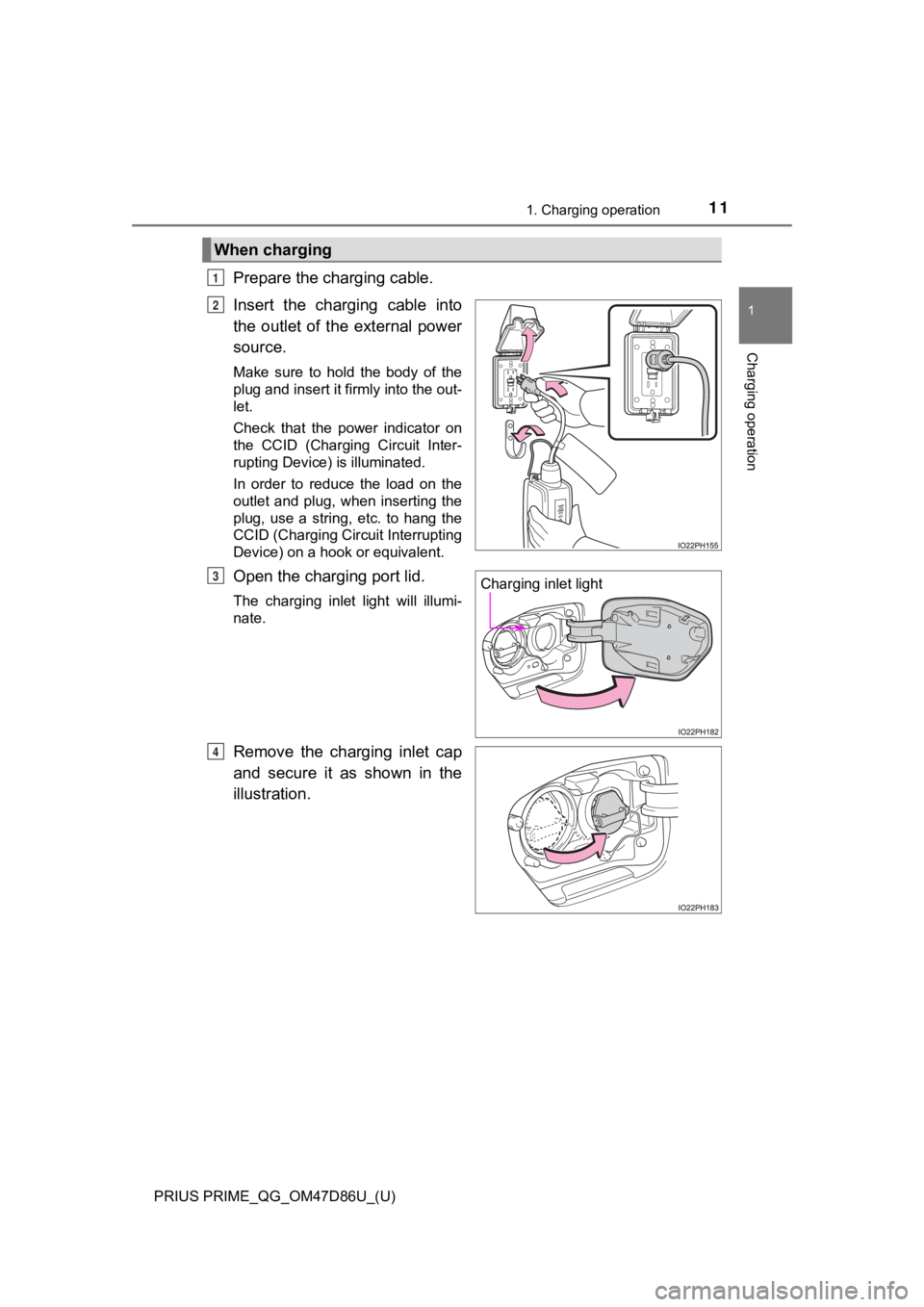

Prepare the charging cable.
Insert the charging cable into
the outlet of the external power
source.
Make sure to hold the body of the
plug and insert it firmly into the out-
let.
Check that the power indicator on
the CCID (Charging Circuit Inter-
rupting Device) is illuminated.
In order to reduce the load on the
outlet and plug, when inserting the
plug, use a string, etc. to hang the
CCID (Charging Circuit Interrupting
Device) on a hook or equivalent.
Open the charging port lid.
The charging inlet light will illumi-
nate.
Remove the charging inlet cap
and secure it as shown in the
illustration.
When charging
1
2
Charging inlet lightP
Q

14
PRIUS PRIME_QG_OM47D86U_(U)
1. Charging operation
To prevent electrical shock, be sure to remove by following the proce-
dures below.
Vehicles with smart lid & con-
nector locking system:
When the charging connector is
locked, carry an electronic key
and press the charging connec-
tor lock switch.
The charging connector is
unlocked by the smart lid & con-
nector locking system.
Carrying an electronic key and moving near the charging inlet w ill cause
the charging inlet light to illuminate.
Pull the charging connector
towards you while pressing the
latch release button.
If the latch release button is
pressed during charging (while the
charging indicator is on), charging
will be interrupted.
Attach the chargi ng connector cap.
Attach the charging inlet cap and close the charging port lid.
Remove the plug from the outlet when the charging equipment will
not be used for a prolonged period of time.
Hold the body of the plug when removing.
Make sure to put the cable away immediately after disconnecting .
When leaving the plug inserted, inspect the plug and connector once a
month to check if dirt or dust has accumulated.
■ Safety function
If the latch release button is pressed, charging will not begin even if the
charging cable is connected.
Also, charging will be stopped if the latch release button is pressed and held
for several seconds during charging. When restarting charging, reinsert the
charging connector after pulling it out, and check that the charging indicator
illuminates.
After charging
1
2
3
4
5

PRIUS PRIME_QG_OM47D86U_(U)
151. Charging operation
1
Charging operation
WARNING
■When charging
Observe the following precautions.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
● Connect to a power source suitable for charging.
● Before charging, check that the charging inlet does not have de formations,
damage, corrosion, dust or other foreign materials such as snow or ice
adhering to it. If anything is adhering to the inlet, be sure to completely
remove the material before connecting the charging connector.
● Do not let the terminals of the charging inlet get wet.
● Make sure that the charging cable, plug and socket are free of foreign mat-
ter and not deformed or damaged.
● Only use outlets where the plug can be securely inserted.
● Do not charge if the charging cable is coiled or bundled.
● Wrapping 120 V charging cable while in-use is not recommended b ecause
cable may overheat. Failure to rewrap charging cable when not in-use
could result in strangulation or tripping hazard.
● Do not touch the terminals of the charging connector and chargi ng inlet
with a sharp metal objects (needles etc.) or hands, or short th em with for-
eign objects.
● When charging outdoors, make sure to connect to a weatherproof outlet
for outdoor use.
● If any heat, smoke, odors, noise or other abnormalities are noticed during
charging, stop charging immediately.
● Do not insert the plug if the outlet is submerged in water or s now.
● When charging during rain or snow, do not pull out or insert th e plug with
wet hands. Also, do not get the electrical socket and plug wet.
● Do not charge the vehicle during a lightning storm.
● Do not let the wheels on the charging cable, plug, charging connector and
CCID (Charging Circuit Interrupting Device).
● Firmly insert the plug into the outlet.
● Do not use an extension cord and converting adaptor.
● After connecting the charging cable, confirm that it is not wou nd around
anything.
● If the power indicator light does not illuminate after plugging the charging
cable into the socket-outlet, unplug it immediately.

28
PRIUS PRIME_QG_OM47D86U_(U)
3. Basic operation
■Starting the hybrid systemCheck that the charging cable is disconnected.
Check that the park ing brake is set.
Firmly depress the brake
pedal.
and a message will be
displayed on the multi-informa-
tion display.
When the shift position is N, the
hybrid system cannot start. Shift
the shift position to P when start-
ing the hybrid system.
Press the power switch
shortly and firmly.
When operating the power
switch, one short, firm press is
enough. It is not necessary to
press and hold the switch.
If the “READY” indicator turns
on, the hybrid system will oper-
ate normally.
Continue depressing the brake pedal until the “READY” indicator is illu-
minated.
The hybrid system can be started from any power switch mode.
Check that the “R EADY” indicator is illuminated.
If the “READY” indicator changes from a flashing light to a sol id light and
the buzzer sounds, the hybrid system is starting normally.
The vehicle will not move when the “READY” indicator is off.
The vehicle can move when the “READY” indicator is on even if the
engine is stopped. (The gasoline engine starts or stops automat ically in
accordance with the state of the vehicle.)
How to operate the pow er (ignition) switch
1
2
3
4
5

PRIUS PRIME_QG_OM47D86U_(U)
313. Basic operation
3
Basic operation
Shift the shift position to P.
Check that the P position is
highlighted on the shift posi-
tion indicator, and release the
brake pedal gently after
applying the parking brake.
■About engine braking
When shift position B is selected, releasing the accelerator pe dal will apply
engine braking.
● When the vehicle is driven at high speeds, compared to ordinary gasoline-
fueled vehicles, the engine braking deceleration is felt less t han that of other
vehicles.
● The vehicle can be accelerated even when shift position B is se lected.
If the vehicle is driven continuously in the B position, fuel e fficiency will
become low. Usually, select the D position.
2
NOTICE
■ Hybrid battery (tract ion battery) charge
If the shift position is in N, the hybrid battery (traction bat tery) will not be
charged. To help prevent the battery from discharging, avoid leaving the N
position selected for an extended period of time.
