1732-2. Charging
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47D72E_(EE)

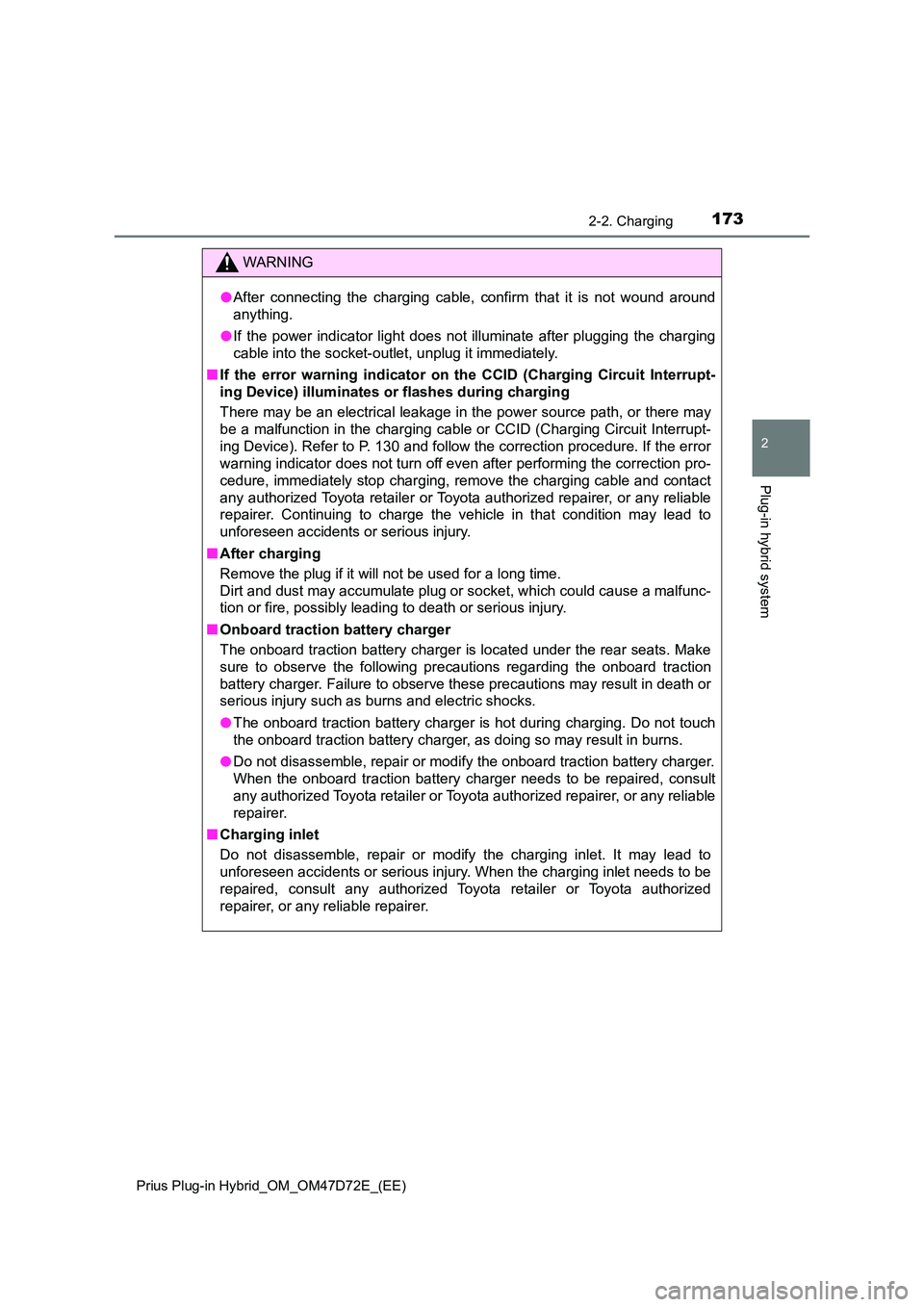

WARNING
●After connecting the charging cable, confirm that it is not wound around
anything.
● If the power indicator light does not illuminate after plugging the charging
cable into the socket-outlet, unplug it immediately.
■ If the error warning indicator on the CCID (Charging Circuit Interrupt-
ing Device) illuminates or flashes during charging
There may be an electrical leakage in t he power source path, or there may
be a malfunction in the charging cable or CCID (Charging Circuit Interrupt-
ing Device). Refer to P. 130 and follow the correction procedure. If the error
warning indicator does not turn off even after performing the correction pro-
cedure, immediately stop charging, remove the charging cable and contact
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer. Continuing to charge the vehicle in that condition may lead to
unforeseen accidents or serious injury.
■ After charging
Remove the plug if it will not be used for a long time.
Dirt and dust may accumulate plug or socket, which could cause a malfunc-
tion or fire, possibly leading to death or serious injury.
■ Onboard traction battery charger
The onboard traction battery charger is located under the rear seats. Make
sure to observe the following precautions regarding the onboard traction
battery charger. Failure to observe these precautions may result in death or
serious injury such as burns and electric shocks.
● The onboard traction battery charger is hot during charging. Do not touch
the onboard traction battery charger, as doing so may result in burns.
● Do not disassemble, repair or modify the onboard traction battery charger.
When the onboard traction battery charger needs to be repaired, consult
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
■ Charging inlet
Do not disassemble, repair or modify the charging inlet. It may lead to
unforeseen accidents or serious injury. When the charging inlet needs to be
repaired, consult any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.

203
3Instrument cluster
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
3. Instrument cluster
Combination meter ............ 204
Warning lights and
indicators ......................... 214
Main display ....................... 222
Multi-information display .... 230
Head-up display ................. 264
Energy monitor/
consumption screen ........ 271

2043. Instrument cluster
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
Combination meter
The units used on the display may differ depending on the target region.
Main display (P. 222)
The main display shows basic information related to driving, such as the
vehicle speed and remaining fuel amount.
Multi-information display (P. 230)
The multi-information display shows information which makes the vehicle
convenient-to-use, such as the hybrid system operation condition, electric-
ity consumption and fuel consumption history. Also, the operation contents
of the driving support systems and the combination meter display settings
can be changed by switching to the settings screen.
Warning lights and indicators (P. 214)
The warning lights and indicators comes on or flashes to indicate problems
with the vehicle or to show the operation status of the vehicle’s systems.
Clock (P. 210)
The large meter uses 2 liquid crystal displays to display informa-
tion such as the vehicle condition, driving status, electricity con-
sumption and fuel consumption.
Combination meter layout
1
2
3
4

2133. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
■ Pop-up display
Some functions, such as the driving mode select switch and air conditioning
system, are operation-linked and display pop-up screens on the multi-infor-
mation display. If the pop-up screens of these functions are not desired, they
can be turned off in the “Meter Customize” settings. ( P. 260)
WARNING
■To prevent an accident
■ Caution for use while driving
For safety, avoid operating the meter control switch while driving as much
as possible, and do not look continuously at the multi-information display
while driving. Stop the vehicle and operate the meter control switch. Failure
to do so may cause a steering wheel operation error, resulting in an unex-
pected accident.
NOTICE
■ The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
Do not place anything or attach a sticker
in front of the instrument cluster. The item
may obscure or obstruct the display, or
could reflect off the display, possibly
causing an accident.

2143. Instrument cluster
Prius Plug-in Hybrid_OM_OM47D72E_(EE)

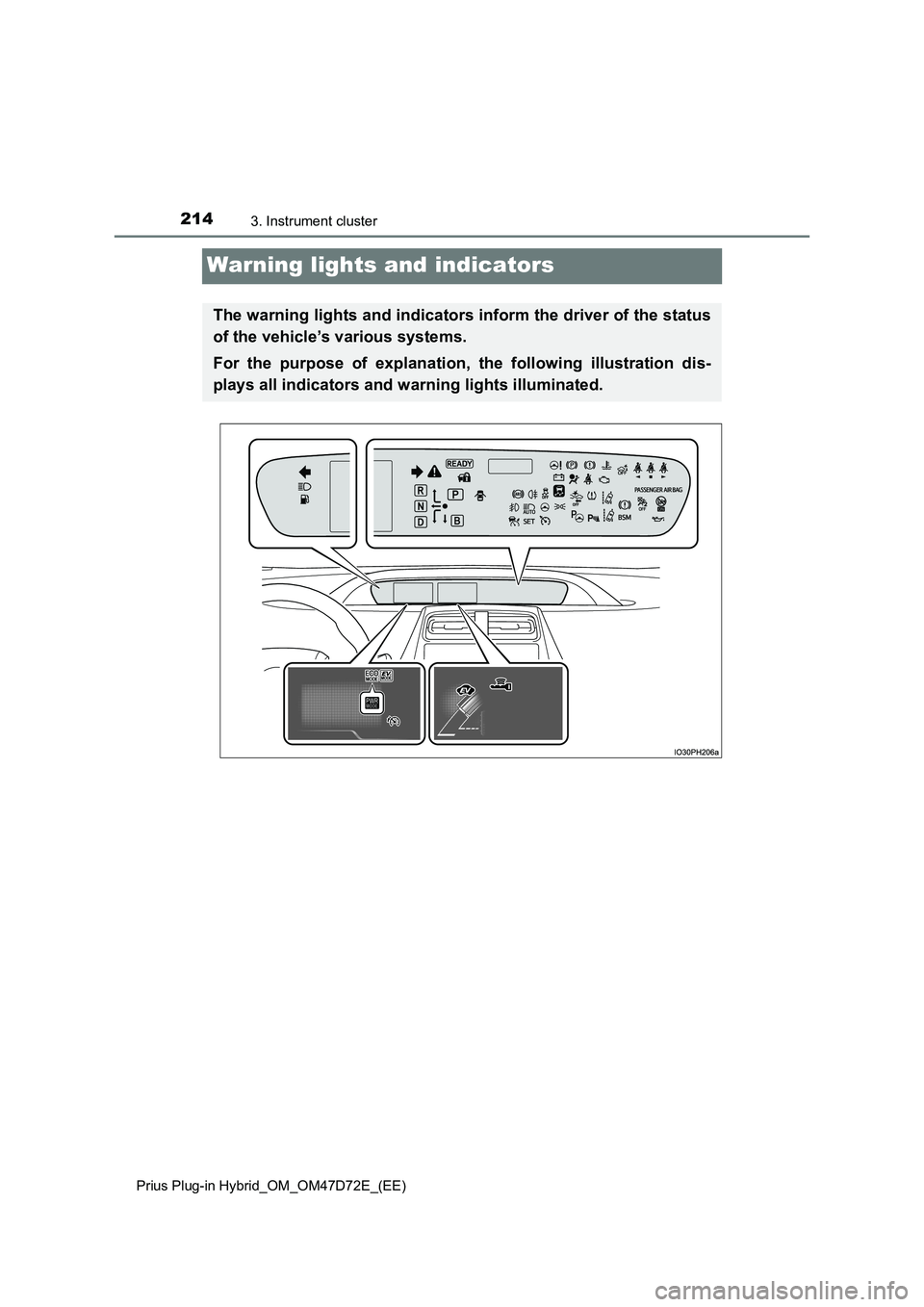

Warning lights and indicators
The warning lights and indicators inform the driver of the status
of the vehicle’s various systems.
For the purpose of explanation, the following illustration dis-
plays all indicators and warning lights illuminated.

2153. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.

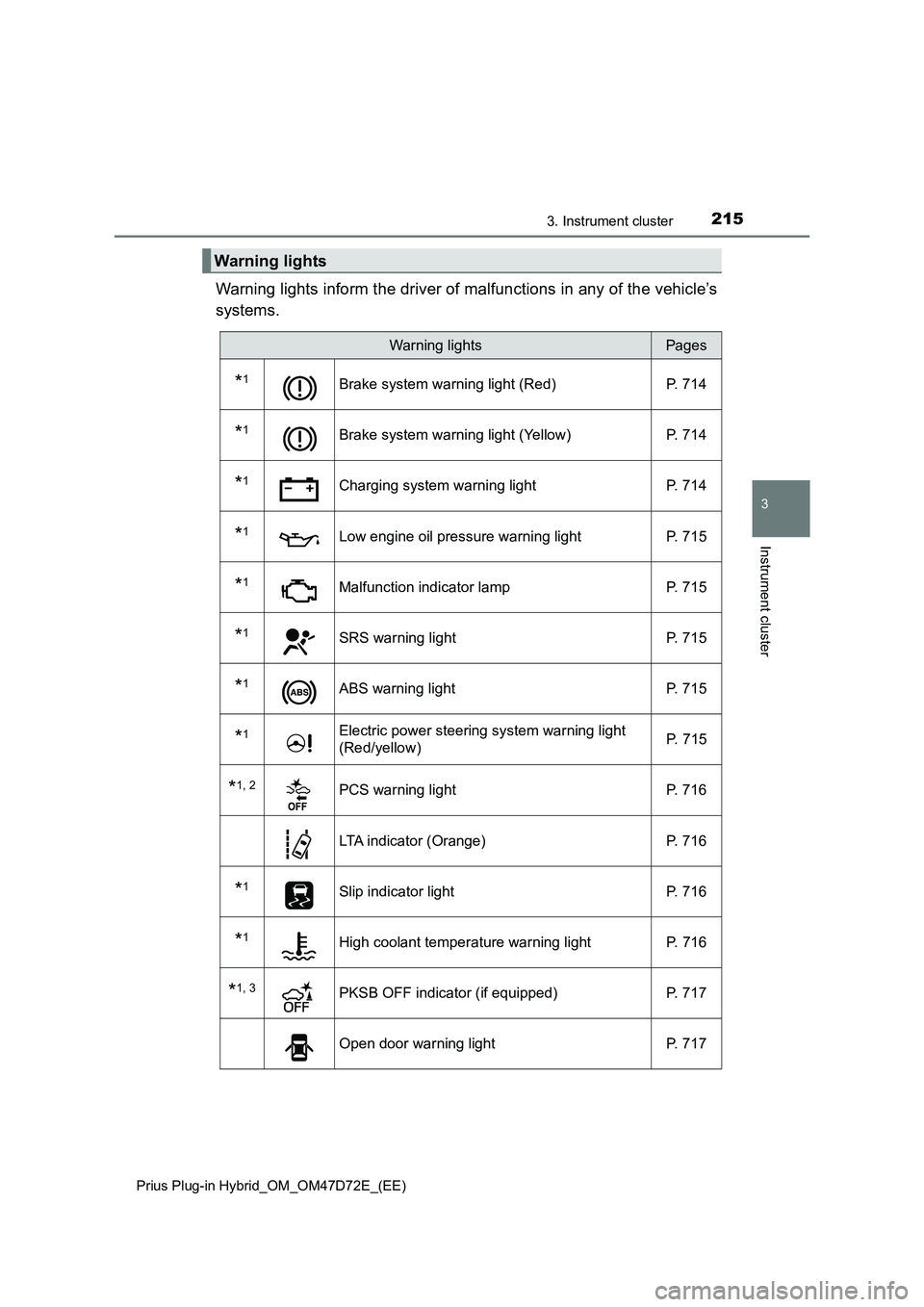

Warning lights
Warning lightsPages
*1Brake system warning light (Red) P. 714
*1Brake system warning light (Yellow) P. 714
*1Charging system warning light P. 714
*1Low engine oil pressure warning light P. 715
*1Malfunction indicator lamp P. 715
*1SRS warning light P. 715
*1ABS warning light P. 715
*1Electric power steering system warning light
(Red/yellow) P. 715
*1, 2PCS warning light P. 716
LTA indicator (Orange) P. 716
*1Slip indicator light P. 716
*1High coolant temperature warning light P. 716
*1, 3PKSB OFF indicator (if equipped) P. 717
Open door warning light P. 717

2163. Instrument cluster
Prius Plug-in Hybrid_OM_OM47D72E_(EE)

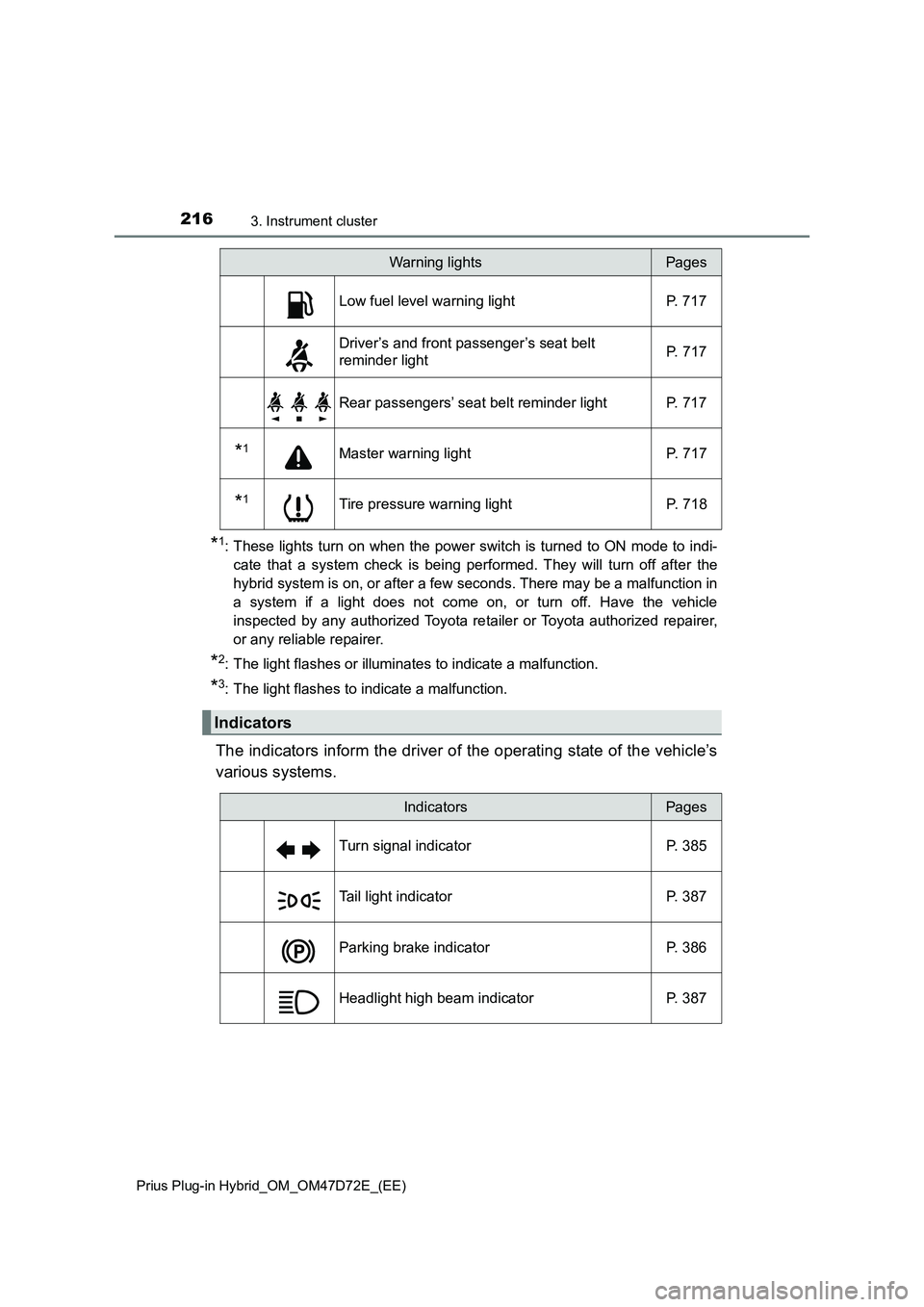

*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or turn off. Have the vehicle
inspected by any authorized Toyota retailer or Toyota authorized repairer,
or any reliable repairer.
*2: The light flashes or illuminates to indicate a malfunction.
*3: The light flashes to indicate a malfunction.
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Low fuel level warning light P. 717
Driver’s and front passenger’s seat belt
reminder lightP. 717
Rear passengers’ seat belt reminder light P. 717
*1Master warning light P. 717
*1Tire pressure warning light P. 718
Indicators
Warning lightsPages
IndicatorsPages
Turn signal indicator P. 385
Tail light indicator P. 387
Parking brake indicator P. 386
Headlight high beam indicator P. 387

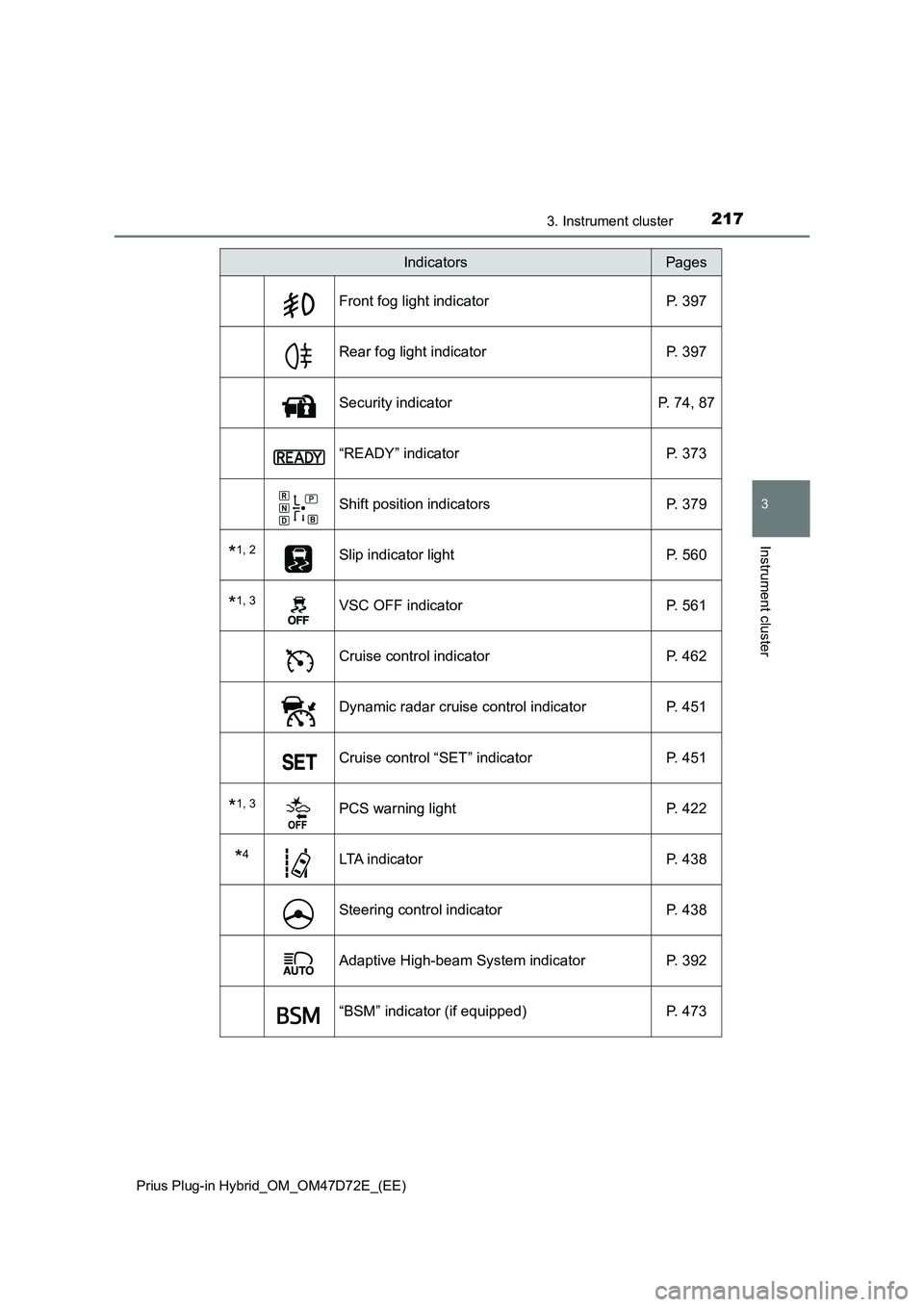

2173. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
Front fog light indicator P. 397
Rear fog light indicator P. 397
Security indicator P. 74, 87
“READY” indicator P. 373
Shift position indicators P. 379
*1, 2Slip indicator light P. 560
*1, 3VSC OFF indicator P. 561
Cruise control indicator P. 462
Dynamic radar cruise control indicator P. 451
Cruise control “SET” indicator P. 451
*1, 3PCS warning light P. 422
*4LTA indicator P. 438
Steering control indicator P. 438
Adaptive High-beam System indicator P. 392
“BSM” indicator (if equipped) P. 473
IndicatorsPages
