6-3. Do-it-yourself maintenance
6
Maintenance and care
Headlight aim
Adjustment bolt A
(Vertical adjustment)
Adjustment bolt B
(Horizontal adjustment)
Make sure the vehicle has a full tank of gasoline and the area
around the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
Vertical movement adjusting bolts
1
2
Before checking the headlight aim
1
2
3
4

506
LC200_OM_OM60T03U_(U)
6-3. Do-it-yourself maintenance
Using a Phillips-head screw-
driver, turn bolt A in either direc-
tion.
Remember the turning direction
and the number of turns.
Turn bolt B the same number of
turns and in the same direction
as step .
If the headlight cannot be adjusted
using this procedure, take the vehi-
cle to your Toyota dealer to adjust
the headlight aim.
Adjusting the headlight aim
1
2
1

507
LC200_OM_OM60T03U_(U)
6-3. Do-it-yourself maintenance
6
Maintenance and care
Light bulbs
Check the wattage and color of the light bulb being replaced.
(  P. 579)
 P. 4 7 0
■Front
Front side marker light
Front turn signal light
You may replace the following bu lbs yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact your Toyota
dealer.
For more information about replacing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement
Removing the engine c ompartment covers
Bulb locations
1
2

508
LC200_OM_OM60T03U_(U)
6-3. Do-it-yourself maintenance
■Rear
Rear turn signal lightBack-up light12

LC200_OM_OM60T03U_(U)
5096-3. Do-it-yourself maintenance
6
Maintenance and care
■Front side marker lightFor the left side only:
Remove the securing clip
and move the washer fluid
filler opening.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
Replacing light bulbs
1
2
3
4

510
LC200_OM_OM60T03U_(U)
6-3. Do-it-yourself maintenance
■Front turn signal lightsFor the left side only:
Remove the securing clip
and move the washer fluid
filler opening.
To allow enough working
space, remove the bulb base
of the front side marker light.
Wrap the removed bulb base
with cloth to prevent damage to
the bulb base.
Unplug the connector while
depressing the lock release.
Turn the bulb base counter-
clockwise.
1
2
3
4

LC200_OM_OM60T03U_(U)
5116-3. Do-it-yourself maintenance
6
Maintenance and care
Remove the light bulb.
When installing, reverse the steps listed.5
6

512
LC200_OM_OM60T03U_(U)
6-3. Do-it-yourself maintenance

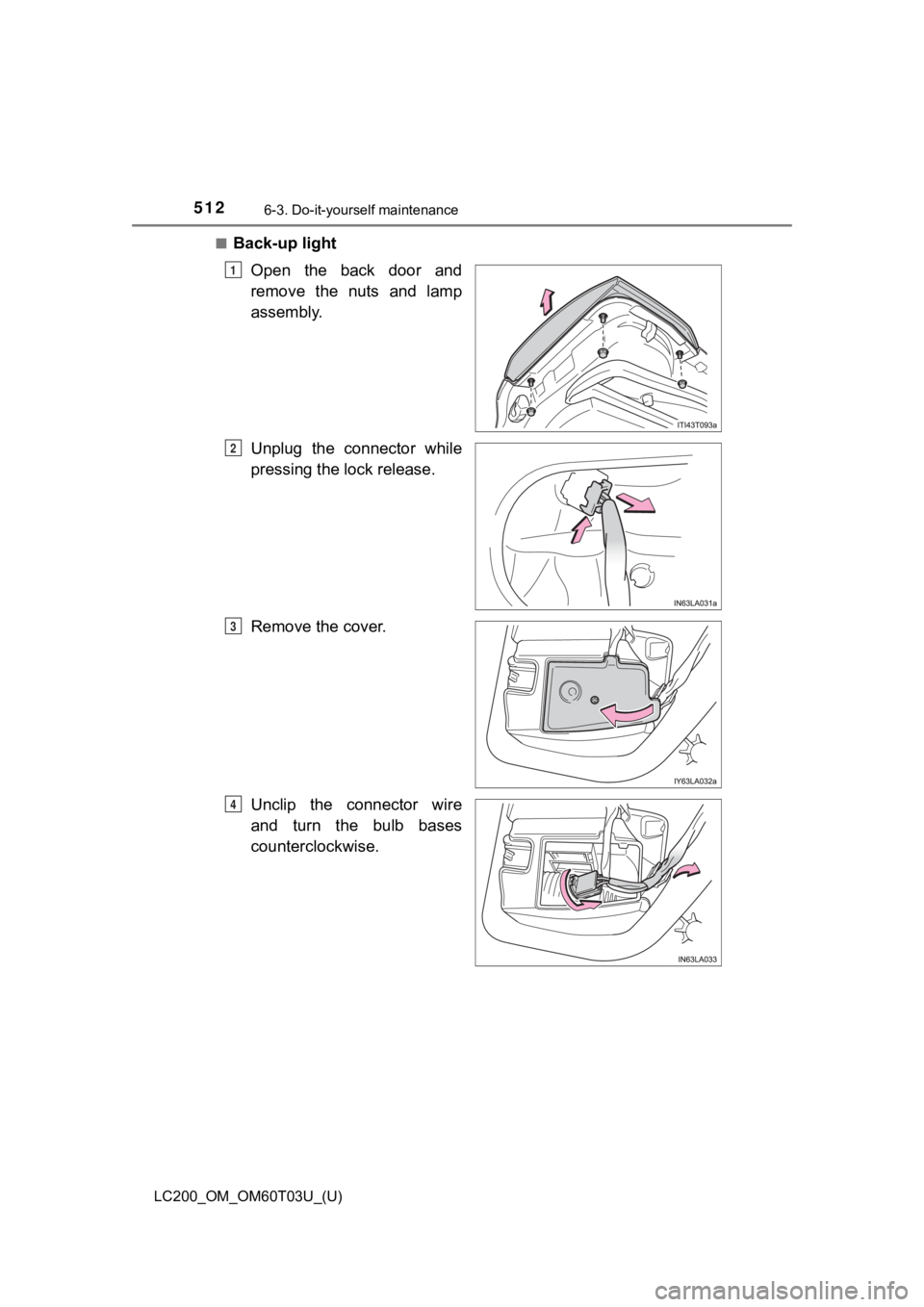

■Back-up lightOpen the back door and
remove the nuts and lamp
assembly.
Unplug the connector while
pressing the lock release.
Remove the cover.
Unclip the connector wire
and turn the bulb bases
counterclockwise.
1
2
3
4
