2021 TOYOTA HILUX indicator

223
4
4-2. Driving procedures
Driving
HILUX_OM_OM0K513E_(EE)
Engine (ignition) switch (vehicles with
smar t entr y & start system)
Automatic transmission
Check that the parking brake is set.
Check that the shift lever is set in P.
Firmly depress the brake pedal.
A message will be displayed on the
multi-information display. If it is not
displayed, the engine cannot be
started.
Press the engine switch shortly
and firmly.
When operating the engine switch,
one short, firm press is enough. It
is not necessary to press and hold
the switch.
The engine will crank until it starts
or for up to 30 seconds, whichever
is less.
Continue depressing the brake pedal until the engine is completely started.
Diesel engine only: the indicator turns on. The engine will start after
the indicator light goes out.
The engine can be started from any engine switch mode.
Performing the following operations when carrying the elec-
tronic key on your person starts the engine or changes engine
switch modes.
Starting the engine
1
2
3
4

2244-2. Driving procedures
HILUX_OM_OM0K513E_(EE)
Manual transmission
Check that the parking brake is set.
Check that the shift lever is set in N.
Firmly depress the clutch pedal.
A message will be displayed on the
multi-information display. If it is not
displayed, the engine cannot be
started.
Press the engine switch shortly
and firmly.
When operating the engine switch,
one short, firm press is enough. It
is not necessary to press and hold
the switch.
The engine will crank until it starts
or for up to 30 seconds, whichever
is less.
Continue depressing the clutch pedal until the engine is completely
started.
Diesel engine only: the indicator turns on. The engine will start after
the indicator light goes out.
The engine can be started from any engine switch mode.
1
2
3
4

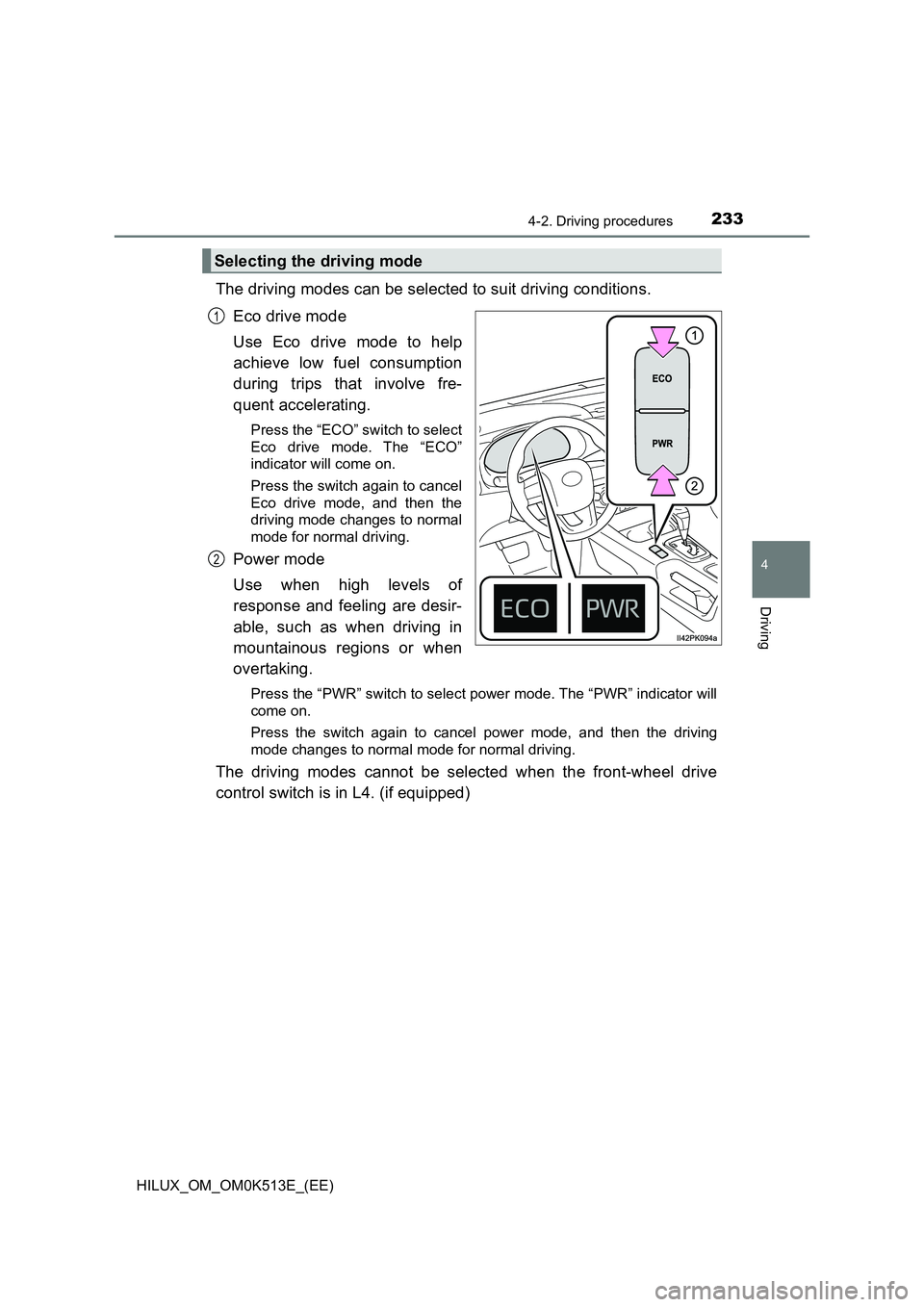

2334-2. Driving procedures
4
Driving
HILUX_OM_OM0K513E_(EE)
The driving modes can be selected to suit driving conditions.
Eco drive mode
Use Eco drive mode to help
achieve low fuel consumption
during trips that involve fre-
quent accelerating.
Press the “ECO” switch to select
Eco drive mode. The “ECO”
indicator will come on.
Press the switch again to cancel
Eco drive mode, and then the
driving mode changes to normal
mode for normal driving.
Power mode
Use when high levels of
response and feeling are desir-
able, such as when driving in
mountainous regions or when
overtaking.
Press the “PWR” switch to select power mode. The “PWR” indicator will
come on.
Press the switch again to cancel power mode, and then the driving
mode changes to normal mode for normal driving.
The driving modes cannot be selected when the front-wheel drive
control switch is in L4. (if equipped)
Selecting the driving mode
1
2

2374-2. Driving procedures
4
Driving
HILUX_OM_OM0K513E_(EE)
Q If the shift lever cannot be shifted from P
First, check whether the brake pedal is being depressed.
If the shift lever cannot be shifted with your foot on the brake pedal, there may
be a problem with the shift lock system. Have the vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer immediately.
The following steps may be used as an emergency measure to ensure that
the shift lever can be shifted.
Releasing the shift lock:
Set the parking brake.
Vehicles without smart entry & start system:
Turn the engine switch to the “LOCK” position.
Vehicles with smart entry & start system:
Turn the engine switch off.
Depress the brake pedal.
Q If the “S” indicator does not come on or the “D” indicator is displayed
even after shifting the shift lever to S
This may indicate a malfunction in the automatic transmission system. Have
the vehicle inspected by any authorized Toyota retailer or Toyota authorized
repairer, or any reliabl e repairer immediately.
Pry the cover up with a flathead screw-
driver or equivalent tool.
To prevent damage to the cover, cover
the tip of the screwdriver with a rag.
Press the shift lock override button.
The shift lever can be shifted while the
button is pressed.
1
2
3
4
5

2404-2. Driving procedures
HILUX_OM_OM0K513E_(EE)
The driving modes can be selected to suit driving conditions.
Eco drive mode
Use Eco drive mode to help
achieve low fuel consumption
during trips that involve fre-
quent accelerating.
Press the “ECO” switch to select
Eco drive mode. The “ECO”
indicator will come on.
Press the switch again to cancel
Eco drive mode, and then the
driving mode changes to normal
mode for normal driving.
Power mode
Use when high levels of
response and feeling are desir-
able, such as when driving in
mountainous regions or when
overtaking.
Press the “PWR” switch to select power mode. The “PWR” indicator will
come on.
Press the switch again to cancel power mode, and then the driving
mode changes to normal mode for normal driving.
The driving modes cannot be selected when the front-wheel drive
control switch is in L4. (if equipped)
Selecting the driving mode (if equipped)
1
2

2414-2. Driving procedures
4
Driving
HILUX_OM_OM0K513E_(EE)
iMT detects clutch pedal and shift lever operations performed by the
driver. When the shift position is changed, iMT judges the optimal
engine speed and performs the appropriate control to help the driver
to change the shift position smoothly.
Press the “iMT” switch.
The “iMT” indicator will come on.
Press the switch again to cancel
iMT.
iMT (Intelligent Manual Transmission) (if equipped)

2464-2. Driving procedures
HILUX_OM_OM0K513E_(EE)
Turn signal lever
Right turn
Left turn
Lane change to the right (move
the lever partway and release
it)
The right hand signals will flash 3
times.
Lane change to the left (move
the lever partway and release
it)
The left hand signals will flash 3
times.
Q Turn signals can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The engine switch is in IGNITION ON mode.
Q If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Q If the turn signals stop flashing before a lane change has been per-
formed
Operate the lever again.
Q To discontinue flashing of the turn signals during a lane change
Operate the lever in the opposite direction.
Q Customization
The number of times the turn signals flash during a lane change can be
changed.
(Customizable features: P. 646)
Operating instructions
1
2
3
4

2784-5. Using the driving support systems
HILUX_OM_OM0K513E_(EE)
QOperational conditions
The pre-collision system is enabled and the system determines that the pos-
sibility of a frontal collision with a detected object is high.
Each function is operational at the following speed
O Pre-collision warning
O Pre-collision brake assist
O Pre-collision braking
The system may not operate in the following situations:
O If a battery terminal has been disconnected and reconnected and then the
vehicle has not been driven for a certain amount of time
O If the shift lever is in R
O When the VSC OFF indicator is illuminated (only the pre-collision warning
function will be operational)
Detectable objectsVehicle speedRelative speed between
your vehicle and object
VehiclesApprox. 10 to 180 km/h
(7 to 110 mph)
Approx. 10 to 180 km/h
(7 to 110 mph)
Bicyclists and pedestri-
ans
Approx. 10 to 80 km/h
(7 to 50 mph)
Approx. 10 to 80 km/h
(7 to 50 mph)
Detectable objectsVehicle speedRelative speed between
your vehicle and object
VehiclesApprox. 30 to 180 km/h
(20 to 110 mph)
Approx. 30 to 180 km/h
(20 to 110 mph)
Bicyclists and pedestri-
ans
Approx. 30 to 80 km/h
(20 to 50 mph)
Approx. 30 to 80 km/h
(20 to 50 mph)
Detectable objectsVehicle speedRelative speed between
your vehicle and object
VehiclesApprox. 10 to 180 km/h
(7 to 110 mph)
Approx. 10 to 180 km/h
(7 to 110 mph)
Bicyclists and pedestri-
ans
Approx. 10 to 80 km/h
(7 to 50 mph)
Approx. 10 to 80 km/h
(7 to 50 mph)
