2021 TOYOTA HILUX Owners Manual (in English)

5357-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care
Partly remove the fender liner and turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
2
Without daytime running lightsWith daytime running lights
Bumper
Fender
linerBumper
Fender
liner
3
Without daytime running lightsWith daytime running lights
4

5367-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)

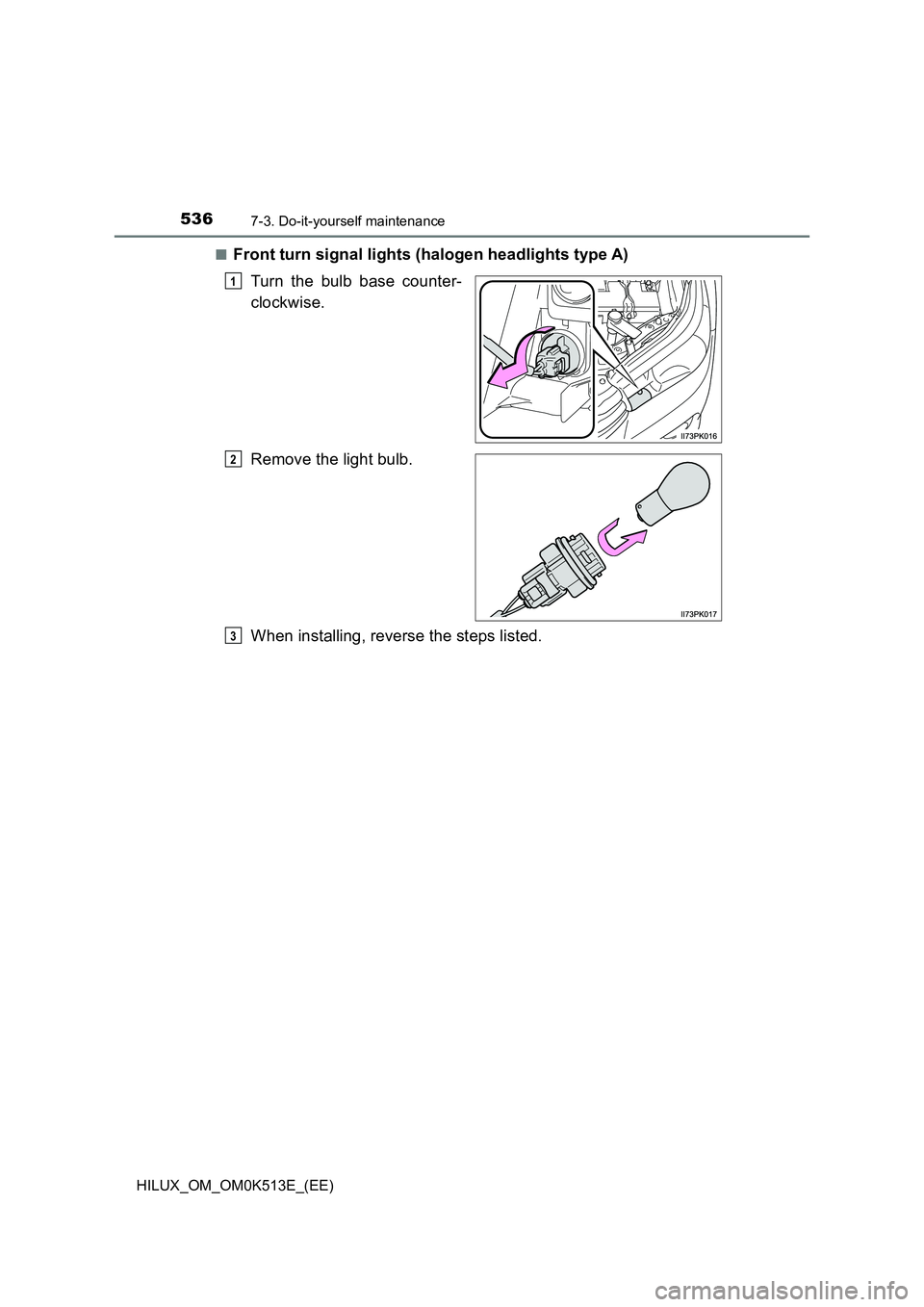

QFront turn signal lights (halogen headlights type A)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3

5377-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care
QFront turn signal lights (halogen headlights type B)
To allow enough working
space, turn the steering
wheel to the opposite side
where the bulb to be
replaced is located.
Remove the screws and
clips.
Removing the clip
Installing the clip
1
1
2
Ty pe AType B

5387-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
Partly remove the fender
liner and turn the bulb base
counterclockwise.
Remove the light bulb.
When installing, reverse the steps listed.
Bumper
Fender
liner
2
3
4

5397-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care
QHalogen front fog lights (if equipped)
To allow enough working
space, turn the steering
wheel to the opposite side
where the bulb to be
replaced is located.
Remove the screws and
clips.
Removing the clip
Installing the clip
1
1
2
Ty pe AType B

5407-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
Partly remove the fender
liner and unplug the connec-
tor while pressing the lock
release.
Turn the bulb base counter-
clockwise.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Bumper
Fender
liner
2
3
4

5417-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care
Turn and secure the bulb
base.
Install the connector.
Shake the bulb base gently to
check that it is not loose, turn
the front fog lights on once and
visually confirm that no light is
leaking through the mounting.
When installing the fender liner, screws and clips, reverse the
removing procedure in steps and .
5
6
7
12

5427-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
QStop/tail lights, rear turn signal lights, back-up lights and rear
fog light (if equipped) (without LED stop lights)
Remove the securing bolts
and pull the unit sideways to
remove.
Turn the bulb base counter-
clockwise.
Stop/tail light
Rear turn signal light
Back-up light or rear fog
light
Remove the light bulb.
Stop/tail light
Rear turn signal light
Back-up light or rear fog
light
When installing, reverse the steps listed.
1
2
1
2
3
3
1
2
3
4
