2021 TOYOTA HILUX specification

627
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K513E_(EE)
Gasoline engine
Diesel engine
Fuel
Fuel type
When you find these types of fuel label at the gas
station, use only the fuel with one of the following
labels.

Unleaded gasoline only
Research Octane
Number 91 or higher
Fuel tank capacity
(Reference)80 L (21.1 gal., 17.6 Imp.gal.)
Fuel type
When you find these types of fuel label at the gas
station, use only the fuel with one of the following
labels.

EU area:
Diesel fuel conforming to European standard
EN590 or EN16734
Except EU area (vehicles without DPF system):
Diesel fuel only
Except EU area (vehicles with DPF system):
Diesel fuel that contains 10 ppm or less of sulfur
Cetane number 48 or higher
Fuel tank capacity
(Reference)80 L (21.1 gal., 17.6 Imp.gal.)

6289-1. Specifications
HILUX_OM_OM0K513E_(EE)
Gasoline engine
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
QEngine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN
“Resource-Conserving”, SN PLUS “Resource-Conserving” or SP
“Resource-Conserving”; or ILSAC GF-6A multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20, 5W-20
or 5W-30 engine oil is recom-
mended.
Lubrication system
Oil capacity
(Drain and refill  reference*)
With filter
Without filter
5.6 L (5.9 qt., 4.9 Imp.qt.)
5.3 L (5.6 qt., 4.7 Imp.qt.)
Temperature range anticipated before next oil change
Preferred

629
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K513E_(EE)
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SP”
means the oil quality designa-
tion by American Petroleum Ins-
titute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

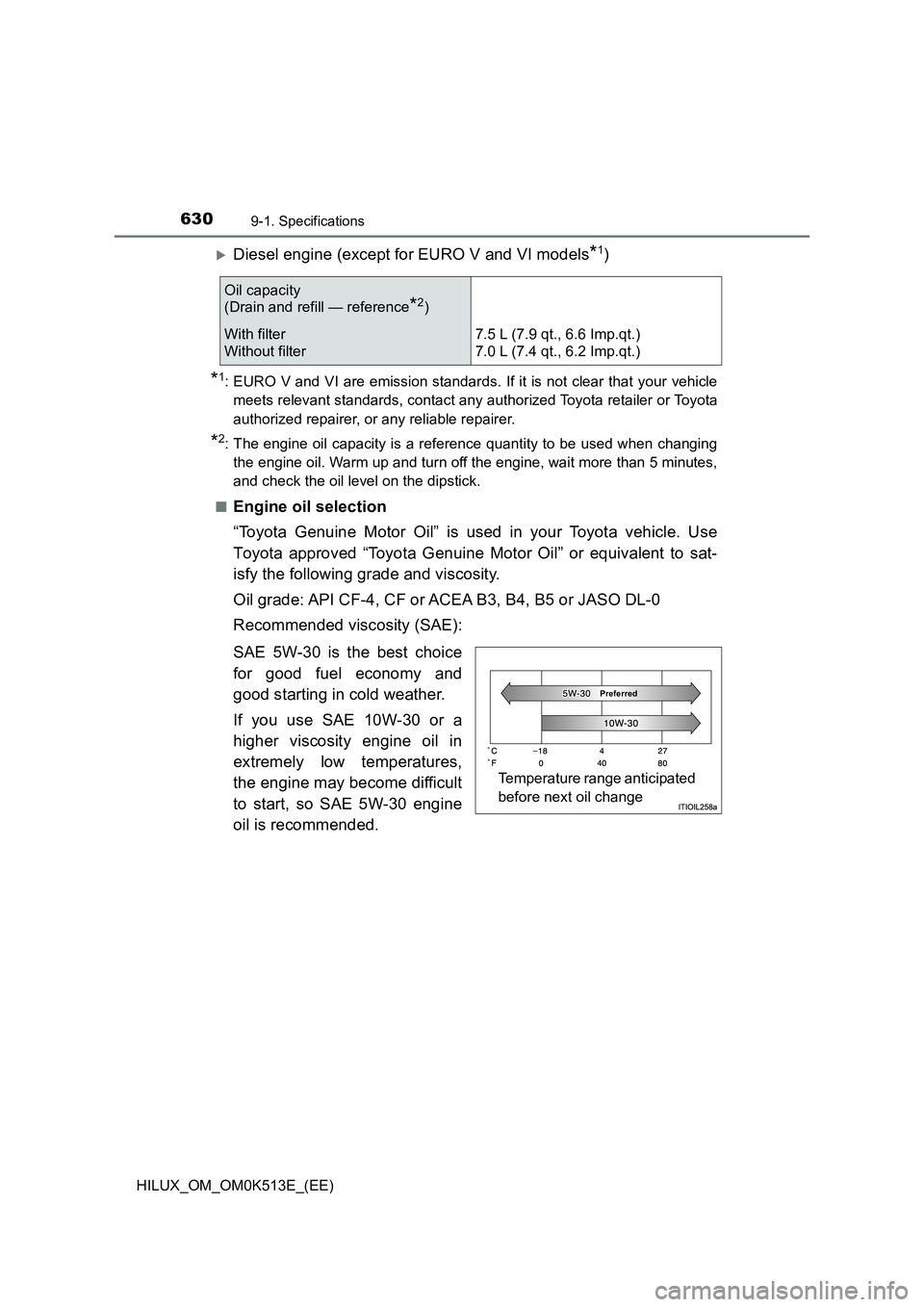

6309-1. Specifications
HILUX_OM_OM0K513E_(EE)
Diesel engine (except for EURO V and VI models*1)
*1: EURO V and VI are emission standards. If it is not clear that your vehicle
meets relevant standards, contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
*2: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
QEngine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to sat-
isfy the following grade and viscosity.
Oil grade: API CF-4, CF or ACEA B3, B4, B5 or JASO DL-0
Recommended viscosity (SAE):
SAE 5W-30 is the best choice
for good fuel economy and
good starting in cold weather.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 5W-30 engine
oil is recommended.
Oil capacity
(Drain and refill — reference*2)
With filter
Without filter
7.5 L (7.9 qt., 6.6 Imp.qt.)
7.0 L (7.4 qt., 6.2 Imp.qt.)
Temperature range anticipated
before next oil change
Preferred

631
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K513E_(EE)
How to read oil container label:
The Japanese Automobile
Standard Organization (JASO)
DL-0 Mark is added to some oil
containers to help you select
the oil you should use.
Oil viscosity (5W-30 is explained here as an example):
• The 5W in 5W-30 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 30 in 5W-30 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.

6329-1. Specifications
HILUX_OM_OM0K513E_(EE)
Diesel engine (for EURO V and VI models*1)
*1: EURO V and VI are emission standards. If it is not clear that your vehicle
meets relevant standards, contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
*2: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
QEngine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20: ACEA C5
0W-30 and 5W-30: ACEA C2
Oil capacity
(Drain and refill reference*2)
With filter
Without filter
7.5 L (7.9 qt., 6.6 Imp.qt.)
7.0 L (7.4 qt., 6.2 Imp.qt.)
NOTICE
Using engine oil other than ACEA C5 or C2 may damage the catalytic con-
verter.

633
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K513E_(EE)
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
Temperature range anticipated
before next oil change
Preferred

6349-1. Specifications
HILUX_OM_OM0K513E_(EE)
*1: EURO IV, V and VI are emission standards. If it is not clear that your vehi-
cle meets relevant standards, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
*2: Without power heater
*3: With power heater
Cooling system
Engine
coolant
capacity
Gasoline engine
With automatic transmission
8.1 L (8.6 qt., 7.1 Imp.qt.)
With manual transmission
7.8 L (8.2 qt., 6.9 Imp.qt.)
Diesel
engine
Except for
EURO IV,
V and VI
models*1
8.2 L (8.7 qt., 7.2 Imp.qt.)*2
8.6 L (9.1 qt., 7.6 Imp.qt.)*3
For
EURO IV,
V and VI
models*1
With automatic transmission
9.8 L (10.4 qt., 8.6 Imp.qt.)
With manual transmission
8.7 L (9.2 qt., 7.7 Imp.qt.)*2
9.3 L (9.8 qt., 8.2 Imp.qt.)*3
Intercooler coolant capacity (if
equipped)2.95 L (3.12 qt., 2.60 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene gly-
col-based non-silicate, non-amine,
non-nitrite, and non-borate coolant
with long-life hybrid organic acid
technology
Do not use plain water alone.
