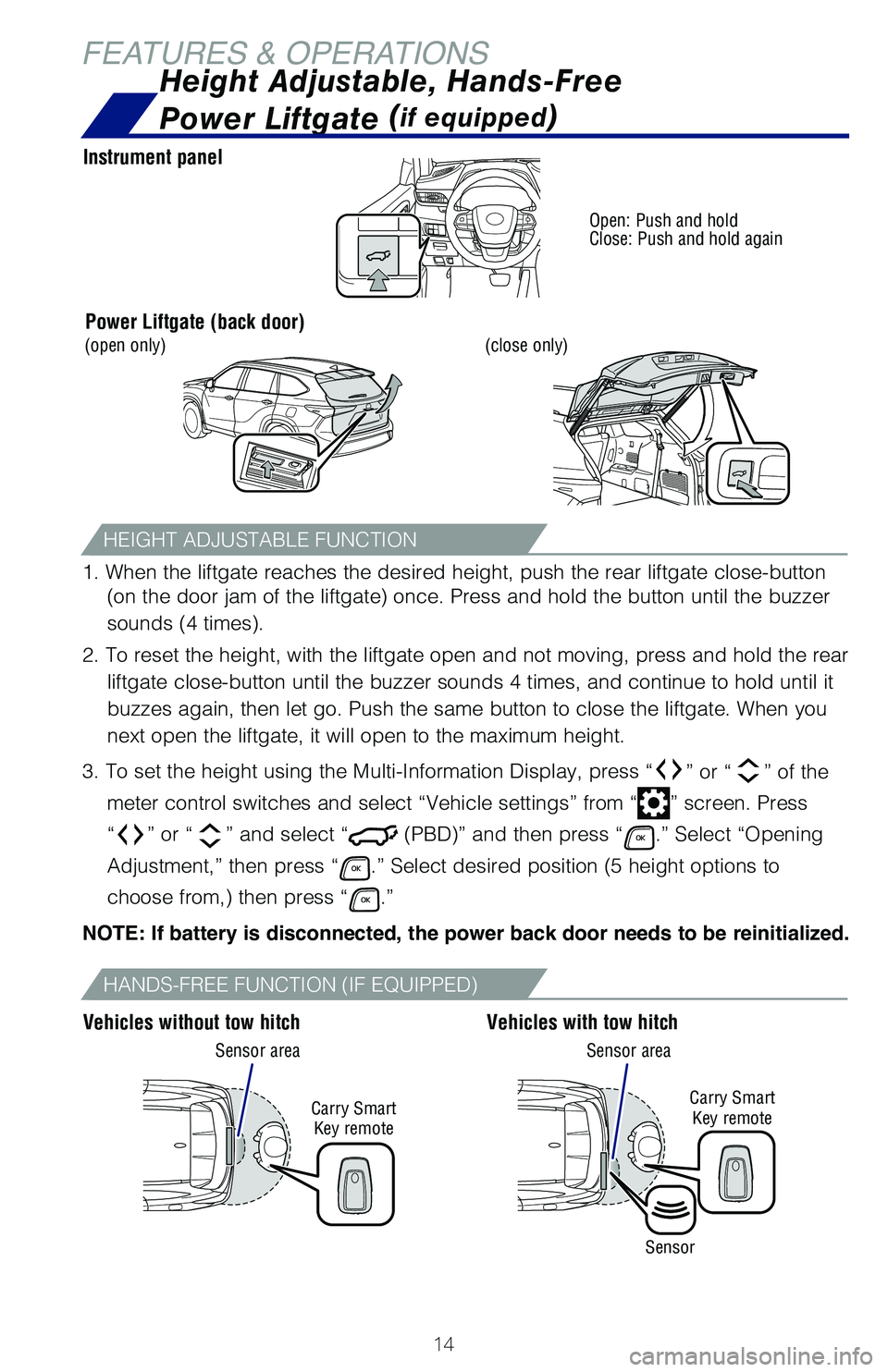

14
FEATURES & OPERATIONS
1. When the liftgate reaches the desired height, push the rear liftgate close-button
(on the door jam of the liftgate) once. Press and hold the button until the buzzer
sounds (4 times).
2. To reset the height, with the liftgate open and not moving, press and hold the rear
liftgate close-button until the buzzer sounds 4 times, and continue to hold until it
buzzes again, then let go. Push the same button to close the liftgate. When you
next open the liftgate, it will open to the maximum height.
3. To set the height using the Multi-Information Display, press “” or “” of the
meter control switches and select “Vehicle settings” from “” screen. Press
“” or “” and select “ (PBD)” and then press “.” Select “Opening
Adjustment,” then press “.” Select desired position (5 height options to
choose from,) then press “.”
NOTE: If battery is disconnected, the power back door needs to be reinitialized.
Instrument panel
Vehicles without tow hitchVehicles with tow hitch
HEIGHT ADJUSTABLE FUNCTION
Height Adjustable, Hands-Free
Power Liftgate (if equipped)
HANDS-FREE FUNCTION (IF EQUIPPED)
Power Liftgate (back door)
Open: Push and holdClose: Push and hold again
(close only)
Sensor areaSensor area
(open only)
Carry Smart Key remote
Carry Smart Key remote
Sensor
130494_MY21_Highlander_QRG_V7_ML_070821_PRINT_R1.indd 147/9/21 6:46 AM

15
OVERVIEW
FEATURES
& OPERATIONS
TOYOTA
SAFETY
SENSE
SAFETY
& EMERGENCY
FEATURES
HANDS-FREE FUNCTION (CONTINUED)
Perform the entire kick operationwithin 1 second.
Kick sensor
To automatically open/close Power Liftgate: Quickly kick your foot underneath
the lower center part (vehicles without tow hitch) or the lower left side (vehicles
with tow hitch) of the rear bumper for within 1 second to trigger sensor. To operate,
make sure that the touchless sensor operation is enabled, the vehicle is OFF and
that you are carrying the remote.
Press “” or “” of the meter control switches and select “ (PBD)” from
the “Vehicle Settings” in the “” screen in the Multi-Information Display (MID) to
access hands-free settings. And push “” to enter selection.
NOTE:
- Installation of a tow hitch receiver or other accessories may require disabling
or removing the kick sensor.
- Use the same gear and “” icons from the HUD section.
Refer to the Owner‘s Manual for limitations and more details on this system.
Moonroof (if equipped)
Tilt
Close
Recommended open position to minimize wind noise.
Push once to open partway. Push again to open completely.Push once to open completely.
Lightly press either side of the moonroof switch while opening/tilting is in progress,
the moonroof stops partway.
SLIDING OPERATIONTILTING OPERATION
130494_MY21_Highlander_QRG_V7_ML_070821_PRINT_R1.indd 157/9/21 6:46 AM

18
FEATURES & OPERATIONS
Driver sideWindow lock switch
Up
Down
All window auto up/down
Push the switch completely down or pull it completely up and release to fully open
or close. To stop the window partway, operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains operable.
Power windows
Indicator
On
Interval wipe
Off
Push to wash and wipe
1 Intermittent windshield wiper frequency adjustment Rotate to increase/ decrease wiper frequency.2 Rain-sensing windshield wipers Rotate to increase/decrease sensor sensitivity.
Rain sensing (AUTO)
Slow
Fast
Adjust sensitivity2
Interval wipe
OFFOFF
Mist and single wipeMist and single wipe
Slow
Fast
Adjust frequency1
Pull to washand wipePull to washand wipe
With intermittent wiperWith rain-sensing wiper
Windshield wipers & washers
FRONT
REAR
130494_MY21_Highlander_QRG_V7_ML_070821_PRINT_R1.indd 187/9/21 6:46 AM

35
OVERVIEW
FEATURES
& OPERATIONS
TOYOTA
SAFETY
SENSE
SAFETY
& EMERGENCY
FEATURES
Blind Spot Monitor (BSM) and Rear Cross
Traffic Alert (RCTA) (if equipped)
Audio system screen*
Buzzer*
Outside rear view mirror indicators
The system is designed to use radar sensors to detect vehicles traveling in the
Highlander’s blind spot when changing lanes. If a vehicle is detected, the driver will
be alerted via the outside rear view side mirror indicators.
While in reverse, when a vehicle approaching from the right or left rear of the
Highlander is detected, the outside rear view mirror indicators will flash. Also, the
RCTA icon for the detected side will be displayed on the audio system display, and
the RCTA buzzer will sound.
BLIND SPOT MONITOR (BSM)
REAR CROSS TRAFFIC ALERT (RCTA)
(1) Press “” or “” switches and select “” from the Multi-Information Display
(MID).
(2) Press “” or “” switches and select “” or “” then press “.” The
setting screen is displayed.
(3) Press “” or “” switches and select the “On/Off” setting function and then
press “.”
(4) Press “” to go back to the menu.
Refer to the Owner’s Manual for limitations and more details on this system before
attempting to use it.
SYSTEM ON/OFF
* RCTA only
130494_MY21_Highlander_QRG_V7_ML_070821_PRINT_R1.indd 357/9/21 6:46 AM

37
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Intuitive parking assist (if equipped)
Rearcenter sensor
Frontcenter sensor
Corner sensors (front)
Corner sensors (rear)
Corner sensors (front)
Corner sensors (rear)
Multi-Information Display (MID)
If the sensors detect an obstacle, the buzzer and MID or navigation system
display inform the driver of the approximate position and distance of the obstacle
by illuminating continuously (far) or blinking (near). Depending on your Audio
Multimedia system, you can adjust settings.
(1) Press “” switches and select “” from the Multi-Information Display (MID).
(2) Press “”switches and select “” and then press “.” The setting screen
is displayed.
(3) Press “”switches and select the “Intuitive parking assist on/off” setting
function and then press “.”
(4) Press “” to go back to the menu.
Refer to the Owner’s Manual for limitations and more details.
SYSTEM ON/OFF
130494_MY21_Highlander_QRG_V7_ML_070821_PRINT_R1.indd 377/9/21 6:46 AM

43
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Grille-mounted radar
Forward-facing camera
Sensors
TSS 2.5+ combines a forward-facing camera mounted in front of the inside rear view
mirror and a grille-mounted radar mounted in the front grille. These sensors support the
driver assist systems.
The Pre-Collision System with Pedestrian Detection (PCS w/PD) is designed to
help detect a vehicle, a bicyclist, or a pedestrian in certain situations. Using both
a camera and radar, PCS w/ PD can provide an audio/visual alert to warn you of
a possible collision under certain circumstances. If you don’t react, the system is
designed to automatically brake.
As there is a limit to the degree of recognition accuracy and control performance
that this system can provide, do not overly rely on this system. This system will not
prevent collisions or lessen collision damage or injury in every situation. Do not use
PCS instead of normal braking operations under any circumstances. Do not attempt
to test the operation of the Pre-Collision System yourself, as the system may not
operate or engage, possibly leading to an accident. In some situations, such as
when driving in inclement weather such as heavy rain, fog, snow or a sandstorm or
while driving on a curve and for a few seconds after driving on a curve, a vehicle
or pedestrian or bicyclist may not be detected by the radar and camera sensors,
preventing the system from operating or engaging properly.
See toyota.com/safety-sense for more information.
Refer to the Toyota Owner’s Manual for a list of additional situations in which the
system operation may be limited.
Pre-Collision System with
Pedestrian Detection (PCS w/PD)
130494_MY21_Highlander_QRG_V7_ML_070821_PRINT_R1.indd 437/9/21 6:47 AM

44
TOYOTA SAFETY SENSE™
PRE-COLLISION SYSTEM (CONTINUED)
Pre-Collision Warning
When the system determines that the possibility of a frontal collision is high, a
buzzer will sound and a warning message will be displayed on the Multi-Information
Display (MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide additional
braking force using Brake Assist. This system may prime the brakes and may apply
greater braking force in relation to how strongly the brake pedal is depressed.
Pre-Collision Braking
If the driver does not brake in a set time and the system determines that the
possibility of a frontal collision with a preceding vehicle is extremely high, the
system may automatically apply the brakes, reducing speed in order to help the
driver reduce the impact and in certain cases avoid the collision.
Refer to the Toyota Owner’s Manual for additional information on PCS operation,
settings adjustments, limitations, and precautions before attempting to use it.
Monocular camera sensorMillimeterwave radar
As part of the Pre-Collision System, this function is also designed to first provide an alert and then automatic braking if needed.
Refer to the Toyota Owner’s Manual for additional limitations and information.
Under certain conditions, the PCS system included with the TSS 2.5+ package
may also help to detect a pedestrian or bicyclist in front of your vehicle using the
forward-facing camera and front grille-mounted radar. The forward-facing camera of
PCS detects a potential pedestrian or bicyclist based on size, profile, and motion
of the detected pedestrian or bicyclist. However, a pedestrian or bicyclist may not
be detected depending on the conditions, including the surrounding brightness
and the motion, posture, size, and angle of the potential detected pedestrian or
bicyclist, preventing the system from operating or engaging.
PCS PEDESTRIAN DETECTION
130494_MY21_Highlander_QRG_V7_ML_070821_PRINT_R1.indd 447/9/21 6:47 AM
