2021 TOYOTA COROLLA HATCHBACK Owners Manual (in English)

15
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Tilt & telescopic steering wheel
Hold wheel, push lever down, set angle and return lever.

NOTE: Do not attempt to adjust while the vehicle is in motion.
Lock release lever
Steering lock release
When the steering lock cannot be released, “Push Engine Switch while Turn\
ing
Steering Wheel in Either Direction” will be displayed on the multi-informatio\
n
display. Press the engine switch shortly and firmly while turning the steering w\
heel
left and right.
Turn
FRONT
REAR
Cup holders
Angle
Length

16
FEATURES & OPERATIONS
Front seatsRear outside seats Rear center seat
Lock release buttonLock release buttonLock release button
Seat adjustments-Front
Seats-Head restraints
Rear seats-Folding
Fold down
Pull
Each seatback may be folded separately.
MANUAL SEAT
POWER SEAT (DRIVER’S SIDE ONLY)
Seat position
(forward/backward)
Height crank
(driver’s side only) Height crank
Seatback angle
Seatback angle
Seat position
(forward/backward)
Lumbar support*
(driver’s side only) Lumbar support
Seat cushion (front) angle
*If equipped

17
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Bluetooth® technology allows dialing or receipt of calls without removing your han\
ds
from the steering wheel.
Refer to the Bluetooth
® device pairing in this guide or the Navigation and
Multimedia System Owner’s Manual for additional user instructions.
Back switch
NOTE: Always use safe driving practices and follow all traffic rules.
Volume control Voice command
switch
Start and end call
“MODE”
Push to change audio mode.
Push and hold to mute or
pause the audio.
“ ”
Use to search within the
selected audio feature.
Steering wheel switches
& telephone controls (Bluetooth®)
Microphone

18
Audio
FEATURES & OPERATIONS
NOTE: Always use safe driving practices and follow all traffic rules.
Refer to the “Navigation and Multimedia System Owner’s Manual” or vi\
sit www.
toyota.com/audio-multimedia for additional resources.
Touch screen display
Access
AUDIO screen
Push to turn ON/OFF or
turn to adjust volume Turn to tune radio stations
manually or select tracks or filesAccess
Bluetooth
hands-free system
Seek station/
track/file
select
Access
HOME screen
Access
MENU screen
Access
apps screen
Access
MAP screen
USB charge port
(Charge-only)
The engine switch must be in the “ACCESSORY” or “IGNITION ON” m\
ode for use.

19
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Qi Wireless charger (if equipped)
A mobile device can be charged wirelessly on the tray. (1) Press the wireless
charger power switch and the green operation indicator light turns on. (2) Place
a compatible mobile device on the tray as shown in the illustration. An a\
mber
indicator illuminates while charging is in progress. When charging is complete, t\
he
indicator illuminates green. Some phones, cases or cover type wireless chargers
may not cause the green indicator to illuminate even though it is fully cha\
rged.
Refer to the Owner‘s Manual for limitations and more details on this syste\
m before
attempting to use it.
Power switch
Charge area
Operation indicator light
Press (1)
When the engine is turned off, the last state (ON/
OFF) of the charger is memorized.
Place device nearest the center of charging area for
best results. Moving device may result in stopping
or restarting the charging process.
Place (2)
Power outlet-12V DC
The engine switch must be in the “ACCESSORY” or “IGNITION ON” m\
ode for use.

20
FEATURES & OPERATIONSUSB media port
Connecting a compatible device and cable into the USB media port will support
charging and music playback through the audio multimedia system.
Seat heaters (if equipped)
The engine switch must be in the “IGNITION ON” mode for use.

21
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

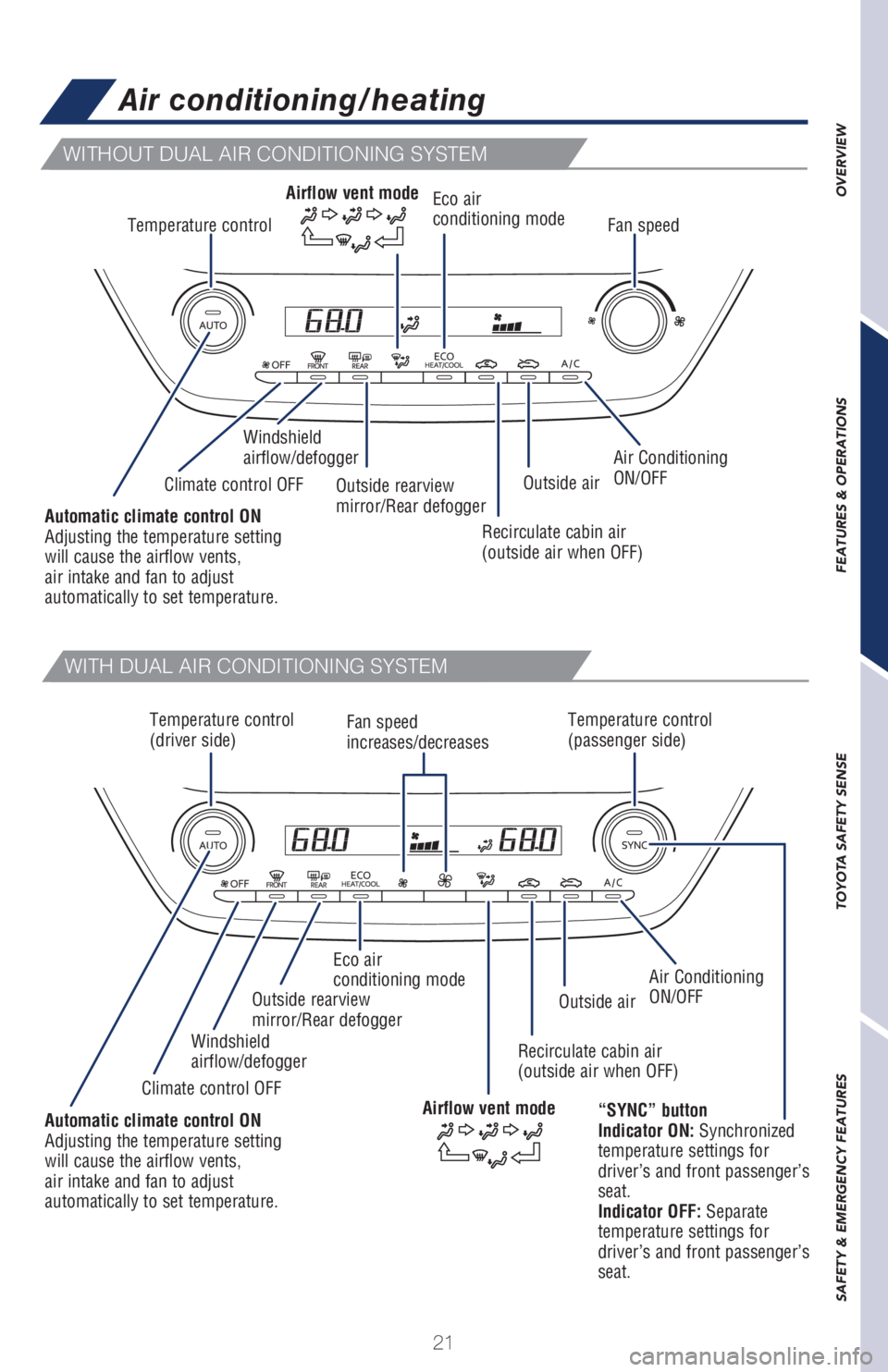

Air conditioning/heating
WITHOUT DUAL AIR CONDITIONING SYSTEM
WITH DUAL AIR CONDITIONING SYSTEM
Temperature control
Temperature control
(driver side) Temperature control
(passenger side)
Fan speed
increases/decreases Fan speed
Windshield
airflow/defogger
Windshield
airflow/defogger Air Conditioning
ON/OFF
Air Conditioning
ON/OFF
Climate control OFF
Climate control OFF Eco air
conditioning mode
Eco air
conditioning mode
Automatic climate control ON
Adjusting the temperature setting
will cause the airflow vents,
air intake and fan to adjust
automatically to set temperature.
Automatic climate control ON
Adjusting the temperature setting
will cause the airflow vents,
air intake and fan to adjust
automatically to set temperature.
Airflow vent mode
Airflow vent mode
Outside rearview
mirror/Rear defogger
Outside rearview
mirror/Rear defogger Recirculate cabin air
(outside air when OFF)
Recirculate cabin air
(outside air when OFF)Outside air
Outside air
“SYNC” button
Indicator ON: Synchronized
temperature settings for
driver’s and front passenger’s
seat.
Indicator OFF: Separate
temperature settings for
driver’s and front passenger’s
seat.

22
FEATURES & OPERATIONSDriving mode select
iMT (INTELLIGENT MANUAL TRANSMISSION, WITH A MANUAL TRANSMISSION)
SPORT MODE (WITH A CONTINUOUSLY VARIABLE TRANSMISSION)
Refer to the Owner’s Manual for more information.
Vehicle Stability Control (VSC)/
TRAC OFF switch
The VSC OFF switch can be used to help free a stuck vehicle in surroundings\
like
mud, dirt or snow. While the vehicle is stopped, press switch to disable the\
TRAC
system.
To disable both VSC and TRAC systems, press and hold the switch for at least 3
seconds.
Refer to the Owner’s Manual for limitations and more details.
Normal modeSport mode
