56Maintenance Log
MAINTENANCE
Engine Oil and Oil Filter
Replace the oil filter and drain and refill
the engine oil at specified intervals. For
recommended oil grade and viscosity,
refer to the Owner’s Manual.
NOTE: Your vehicle is certified with
Genuine Toyota 0W-20 motor oil. For
VEHICLES CERTIFIED FOR 0W-20 motor
oil, the oil change interval is 10,000 miles
or 12 months IF 0W-20 MOTOR OIL IS
BEING USED. If 0W-20 is not available,
5W-20 mineral oil may be used. However,
it must be replaced at a 5,000-mile or
six-month INTERVAL with 0W-20 motor oil.
For customers who primarily drive their
vehicle under any of the listed Special
Operating Conditions, the motor oil and
filter should be replaced at 5,000 miles or
six months, REGARDLESS OF THE OIL USED
(OR CERTIFICATION OF THE VEHICLE).
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes, muffler
and hangers for cracks, deterioration and
damage. Start the engine and listen
carefully for any exhaust gas leakage.
Tighten connections or replace parts
as necessary.
Fuel Lines and Connections,
Fuel Tank Band and Fuel Tank
Vapor Vent System Hoses
Visually inspect for corrosion, damage,
cracks, and loose or leaking connections.
Tighten connections or replace parts
as necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterioration
and damage and replace if necessary.
Nuts and Bolts on Chassis
and Body
Retighten the seat-mounting bolts and
front /rear suspension member retaining
bolts to specified torque.
Radiator and Condenser
Inspect for debris, corrosion and signs
of damage. Have any problem repaired
immediately by a qualified technician.
EXPLANATION OF MAINTENANCE ITEMS
126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 56126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 567/22/20 2:58 PM7/22/20 2:58 PM

57Maintenance Log
MAINTENANCE
Spark Plugs
Replace at specified intervals. Install new
plugs of the same type as originally
equipped. A qualified technician should
perform this operation.
Steering Gear
Inspect for signs of leakage. If you
discover any leakage, have it repaired
immediately by a qualified technician.
Steering Linkage and Boots
With the vehicle stopped, check for
excessive freeplay in the steering wheel.
Inspect the linkage for bending and
damage and the dust boots for
deterioration, cracks and damage. Replace
any damaged parts. A qualified technician
should perform these operations.
Tire Rotation
Tires should be rotated according to the
instructions in the Owner’s Manual. When
rotating tires, check for damage and
uneven wear. Replace if necessary.
Vacuum Pump for Brake Booster
Inspect at specified intervals. A qualified
technician should perform this operation.
Wiper Blades
The wiper blades should not show any
signs of cracking, splitting, wear,
contamination or deformation. The wiper
blades should clear the windshield without
streaking or skipping.
EXPLANATION OF MAINTENANCE ITEMS
126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 57126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 577/22/20 2:58 PM7/22/20 2:58 PM

58Maintenance Log
MAINTENANCE
VEHICLE IDENTIFICATION
Model
In-service date
Selling dealership
Key number
Body style
Mileage at delivery
Selling dealership phone number
Vehicle Identification Number
126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 58126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 587/22/20 2:58 PM7/22/20 2:58 PM

59Maintenance Log
MAINTENANCE
NOTES
126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 59126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 597/22/20 2:58 PM7/22/20 2:58 PM

60Maintenance Log
MAINTENANCE
NOTES
126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 60126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 607/22/20 2:58 PM7/22/20 2:58 PM

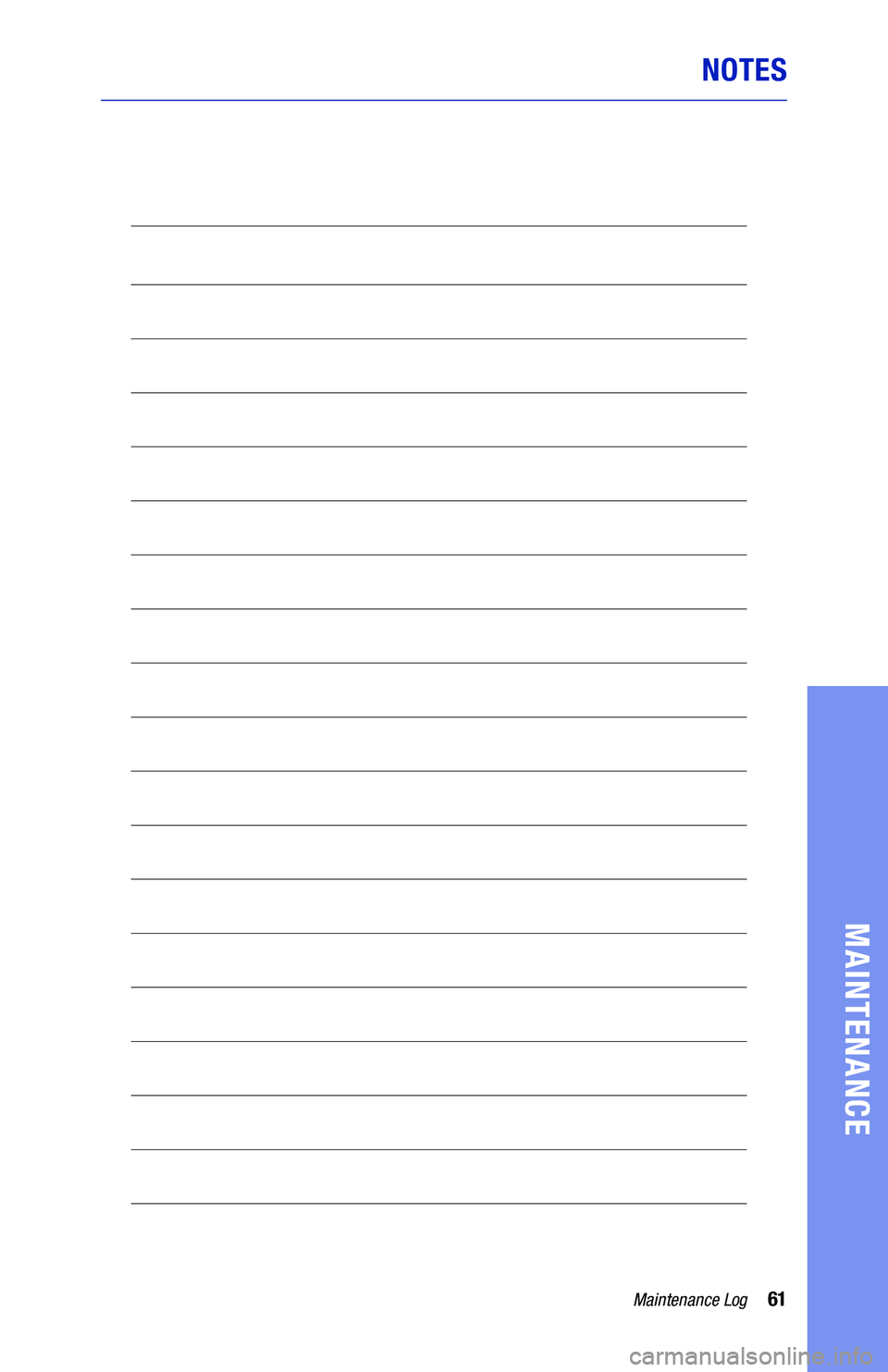

61Maintenance Log
MAINTENANCE
NOTES
126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 61126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 617/22/20 2:58 PM7/22/20 2:58 PM

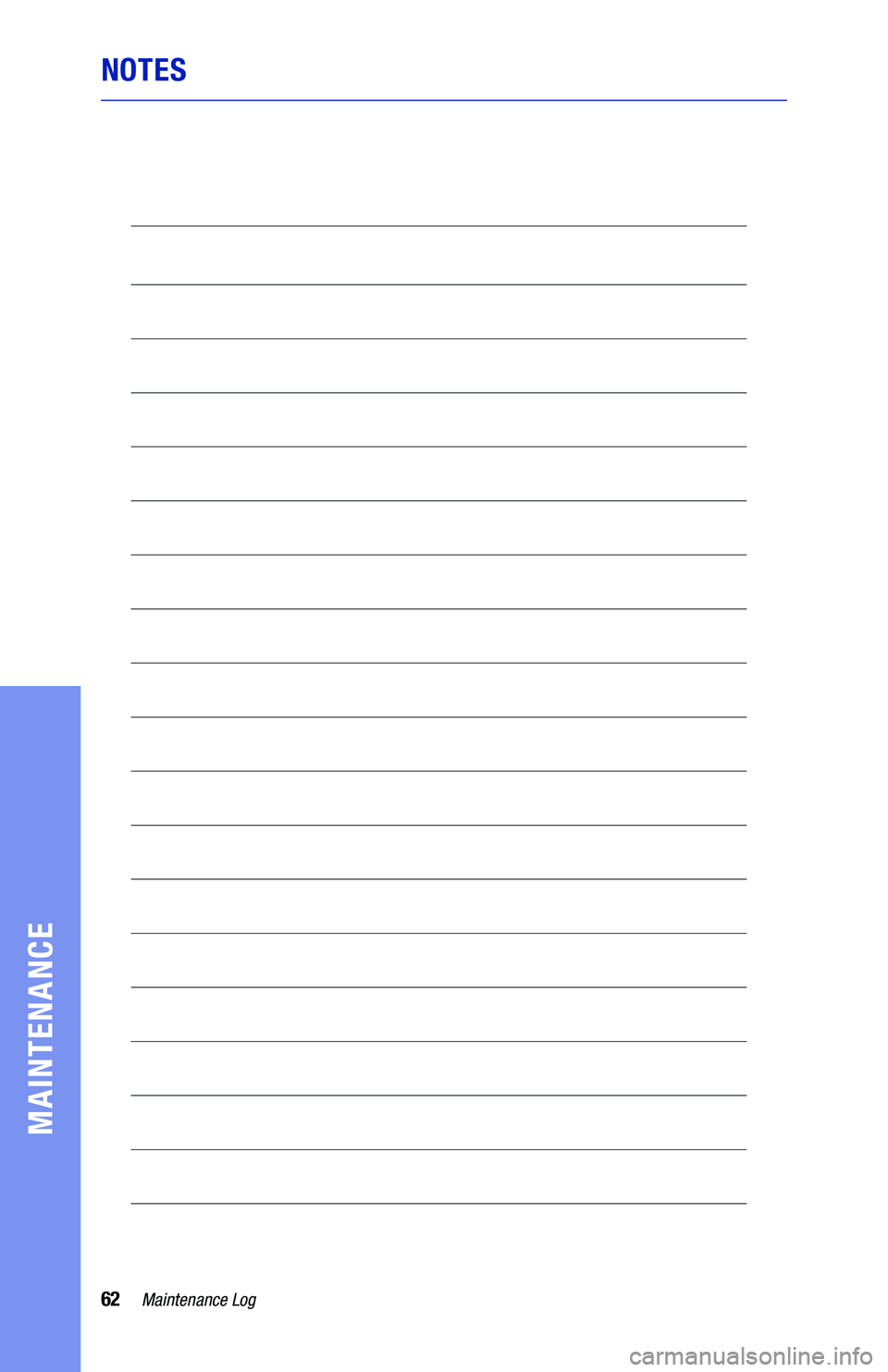

62Maintenance Log
MAINTENANCE
NOTES
126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 62126976_19-TCS-14199 MY 21 WMG CHR_GUTS 1_R1.indd 627/22/20 2:58 PM7/22/20 2:58 PM

63Maintenance Log
MAINTENANCE
NOTES
