2021 TOYOTA AYGO tow

4468-2. Steps to take in an emergency
AYGO_OM_Europe_OM9A012E

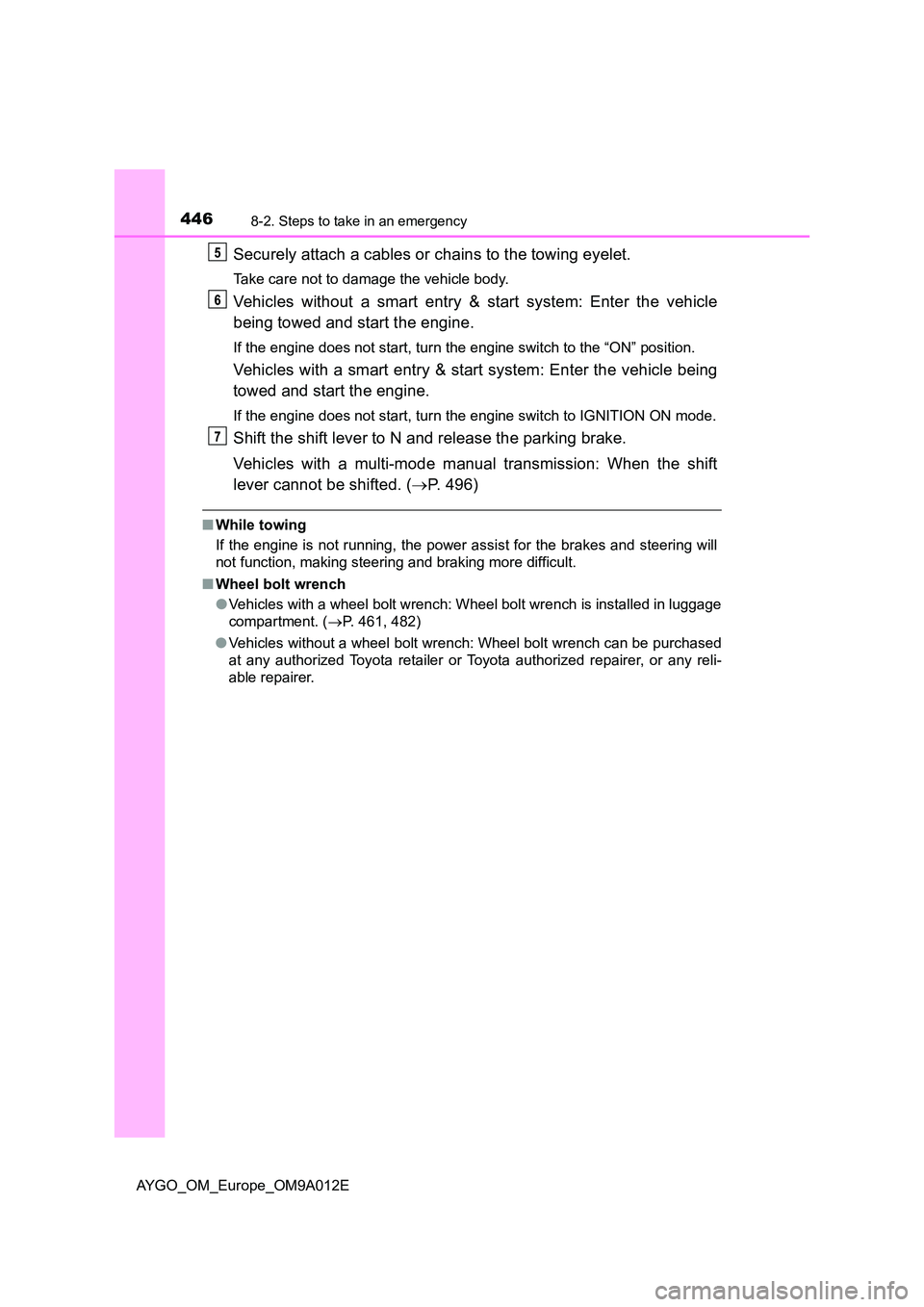

Securely attach a cables or chains to the towing eyelet.
Take care not to damage the vehicle body.
Vehicles without a smart entry & start system: Enter the vehicle
being towed and start the engine.
If the engine does not start, turn the engine switch to the “ON” position.
Vehicles with a smart entry & start system: Enter the vehicle being
towed and start the engine.
If the engine does not start, turn the engine switch to IGNITION ON mode.
Shift the shift lever to N and release the parking brake.
Vehicles with a multi-mode manual transmission: When the shift
lever cannot be shifted. ( P. 496)
■While towing
If the engine is not running, the power assist for the brakes and steering will
not function, making steering and braking more difficult.
■ Wheel bolt wrench
● Vehicles with a wheel bolt wrench: Wheel bolt wrench is installed in luggage
compartment. ( P. 461, 482)
● Vehicles without a wheel bolt wrench: Wheel bolt wrench can be purchased
at any authorized Toyota retailer or Toyota authorized repairer, or any reli-
able repairer.

4618-2. Steps to take in an emergency
8
When trouble arises
AYGO_OM_Europe_OM9A012E
*: Use of the jack (P. 486)
A jack can be purchased at any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.

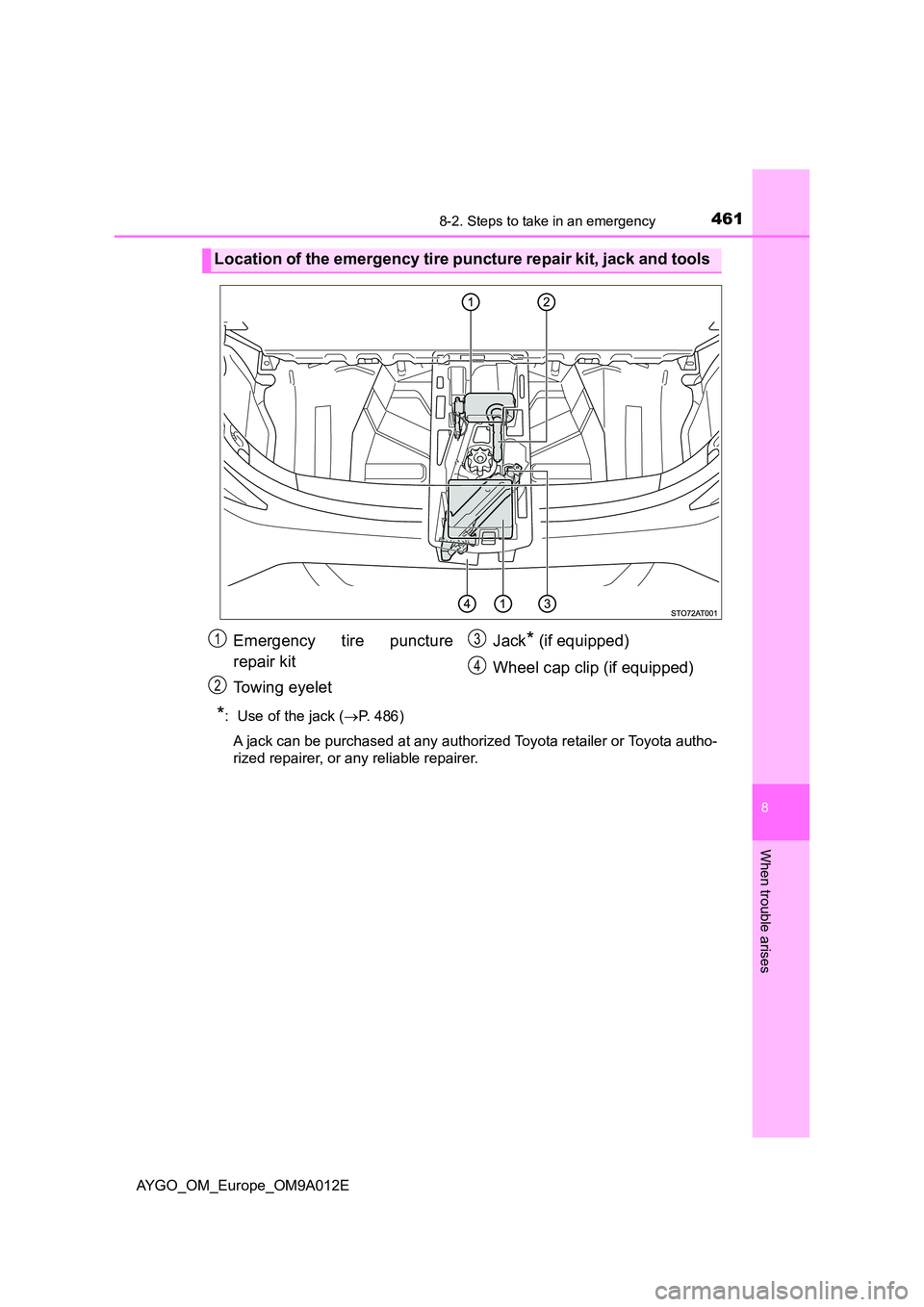

Location of the emergency tire puncture repair kit, jack and tools
Emergency tire puncture
repair kit
Towing eyelet
Jack* (if equipped)
Wheel cap clip (if equipped)
1
2
3
4

4828-2. Steps to take in an emergency
AYGO_OM_Europe_OM9A012E

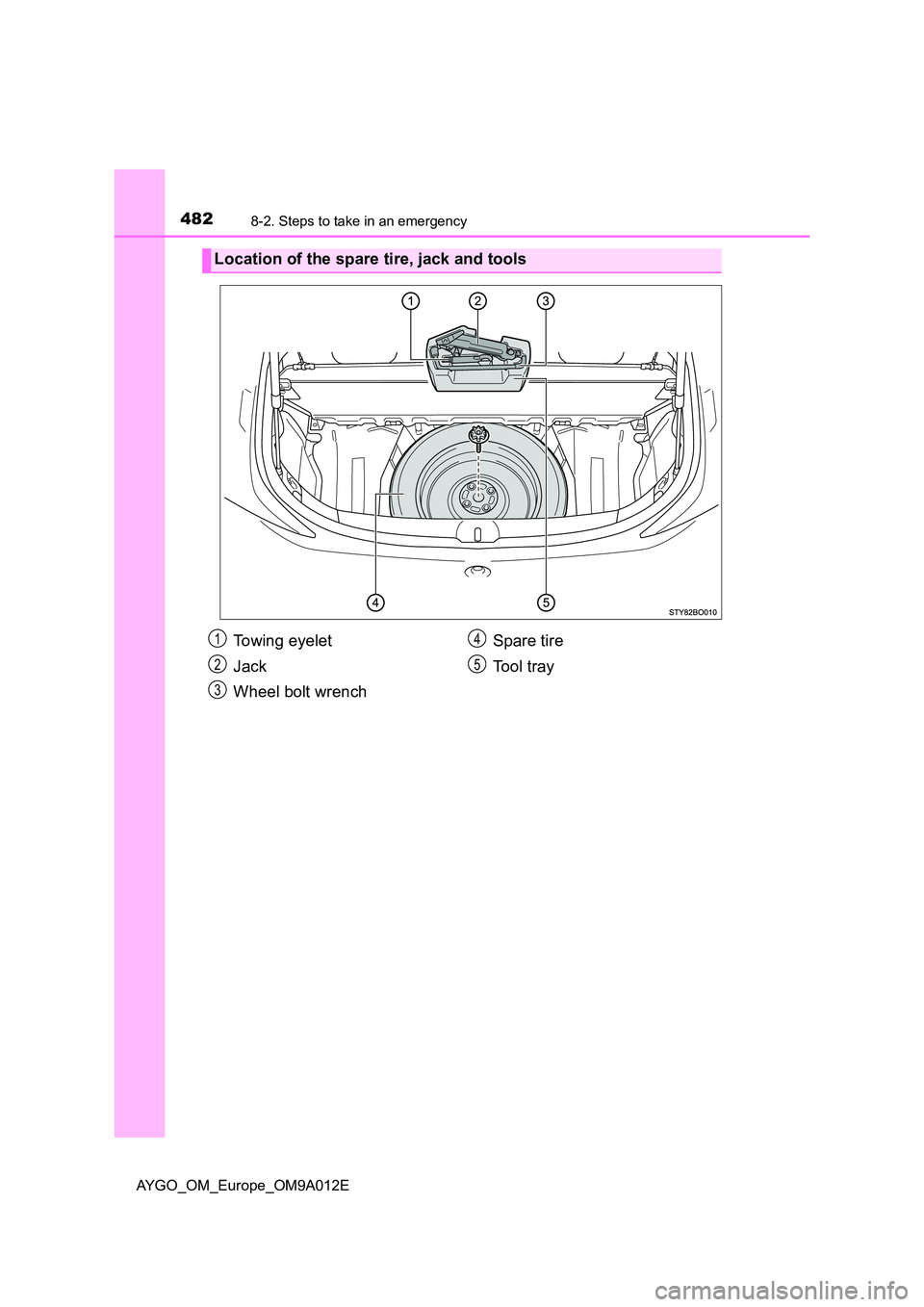

Location of the spare tire, jack and tools
Towing eyelet
Jack
Wheel bolt wrench
Spare tire
Tool tray
1
2
3
4
5

4908-2. Steps to take in an emergency
AYGO_OM_Europe_OM9A012E
Firmly tighten each wheel bolts
two or three times in the order
shown in the illustration.
Tightening torque:
103 N·m (10.5 kgf·m, 76 ft·lbf)
Stow the flat tire, tire jack and all tools.
■ The compact spare tire
● The compact spare tire is identified by the label “TEMPORARY USE ONLY”
on the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
● Make sure to check the tire inflation pressure of the compact spare tire.
( P. 518)
■ When using the compact spare tire (vehicles with the tire pressure warn-
ing system)
The tire pressure warning system does not function properly with the compact
spare tire.
■ If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle. Per-
form the following steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the vehicle.
Fit tire chains to the front tires.
■ After completing the tire change (vehicles with the tire pressure warning
system)
The tire pressure warning system must be reset. ( P. 405)

5078-2. Steps to take in an emergency
8
When trouble arises
AYGO_OM_Europe_OM9A012E
If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to N.
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material to help provide traction
under the tires.
Restart the engine.
Shift the shift lever to E, M or R (multi-mode manual transmission)
or 1 or R (manual transmission) and release the parking brake.
Then, while exercising caution, depress the accelerator pedal.
■ When it is difficult to free the vehicle
Press to turn off TRC.
Turn off TRC and/or VSC if these functions are hampering your attempts to
free the vehicle. ( P. 280)
■ Emergency hooks
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
When your vehicle becomes stuck and
cannot move, the emergency hooks are
used for another vehicle to pull your
vehicle to pull your vehicle out in an
emergency.
Your vehicle is not designed to tow
another vehicle.

5088-2. Steps to take in an emergency
AYGO_OM_Europe_OM9A012E

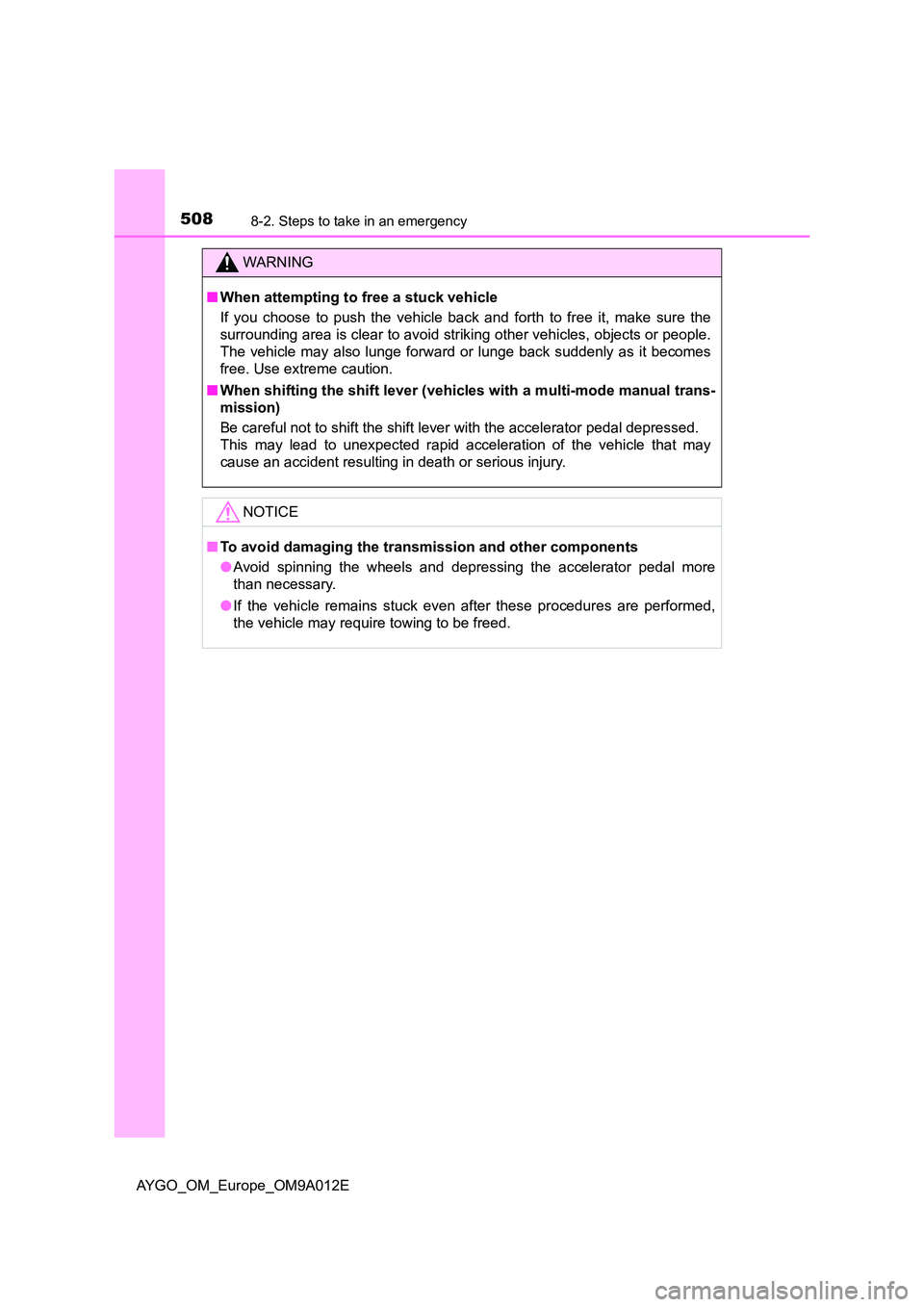

WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever (vehicles with a multi-mode manual trans-
mission)
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■ To avoid damaging the transmission and other components
● Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

533Alphabetical index
AYGO_OM_Europe_OM9A012E
Electric Power Steering
(EPS) ....................................... 279
Function ................................ 279
Warning light ......................... 451
Electronic key .......................... 112
Battery-saving function ......... 146
If the electronic key does not
operate properly ................. 497
Replacing the battery ............ 415
Emergency, in case of
If the electronic key does not
operate properly ................. 497
If the engine will not start ...... 494
If the shift lever cannot be
shifted ................................. 496
If the vehicle has discharged
battery................................. 500
If the vehicle is trapped in
rising water ......................... 441
If the warning buzzer
sounds ................................ 449
If the warning light
turns on............................... 449
If you have a flat tire...... 459, 481
If you lose your keys ............. 114
If you think something is
wrong .................................. 447
If your vehicle becomes
stuck ................................... 507
If your vehicle needs to be
towed .................................. 442
If your vehicle overheats ....... 504
Emergency brake signal ......... 279
Emergency flashers................. 438
Emergency tire puncture
repair kit ................................. 459Engine
“ACC” position ...................... 214
Accessory mode ................... 219
Compartment ........................ 393
Engine switch................ 214, 217
Hood ..................................... 390
How to start
the engine................... 214, 217
If the engine will not start ...... 494
Ignition switch
(engine switch) ........... 214, 217
Overheating .......................... 504
Engine coolant ......................... 397
Capacity ................................ 515
Checking ............................... 397
Preparing and checking
before winter....................... 285
Engine coolant
temperature
warning light .......................... 450
Engine immobilizer system ...... 75
Engine oil ................................. 394
Capacity ................................ 512
Checking ............................... 394
Preparing and checking
before winter....................... 285
Engine switch
(ignition switch)............. 214, 217
EPS (Electronic Power
Steering)................................. 279
Function ................................ 279
Warning light ......................... 451
E

541Alphabetical index
AYGO_OM_Europe_OM9A012E
Tools ................................. 461, 482
Top strap .................................... 72
Top tether anchorages .............. 71
Towing
Emergency towing ................ 444
Towing eyelet ........................ 445
Trailer towing ........................ 213
Toyota Safety Sense................ 245
Transmission
If the shift lever cannot be
shifted ................................. 496
Manual transmission ............. 227
Multi-mode manual
transmission ....................... 222
Paddle shift switches ............ 223
TRC (Traction Control) ............ 279
Trip information ....................... 105
Trip meters ............................... 106
Turn signal lights ..................... 229
Replacing light
bulbs ................... 429, 432, 435
Turn signal lever ................... 229
Wattage................................. 520USB port
*......................... 305, 313
Vanity mirrors .......................... 373
Vehicle identification
number ................................... 511
Vehicle Stability Control
(VSC) ...................................... 279
VSC (Vehicle Stability
Control) .................................. 279
Warning buzzers ...................... 449
Brake system ........................ 449
Downshifting ......................... 224
Electric power steering
system ................................ 451
Key reminder ........................ 145
Open back door .................... 453
Open door ............................. 453
PCS (Pre-Collision
system) .............................. 251
Seat belt remainder .............. 453
Smart entry & start
system ........................ 453, 457
U
V
W
*: For vehicles with a multimedia system, refer to “Multimedia owner’s manual”.
