1473-2. Opening, closing and locking the doors
3
Operation of each component
AYGO_OM_Europe_OM9A012E■Note for the entry function
●Even when the electronic key is within the effective range (detection areas),
the system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near
the ground, or in a high place when the doors are locked or unlocked.
• The electronic key is on the instrument panel, luggage cover (if equipped)
or floor, or in the door pockets or glove box when the engine is started or
engine switch modes are changed.
●As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone. However, only the doors detecting the elec-
tronic key can be used to unlock the vehicle.
Depending on the situation, even when the electronic key in the vicinity of
opposite side door to the door to be unlocked, the electronic key may be
detected and the door unlocks.
●If the wireless remote control is used to lock the doors when the electronic
key is near the vehicle, there is a possibility that the door may not be
unlocked by the entry function. (Use the wireless remote control to unlock
the doors.)
■Note for the unlocking function
●There are cases when pulling the door handle while pressing the Lock/
Unlock button that the door will not unlock. In those cases, after returning
the door handle to the original position, press the Lock/Unlock button once
again and check that the doors unlock before pulling the door handle.
●If there is another electronic key in the detection area, it may take slightly
longer for the doors to unlock after the Lock/Unlock button is pressed.
■When the vehicle is not driven for extended periods
●To prevent theft of the vehicle, do not leave the electronic key within 2 m
(6 ft.) of the vehicle.
●The smart entry & start system can be deactivated in advance. (P. 523)
■To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from the
outside of the vehicle.
Depending on the position and holding condition of the electronic key, the key
may not be detected correctly and the system may not operate properly. (The
alarm may go off accidentally, or the door lock prevention function may not
operate.)

1933-4. Adjusting the steering wheel and mirrors
3
Operation of each component
AYGO_OM_Europe_OM9A012E
Push the mirror back in the direc-
tion of the vehicle’s rear.
■ Mirror angle can be adjusted when (power-adjustable type)
Vehicles without a smart entry & start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system
The engine switch is in ACCESSORY or IGNITION ON mode.
■ When the mirrors are fogged up (power-adjustable type)
The outside rear view mirrors can be cleared using the mirror defoggers. Turn
on the rear window defogger to turn on the outside rear view mirror defog-
gers. ( P. 354, 360)
Folding the mirrors
WARNING
■Important points while driving
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
● Do not adjust the mirrors while driving.
● Do not drive with the mirrors folded.
● Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■ When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■ When the mirror defoggers are operating (power-adjustable type)
Do not touch the rear view mirror surfaces, as they can become very hot
and burn you.

1943-5. Opening, closing the windows and canvas top
AYGO_OM_Europe_OM9A012E
Power windows
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
Closing
Opening
■ The power windows can be operated when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
: If equipped
Opening and closing procedures
1
2
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ Closing the windows
● The driver is responsible for all the power window operations, including the
operation for the passengers. In order to prevent accidental operation,
especially by a child, do not let a child operate the power windows. It is
possible for children and other passengers to have body parts caught in
the power window.
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● When exiting the vehicle, turn the engine switch to the “LOCK” position
(vehicles without a smart entry & start system) or off (vehicles with a smart
entry & start system), carry the key and exit the vehicle along with the
child. There may be accidental operation, due to mischief, etc., that may
possibly lead to an accident.

195
3
3-5. Opening, closing the windows and canvas top
Operation of each component
AYGO_OM_Europe_OM9A012E
Rear side windows (5-door models)
Pull the latch handle toward you
and swing it fully out.
Push the latch handle to
securely lock the latch as
shown in the illustration.
Close the rear side window as
shown in the illustration.
When closing the window, make
sure it is completely closed.
The rear side windows can be opened and closed.
Opening the rear side windows
Closing the rear side windows

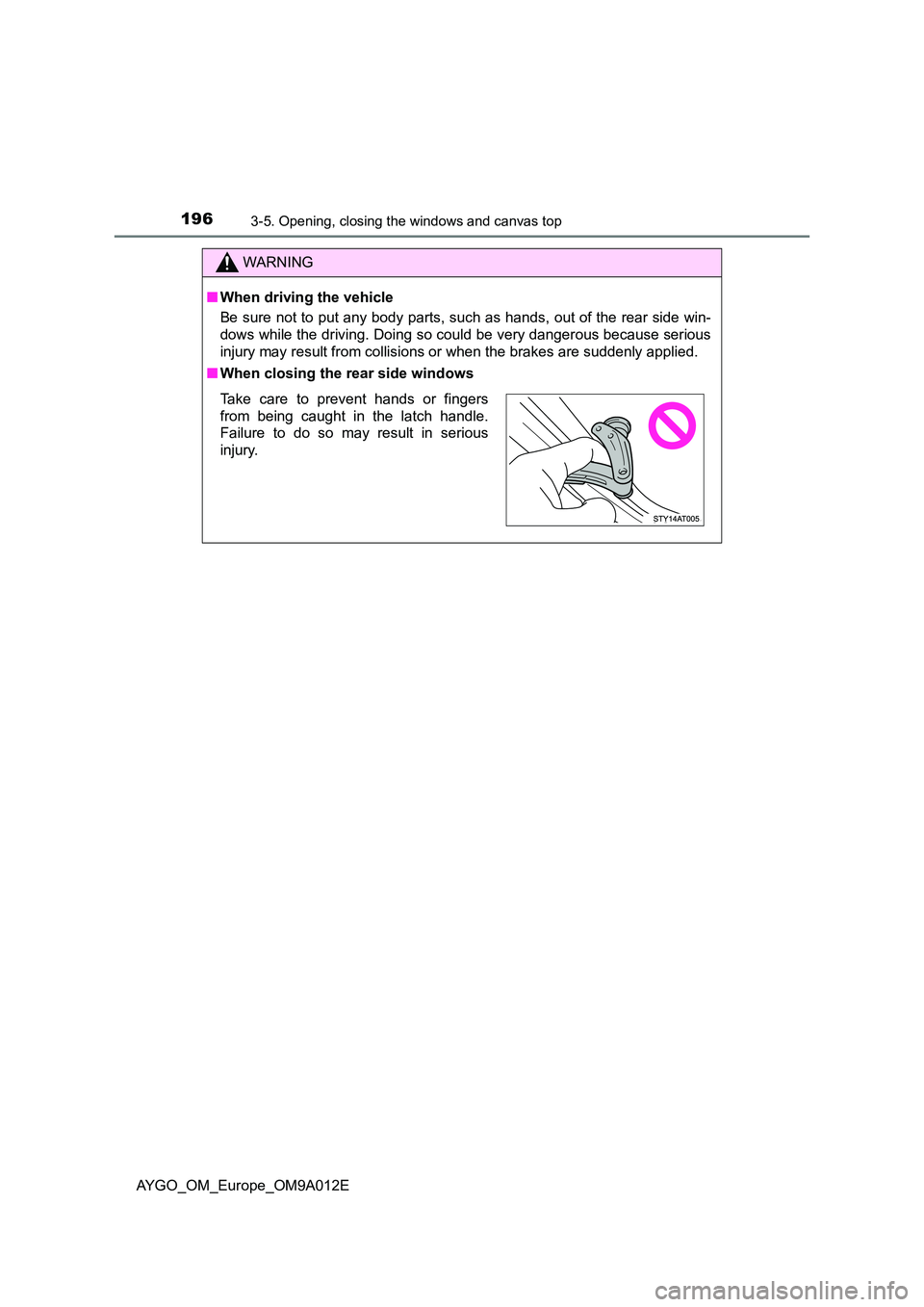

1963-5. Opening, closing the windows and canvas top
AYGO_OM_Europe_OM9A012E
WARNING
■When driving the vehicle
Be sure not to put any body parts, such as hands, out of the rear side win-
dows while the driving. Doing so could be very dangerous because serious
injury may result from collisions or when the brakes are suddenly applied.
■ When closing the rear side windows
Take care to prevent hands or fingers
from being caught in the latch handle.
Failure to do so may result in serious
injury.

197
3
3-5. Opening, closing the windows and canvas top
Operation of each component
AYGO_OM_Europe_OM9A012E
Canvas top
Opens the canvas top*
Closes the canvas top*
The canvas top stops slightly
before the fully close position.
Press the switch again to fully
close the canvas top.
*: Lightly press either end of the can-
vas top switch to stop the canvas
top partway.
■The canvas top can be operated when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■System safeguard
When the canvas top repeatedly opening and closing, it may stop temporarily
for system protection. With the engine switch in the “ON” position (vehicles
without a smart entry & start system) or IGNITION ON mode (vehicles with a
smart entry & start system) normal operations can be resumed after several
minutes.
: If equipped
Use the overhead switches to open and close the canvas top.
Opening and closing
1
2

1983-5. Opening, closing the windows and canvas top
AYGO_OM_Europe_OM9A012E
■ When the canvas top auto operation is not available
Perform the following procedure:
Vehicles without a smart entry & start system: Turn the engine switch to
the “ON” (engine running) position.
Vehicles with a smart entry & start system: Turn the engine switch to IGNI-
TION ON (engine running) mode.
Press and hold the close switch until the following operations finishes.
Canvas top closes  canvas top opens canvas top closes again
Check to make sure that the canvas top is completely closed and then
release the switch.
If the auto operation is available, the initialization is finished correctly.
If the auto operation is not available, perform the initialization method again.
WARNING
Observe the following precautions.
Failure to do so may cause death or serious injury.
■ Opening and closing the canvas top
● Do not allow any passengers to put their hands or heads outside the vehi-
cle while it is moving.
● Do not sit on top of the canvas top.
● The driver is responsible for canvas top opening and closing operations.
In order to prevent accidental operation, especially by a child, do not let a
child operate the canvas top. It is possible for children and other passen-
gers to have body parts caught in the canvas top.
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when the canvas top is being oper-
ated.
● When exiting the vehicle, turn the engine switch to the “LOCK” position
(vehicles without a smart entry & start system) or off (vehicles with a smart
entry & start system), carry the key and exit the vehicle along with the
child. There may be accidental operation, due to mischief, etc., that may
possibly lead to an accident.

1993-5. Opening, closing the windows and canvas top
3
Operation of each component
AYGO_OM_Europe_OM9A012E
NOTICE
■To prevent damage to the canvas top
● Do not sit or place excessive weight on the canvas top. It may cause of
damage of canvas top operation.
● Remove any standing water from the outer canvas and dry the surface
before opening roof. The water can potentially enter into the vehicle and
may cause interior water damage.
● Do not leave the canvas top open for long term, such as longer than one
day. Doing so may lead to discoloration in the folds of the outer canvas
fabric and possibility of irreparable cr easing of the outer canvas fabric.
● To prevent from damaging the canvas top material, do not operate the
canvas top when the temperature is below 0°C (32°F) or the outer canvas
fabric is frozen. If necessary to do so, warm the vehicle in a heated garage
prior to operation the canvas top mechanism.
● Remove ice and snow before opening the canvas top. Also, do not use
sharp-edged objects or anything that may cause a scratch to the outer
canvas fabric.
● Do not put any objects on the guide rail and surround area. It may cause of
jamming for sliding canvas top.
