2021 PEUGEOT PARTNER engine

186
Bluetooth® audio system
Interactive voice response
From the contextual menu, select "DTMF
tones" and confirm to use the digital
keypad to navigate in the interactive voice
response menu.
Confirm with OK.
Consultation call
From the contextual menu, select
"Switch" and validate to return to a call
left on hold.
Confirm with OK.
Directory
To access the directory, press and hold SRC/TEL.
Select "Directory " to see the list of
contacts.
Confirm with OK.
To modify the contacts saved in the system, press MENU then select
"Telephone" and confirm.
Select "Directory management " and confirm.
You can:
–

"Consult an entry",
–

"Delete an entry",
–

"Delete all entries".
The system accesses the telephone's contacts directory, depending on its
compatibility, and while it is connected via
Bluetooth.
With certain telephones connected by
Bluetooth you can send a contact to the
directory of the audio system.
Contacts imported in this way are saved in a
permanent directory visible to all, whatever the
telephone connected.
The menu for the directory is not accessible if it
is empty.
Voice recognition
This function allows you to use your
smartphone's voice recognition via the system.
To start voice recognition, depending on the type
of steering mounted controls:
Make a long press on the end of the lighting
control stalk.
OR
Press this button.
Voice recognition requires the use of a
compatible smartphone first connected to
the vehicle by Bluetooth.
Frequently asked
questions
The following information groups together the answers to the most frequently asked questions
concerning your audio system. With the engine off, the audio system
switches off after a few minutes of use.
When the engine is switched off, the audio
system operating time depends on the state of
charge of the battery.
The switch-off is normal: the audio system
switches to economy mode and switches off to
avoid discharging the vehicle's battery.
►

Start the vehicle’
s engine to increase the
charge of the battery.
The message "the audio system is
overheated" is displayed onscreen.
To protect the installation if the ambient
temperature is too high, the audio system
switches to an automatic thermal protection
mode, in which the volume may be decreased or
the CD player stopped.
►
Switch the audio system off for a few minutes
to allow the system to cool.
Radio
There is a difference in sound quality
between the different audio sources (radio,
CD, etc.).
For optimal listening quality, the audio settings
(Volume, Bass, Treble, Ambience and Loudness)
can be adjusted to different audio sources,
resulting in audible differences when switching
between sources (radio, CD, etc.).
►

Check that the audio settings (V
olume, Bass,
Treble, Ambience and Loudness) are appropriate
to the sources being listened to. We recommend
setting the audio functions (Bass, Treble, Fr-Re

189
PEUGEOT Connect Radio
11PEUGEOT Connect
Radio


Multimedia audio system -
Applications - Bluetooth
®
telephone
The functions and settings described
vary according to the vehicle version and
configuration.
For safety reasons and because they
require sustained attention by the driver,
the following operations must be carried out
with the vehicle stationary and the ignition
on:
–

Pairing the smartphone with the system in
Bluetooth mode.
–


Using the smartphone.
–


Connection to the CarPlay®, MirrorLinkTM
or Android Auto applications (certain
applications interrupt their display while the
vehicle is moving).
–

Changing the system settings and
configuration.
The system is protected in such a way that it will only operate in the vehicle.
The Energy Economy Mode message is
displayed when the system is about to enter
the corresponding mode.
The system’s Open Source Software (OSS) source codes are available at the
following addresses:
https://www.groupe-psa.com/fr/oss/
https://www.groupe-psa.com/en/oss/
First steps
With the engine running, a press mutes
the sound.
With the ignition off, a press turns the system on.
Increase or decrease the volume using
the wheel or the "plus" or "minus" buttons
(depending on the equipment).
Use the buttons on either side of or below the
touch screen for access to the menus, then
press the virtual buttons in the touch screen.
Depending on the model, use the "Source" or
"Menu" buttons on the left of the touch screen
for access to the menus, then press the virtual
buttons in the touch screen.
At all times it is possible to display the rolling
menus by pressing the screen briefly with three
fingers.
All of the touch areas of the screen are white.
For pages with multiple tabs at the bottom of the
screen, it is possible to switch between pages
either by tapping the tab for the desired page, or
by using a finger, sliding the pages to the left or
to the right.
Press in the grey zone to go back up a level or
to confirm.
Press the back arrow to go back a level or
confirm.
The touch screen is of the "capacitive" type.
To clean the screen, use a soft, non-abrasive
cloth (e.g. spectacles cloth) with no additional
product.
Do not use sharp objects on the screen.
Do not touch the screen with wet hands.
Certain information is displayed permanently in
the upper bar of the touch screen:
–

Air conditioning status information (depending
on version), and direct access to the
corresponding menu.
–


Radio Media and
Telephone menu status
information.
–

Privacy status information.
–


Access to the touch screen and digital
instrument panel settings.
Audio source selection (depending on
equipment):

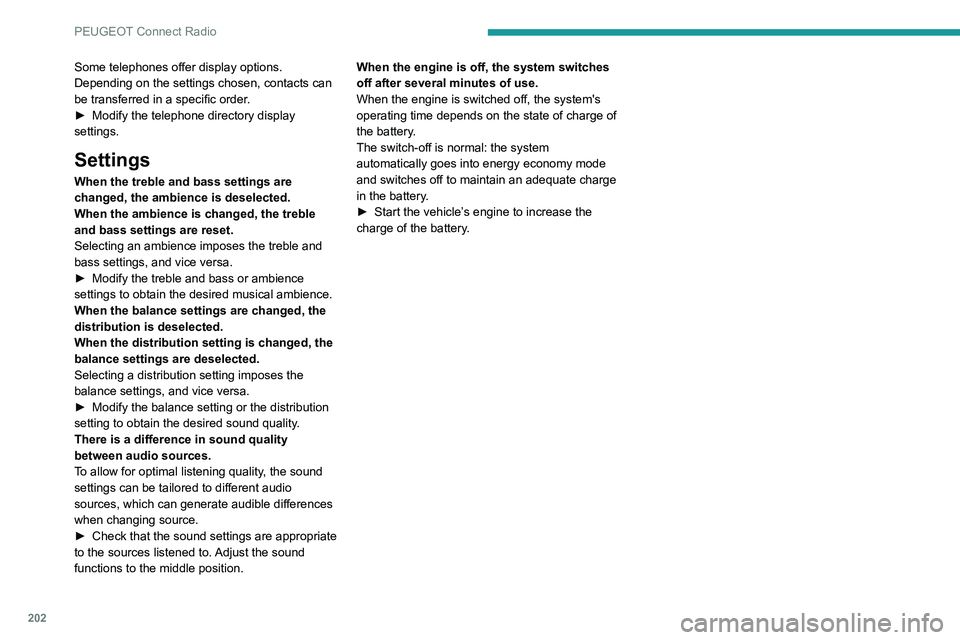

202
PEUGEOT Connect Radio
Some telephones offer display options.
Depending on the settings chosen, contacts can
be transferred in a specific order.
►
Modify the telephone directory display
settings.
Settings
When the treble and bass settings are
changed, the ambience is deselected.
When the ambience is changed, the treble
and bass settings are reset.
Selecting an ambience imposes the treble and
bass settings, and vice versa.
►

Modify the treble and bass or ambience
settings to obtain the desired musical ambience.
When the balance settings are changed, the
distribution is deselected.
When the distribution setting is changed, the
balance settings are deselected.
Selecting a distribution setting imposes the
balance settings, and vice versa.
►


Modify the balance setting or the distribution
setting to obtain the desired sound quality

.
There is a difference in sound quality
between audio sources.
To allow for optimal listening quality, the sound
settings can be tailored to different audio
sources, which can generate audible differences
when changing source.
►

Check that the sound settings are appropriate
to the sources listened to.

Adjust the sound
functions to the middle position. When the engine is off, the system switches
off after several minutes of use.
When the engine is switched off, the system's
operating time depends on the state of charge of
the battery.
The switch-off is normal: the system
automatically goes into energy economy mode
and switches off to maintain an adequate charge
in the battery.
►

Start the vehicle’
s engine to increase the
charge of the battery.

203
PEUGEOT Connect Nav
12PEUGEOT Connect Nav

GPS navigation -
Applications - Multimedia
audio system - Bluetooth
®
telephone
The functions and settings described
vary according to the vehicle version and
configuration.
For safety reasons and because they
require sustained attention by the driver,
the following operations must be carried out
with the vehicle stationary and the ignition
on:
–

Pairing the smartphone with the system in
Bluetooth mode.
–


Using the smartphone.
–


Connection to the CarPlay®, MirrorLinkTM
or Android Auto applications (certain
applications interrupt their display while the
vehicle is moving).
–

W
atching a video (the video stops when the
vehicle starts to move again).
–

Changing the system settings and
configuration.
The system is protected in such a way that it will only operate in the vehicle.
The Energy Economy Mode message is
displayed when the system is about to enter
the corresponding mode.
System and map updates can be
downloaded from the Brand’s website.
The update procedure is also available on the
website.
The system’s Open Source Software (OSS) source codes are available at the
following addresses:
https://www.groupe-psa.com/fr/oss/
https://www.groupe-psa.com/en/oss/
First steps
With the engine running, a press mutes
the sound.
With the ignition off, a press turns the system on.
Increase or decrease the volume using
the wheel or the "plus" or "minus" buttons
(depending on the equipment).
Use the menu buttons on either side of or below
the touch screen for access to the menus, then
press the virtual buttons in the touch screen.
Depending on the model, use the "Source" or
"Menu" buttons to access the rolling menus, then
press the virtual buttons in the touch screen.
Display the rolling menus at any time by pressing
the screen briefly with three fingers.
All of the touch areas of the screen are white.
Press the back arrow to go back a level.
Press "OK" to confirm.
The touch screen is of the "capacitive" type.
To clean the screen, use a soft, non-abrasive
cloth (e.g. spectacles cloth) with no additional
product.
Do not use sharp objects on the screen.
Do not touch the screen with wet hands.
Certain information is displayed permanently
in the side bars or in the upper bar of the touch
screen (depending on equipment):
–

Air conditioning status information (depending
on version), and direct access to the
corresponding menu.
–


Go directly to the audio source selection
option, to view the list of radio stations (or list of
titles depending on the source).
–


Go to the "Notifications" of messages, emails,
map updates and, depending on the services,
the navigation notifications.
–


Go to the settings for the touch screen and the
digital instrument panel.

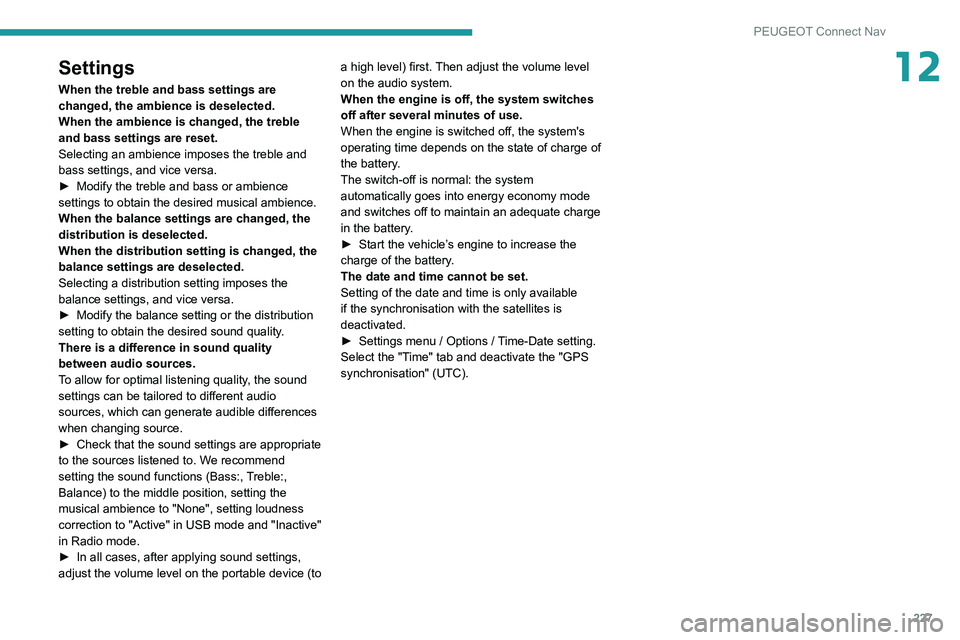

227
PEUGEOT Connect Nav
12Settings
When the treble and bass settings are
changed, the ambience is deselected.
When the ambience is changed, the treble
and bass settings are reset.
Selecting an ambience imposes the treble and
bass settings, and vice versa.
►
Modify the treble and bass or ambience
settings to obtain the desired musical ambience.
When the balance settings are changed, the
distribution is deselected.
When the distribution setting is changed, the
balance settings are deselected.
Selecting a distribution setting imposes the
balance settings, and vice versa.
►


Modify the balance setting or the distribution
setting to obtain the desired sound quality

.
There is a difference in sound quality
between audio sources.
To allow for optimal listening quality, the sound
settings can be tailored to different audio
sources, which can generate audible differences
when changing source.
►

Check that the sound settings are appropriate
to the sources listened to. W

e recommend
setting the sound functions (Bass:, Treble:,
Balance) to the middle position, setting the
musical ambience to "None", setting loudness
correction to "Active" in USB mode and "Inactive"
in Radio mode.
►

In all cases, after applying sound settings,
adjust the volume level on the portable device (to a high level) first.

Then adjust the volume level
on the audio system.
When the engine is off, the system switches
off after several minutes of use.
When the engine is switched off, the system's
operating time depends on the state of charge of
the battery.
The switch-off is normal: the system
automatically goes into energy economy mode
and switches off to maintain an adequate charge
in the battery.
►

Start the vehicle’
s engine to increase the
charge of the battery.
The date and time cannot be set.
Setting of the date and time is only available
if the synchronisation with the satellites is
deactivated.
►

Settings menu / Options /
Time-Date setting.
Select the "Time" tab and deactivate the "GPS
synchronisation" (UTC).

229
Alphabetical index
Checking tyre pressures
(using the kit)
151, 153
Checks

142–143, 144–145
Checks, routine

144–145
Child lock

89
Children

80, 87
Children (safety)

89
Child seats

80, 84–85, 87
Child seats, conventional

86
Cleaning (advice)

148–149
Closing the doors

24, 29
Collision Risk Alert

118–119
Connected applications

216
Connection, Bluetooth

184, 197–198,
216, 220–221
Connection, MirrorLink

196–197, 215
Connection, Wi-Fi network

216–217
Connectivity

214
Container, AdBlue®

147
Control, emergency boot release

31
Control, emergency door

24, 30
Control, heated seats

42
Control stalk, lighting

63, 65
Control stalk, wipers

67–69
Courtesy lamp

62
Courtesy lamp, front

62
Courtesy lamp, rear

62
Courtesy lamps

62
Cruise control

109, 112–114, 117–118
Cruise control, adaptive

11 4
Cruise control by speed limit recognition

109
Cruise control, dynamic with Stop function

109Cup holder 47
D
DAB (Digital Audio Broadcasting) -
Digital radio

180, 194–195, 218
Date (setting)

200, 224
Daytime running lamps

65, 157–158
Daytime running lamps, LED

159
Deactivating the passenger airbag

82, 86
Deactivation of DSC (ESC)

76
Deadlocking

29–30
Defrosting

43, 58–59
Demisting

58–59
Demisting, rear

43, 59
Demisting, rear screen

43, 59
Dimensions

169
Dipstick

142
Direction indicators

64–65, 157, 159–160
Doors, side

35
Doors, side-hinged

29–30
Driver’s attention warning

126
Driving

90
Driving abroad

64
Driving aids camera (warnings)

106
Driving aids (recommendations)

105
Driving economically

7
Dynamic stability control (DSC)

75, 77
E
EBFD 75
Eco-driving (advice)
7
Economy mode

139
Electric windows

39
Electronic brake force distribution
(EBFD)

75–76
Emergency braking assistance (EBA)

75
Emergency call

71–73
Emergency warning lamps

74
Emissions control system, SCR

146
Energy economy mode

139
Engine compartment

142–143
Engine, Diesel

134, 142, 150, 174–175
Engine, petrol

142, 173
Engines

173–175
Environment

7, 32, 62
ESC (electronic stability control)

75
Expanded traffic sign recognition

11 0
F
Fatigue detection 126
Filling the AdBlue® tank
144, 147
Filling the fuel tank

134–135
Filter, air

144
Filter, oil

144
Filter, particle

144–145
Filter, passenger compartment

55, 144
Finisher

156

230
Alphabetical index
Fitting a wheel 154, 156
Fitting roof bars
140
Fittings, interior

47
Flap, fuel filler

134–135
Flap, removable

51
Flashing indicators

64–65, 160
Fluid, brake

143
Fluid, engine coolant

143
Foglamp, rear

160
Foglamps

159
Foglamps, front

63, 157
Foglamps, rear

63
Folding the rear seats

46
Frequency (radio)

218
Fuel

7, 134
Fuel consumption

7
Fuel tank

134–136
Fusebox, dashboard

161
Fusebox, engine compartment

161, 163
Fuses

161–163
G
Gauge, fuel 134–135
Gearbox, automatic
94, 98–103, 145
Gearbox, manual

98–99, 103, 145
Gear lever, automatic gearbox

99–101
Gear lever, manual gearbox

98–99
Gear shift indicator ~ Gear efficiency
indicator

102
Glove box

47
G.P.S. 2 11
H
Hazard warning lamps 74
headlamp adjustment
67
Headlamp adjustment

67
Headlamps, automatic dipping

65–66, 124
Headlamps, automatic illumination

64–65
Headlamps, dipped beam

63, 157–158
Headlamps, halogen

157
Headlamps, main beam

63, 157, 159
Head restraints, front

46
Head restraints, rear

46
Heating

55–56, 58, 60–61
Heating, additional

37, 60–61
Heating, programmable

37, 60–61
Hill Assist Descent Control (HADC)

78–79
Hill Descent Control

78–79
Hill start assist

97–98
Horn

75
I
Ignition 94, 222
Ignition on
94
Immobiliser, electronic

91
Indicator, coolant temperature

16
Indicator lamps, operation

63
Indicators, direction

64
Inflating tyres 145, 176
Inflating tyres and accessories
(using the kit)

151, 153
Infrared camera

106
Instrument panel

9, 107
Internet browser

212, 216
J
Jack 153, 219
Jump starting
164
K
Key 24–27, 29–30
Key, electronic
24, 94
Keyless Entry and Starting

24, 26–29, 92, 94
Key with remote control

29
Kit, hands-free

184–185, 197, 220–221
Kit, puncture repair

150
Kit, temporary puncture repair

150–151, 153
L
Labels 4
Labels, identification
176
Lamps, front

159
Lamps, parking

65
Lamps, rear

160

231
Alphabetical index
Lane departure warning active 120, 125
LEDs - Light-emitting diodes
65, 157
Level, AdBlue®

144
Level, brake fluid

143
Level, Diesel additive

144–145
Level, engine coolant

16, 143
Level, engine oil

142
Levels and checks

142–144
Level, screenwash fluid

68, 143
Light-emitting diodes - LEDs

65, 157
Lighting

63
Lighting, exterior

63
Lighting, guide-me home

65
Lighting, welcome

65
Loading

50, 140
Load reduction mode

140
Load restraint

49
Locating your vehicle

25
Locking

24–25, 29
Locking from the inside

33–34
Long load support bar

36
Low fuel level

134–135
Lumbar

41
M
Maintenance (advice) 148
Maintenance, routine
106, 144
Manoeuvring aids (recommendations)

105
Markings, identification

176
Mat

47, 106
Memorising a speed 117–118
Menu
196
Menu, main

178
Menus (audio)

191–192, 204–205
Messages

222
Messages, quick

222
Mirror, rear view

43–44
Mirrors, door

43, 59, 124
Misfuel prevention

135–136
MP3 CD

182
N
Navigation 210–212
Navigation, connected
212–214
Number plate lamps

160–161
O
Obstacle detection 127
Oil change
142
Oil consumption

142
OIl, engine

142
On-board tools

150–151
Opening the bonnet

141–142
Opening the boot

24
Opening the doors

24
Overhead storage

47
P
Pads, brake 145
Paint
149, 176
Paint colour code

176
Parking brake

94–95, 145
Parking brake, electric

95–97, 145
Parking sensors, audible and visual

127
Parking sensors, front

128
Parking sensors, rear

127
Plates, identification

176
Player, Apple®

183, 195
Player, Apple®

219
Player, MP3 CD

182
Player, USB

181, 194, 219
Port, USB

48, 181, 194, 214, 219
Pressures, tyres

145, 153, 156, 176
Pre-tensioning seat belts

80
Priming pump

150
Priming the fuel system

150
Profiles

199, 223
Programmable cruise control

11 2
Protecting children

82, 84–87
Puncture

151, 153
R
Radar (warnings) 106
Radio
179–180, 192, 195, 217
Radio, digital (Digital Audio Broadcasting -
DAB)

180, 194–195, 218
