2021 PEUGEOT EXPERT Central locking

53

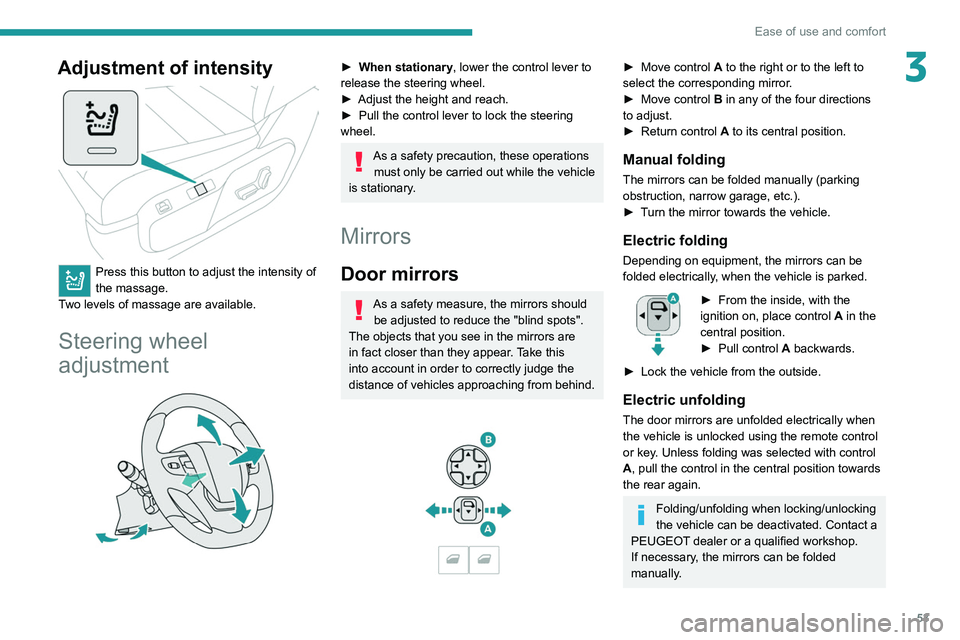

Ease of use and comfort
3Adjustment of intensity

Press this button to adjust the intensity of
the massage.
Two levels of massage are available.
Steering wheel
adjustment


► When stationary , lower the control lever to
release the steering wheel.
►

Adjust the height and reach.
►


Pull the control lever to lock the steering
wheel.
As a safety precaution, these operations must only be carried out while the vehicle
is stationary.
Mirrors
Door mirrors
As a safety measure, the mirrors should be adjusted to reduce the "blind spots".
The objects that you see in the mirrors are
in fact closer than they appear. Take this
into account in order to correctly judge the
distance of vehicles approaching from behind.


► Move control A to the right or to the left to
select the corresponding mirror.
►

Move control
B in any of the four directions
to adjust.
►

Return control A

to its central position.
Manual folding
The mirrors can be folded manually (parking
obstruction, narrow garage, etc.).
►
T
urn the mirror towards the vehicle.
Electric folding
Depending on equipment, the mirrors can be
folded electrically, when the vehicle is parked.
► From the inside, with the
ignition on, place control A
in the
central position.
►

Pull control A

backwards.
►

Lock the vehicle from the outside.
Electric unfolding
The door mirrors are unfolded electrically when
the vehicle is unlocked using the remote control
or key. Unless folding was selected with control
A, pull the control in the central position towards
the rear again.
Folding/unfolding when locking/unlocking
the vehicle can be deactivated. Contact a
PEUGEOT dealer or a qualified workshop.
If necessary, the mirrors can be folded
manually.

56
Ease of use and comfort
Install the anti-slip net (supplied with the
vehicle) every time that the seat is raised and
the partition flap removed.
Never use the net for any other purposes.
Regularly check the condition of the anti-
slip net. As soon as signs of wear or tear
appear, contact a PEUGEOT dealer to have
it replaced by an anti-slip net that meets the
specifications required by PEUGEOT for the
vehicle.
Always fit the removable flap back into place
when you are not carrying any long loads.
"Rotating writing table"
If fitted to your vehicle, the central seat cushion
of the bench seat can be tilted to form a pivoting
writing table, thus creating a mobile desk (with
the vehicle stationary).
► Pull the handle located at the top of the
backrest cushion.

Lowering the seat cushion

► Remove the anti-slip net.
► T o reposition the seat cushion, press firmly
on the top of the seat with one hand to lower the
seat cushion until it locks into the seat position.
Ensure that there are no objects or feet
obstructing the anchorage points or
preventing the assembly from locking
properly.
Anti-slip net
Installing the net

► Put the first fastener into the upper cut-out 1,
located beneath the folded seat cushion. Keep
the fastener pressed against the structure, then
turn it a quarter turn (in a clockwise direction) to
lock it.
►

Put the second fastener into the lower cut-out
2

, located on the seat base. Keep the fastener
pressed against the structure, then turn it a
quarter turn (in a clockwise direction) to lock it.


► Secure the first hook to the ring 3 located in
the glove box.
►

Secure the second hook to the ring 4

located
on the floor.
Removing the net
► Release the hooks from the rings 4 and 3.
► Remove the lower fastener 2
then the upper
fastener 1, turning them by a quarter turn
backwards to unlock them.
Make sure that the size, shape and
volume of the loads carried are
compatible with the highway code and safety
regulations and do not impair the driver’s field
of vision.
All loads must be appropriately secured
to prevent or minimise displacement and
prevent injury.

76
Ease of use and comfort

► Push the control then tip the table assembly
downward until it clicks into place.
Before stowing the table tops, check that
they are clear. Before tipping the
assembly down, check that the two table tops
have clicked home in the low position and that
there is nothing in the cup holder area (such
as a can or pen).
Cup holders
Two cups or cans and small objects (such as
a credit card, portable ashtray or pen) can be
carried in the middle of the unfolded table.
Liquids carried in an open vessel (a cup
or mug) could be spilt, presenting a risk.
Be careful.
Never use the table in this position while the
vehicle is being driven.

The table has a central storage space covered
by a lid. When deployed, this device becomes
a table with two table tops on which you can
place objects. The central part has two cup/
can holders and can also be used to hold small
objects (e.g. credit card, pen).
The assembly is mounted on a runner allowing it
to be positioned either in row 2 or row 3.
Storage

► Slide back the cover for access to 1 1 litres of
storage space.
The storage space can only support a maximum weight of 3 kg; do not exceed
this maximum load in use.
Moving forward or backward

► Lift the control (without going beyond the
point of resistance) and slide the assembly
forwards or backwards.
►

Release the control when it is in the desired
position.
►


Check that the table is secured on the runner
.
If this is not the case, move the assembly slightly
to the next notch on the runner.
You can move the table in both the open and stowed position. However, to ensure
safety, it is advised that you handle the
assembly in the stowed position.
For the table to run smoothly, ensure that
no objects are blocking the space used
by the runner on the floor.
Before manoeuvring the table, check that
there is nothing on the table.
Unfolding

► Operate the control on the top and pull the
table assembly up until it clicks into place.
►

Pull each table top fully up then pivot them on
each side into the horizontal position.
Folding
► Raise each table top, going beyond the point
of resistance, to the vertical position.
►

Push each table top down into its housing
until it clicks into place.

134

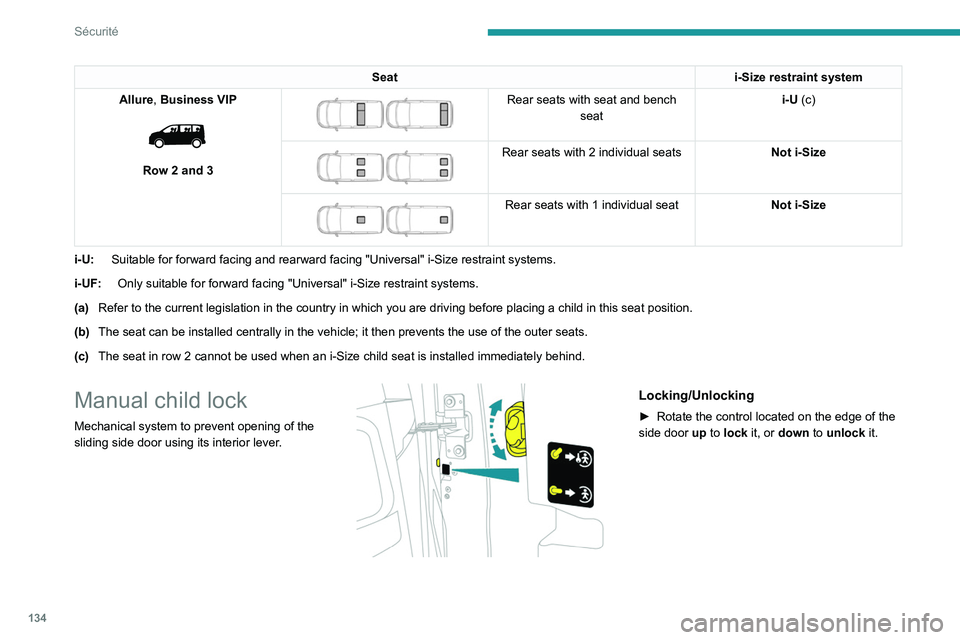

Sécurité
Seati-Size restraint system
Allure, Business VIP


Row 2 and 3


Rear seats with seat and bench seat i-U (c)


Rear seats with 2 individual seats
Not i-Size


Rear seats with 1 individual seatNot i-Size
i-U: Suitable for forward facing and rearward facing "Universal" i-Size restr\
aint systems.
i-UF: Only suitable for forward facing "Universal" i-Size restraint systems.
(a) Refer to the current legislation in the country in which you are driving\
before placing a child in this seat position.
(b) The seat can be installed centrally in the vehicle; it then prevents the use of the outer seats.
(c) The seat in row 2 cannot be used when an i-Size child seat is installed \
immediately behind.
Manual child lock
Mechanical system to prevent opening of the
sliding side door using its interior lever.


Locking/Unlocking
► Rotate the control located on the edge of the
side door up
to lock it, or down to unlock it.

135
Sécurité
5Electric child lock
Remote control system to
prevent opening of the rear
doors (sliding side door(s), side-
hinged rear doors or tailgate
(depending on version)) using
their interior controls.
This control prevents the opening of the rear
doors using their interior handles and the use of
the rear electric windows.
Activation/Deactivation



► With the ignition on, press this button to
activate/deactivate the child lock.
A
message is displayed, confirming activation/
deactivation of the child lock.
When the indicator lamp is on, the child lock is
activated.
In the event of a serious impact, the
electric child lock is deactivated
automatically.
Any other status of the indicator lamp indicates a malfunction of the electric
child lock.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
With the child lock activated, it is still
possible to open the doors from outside.
This system is independent and in no circumstances does it take the place of
the central locking control.
Check the status of the child lock each time
you switch on the ignition.
Always keep the electronic key with you when
leaving the vehicle, even for a short time.
In the event of a serious impact, the electric
child lock is switched off automatically to
permit the exit of the rear passengers.
Child lock on rear
windows
This mechanical system
prevents opening of the left-
hand and/or right-hand rear side
windows.


► The system is locked/unlocked using the
remote control key or the back-up key for the
Keyless Entry and Starting system.

287
Alphabetical index
180° rear vision 176
A
ABS 101
Accelerated charging unit (Wallbox)
182
Accessories

98
Access to the 3rd row

58, 60
Access to the spare wheel

209
Active Safety Brake

166–168
AdBlue®

20, 197
AdBlue® tank

198
Additive, Diesel

195–196
Adjusting head restraints

51
Adjusting seat

49–50
Adjusting the air distribution

80–81
Adjusting the air flow

80–81
Adjusting the date

28, 260, 282
Adjusting the height and reach of
the steering wheel

53
Adjusting the lumbar support

49
Adjusting the seat angle

49–50
Adjusting the seat belt height

105
Adjusting the temperature

80–81
Adjusting the time

28, 259, 283
Advanced Grip Control

103–104
Advice on care and maintenance

180, 201
Advice on driving

8, 136–137
Airbags

107–110, 112
Airbags, curtain

109–110
Airbags, front

108–109, 112
Airbags, lateral 108–110
Air conditioning
79–80, 81–84, 82
Air conditioning, digital

83
Air conditioning, dual-zone automatic

80–81
Air conditioning, manual

80, 82
Air intake

80–82
Air vents

79
Alarm

46–47
Android Auto connection

256, 274
Anti-lock braking system (ABS)

101
Anti-pinch

75
Antitheft / Immobiliser

30
Apple CarPlay connection

256, 273
Applications

274
Area, loading

31, 38–39, 73
Armrest, front

51
Assistance call

99
Assistance, emergency braking

101, 168
Audible warning

100
Audio streaming (Bluetooth)

243, 255, 278
B
Battery 220
Battery, 12 V
189, 195–196, 219–222
Battery, ancillaries

219–220
Battery, charging

221–222
Battery, remote control

36–37, 85
Bench seat, one-piece, fixed

58–59
Blind, panoramic roof

75
Blind spot monitoring system

172
Blind spot sensors 171
Blinds, side
75
BlueHDi

20, 195, 203
Bluetooth (hands-free)

243–244, 257, 279
Bluetooth (telephone)

257–258, 279–280
Bodywork

201
Bonnet

192
Boot

45
Boot lid

34–35, 36, 45
Brake discs

197
Brake lamps

215, 217
Brakes

196–197
Braking

150
Braking assistance system

101
Braking, automatic emergency

166–168
Braking, dynamic emergency

143–144
Brightness

259
Bulbs

212
Bulbs (changing)

212, 215
C
Cable, audio 277
Cable, Jack
277
Capacity, fuel tank

178–179
Cap, fuel filler

178–179
Care of the bodywork

201
CD

242
CD, MP3

242
Central locking

29, 34, 38
Changing a bulb

212, 215, 217
