Safety

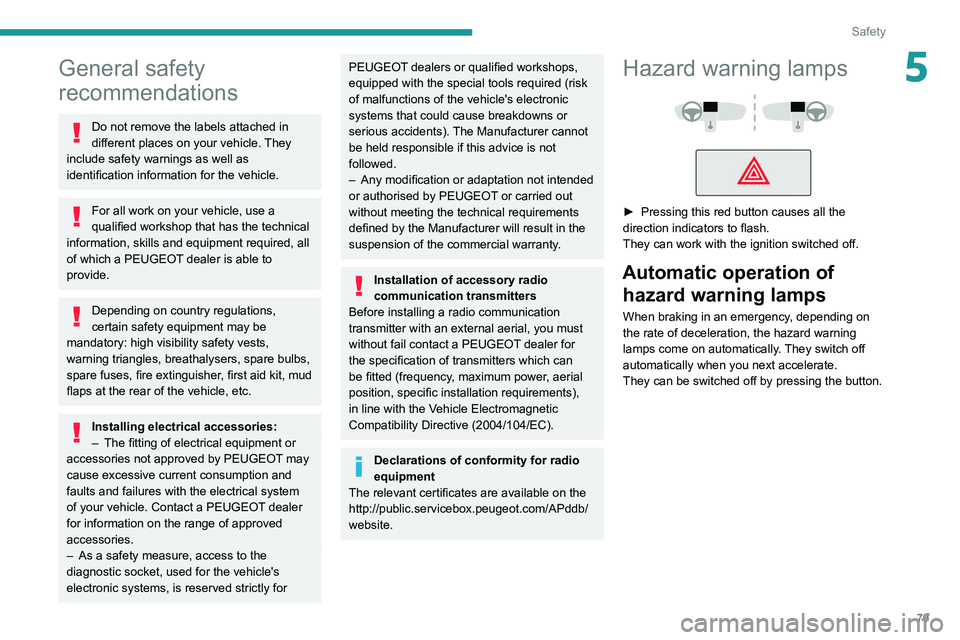

5General safety
recommendations
Do not remove the labels attached in
different places on your vehicle. They
include safety warnings as well as
identification information for the vehicle.
For all work on your vehicle, use a
qualified workshop that has the technical
information, skills and equipment required, all
of which a PEUGEOT dealer is able to
provide.
Depending on country regulations,
certain safety equipment may be
mandatory: high visibility safety vests,
warning triangles, breathalysers, spare bulbs,
spare fuses, fire extinguisher, first aid kit, mud
flaps at the rear of the vehicle, etc.
Installing electrical accessories:
– The fitting of electrical equipment or
accessories not approved by PEUGEOT
may
cause excessive current consumption and
faults and failures with the electrical system
of your vehicle. Contact a PEUGEOT dealer
for information on the range of approved
accessories.
–

As a safety measure, access to the
diagnostic socket, used for the vehicle's
electronic systems, is reserved strictly for
PEUGEOT dealers or qualified workshops,
equipped with the special tools required (risk
of malfunctions of the vehicle's electronic
systems that could cause breakdowns or
serious accidents). The Manufacturer cannot
be held responsible if this advice is not
followed.
–

Any modification or adaptation not intended
or authorised by PEUGEOT

or carried out
without meeting the technical requirements
defined by the Manufacturer will result in the
suspension of the commercial warranty.
Installation of accessory radio
communication transmitters
Before installing a radio communication
transmitter with an external aerial, you must
without fail contact a PEUGEOT dealer for
the specification of transmitters which can
be fitted (frequency, maximum power, aerial
position, specific installation requirements),
in line with the Vehicle Electromagnetic
Compatibility Directive (2004/104/EC).
Declarations of conformity for radio
equipment
The relevant certificates are available on the
http://public.servicebox.peugeot.com/APddb/
website.
Hazard warning lamps



► Pressing this red button causes all the
direction indicators to flash.
They can work with the ignition switched off.
Automatic operation of hazard warning lamps
When braking in an emergency, depending on
the rate of deceleration, the hazard warning
lamps come on automatically. They switch off
automatically when you next accelerate.
They can be switched off by pressing the button.

128
Driving

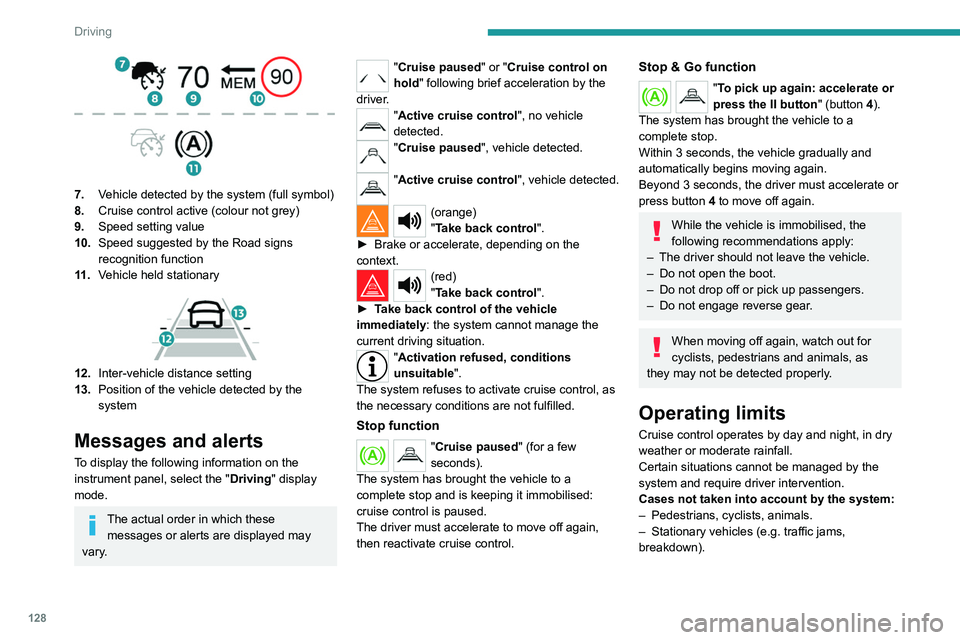

7.Vehicle detected by the system (full symbol)
8. Cruise control active (colour not grey)
9. Speed setting value
10. Speed suggested by the Road signs
recognition function
11 . Vehicle held
stationary


12.Inter-vehicle distance setting
13. Position of the vehicle detected by the
system
Messages and alerts
To display the following information on the
instrument panel, select the " Driving" display
mode.
The actual order in which these messages or alerts are displayed may
vary.
"Cruise paused" or "Cruise control on
hold " following brief acceleration by the
driver.
"Active cruise control", no vehicle
detected.
"Cruise paused", vehicle detected.
"Active cruise control", vehicle detected.
(orange)
"Take back control".
►

Brake or accelerate, depending on the
context.
(red)
"Take back control".
►

T

ake back control of the vehicle
immediately: the system cannot manage the
current driving situation.
"Activation refused, conditions
unsuitable ".
The system refuses to activate cruise control, as
the necessary conditions are not fulfilled.
Stop function
"Cruise paused" (for a few
seconds).
The system has brought the vehicle to a
complete stop and is keeping it immobilised:
cruise control is paused.
The driver must accelerate to move off again,
then reactivate cruise control.
Stop & Go function
"To pick up again: accelerate or
press the II button " (button 4).
The system has brought the vehicle to a
complete stop.
Within 3 seconds, the vehicle gradually and
automatically begins moving again.
Beyond 3 seconds, the driver must accelerate or
press button 4 to move off again.
While the vehicle is immobilised, the
following recommendations apply:
–

The driver should not leave the vehicle.
–


Do not open the boot.
–


Do not drop off or pick up passengers.
–


Do not engage reverse gear
.
When moving off again, watch out for
cyclists, pedestrians and animals, as
they may not be detected properly.
Operating limits
Cruise control operates by day and night, in dry
weather or moderate rainfall.
Certain situations cannot be managed by the
system and require driver intervention.
Cases not taken into account by the system:
–

Pedestrians, cyclists, animals.
–


Stationary vehicles (e.g.
traffic jams,
breakdown).

174
Practical information
Cooling of the engine when stopped
The engine cooling fan may start after
the engine has been switched off.
Take care with objects or clothing that
could be caught in the blades of the fan!
Opening



► From the inside: pull the control lever ,
located on the left below the dashboard, towards
you.


► From the outside: lift the safety catch and
raise the bonnet.
* Depending on engine.
Two bonnet struts open the bonnet and hold it
open.
Closing
► Lower the bonnet and release it near the end
of its travel.
►

Check the locking.
Because of the presence of electrical
equipment under the bonnet, it is strongly
recommended that exposure to water (rain,
washing, etc.) be limited.
Engine compartment
The engine shown here is an example for
illustrative purposes only.
The locations of the following components may
vary:
–

Air filter
.
–

Engine oil dipstick.
–


Engine oil filler cap.
–


Priming pump.
–


Degassing screw
.
Petrol engine

Diesel engine

1.Screenwash fluid reservoir
2. Engine coolant reservoir
3. Brake fluid reservoir
4. Battery/Fuses
5. Remote earth point (-)
6. Fusebox
7. Air filter
8. Engine oil filler cap
9. Engine oil dipstick
10. Priming pump*
11 . Degassing screw*
Diesel fuel system
This system is under very high pressure.
All work must be carried out only by a
PEUGEOT dealer or a qualified workshop
Checking levels
Check all of the following levels regularly in
accordance with the manufacturer's service
schedule. Top them up if required, unless
otherwise indicated.
If a level drops significantly, have the
corresponding system checked by a PEUGEOT
dealer or a qualified workshop.
The fluids must comply with the manufacturer's requirements and with
the vehicle's engine.
Take care when working under the bonnet, as certain areas of the engine
may be extremely hot (risk of burns) and the
cooling fan could start at any time (even with
the ignition off).
Used products
Avoid prolonged contact of used oil or fluids with the skin.
Most of these fluids are harmful to health and
very corrosive.

194
In the event of a breakdown
Take used remote control batteries and
vehicle batteries to a special collection point.
Protect your eyes and face before
handling the battery.
All operations on the battery must be carried
out in a well ventilated area and away from
naked flames and sources of sparks, to avoid
any risk of explosion or fire.
Wash your hands afterwards.
Accessing the battery
The battery is located under the bonnet.

For access to the (+) terminal:
► Release the bonnet by pulling the internal
release lever, then the external safety catch.
► Raise the bonnet.
(+) Positive terminal.
This terminal has a quick-release clamp.
(-) Negative terminal.

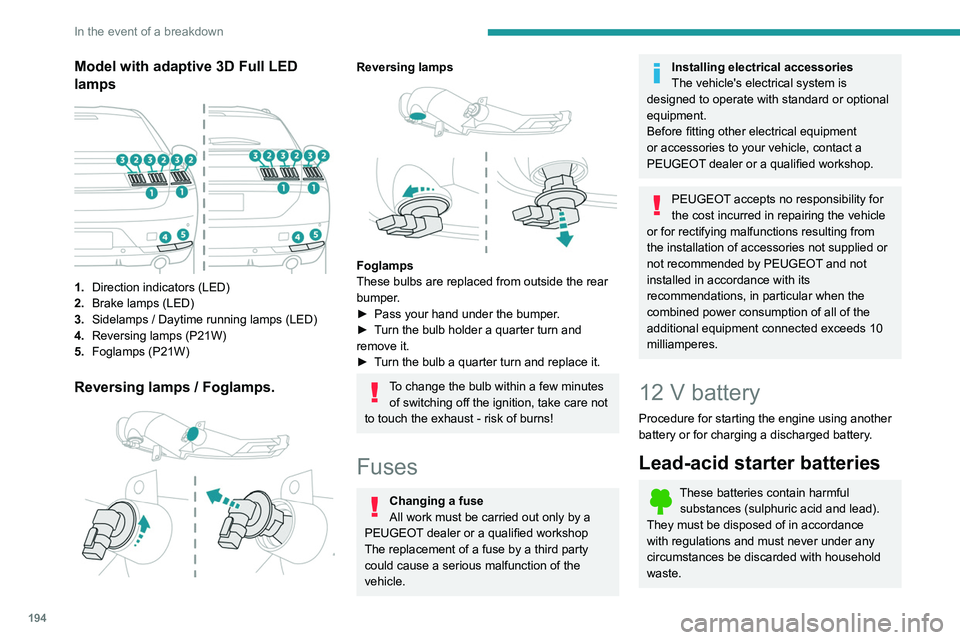

Model with adaptive 3D Full LED
lamps


1. Direction indicators (LED)
2. Brake lamps (LED)
3. Sidelamps / Daytime running lamps (LED)
4. Reversing lamps (P21W)
5. Foglamps (P21W)
Reversing lamps / Foglamps.

Reversing lamps

Foglamps
These bulbs are replaced from outside the rear
bumper.
►

Pass your hand under the bumper
.
►

T
urn the bulb holder a quarter turn and
remove it.
►

T
urn the bulb a quarter turn and replace it.
To change the bulb within a few minutes of switching off the ignition, take care not
to touch the exhaust - risk of burns!
Fuses
Changing a fuse
All work must be carried out only by a
PEUGEOT dealer or a qualified workshop
The replacement of a fuse by a third party
could cause a serious malfunction of the
vehicle.
Installing electrical accessories
The vehicle's electrical system is
designed to operate with standard or optional
equipment.
Before fitting other electrical equipment
or accessories to your vehicle, contact a
PEUGEOT dealer or a qualified workshop.
PEUGEOT accepts no responsibility for
the cost incurred in repairing the vehicle
or for rectifying malfunctions resulting from
the installation of accessories not supplied or
not recommended by PEUGEOT and not
installed in accordance with its
recommendations, in particular when the
combined power consumption of all of the
additional equipment connected exceeds 10
milliamperes.
12 V battery
Procedure for starting the engine using another
battery or for charging a discharged battery.
Lead-acid starter batteries
These batteries contain harmful substances (sulphuric acid and lead).
They must be disposed of in accordance
with regulations and must never under any
circumstances be discarded with household
waste.

253
Alphabetical index
E
EBFD 82
Eco-driving (advice)
8
ECO mode

111
Economy mode

173
Electric automatic gearbox (Rechargeable
hybrid)

109
Electric windows

41
Electronic brake force distribution (EBFD)

82
Emergency braking assistance (EBA)

82
Emergency call

80–81
Emergency switching off

103
Emergency warning lamps

79, 183
Emissions control system, SCR

20, 178
Energy economy mode

173
Energy flows

25
Energy recovery

21, 109
Engine

178
Engine compartment

173–174
Engine, Diesel

157, 175, 183, 206–207
Engine, petrol

112, 174, 204
Engines

203–204, 206–207
Environment

8, 32, 57
e-Save function (energy reserve)

26
ESC (electronic stability control)

82
Expanded traffic sign recognition

121
Exterior lighting

72
F
Fatigue detection 136
Filling the AdBlue® tank
176, 179
Filling the fuel tank

157–158
Filter, air

177
Filter, oil

177
Filter, particle

176–177
Filter, passenger compartment

52, 177
Fitting a wheel

189–190
Fitting roof bars

170–171
Fittings, boot

64
Fittings, interior

59
Fittings, rear

63
Flap, charging

168
Flap, fuel filler

157–158
Flashing indicators

70, 193
Flat bed (recovery)

200
Fluid, brake

176
Fluid, engine coolant

176
Foglamps, rear

69, 194
Folding the rear seats

50–51
Four-wheel drive (4WD)

113, 172
Frequency (radio)

238
Fuel

8, 157
Fuel consumption

8, 21
Fuel tank

157–159
Full Park Assist

151
Fuses

194
G
Gauge, fuel 157
Gearbox, automatic
106–108, 110, 177, 196
Gearbox, manual

11 0
Gear shift indicator ~ Gear efficiency
indicator

11 3
Glove box

59
G.P.S.

232
Grab handles

59
H
Hands-free access 39–40
Hands-free tailgate
38–40
Hazard warning lamps

79, 183
Headlamp adjustment

71
Headlamp adjustment

71
Headlamps, automatic dipping

72–73
Headlamps, automatic illumination

71
Headlamps, dipped beam

192–193
Headlamps, halogen

71, 192
Headlamps, main beam

72, 192–193
Head restraints, front

45
Head restraints, rear

50–51
Heating

51, 56–57
Heating, additional

56–57
Heating, programmable

26, 56–58
Hi-Fi system

61
High voltage

159
Hill start assist

11 0 – 111

256
Alphabetical index
Reminder, lighting on 69
Remote control
27–31
Remote functions

168
Remotely operable functions
(Rechargeable hybrid)

26, 58
Removing a wheel

189–190
Removing the mat

62
Replacing bulbs

191–194
Replacing fuses

194
Replacing the air filter

177
Replacing the oil filter

177
Replacing the passenger compartment
filter

177
Reservoir, screenwash

176
Reset trip

23
Rev counter

10
Reversing camera

117, 144–146
Reversing lamps

193–194
Roof bars

170–171
Running out of fuel (Diesel)

183
S
Safety, children 86, 89–97
Saturation of the particle filter (Diesel)
177
Screen, cold climate

172
Screen menu map

218
Screenwash

76
Screenwash, front

76
Screenwash, rear

76
SCR (Selective Catalytic Reduction)

20, 178
Seat angle

45
Seat belts 84–85, 91
Seat belts, rear
84
Seat, rear bench

50
Seats, electric

46–47
Seats, front

45–47
Seats, heated

47
Seats, rear

50–51, 89
Selector, gear

106–109
Sensors (warnings)

11 7
Serial number, vehicle

210
Service indicator

18, 22
Servicing

18, 176, 178
Settings, equipment

24
Settings, system

221, 244
Shield, snow

172
Sidelamps

70, 192–194
Side parking sensors

143
Silent vehicle warning sound (Rechargeable
hybrid)

80
Ski flap

64
Smartphone

26, 60
Snow chains

115, 172
Snow screen

172
Socket, 12 V accessory

59, 63, 67
Socket, auxiliary

217, 239
Socket, Jack

239
Speakers

61
Speed limiter

120–123, 125
Speed limit recognition

118–119
Speedometer

10, 118
Sport mode

111 – 11 2
Spotlamps, side

72
Stability control (ESC)

82–83Starting a Diesel engine 157
Starting/Stopping the vehicle
101
Starting the engine

101–102
Starting the vehicle

102, 106–109
Starting using another battery

103, 195
State of charge, battery

25
Station, radio

214–215, 238
Steering mounted controls, audio

212, 225
Steering wheel, adjustment

48
Stickers, customising ~ Stickers,
expressive

181
Stopping the vehicle

102, 106–109
Stop & Start

23, 52, 55, 113–115, 157, 173, 177, 197
Storage

59, 61–64
Storage box

68
Storage compartments

59
Storage wells

64, 68
Storing driving positions

47
Stowing rings

64, 67
Sunroof, panoramic

42–43
Sunshine sensor

52
Sun visor

59
Suspension

178
Suspension with variable vibration
reduction

111
Switching off the engine

101
Synchronising the remote control

33
T
Tables of engines 208
