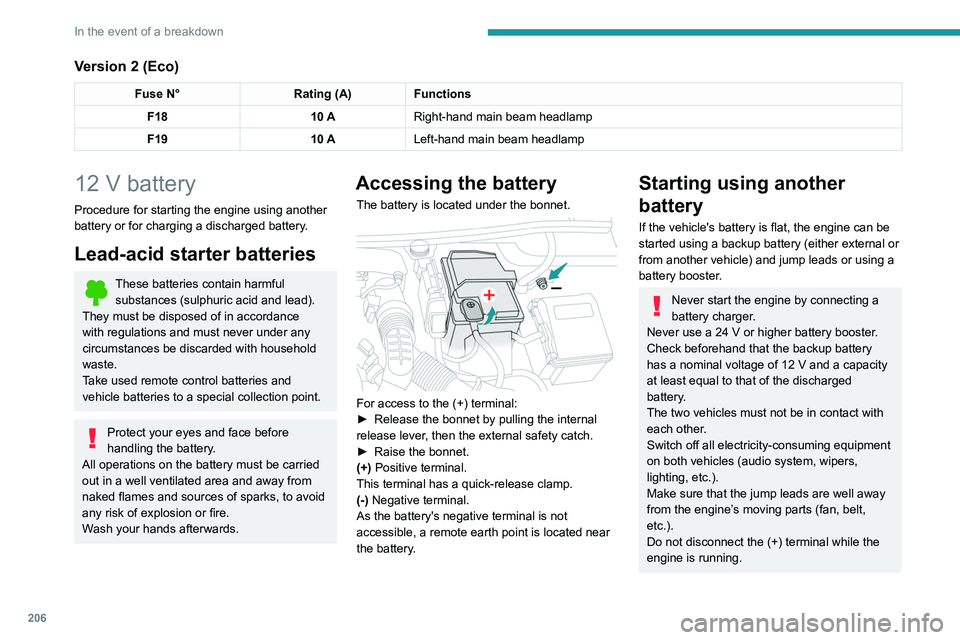

206
In the event of a breakdown
Version 2 (Eco)
Fuse N°Rating (A)Functions
F18 10 ARight-hand main beam headlamp
F19 10 ALeft-hand main beam headlamp
12 V battery
Procedure for starting the engine using another
battery or for charging a discharged battery.
Lead-acid starter batteries
These batteries contain harmful
substances (sulphuric acid and lead).
They must be disposed of in accordance
with regulations and must never under any
circumstances be discarded with household
waste.
Take used remote control batteries and
vehicle batteries to a special collection point.
Protect your eyes and face before
handling the battery.
All operations on the battery must be carried
out in a well ventilated area and away from
naked flames and sources of sparks, to avoid
any risk of explosion or fire.
Wash your hands afterwards.
Accessing the battery
The battery is located under the bonnet.

For access to the (+) terminal:
► Release the bonnet by pulling the internal
release lever
, then the external safety catch.
►

Raise the bonnet.
(+)

Positive terminal.
This terminal has a quick-release clamp.
(-) Negative terminal.
As the battery's negative terminal is not
accessible, a remote earth point is located near
the battery.
Starting using another
battery
If the vehicle's battery is flat, the engine can be
started using a backup battery (either external or
from another vehicle) and jump leads or using a
battery booster.
Never start the engine by connecting a
battery charger.
Never use a 24
V or higher battery booster.
Check beforehand that the backup battery
has a nominal voltage of 12
V and a capacity
at least equal to that of the discharged
battery.
The two vehicles must not be in contact with
each other.
Switch off all electricity-consuming equipment
on both vehicles (audio system, wipers,
lighting, etc.).
Make sure that the jump leads are well away
from the engine’s moving parts (fan, belt,
etc.).
Do not disconnect the (+) terminal while the
engine is running.

262
Alphabetical index
Charger, induction 64
Charger, wireless
64
Charging cable

168
Charging cable (Rechargeable
hybrid)

166, 172
Charging connector (Rechargeable
hybrid)

166, 171–172
Charging flap (Rechargeable
hybrid)

166, 171–172
Charging the traction battery
(Rechargeable hybrid)

20, 165, 171–172
CHECK

21
Checking the engine oil level

17
Checking the levels

181–182
Checking tyre pressures (using the kit)

192, 195
Checks

181, 183–184
Checks, routine

183–184
Child lock

108–109
Children

94, 101–102, 105–106, 107
Children (safety)

108
Child seats

94, 97–98, 100–101, 107
Child seats, conventional

100–101
Child seats, i-Size

107
Child seats, ISOFIX

102, 104–105
Cleaning (advice)

165, 187–188
Closing the boot

29, 32
Closing the doors

29, 32
Collision Risk Alert

147–148
Configurations, seats

55
Configuration, vehicle

23, 25
Connected applications

248Connection, Bluetooth 231–232, 248–249,
253–254
Connection, Wi-Fi network

249
Connectivity

247
Consumption figures

24
Container, AdBlue®

185
Control, emergency boot release

33
Control, emergency door

30–31
Control, heated seats

46
Controls, steering mounted

116–118
Control stalk, lighting

74–75
Control stalk, wipers

80–82
Control unit

166, 168, 172
Courtesy lamps

66–67
Cover, load space

69
Cruise control

128, 130–131, 133–135
Cruise control, adaptive

135–136
Cruise control by speed limit
recognition

130–131
Cruise control, dynamic with Stop
function

130–131
Cup holder

62
D
DAB (Digital Audio Broadcasting) -
Digital radio
228, 251
Date (setting)

234, 256
Daytime running lamps

75, 200–201
Deactivating the passenger airbag

96, 99
Deadlocking

27, 29
Deferred charging 24–25, 173
Deferred charging (Rechargeable
hybrid)

24–25, 166, 171
Defrosting

47, 60
Defrosting, front

60
Demisting

47, 60
Demisting, front

60
Demisting, rear

61
Demisting, rear screen

61
Dials and gauges

9
Digital instrument panel

9–10
Dimensions

221
Dipstick

17, 181
Direction indicators

75, 200–201
Domestic charging

168
Domestic charging (Rechargeable hybrid)

172
Door pockets

62
Doors

32
Drive Assist Plus

135
Driver’s attention warning

150
Driving

42–43, 110
Driving aids camera (warnings)

127
Driving aids (recommendations)

126
Driving economically

7
Driving modes

89–90, 121–122
Driving positions (storing)

45–46
Dynamic stability control (DSC)

88, 90
E
EBFD 87

264
Alphabetical index
Histogramme, fuel consumption 24–25
Horn
85
Hybrid

220
I
i-Cockpit® amplify function 46
Ignition
113, 254
Ignition on

11 3
Immobiliser, electronic

111
Indicator, AdBlue® range

18
Indicator, coolant temperature

18
Indicator, engine oil level

17, 21
Indicators, direction

75
Inflating tyres

184, 222
Inflating tyres and accessories
(using the kit)

192, 195
Infrared camera

79, 127
Instrument panel

9–10, 21–22, 127
Instrument panel (Rechargeable hybrid)

9
Intelligent Traction Control

87
Internet browser

245, 248
ISOFIX mountings

102
J
Jack 192, 195–197, 251
Jump starting
206
K
Key 26–27, 30–31
Key, electronic
28–29
Keyless Entry and Starting

28–29, 111–112
Key not recognised

11 3
Key with remote control

26, 111
Kit, hands-free

231, 253
Kit, puncture repair

190–192
Kit, temporary puncture repair

190–193, 195
L
Labels, identification 222
Lamp, boot
73
Lamps, parking

75
Lamps, rear

201
Lams with Full LED technology

76, 78
Lane assist

135, 140–141
Lane departure warning active

144, 152
Lane Departure Warning System
(LDWS)

143–144
Leather (care)

188
LEDs - Light-emitting diodes

75, 200–201
Level, AdBlue®

182
Level, brake fluid

182
Level, Diesel additive

182–183
Level, engine coolant

18, 182
Level, engine oil

17, 181
Levels and checks

181–183
Level, screenwash fluid

81, 182
Light-emitting diodes - LEDs 75, 200–201
Lighting, cornering
78–79
Lighting dimmer

21
Lighting, exterior

74, 77
Lighting, guide-me home

27, 77
Lighting, interior

66–67
Lighting, mood

21, 66
Lighting, welcome

77
Loading

70–71, 176–177
Load reduction mode

179
Locating your vehicle

27
Locking

27, 29
Locking from the inside

30
Locking the doors

30
Long objects, transporting

67
Low fuel level

163
M
Mains socket (domestic network) 166
Maintenance (advice)
165, 187
Maintenance, routine

127, 183–184
Manoeuvring aids (recommendations)

126
Map reading lamps

66
Markings, identification

222
Massage function

46
Massage, multi-point

46
Mat

65, 127
Memorising a speed

128
Menu

230
Menu, main

23
