2021 Peugeot 308 steering

194
PEUGEOT Connect Radio
Calling a new number
Press Telephone to display the main
page.
Enter the phone number using the digital
keypad.
Press "Call" to start the call.
Calling a contact
Press Telephone to display the main
page.
Or press and hold
the steering mounted PHONE button.
Press "Contacts".
Select the desired contact from the displayed list.
Press "Call".
Calling a recently used
number
Press Telephone to display the main
page.
Or
Press and hold
the steering mounted button.
Press "Recent calls".
Select the desired contact from the displayed list.
It is always possible to make a call
directly from the telephone; as a safety
measure, first park the vehicle.
Setting the ringtone
Press Telephone to display the main
page.
Press the "OPTIONS " button to access the
secondary page.
Press "Ring volume" to display the
volume bar.
Press the arrows or move the slider to set
the ring volume.
Settings
Configuring profiles
Press Settings to display the main page.
Press "Profiles".
Select "Profile 1", "Profile 2", "Profile 3” or
"Common profile ".
Press this button to enter a name for the
profile using the virtual keypad.
Press "OK" to save.
Press the back arrow to confirm.
Press this button to activate the profile.
Press the back arrow again to confirm.
Press this button to reset the selected
profile.
Adjusting the brightness
Press Settings to display the main page.
Press Brightness.
Move the slider to adjust the brightness of
the screen and/or the instrument panel
(depending on version).
Press in the shaded area to confirm.
Modifying system settings
Press Settings to display the main page.
Press "Configuration" to access the
secondary page.
Press "System configuration".
Press the "Units" tab to change the units of
distance, fuel consumption and temperature.
Press the "Factory settings" tab to restore the
initial settings.
Returning the system to factory settings
activates the English language by default
(depending on version).

199
PEUGEOT Connect Nav
11Audio source selection (depending on
equipment):
–
FM/DAB/AM radio stations (depending on
equipment).
–


T
elephone connected via Bluetooth and
Bluetooth multimedia broadcast (streaming).
–

USB memory stick.
–


Media player connected via the auxiliary
socket (depending on equipment).
–


V
ideo (depending on equipment).


In the "Settings" menu, it is possible to
create a profile for an individual or for a
group of people with shared interests, and
configure a wide range of settings (radio
presets, audio settings, navigation history,
favourite contacts, etc.). Settings are applied
automatically.
In very hot conditions, the volume may
be limited to protect the system. It may
enter standby mode (with the screen and
sound off) for 5 minutes or more.
The system will resume normal operation
when the temperature in the passenger
compartment has dropped.
Steering mounted controls
Voice control:
This control is located on the steering
wheel or at the end of the lighting control stalk
(depending on equipment).
Short press, system voice control.
Long press, voice commands from smartphone
or CarPlay
®, Android Auto via the system.Increase volume.
Decrease volume.
Mute/restore the sound.
Telephone (short press): start telephone
call.
Call in progress (short press): access
telephone menu.
Telephone (long press): reject an incoming call,
end call; when no call is in progress, access
telephone menu.
Radio (rotate): automatic search for the
previous/next station.
Media (rotate): previous/next track, move
through a list. Short press: confirm a selection; if nothing
selected, access presets.
Radio: display the list of stations.
Media: display the list of tracks.
Radio (press and hold): update the list of
detected stations.
Menus
Connected navigation

Enter navigation settings and choose a
destination.
Use real-time services, depending on equipment.

201
PEUGEOT Connect Nav
11Voice commands
Steering wheel-mounted
controls
Voice commands:
Voice commands can be issued from any
screen page after a short press on the "Voice
commands" button located on the steering
wheel or at the end of the lighting control stalk
(depending on equipment), as long as there is no
telephone call in progress.
To ensure that voice commands are always recognised by the system, please
follow these recommendations:
–

use natural language in a normal tone
without breaking up words or raising your
voice.
–


always wait for the "beep" (audible signal)
before speaking.
–


for best results, closing the windows and
sunroof is recommended, to avoid extraneous
interference (depending on version).
–


before issuing a voice command, ask any
other passengers to refrain from speaking.
First steps
Example of a "voice command" for
navigation:
"Navigate to address 11 regent street,
London"
Example of a "voice command" for the radio and
media:
"Play artist Madonna"
Example of a "voice command" for the
telephone:
"Call David Miller'' "
The voice commands, with a choice of 17 languages (Arabic, Brazilian, Czech,
Danish, Dutch, English, Farsi, French,
German, Italian, Norwegian, Polish,
Portuguese, Russian, Spanish, Swedish,
Turkish), are made using the language
previously chosen and set in the system.
For some voice commands, there are
alternative synonyms.
Example: Guide to / Navigate to / Go to / ...
The voice commands in Arabic for: "Navigate
to address" and "Display POI in the city", are
not available.
Information - Using the
system
When voice commands are activated, by
briefly pressing the button, help is
displayed on the touch screen, offering various
menus and enabling voice-based interaction with
the system.


A number of commands are available when a
menu is selected.


Press the Push To Talk button and tell me
what you'd like after the tone. Remember
you can interrupt me at any time by pressing this
button. If you press it again while I'm waiting for
you to speak, it'll end the conversation. If you
need to start over, say "cancel". If you want to
undo something, say "undo". And to get
information and tips at any time, just say "help".
If you ask to me do something and there's some
information missing that I need, I'll give you
some examples or take you through it step by

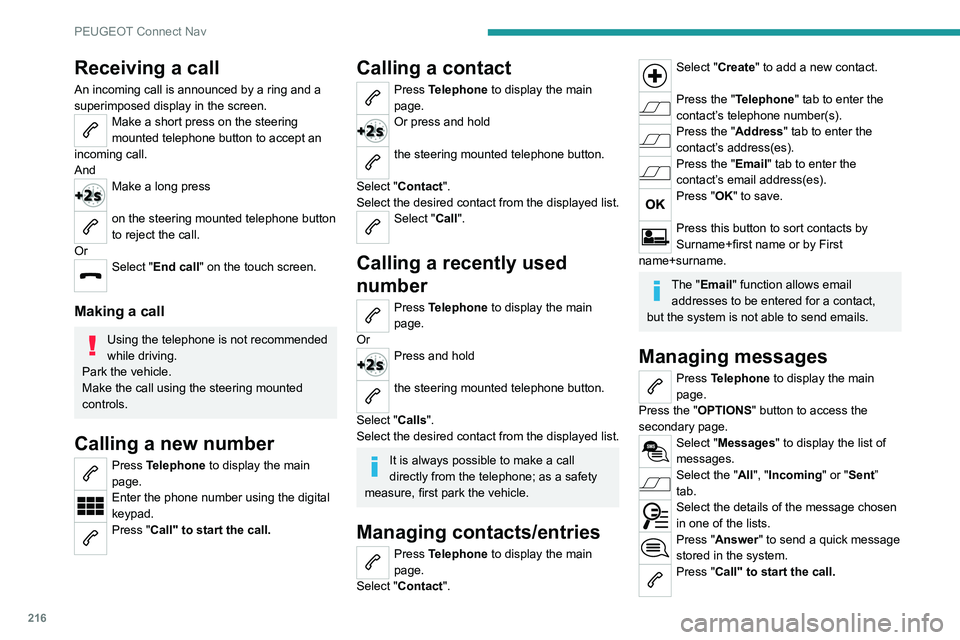

216
PEUGEOT Connect Nav
Receiving a call
An incoming call is announced by a ring and a
superimposed display in the screen.
Make a short press on the steering
mounted telephone button to accept an
incoming call.
And
Make a long press
on the steering mounted telephone button
to reject the call.
Or
Select "End call" on the touch screen.
Making a call
Using the telephone is not recommended
while driving.
Park the vehicle.
Make the call using the steering mounted
controls.
Calling a new number
Press Telephone to display the main
page.
Enter the phone number using the digital
keypad.
Press "Call" to start the call.
Calling a contact
Press Telephone to display the main
page.
Or press and hold
the steering mounted telephone button.
Select "Contact".
Select the desired contact from the displayed list.
Select "Call".
Calling a recently used
number
Press Telephone to display the main
page.
Or
Press and hold
the steering mounted telephone button.
Select "Calls".
Select the desired contact from the displayed list.
It is always possible to make a call
directly from the telephone; as a safety
measure, first park the vehicle.
Managing contacts/entries
Press Telephone to display the main
page.
Select "Contact".
Select "Create" to add a new contact.
Press the "Telephone " tab to enter the
contact’s telephone number(s).
Press the "Address" tab to enter the
contact’s address(es).
Press the "Email" tab to enter the
contact’s email address(es).
Press "OK" to save.
Press this button to sort contacts by
Surname+first name or by First
name+surname.
The "Email" function allows email addresses to be entered for a contact,
but the system is not able to send emails.
Managing messages
Press Telephone to display the main
page.
Press the "OPTIONS " button to access the
secondary page.
Select "Messages" to display the list of
messages.
Select the "All", "Incoming " or "Sent”
tab.
Select the details of the message chosen
in one of the lists.
Press "Answer" to send a quick message
stored in the system.
Press "Call" to start the call.

222
Alphabetical index
3D digital instrument panel 7
A
ABS 62
Accessories
26, 58, 84
Active Safety Brake

112–114
AdBlue®

15, 146
AdBlue® tank

147
Additive, Diesel

144
Adjusting headlamps

54
Adjusting head restraints

30
Adjusting seat

30–31
Adjusting the air distribution

44–46
Adjusting the air flow

44–46
Adjusting the date

195, 218
Adjusting the height and reach of
the steering wheel

33
Adjusting the lumbar support

31
Adjusting the seat angle

31
Adjusting the temperature

44–46
Adjusting the time

195, 218
Advice on care and maintenance

148
Advice on driving

6, 81
Affaire version

182
Airbags

66, 68, 70
Airbags, curtain

67–68
Airbags, front

67–68, 70
Airbags, lateral

67–68
Air conditioning

43, 43–44
Air conditioning, automatic

44–46
Air conditioning, digital 47
Air conditioning, manual
43–44
Air intake

46
Air vents

42
Alarm

26–28
Android Auto connection

210
Anti-lock braking system (ABS)

62
Anti-pinch

28–29, 47–48
Antitheft / Immobiliser

23
Apple CarPlay connection

191, 209
Applications

210
Armrest

37
Armrest, front

38–39
Armrest, rear

39
Assistance call

59–60
Assistance, emergency braking

62, 113
Audible warning

61
Audio streaming (Bluetooth)

190, 214
B
Battery 139, 169
Battery, 12 V
144, 169–172
Battery, charging

170–171
Battery, remote control

23–25
Bicycle carrier

26
Blanking screen (snow shield)

133, 135
Blind, panoramic roof

47–48
Blind spot monitoring system, active

120
Blind spot sensors

119–120
BlueHDi

15, 174
Bluetooth (hands-free) 192–193, 214–215
Bluetooth (telephone)
192–193, 214–215
Bodywork

149
Bonnet

141
Boot

20, 25
Boot light

40
Brake discs

145–146
Brake lamps

164–166
Brakes

145–146
Braking assistance system

62
Braking, automatic emergency

112–114
Braking, dynamic emergency

86–88
Brightness

194
Bulbs (changing)

160–161, 164–166
C
Cable, audio 213
Cable, Jack
213
Capacity, fuel tank

131–132
Cap, fuel filler

131–132
Care of the bodywork

149
CD

190
CD, MP3

190
Central locking

20–22
Changing a bulb

160–161, 164–166
Changing a fuse

166–168
Changing a wheel

150, 157–158
Changing a wiper blade

55–56
Changing the remote control battery

24–25
CHECK

17

223
Alphabetical index
Checking the engine oil level 14
Checking the levels
142–143
Checking tyre pressures
(using the kit)

151, 153–156
Checks

141–142, 144–146
Checks, routine

144–146
Child lock

79
Children

65, 74–76
Children (safety)

79
Child seats

65, 68–72, 79
Child seats, conventional

71
Child seats, ISOFIX

74–76
Cleaning (advice)

148–149
Closing the boot

20, 25
Closing the doors

20–22, 25
Collision Risk Alert

112–113
Commercial

182
Connected applications

210
Connection, Bluetooth

192–193,
210–211, 214–215
Connection, MirrorLink

191–192
Connection, Wi-Fi network

2 11
Connectivity

209
Container, AdBlue®

147
Control, electric windows

28–29
Control, emergency boot release

26
Control, emergency door

23
Control, heated seats

32
Controls, steering mounted

93–96
Control stalk, lighting

50
Control stalk, wipers

54–57
Courtesy lamps

48–49Cover, load space 40–42
Cruise control
103, 105–110, 112
Cruise control, adaptive

107–108
Cruise control by speed limit recognition

103
Cruise control, dynamic with
Stop function

103, 108–110
Cup holder

37
D
DAB (Digital Audio Broadcasting) -
Digital radio
189, 213
Date (setting)

195, 218
Daytime running lamps

51, 161–162
Deactivating the passenger airbag

67, 70
Deactivation of DSC (ESC)

62
Deadlocking

20, 22
Defrosting

47
Demisting

47
Demisting, rear

33–34
Demisting, rear screen

33–34
Denon (audio system)

41–42
Dials and gauges

7
Digital instrument panel

7
Dimensions

181–182
Dipstick

14, 142
Direction indicators

53, 161–166
Display screen, instrument panel

97
Doors

25
Driver’s attention warning

11 5
Driver Sport Pack

96–97
Driving 81
Driving abroad
51
Driving aids camera (warnings)

101
Driving aids (recommendations)

100
Driving economically

6
Driving positions (storing)

32
Dynamic pack

96–97
Dynamic (sport)

96–97
Dynamic stability control (DSC)

62
E
EBFD 62
Eco-driving (advice)
6
Economy mode

139
Electric windows

28
Electronic brake force distribution (EBFD)

62
Emergency braking assistance (EBA)

62
Emergency call

59–60
Emergency switching off

85
Emergency warning lamps

41, 58
Emissions control system, SCR

16, 146
Energy economy mode

139
Engine compartment

141–142
Engine, Diesel

131, 142, 174, 179
Engine, petrol

141, 177, 179
Engines

176–177, 179
Environment

6, 24
ESC (electronic stability control)

62

226
Alphabetical index
Priming pump 174
Priming the fuel system
174
Profiles

194, 217
Protecting children

67–70, 72, 74–76, 79
Puncture

151, 153–157
R
Radar (warnings) 101
Radio
187–188, 190, 211–212
Radio, digital (Digital Audio
Broadcasting - DAB)

189, 213
Range, AdBlue®

15
RDS

188, 212
Rear screen, demisting

47
Recharging the battery

170–171
Recirculation, air

44–46
Recovery

173–174
Reduction of electrical load

140
Regeneration of the particle filter

144
Reinitialisation of the under-inflation
detection system

100
Reinitialising the remote control

24–25
Reminder, key in ignition

84
Remote control

19–23
Removing a wheel

158–160
Removing the mat

38
Replacing bulbs

160–161, 164–166
Replacing fuses

166–168
Replacing the air filter

144
Replacing the oil filter

144
Replacing the passenger compartment
filter
144
Reservoir, screenwash

143
Reset trip

18
Rev counter

7
Reversing camera

101, 122–123
Reversing lamp

164–166
Roof bars

140
Running out of fuel (Diesel)

174
S
Safety, children 67–70, 72, 74–76, 79
Saturation of the particle filter (Diesel)
144
Screen, cold climate

133
Screen menu map

191
Screenwash

55
Screenwash, rear

55
SCR (Selective Catalytic Reduction)

16, 146
Seat belts

64–65, 71
Seat belts, rear

65
Seat, rear bench

35–36
Seats, electric

31
Seats, front

30–32
Seats, heated

32
Seats, rear

35–36, 69
Selector, gear

93–96
Sensors (warnings)

101
Serial number, vehicle

183
Service indicator

14, 17
Servicing

14, 144, 145
Settings, system 194, 218
Sidelamps
51, 161–162, 164–166
Ski flap

39
Snow chains

100, 133
Socket, 12 V accessory

37, 39–40
Socket, 230 V

37
Socket, auxiliary

190, 213
Socket, Jack

37, 213
Sockets, audio

39
Speed limiter

103–105
Speed limit recognition

102
Speedometer

7, 102
Spotlamps, side

53
Stability control (ESC)

62–63
Starting a Diesel engine

131
Starting the engine

82–83
Starting the vehicle

84–85, 91, 93–96
Starting using another battery

85, 170
Station, radio

187–188, 211–212
Stay, bonnet

141
Steering mounted controls, audio

185, 199
Steering wheel, adjustment

33
Stickers, customising ~ Stickers,
expressive

149
Stopping the vehicle

84–85, 91, 93–96
Stop & Start

18, 43, 47, 97–99,
131, 141, 144, 169, 172
Storage

37–40
Storage wells

40
Storing driving positions

32
Stowing rings

40
Sunshine sensor

43
