2021 NISSAN TITAN Owner´s Manual

DIMENSIONS AND WEIGHTS
Non-XD crew cab models
ModelsUnits: in (mm)
Overall Length: Without front license plate bracket: S, SV, SL and Platinum228.0 (5791.5)
Pro-4X 228.9 (5812.7)
With license plate bracket: S, SV, SL and Platinum228.2 (5795.1)
Canada: Pro-4X 228.2 (5795.1)
USA: Pro-4X 229.5 (5828.5)
Overall width: Tow mirrors non-extended: 98.2 (2,494)
Tow mirrors extended: 103.9 (2,640)
Without overfenders: 2WD: S, SV and SL 79.5 (2,018.5)
4WD: S, SV, SL and Platinum 79.5 (2,018.5)
Canada Pro-4X 79.5 (2,018.5)
With overfenders: Pro-4X and Platinum 80.7 (2,049.6)
Overall height: 2WD: S/SV75.4 (1,915.1)
4WD: S/SV 76.0 (1,930)
2WD: SL/Platinum 75.6 (1,920.4)
4WD: Pro-4X/SL/Platinum 77.2 (1,961)
Technical and consumer information10-11

ModelsUnits: in (mm)
Front Track: USA: S and SV67.9 (1,725)
USA: SL, Pro-4X and Platinum 68.1 (1,729)
Canada: S, SV, Pro-4X and Platinum 68.1 (1,730)
Rear Track: USA: S and SV67.9 (1,725)
USA: SL, Pro-4X and Platinum 68.1 (1,729)
Canada: S, SV, Pro-4X and Platinum 68.1 (1,729)
Wheelbase: 139.8 (3,550)
Gross vehicle weight rating: Refer to the “F.M.V.S.S./C.M.V.S.S. certi-
fication label” on the center pillar be-
tween the driver's side front and rear
doors.
Gross axle weight rating:
Front:Rear:
10-12Technical and consumer information

XD crew cab models
ModelsUnits: in (mm)
Overall Length: Without front license plate bracket: S, SV, SL and Platinum242.8 (6,168.2)
Pro-4X 243.6 (6,187.2)
With front license plate bracket: S, SV, SL and Platinum243.4 (6,181.8)
Pro-4X 244.4 (6,208.5)
Overall width: Tow mirrors non-extended: 98.2 (2,494)
Tow mirrors extended: 103.9 (2,640)
Without overfenders: S, SV and SL 79.5 (2,018.5)
With overfenders: Pro-4X and Platinum 80.7 (2,049.6)
Overall height: S78.0 (1981.6)
SV 78.0 (1982.4)
Pro-4X 78.4 (1,992.3)
SL/Platinum 78.9 (2,002.8)
Front Track: S and SV68.4 (1,738)
SL, Pro-4X and Platinum 68.6 (1,743)
Technical and consumer information10-13

ModelsUnits: in (mm)
Rear Track: S and SV68.4 (1,737)
SL, Pro-4X and Platinum 68.6 (1,742)
Wheelbase: 151.6 (3,850)
Gross vehicle weight rating: Refer to the “F.M.V.S.S./C.M.V.S.S. certi-
fication label” on the center pillar be-
tween the driver's side front and rear
doors.
Gross axle weight rating:
Front:Rear:
10-14Technical and consumer information

Non-XD King Cab® models
ModelsUnits: in (mm)
Overall Length: Without front license plate bracket: S and SV228.0 (5,791.5)
Pro-4X 228.9 (5,812.7)
With front license plate bracket: S and SV228.2 (5,795.1)
Pro-4X 229.5 (5,828.5)
Overall width: Without overfenders: S and SV 79.5 (2,018.5)
With overfenders: Pro-4X 80.7 (2,049.6)
Overall height: 2WD: S75.1 (1,908)
4WD: S 75.7 (1,923)
2WD: SV 75.1 (1,908)
4WD: SV 75.7 (1,923)
Pro-4X 76.9 (1,953)
Front Track: S and SV67.9 (1,725)
Pro-4X 68.1 (1,729)
Technical and consumer information10-15

ModelsUnits: in (mm)
Rear Track: S and SV67.9 (1,725)
Pro-4X 68.1 (1,729)
Wheelbase: 139.8 (3,550)
Gross vehicle weight rating: Refer to the “F.M.V.S.S./C.M.V.S.S. certi-
fication label” on the center pillar be-
tween the driver's side front and rear
doors.
Gross axle weight rating:
Front:Rear:
10-16Technical and consumer information

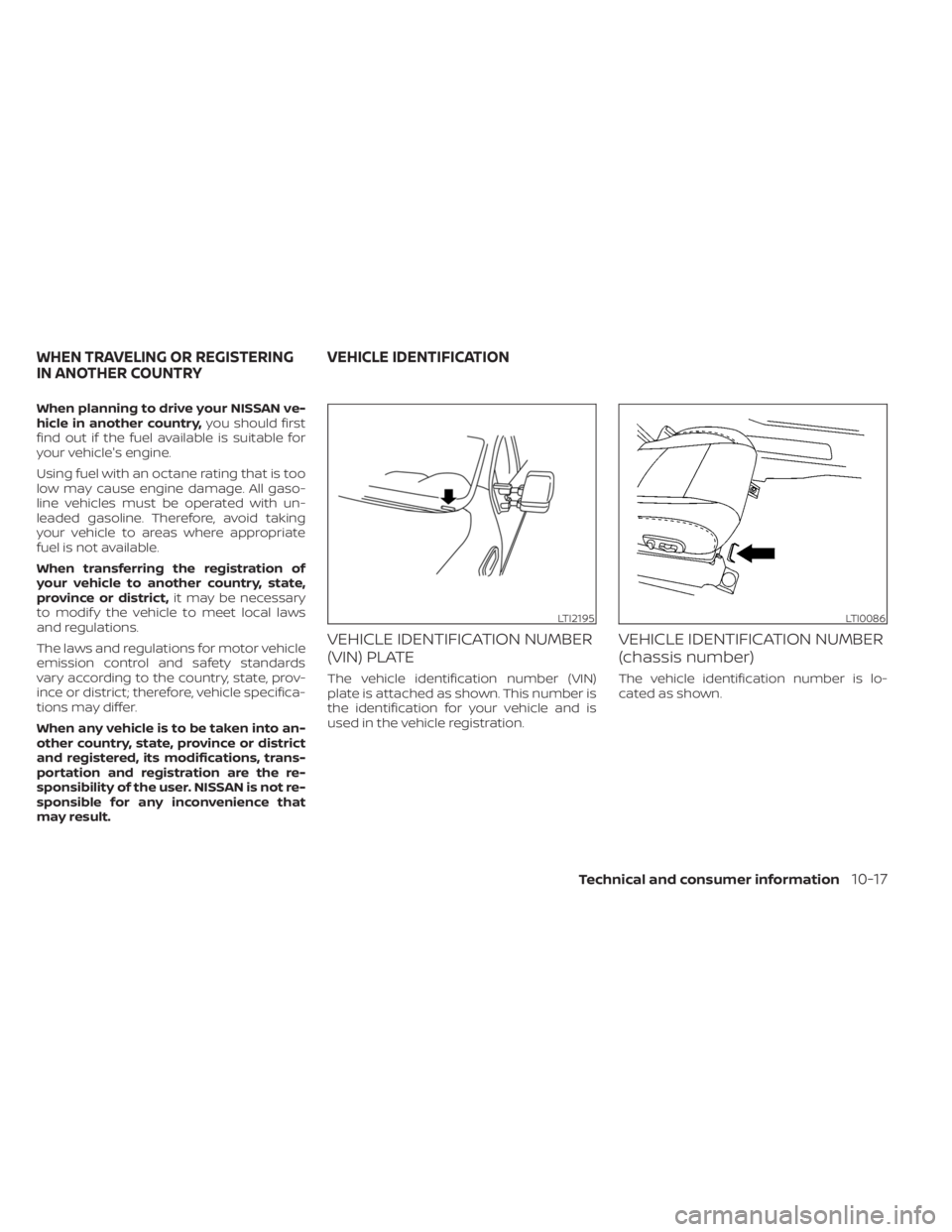

When planning to drive your NISSAN ve-
hicle in another country,you should first
find out if the fuel available is suitable for
your vehicle's engine.
Using fuel with an octane rating that is too
low may cause engine damage. All gaso-
line vehicles must be operated with un-
leaded gasoline. Therefore, avoid taking
your vehicle to areas where appropriate
fuel is not available.
When transferring the registration of
your vehicle to another country, state,
province or district, it may be necessary
to modif y the vehicle to meet local laws
and regulations.
The laws and regulations for motor vehicle
emission control and safety standards
vary according to the country, state, prov-
ince or district; therefore, vehicle specifica-
tions may differ.
When any vehicle is to be taken into an-
other country, state, province or district
and registered, its modifications, trans-
portation and registration are the re-
sponsibility of the user. NISSAN is not re-
sponsible for any inconvenience that
may result.
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The vehicle identification number (VIN)
plate is attached as shown. This number is
the identification for your vehicle and is
used in the vehicle registration.
VEHICLE IDENTIFICATION NUMBER
(chassis number)
The vehicle identification number is lo-
cated as shown.
LTI2195LTI0086
WHEN TRAVELING OR REGISTERING
IN ANOTHER COUNTRY VEHICLE IDENTIFICATION
Technical and consumer information10-17

ENGINE SERIAL NUMBER
The engine serial number is stamped on
the engine as shown.
F.M.V.S.S./C.M.V.S.S. CERTIFICATION
LABELThe Federal/Canadian Motor Vehicle
Safety Standard (F.M.V.S.S./C.M.V.S.S.) certifi-
cation label is affixed as shown. This label
contains valuable vehicle information, such
as: (GVWR), (GAWR), month and year of
manufacture, (VIN), etc. Review it carefully.
WTI0095
5.6L 8 cylinder (VK56VD engine model)
LTI0135
Type A (if so equipped)
WTI0099
Type B (if so equipped)
10-18Technical and consumer information
