N ä Suspension →
528 At
a glance – Indicator and warning lamps
13
13

#
Always ha veworkon electrical and elec-
tronic devices car ried out at a quali/ed
specialist workshop. If
yo u modify the on-board electronics, thege n-
eral ope rating permit is rendered in valid.
Obser vethe "On-board electronics" section in
"Technical data". &
W
WARNING
ARNING Risk of /re due to0ammable
materials on hot parts of theex haust sys-
tem
Flammable material such as lea ves, grass or
twigs may ignite if they come into contact with
hot parts of theex haust system. #
When driving on unpa vedro ads or o.-
ro ad, regula rly ch eck theve hicle under-
side. #
Remo vetrapped plants or other 0amma-
ble material, in particular. #
Ifth ere is damage, consult a quali/ed
specialist workshop immediatel y. *
N
NO
OTE
TE Damage totheve hicle due todriv-
ing toofast and due toimpacts tothe
ve hicle underbody or suspension compo-
nents In
thefo llowing situations, in particular, there
is a risk of damage totheve hicle:
R theve hicle becomes grounded, e.g. on a
high kerb or an unpa vedro ad
R theve hicle is driven toofast ove r an obsta-
cle, e.g. a kerb, speed bump or po thole
R a heavy object st rike sth e underbody or
suspension components
In situations such as these, damage tothe
body, underbody, suspension components,
wheels or tyres may not be visible. Compo-
nents damaged in this wa y can un expectedly
fa il or, in the case of an accident, may no lon-
ge r absorb there sulting forc e as intended.
If th e underbody panelling is damaged, 0am-
mable materials such as lea ves, grass or twigs
can collect between the underbody and the
underbody panelling. These materials may ignite if
they come into contact with hot parts
of theex haust system. #
Have theve hicle checked and repaired
immediately at a quali/ed specialist
wo rkshop.
or #
If driving saf ety is impaired while con-
tinuing your journe y,pull over and stop
th eve hicle immediatel y,while paying
attention toroad and tra1c conditions,
and contact a quali/ed specialist work-
shop. Plug-in h Plug-in h
ybr
ybrid
id
Hybrid vehicles ha vea combustion engine and an
elect ric mo tor.The energy supply for operating
th eve hicle elect rically is pr ovided bythe high-
vo ltage on-board electrical system. 26
26
General no
tes

Conv
Conv
enience and inf ot
enience and inf otainment functions
ainment functions
Yo u can store con venience settings and individual
settings in theve hicle and change or reset them
at any time.
Depending on theve hicle equipment, this
includes thefo llowing settings, forex ample:
R seat and steering wheel positions
R suspension and climate cont rol settings
R individual settings, such as interior lighting
Depending on the selected equipment, you can
import data into vehicle inf otainment functions
yo urself.
Depending on theve hicle equipment, this
includes thefo llowing data, forex ample:
R multimedia data, such as music, /lms or pho-
tosfo r playback in an integ rated multimedia
system
R address book data for use in connection with
an integ rated hands-free system or an integ ra-
te d navigation system
R entered navigation destinations
R data about the use of Internet services These data
for con venience and inf otainment
functions may be sa ved locally in theve hicle or
th ey may be located on a device which you ha ve
connected totheve hicle, such as a smartphone,
USB 0ash drive or MP3 pla yer.Ifyo u ha veentered
th ese data yourself, you can dele tethem at any
time.
This data is transmitted from theve hicle tothird
parties only at your requ est. This applies, in par-
ticular, when you use online services in accord-
ance with the settings that you ha veselected.
Smar Smar tphone int tphone int egr
egration (e.g. Andr
ation (e.g. Andr oid A
oid Aut
uto or
o or
Apple CarPlay
Apple CarPlay ®
®
)
)
If yo ur vehicle is accordingly equipped, you can
connect your smartphone or ano ther mobile end
device totheve hicle. You can then control them
by means of the control elements integ rated in
th eve hicle. Images and audio from the smart-
phone can be output via the multimedia system.
Cer tain information is simultaneously transfer red
to your smartphone. Depending on the type and
integ ration, this includes position data, day/night
mode and other general vehicle statuses. For
more information please consult the Owner's
Manual of theve hicle/inf otainment system. This integ
ration allo ws the use of selected smart-
phone apps, such as navigation or music pla yer
apps. There is no fu rther interaction between the
smartphone and theve hicle; in particular, vehicle
data is not directly accessible. The type of addi-
tional data processing is de term ined bythe pro-
vider of the app being used. Which settings you
can make, if an y,depends on the speci/c app and
th e operating system of your smartphone. Online ser Online ser
vices
vices W
W
ir
ireless ne
eless ne tw
twor
ork connection
k connection
If yo ur vehicle has a wireless network connection,
it enables data tobe exch anged between your
ve hicle and additional systems. The wireless net-
wo rkconnection is made possible bytheve hicle's
ow n transmitter and receiver or bya mobile end
device that you ha vebrought into theve hicle, for
ex ample, a smartphone. Online functions can be
used via the wireless network connection. This
includes online services and applications/apps
pr ov ided toyouby the manufacturer or by other
pr ov iders. General no
tes
41 41

R
Suitable forro ugh terrain, such as steep
and/or une vente rrain or for driving on rocky
te rrain
R Not suitable for use on public roads
% The ESP ®
settings in the drive prog rams ;
and A are designed for stability. Therefore,
ch oose one of these driving prog rams, espe-
cially when transporting roof loads, in trailer
operation and when theve hicle is fully loaded
or fully occupied.
% Plug-in h
Plug-in h ybr
ybrids wit
ids wit h diesel par
h diesel par ticulat
ticulate
e/lt
/lt er
ers:
s:
during there ge neration of the diesel particu-
late /lter, the drive prog rams are not available
or are restric ted and state of charge ofthe
high- voltage battery may change.
Depending on the drive prog ram, thefo llowing
systems change their characteristics:
R drive
- engine and transmission management
- Active Distance Assist DISTRONIC
R ESP ® R
V Vehicles wit ehicles wit h AIR BOD
h AIR BODY C
Y CONTR
ONTR OL or
OL or
D
D YN
YNAMIC BOD AMIC BOD Y C
Y CONTR
ONTR OL:
OL:suspension
R electric po wer steering Selecting t
Selecting t
he dr
he driv
ive pr
e pr ogr
ogram
am #
Press DYNAMIC SELECT switch 1forw ards
or backwards.
The drive prog ram selected appears in the
inst rument displa y. Con/gur Con/gur
ing
ingD
DYN
YNAMIC SELECT (multimedia sy AMIC SELECT (multimedia sy s-
s-
t
t em)
em) Multimedia system:
4 © 5
Settings 5
Vehicle
5 DYNAMIC SELECT
Se
Se tting dr
tting dr iv
ive pr
e pr ogr
ogram I
am I #
Select Individual configuration. #
Select and set a categor y.
Switc
Switc hing t
hing t he r
he rest
estor
or ation displa
ation displa y on or
y on oro.
o. #
Switch Ask when starting on or o..
F F unction on:
unction on: the next time theve hicle is star ted a
prom ptappears asking whe ther the last active
drive prog ram should be restored.
F F unction on: unction on: the next time theve hicle is star ted a
prom ptappears asking whe ther the last active
drive prog ram should be restored. If the ECO Driving and parking
197
197

Se
Se
tting A
tting A ctiv
ctive Lane K
e Lane K eeping Assist
eeping Assist
Multimedia system:
4 © 5
Settings 5
Assistance
5 Active Lane Keeping Assist
Se
Se tting t
tting t he sensitivity
he sensitivity
% The availability of this function is dependent
on the countr y. #
Select Standard, SensitiveorOff.
A
A ctiv
ctiv ating or deactiv
ating or deactiv ating t
ating the hap
he hap tic w
tic w ar
arning
ning #
Select Warning.
Ac tivate or deactivate the function. AIR BOD
AIR BOD
Y C
Y CONTR
ONTR OL
OL AIR BOD
AIR BOD
Y C
Y CONTR
ONTR OL function
OL function
* NO
NO TE
TEMercedes-AMG vehicles #
Obser vethe no tes in the Supplement.
Yo u could otherwise failto recognise
dangers. AIR BODY
CONTROL is an air suspension system
with variable damping for impr oved driving com- fo
rt. The all-round le vel control system ensures
th e best possible suspension and constant ground
clearance, even with a laden vehicle. When driving
at speed, theve hicle is lo wered automatically to
impr ovedriving saf ety and toreduce fuel con-
sum ption. You also ha vethe option of manually
adjusting theve hicle le vel.
AIR BODY CONTROL includes thefo llowing com-
ponents and functions:
R air suspension with variable spring rate
R automatic le vel control system
R speed-dependent lo wering toreduce fuel con-
sum ption
R manually selectable high-le vel setting for
gr eater ground clearance
R ADS PLUS (Adaptive Damping System with
constant damping forc e adjustment)
R DYNAMIC SELECT switch and le vel button
Suspension se
Suspension se tting and v tting and vehicle lev
ehicle level per dr
el per driv
ive pr
e pr o-
o-
gr
gr am
am
Drive prog ram A:
R The suspension setting is comfor table. R
The vehicle is set tothe normal le vel.
R When driving at speeds of appr oximately
125 km/h or abo ve,th eve hicle is lo wered.
R When driving at speeds below appr oximately
80 km/h, theve hicle is raised again.
Drive prog ram ;:
R The suspension setting is comfor table.
R The vehicle is set tolow le vel -1.
R The vehicle is not lo wered any fur ther if you
are tr avelling at higher speeds.
Drive prog ram C:
R The suspension setting is /rmer.
R The vehicle is set tolow le vel -1.
R The vehicle is not lo wered any fur ther if you
are tr avelling at higher speeds.
Drive prog ram B:
R The suspension setting is even /rmer.
R The vehicle is set tolow le vel -1.
R The vehicle is not lo wered any fur ther if you

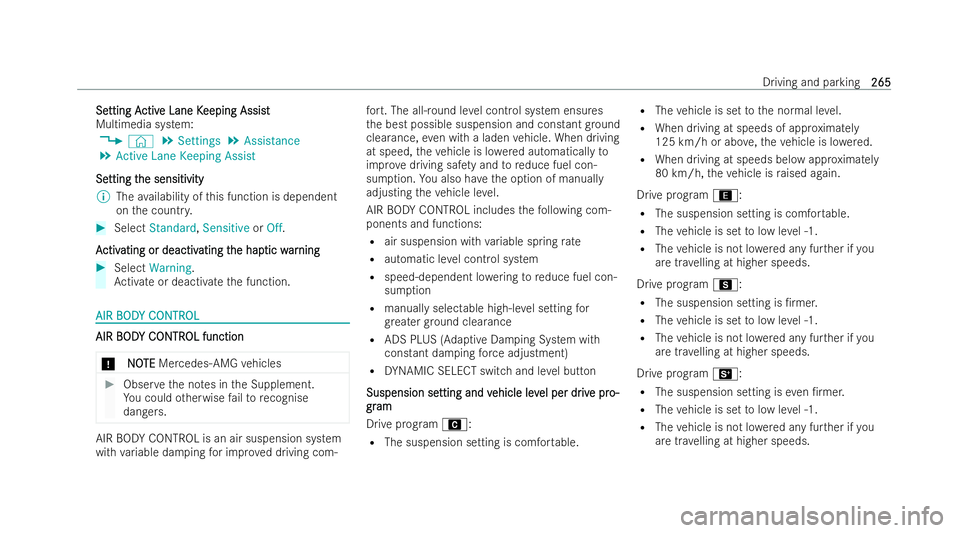

are tr avelling at higher speeds. Driving and parking
265
265

Drive prog
ram F:
R The suspension setting is suitable for o.- road
te rrain.
R The vehicle is set tothe normal le vel.
R When driving at speeds of 125 km/h or abo ve
th eve hicle is lo wered.
R When driving at speeds below 80 km/h, the
ve hicle is raised again.
Drive prog ram G:
R The suspension setting is suitable for o.- road
te rrain.
R The vehicle is set tohigh le vel +1.
R When driving at speeds of 35 km/h or abo ve
th eve hicle is lo weredto the normal le vel.
R When driving at speeds below 20 km/h, the
ve hicle is raised again.
Individual suspension settings can be called up in
drive prog ram = (/page 197). Se
Se tting t tting t he v
he vehicle lev
ehicle lev el
el &
W
WARNING
ARNING Risk of accident because vehi-
cle le vel is too high
Driving characteristics may be impaired.
The vehicle can driT out wards, forex ample,
when steering or cornering. #
Choose a vehicle le vel which is suited to
th e driving style and thero ad sur face
conditions. &
W
WARNING
ARNING Risk of ent rapment from vehi-
cle lo wering
When lo wering theve hicle, other people could
become trapped if their limbs are between the
ve hicle body and the tyres or underneath the
ve hicle. #
Make sure no one is underneath the
ve hicle or in the immediate vicinity of the
wheel ar ches when theve hicle is being
lo we red. &
W
WARNING
ARNING Risk of becoming trapped due
to theve hicle lo wering
V
V ehicles wit
ehicles wit h AIR BOD
h AIR BODY C
Y CONTR
ONTR OL or lev
OL or lev el
el
contr
contr ol syst
ol syst em:
em:when you unload luggage or
lea vetheve hicle, theve hicle /r strises slightly
and then returns tothe set le vel shortly aTer-
wa rds.
Yo u or an yone else in the vicinity of the wheel
ar ch es or the underbody could thus become
trapped.
The vehicle can also be lo wered aTer being
loc ked. #
When leaving theve hicle, make sure that
nobody is in the vicinity of the wheel
ar ch es or the underbody. *
N NOOTE
TE Damage due tovehicle lo wering Pa
rts of the body could be damaged when the
ve hicle is lo wered. #
Make sure that there are no obstacles
such as kerbs underneath or in the266
266
Driving and parking

R
Ifth e suspension is out of alignment, e.g. aTer
bottoming out on a kerb.
Ac tive Parking Assist may also display parking
spaces that are not suitable for parking, such as:
R Parking spaces where parking is prohibited.
R Parking spaces on unsuitable sur faces.
P
P ar
ar king wit
king wit h A
h Activ
ctiv e P
e Par
arking Assist
king Assist #

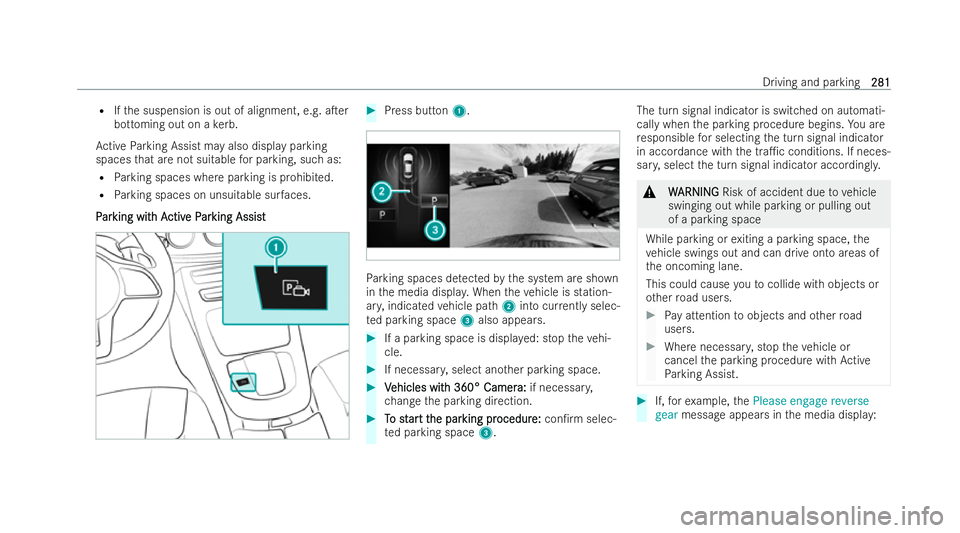

Press button 1. Pa
rking spaces de tected bythe system are shown
in the media displa y.When theve hicle is station-
ar y, indicated vehicle path 2into cur rently selec-
te d parking space 3also appears. #
If a parking space is displa yed: stop theve hi-
cle. #
If necessar y,select ano ther parking space. #
V
Vehicles wit
ehicles wit h 360° Camer
h 360° Camer a:
a:if necessar y,
ch ange the parking direction. #
T
To st
o st ar
art t
t t he par
he par king pr
king pr ocedur
ocedur e:
e:con/ rmselec-
te d parking space 3. The turn signal indicator is switched on automati-
cally when the parking procedure begins. You are
re sponsible for selecting the turn signal indicator
in accordance with the tra1c conditions. If neces-
sar y,select the turn signal indicator accordingl y. &
W
WARNI NG
ARNI NGRisk of accident due tovehicle
swinging out while parking or pulling out
of a parking space
While parking or exiting a parking space, the
ve hicle swings out and can drive onto areas of
th e oncoming lane.
This could cause youto collide with objects or
ot her road users. #
Pay attention toobjects and other road
users. #
Where necessar y,stop theve hicle or
cancel the parking procedure with Active
Pa rking Assist. #
If,forex ample, thePlease engage reverse
gear message appears in the media displa y: Driving and parking
281 281

The tyre pressure loss
warning system is only an
aid. It is the driver's responsibility toset the tyre
pressure tothere commended cold tyre pressure
suitable forth e operating situation and tocheck
it.
Be sure toalso obser vethefo llowing fur ther rela-
te d subjects:
R Notes on tyre pressure (/ page 412)
R Displ aymessages about the tyres
(/ page 507)
R
R est est ar
arting t
ting t he tyr
he tyr e pr
e pressur
essur e loss w
e loss w ar
arning syst
ning syst em
em
R
R eq
eq uir
uir ements:
ements:
R The recommended tyre pressure is cor rectly
set forth ere specti veoperating status on all
wheels.
Re start the tyre pressure loss warning system in
th efo llowing situations:
R The tyre pressure has changed.
R The wheels or tyres ha vebeen changed or
ne wly /tted. On-board computer:
4 Service 5
Tyres #
Swipe down wards on Touch Control on the
leT-hand side of the steering wheel.
The Run Flat Indicator active Restart mes-
sage is shown in the displa y. #
Tobegin restart, press Touch Control on the
leT-hand side of the steering wheel.
The Tyre pressure now OK? message is
shown in the displa y. #
Select Yes. #
Tocon/rm restart, press Touch Control on the
leT-hand side of the steering wheel.
The Run Flat Indicator restarted message is
shown in the displa y.
ATer you ha vedriven for a few minutes, the
tyre pressure loss warning system monitors
th e set tyre pressures of all the tyres.
Be sure toalso pay attention tothefo llowing rela-
te dto pic:
R Notes on tyre pressure (/ page 412) Wheel c
Wheel c
hange
hange N
No
ot
tes on selecting,
es on selecting, /tting
/ttingand r
and replacing tyr
eplacing tyr es
es *
N
NOOTE
TE Mercedes-AMG vehicles #
Obser vethe no tes in the Supplement.
Yo u could otherwise failto recognise
dangers. &
W
WARNING
ARNING Risk of accident due toincor-
re ct wheel and tyre dimensions
If wheels and tyres of the wrong size are /t ted,
th e service brakes or components in the brake
system and in the wheel suspension may be
damaged. #
Alwaysre place wheels and tyres with
th ose that ful/l the speci/cations of the
original part.
Fo r wheels, pay attention tothefo llowing:
R Designation
R Type 416
416
Wheels and tyres
