When
Active Parking Assist is activated, the turn
signal indicators are activated based on the calcu-
lated path of your vehicle.
The parking procedu reis assisted byaccelerating,
braking, steering and gear changes.
Ac tive Parking Assist is only an aid. It is not a sub-
stitute foryo ur attention tothe sur roundings. The
re sponsibility for safe manoeuvring and parking
re mains with you. Make sure that no persons, ani-
mals or objects etc. are in the manoeuvring
ra nge.
Ac tive Parking Assist will be cancelled in thefo l-
lowing situations:
R Parking Assist PARKTRONIC is deactivated.
R You begin steering.
R You engage transmission position j.
R ESP ®
inter venes.
R You open the driver's door.
R ATer activating Active Parking Assist, you
press thec button again (/ page 281).Syst Syst
em limits em limits
If th eex terior lighting is malfunctioning, Active
Pa rking Assist is not available.
Objects located abo veor below the de tection
ra nge of the sensors, e.g. overhanging loads,
ove rhangs or loading ramp s of goods vehicles, or
th e borders of parking spaces, are not de tected
during measurement of the parking space. These
are also then not take n into account when calcu-
lating the parking procedure. In some circumstan-
ces, Active Parking Assist may therefore guide
yo u into the parking space incor rectl y. &
W
WARNI NG
ARNI NGRisk of accident due toobjects
located abo veor below the de tection
ra nge of Active Parking Assist
If th ere are objects abo veor below the de tec-
tion range, thefo llowing situations may arise:
R Active Parking Assist may steer too ear ly.
R The vehicle may not stop in front of these
objects.
There is a danger of collision! #
Inthese situations, do not use Active
Pa rking Assist. Extreme
weather conditions, such as snow or
heavy rain, may lead toa parking space being
measured inaccuratel y.Pa rking spaces that are
partial lyoccupied bytrailer dr awbars might not be
identi/ed as such or be measured incor rectl y.
Only use Active Parking Assist on le vel, high-g rip
gr ound.
Do not use Active Parking Assist in thefo llowing
situations:
R Inextreme weather conditions such as ice,
pac ked snow or in heavy rain.
R When transporting a load that pr otru des
be yond theve hicle.
R On steep uphill or downhill gradients of more
th an appr oximately 15%.
R When snow chains are /tted.
R When a trailer or bicycle rack is attached.
R Directly aTer a tyre change or when spare
tyres are /tted.
R Ifth e tyre pressure is too low or too high. 280
280
Driving and parking

#
Be prepa redto brake or swer veas nec-
essar y,prov ided the tra1c situation per-
mits and that it is safe totake evasive
action. Drive
Away Assist is only an aid. It is not a substi-
tute foryo ur attention tothe sur roundings. The
re sponsibility for safe manoeuvring and parking
re mains with you. Make sure that no persons, ani-
mals or objects etc. are in the manoeuvring
ra nge.
A risk of collision may occur in thefo llowing situa-
tions, forex ample:
R Ifth e accelerator and brake pedals are inter-
ch anged.
R If an inco rrect transmission position is
engaged.
Drive Away Assist is active under thefo llowing
conditions:
R IfPa rking Assist PARKTRONIC is activated.
R Ifyo u shiT the transmission position tok or
h when theve hicle is stationar y. R
Ifth e de tected obs tacle is less than appr ox.
1.0 m away.
R Ifth e manoeuvring assistance function is acti-
va ted in the multimedia system.
Syst
Syst em limits
em limits
The per form ance of Drive AwayAssist is limited
on inclines.
When driving with a trailer, Drive AwayAssist is
not available.
% Also obser vethe system limits of Parking
Assist PARKTRONIC (/ page 275).
F
F unction of Cr unction of Cr oss
ossTr
Tra1c
a1c Alert
Alert
% Cross Tra1c Ale rtis only available forve hicles
with Blind Spot Assist or Active Blind Spot
Assist.
Cross Tra1c Ale rtcan warndrivers of any cross-
ing tra1c when reve rsing and manoeuvring out of
a parking space. The radar sensors in the bumper
also monitor the area adjacent totheve hicle. If a
critical situation is de tected, theL symbol
appears in the media display and theve hicle can
be braked automaticall y. If
th era dar sensors are obstructed byvehicles or
ot her objects, de tection is not possible.
Depending on the countr y,Cross Tra1c Ale rtcan
be deactivated or activated in theManoeuvring
assistance menu (/page 285).
% Also obser vethe inst ructions on Blind Spot
Assist and Active Blind Spot Assist
(/ page 259).
Syst
Syst em limits
em limits
Cross Tra1c Ale rtis not available on inclines.
Cross Tra1c Ale rtis not available when driving
with a trailer.
Manoeuvr Manoeuvr ing br
ing brak
ake function
e function

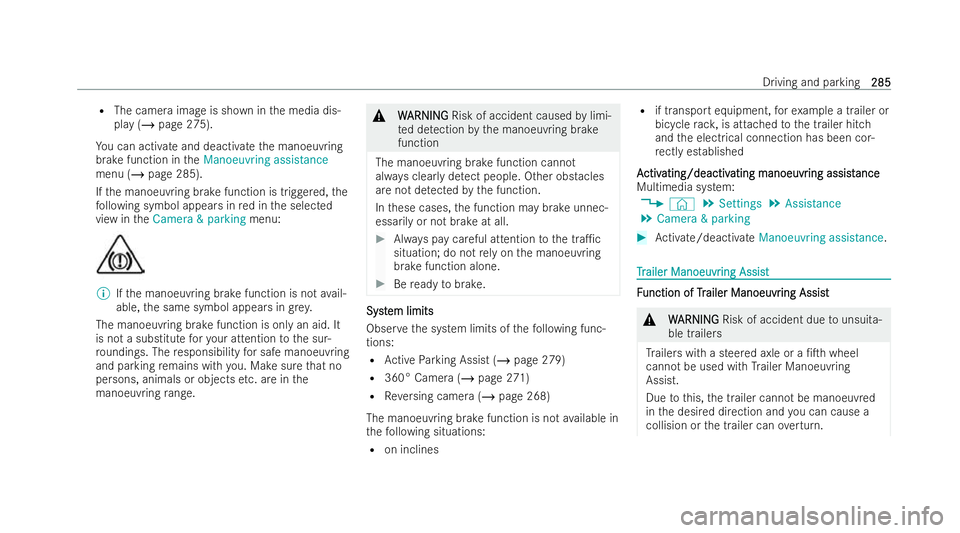

The manoeuvring brake function can pr event colli-
sions with pedestrians when theve hicle is reve rs-
ing at slow speeds. If there ve rsing camera
de tects a person in theve hicle path, theve hicle
can be braked toa standstill.
The manoeuvring brake function can inter vene
under thefo llowing conditions:
R The vehicle is reve rsing at a speed slo werth an
10 km/h. 284
284
Driving and parking

R
The camera ima geis shown in the media dis-
play (/ page 275).
Yo u can activate and deactivate the manoeuvring
brake function in theManoeuvring assistance
menu (/ page 285).
If th e manoeuvring brake function is triggered, the
fo llowing symbol appears in red in the selected
view in theCamera & parking menu:%
Ifth e manoeuvring brake function is not avail-
able, the same symbol appears in grey.
The manoeuvring brake function is only an aid. It
is not a substitute foryo ur attention tothe sur-
ro undings. The responsibility for safe manoeuvring
and parking remains with you. Make sure that no
persons, animals or objects etc. are in the
manoeuv ring range. &
W WARNI NG
ARNI NGRisk of accident caused bylimi-
te d de tection bythe manoeuvring brake
function
The manoeuvring brake function cannot
alw ays clear lyde tect people. Other obs tacles
are not de tected bythe function.
In these cases, the function may brake unnec-
essarily or not brake at all. #
Always pay careful attention tothe tra1c
situation; do not relyonthe manoeuvring
brake function alone. #
Beready tobrake. Syst Syst
em limits
em limits
Obser vethe system limits of thefo llowing func-
tions:
R Active Parking Assist (/ page 279)
R 360° Camera (/ page 271)
R Reversing camera (/ page 268)
The manoeuvring brake function is not available in
th efo llowing situations:
R on inclines R
if transport equipment, forex ample a trailer or
bicycle rack , is attached tothe trailer hitch
and the electrical connection has been cor-
re ctly es tablished
A
A ctiv
ctiv ating/deactiv
ating/deactiv ating manoeuvr
ating manoeuvr ing assist
ing assistance
ance
Multimedia system:
4 © 5
Settings 5
Assistance
5 Camera & parking #
Activate/deactivate Manoeuvring assistance. T
T
r
railer Manoeuvr
ailer Manoeuvr ing Assist
ing Assist F
F
unction of Tr
unction of Trailer Manoeuvr
ailer Manoeuvr ing Assist
ing Assist &
W
WARNING
ARNING Risk of accident due tounsuita-
ble trailers
Tr ailers with a steered axle or a /Th wheel
cann otbe used with Trailer Manoeuv ring
Assist.
Due tothis, the trailer cannot be manoeuvred
in the desired direction and you can cause a
collision or the trailer can overturn. Driving and parking
285 285

#
Only use Trailer Manoeuv ring Assist with
trailers with /xed dr awbars and axles. *
N
NOOTE
TE Damage due toove rhanging loads
in front or dr awbar ins tallations The
vehicle and the trailer may be damaged
during manoeuvring due toove rhanging loads
at the front of the trailer or dr awbar ins talla-
tions. #
Pay attention toove rhanging loads or
dr aw bar ins tallations while manoeuvring. Tr
ailer Manoeuv ring Assist assists you when
re ve rsing with a trailer. Using there ve rsing cam-
era, it monitors the articulation angle between the
ve hicle and trailer and adjusts it toa speci/ed
va lue. Trailer Manoeuv ring Assist also limits your
speed.
Tr ailer Manoeuv ring Assist is only an aid. It is not
a substitute foryo ur attention tothe sur round-
ings. The responsibility for safe manoeuvring and
parking remains with you. Make sure that there
are no persons, animals or objects in the manoeu- vring area while manoeuvring and parking in/exit-
ing parking spaces.
Yo u can either enter the articulation angle value
directly via the multimedia system or use a
straightening manoeuvre. When car rying out a
straightening manoeuvre, the system calculates
th e articulation angle automatically and straight-
ens theve hicle/trailer combination tothe trailer's
cur rent direction.
Obser vethe no tes on towing a trailer
(/ page 287).
Syst
Syst em limits em limits
Obser vethe system limits of thefo llowing func-
tions:
R Active Parking Assist (/ page 279)
R 360° Camera (/ page 271)
R Reversing camera (/ page 268)
The system may be impaired or may not function
in thefo llowing situations:
R The gradient is greater than appr oximately
15%. Using
Tr
Using Trailer Manoeuvr ailer Manoeuvr ing Assist
ing Assist
R
R eq
eq uir
uir ements:
ements:
R The vehicle has been star ted and is stationar y.
R A trailer has been de tected.
R The gradient is less than appr oximately 15%.
R The tailgate is closed.
R The electric parking brake is not applied.
R The driver's seat belt is fastened. 286
286
Driving and pa
rking

Using
Tr
Using Trailer Manoeuvr
ailer Manoeuvr ing Assist
ing Assist #
Engage reve rsege ar k. #
Press but ton1.
The camera ima geis shown in the media dis-
pla y. #
Toadjust the articulation angle: select ¸.
Swipe leT or right on the media display or
to uchpad tochange the articulation angle. or #
Toactivate the straightening manoeuvre:
select º.
The system calculates the articulation angle in
such a wayth at the direction of the trailer at
th e time of activation is maintained. There is a
short countersteering mo vement of the trailer
while theve hicle is reve rsed, which then
guides it back tothe desired line. In this wa y,
th eve hicle is aligned st raight with the trailer
and, at the same time, the direction of the
trailer is maintained. #
Accelerate and brake as requ ired.
% The maximum articulation angle depends on
the length of the trailer. This is calculated by
th e system bydriving theve hicle forw ards,
including cornering. Before the length of the
trailer has been calcula ted, the maximum
articulation angle is appr oximately 23°. The
longer the trailer is, the higher the maximum
articulation angle (max. appr oximately 60°).
% Pay attention toyour sur roundings and be
re ady tobrake at all times. T T
r
railer hitch
ailer hitch N
No
ot
tes on tr
es on tr ailer oper
ailer oper ation
ation *
N
NOOTE
TE Mercedes-AMG vehicles #
Obser vethe no tes in the Supplement.
Yo u could otherwise failto recognise
dangers. Obser
vethefo llowing no tes on theto ngue weight:
R Do not use a tongue weight that exceeds or
fa lls below the permissible tongue weight
R Use a tongue weight as close as possible to
th e maximum tongue weight
Do not exceed thefo llowing values:
R Perm issible towing capacity
R Perm issible rear axle load of theto wing vehi-
cle
R Perm issible gross weight of theto wing vehicle
R Perm issible gross weight of the trailer
R Maximum permissible speed of the trailer Driving and parking
287
287

Ensure
thefo llowing before starting a journe y:
R The tyre pressure on there ar axle of theto w-
ing vehicle is set for a maximum load
R The lighting of the connected trailer is opera-
tional
R V
V ehicles wit
ehicles wit hout LED headlam
hout LED headlam ps or MUL
ps or MULTI-
TI-
BEAM LED headlam
BEAM LED headlam ps:
ps:the headlamps ha ve
been set cor rectly
In theev ent of increased rear axle load, the car/
trailer combination must not exceed a maximum
speed of 100 km/h forre asons conce rning the
operating permit. This also applies in countries in
which the permissible maximum speed for car/
trailer combinations is abo ve100 km/h.
% When you are reve rsing with a trailer, remem-
ber touse theTrailer Manoeuvering Assist
function (/ page 285). Ext
Ext
ending and re
ending and retr
tracting t
acting t he ball nec
he ball nec k full
k fully electr
y electr i-
i-
cal ly
cally &
W
WARNING
ARNING Risk of accident due tothe ball
neck not being engaged
If th e ball neck is not engaged, the trailer may
come loose. #
Make sure that the ball neck securely
engages and loc ksinto place. *
N
NOOTE
TE Damage tothe all-electric trailer
hitch due toadditional pressure The all-elect
ric trailer hitch could be mechani-
cally damaged byapplying additional pressure
when the ball neck is being extended or
re tracted. #
Do not make the ball neck extend/
re tract faster byapplying additional pres-
sure. *
N
NOOTE
TE Increased risk of damage toprop-
erty due tofolded-out ball neck #
When the trailer is not coupled or the
bicycle rack is attached, fold in the ball
neck or, in the case of a fully electric
trailer hitch, retract the ball nec k. *
N
NO
OTE
TE Damage totheve hicle due toincor-
re ct use of the trailer hitch When a trailer hitch is used
toreco ver a vehi-
cle, theve hicle may be damaged in the proc-
ess. #
Use the trailer hitch only for pulling a
trailer or attaching appr oved car rier sys-
te ms (e.g. a bicycle rack ). R
R
eq
eq uir
uir ements:
ements:
R The vehicle is secured against rolling away.
R The swivel range is clear.
R The trailer cables or ada pter plugs ha vebeen
re mo ved. 288
288
Driving and parking

Ext
Ext
ending t
ending t he ball nec
he ball nec k full
k fully electr
y electr ically
ically #
Pull button 2.
Indicator lamp 1will 0ash and the message
Trailer coupling extending… will appear onthe
inst rument displa y.
The ball neck will extend fully electricall y. #
Wait until the ball neck has loc ked in place.
When indicator lamp 1is continuously lit, the
ball neck is securely loc ked in place.
If th e ball neck is not securely loc ked in place,
indicator lamp 1will 0ash and the message
Check trailer hitch lock will appear onthe
inst rument displa y. R
R
e
etr
tr acting t
acting t he ball nec
he ball nec k full
k fully electr
y electr ically
ically #
Pull button 2.
Indicator lamp 1will 0ash and the message
Trailer coupling extending… will appear onthe
inst rument displa y.
The ball neck will retract fully electricall y. #
Wait until the ball neck has loc ked in place.
When indicator lamp 1goes out, the ball
neck is securely loc ked in place.
If th e ball neck is not securely loc ked in place,
indicator lamp 1will 0ash and the message
Check trailer hitch lock will appear onthe
inst rument displa y.
Obser vethe information about the displa yson the
inst rument cluster:
R Indicator and warning lamps (/ page 517)
R Display message s (/page 449) Driving and parking
289
289

Ext
Ext
ending and re
ending and retr
tracting t
acting t he ball nec
he ball nec k full
k fully electr
y electr i-
i-
call
call y (multimedia syst
y (multimedia syst em)
em)&
W
WARNING
ARNING Risk of accident due tothe ball
neck not being engaged
If th e ball neck is not engaged, the trailer may
come loose. #
Always engage the ball neck as descri-
bed. *
N
NOOTE
TE Damage tothe all-electric trailer
hitch due toadditional pressure The all-elect
ric trailer hitch could be mechani-
cally damaged byapplying additional pressure
when the ball neck is being extended or
re tracted. #
Do not make the ball neck extend/
re tract faster byapplying additional pres-
sure. R
R
eq
eq uir
uir ements:
ements:
R The vehicle is secured against rolling away.
R The swivel range is clear. R
The trailer cables or ada pter plugs ha vebeen
re mo ved.
Multimedia system: 4 © 5
Settings 5
Quick access
Ext
Ext ending t
ending t he ball nec
he ball nec k full
k fully electr
y electr ically
ically #
Select Ü.
The Trailer coupling extending… display mes-
sage will appear on the multifunction displa y.
The ball neck will extend fully electricall y. #
Wait until the ball neck has loc ked in place.
If th e ball neck is not securely loc ked in place, the
Check trailer hitch lock message will appear on
th e multifunction displa y.
R
R e
etr
tr acting t
acting t he ball nec
he ball nec k full
k fully electr
y electr ically
ically #
Select Ü.
The Trailer coupling extending… display mes-
sage will appear on the multifunction displa y.
The ball neck will retract fully electricall y. #
Wait until the ball neck has loc ked in place. If
th e ball neck is not securely loc ked in place, the
Check trailer hitch lock message will appear on
th e multifunction displa y. Coupling up/uncoupling a tr
Coupling up/uncoupling a tr
ailer
ailer &
W
WARNING
ARNING Risk of injury from theve hicle
le ve l being changed
V
V ehicles wit
ehicles wit h lev
h level contr
el contr ol syst
ol system:
em:theve hicle
le ve l may be changed unintentionall y,e.g. by
ot her persons. You may become trapped if you
couple up or uncouple a trailer while theve hi-
cle le vel is changing. In addition, other people
could become trapped if their limbs are
between theve hicle body and the tyres or
underneath theve hicle.
When coupling up or uncoupling a trailer,
make sure that: #
The doors or tailgate are not opened or
closed. #
You do not initiate the le vel control sys-
te m and do not operate theDY NAMIC
SELECT switch. 290 290
Driving and pa
rking
