2021 MERCEDES-BENZ B-CLASS HATCHBACK Owners Manual

R
Only /t wheels of the same size on one axle
(leT and right).
It is only permissible to/t a di.e rent wheel
size in theev ent of a 0at tyre in order todrive
to the specialist workshop.
R Do not make any modi/cations tothe brake
system, the wheels or the tyres.
The use of shims or brake dust shields is not
permitted and may in validate theve hicle's
ge neral ope rating permit.
R V
Vehicles wit
ehicles wit h a tyr
h a tyre pr
e pressur
essur e monit
e monit or
oring sy
ing sy s-
s-
t
t em:
em: all /t tedwheels must be equipped with
functioning sensors forth e tyre pressure mon-
itoring system.
R Attemp eratures below 7 °C use winter tyres
or all-season tyres mar ked004D M+Sfor all
wheels.
Wi nter tyres pr ovide the best possible grip in
wintry road conditions.
R For M+S tyres, only use tyres with the same
tread.
R Obser vethe maximum permissible speed for
th e M+S tyres /t ted. If
th e tyre's maximum speed is below that of
th eve hicle, this must be indicated byan
appropriate label in the driver's /eld of vision.
R Run in new tyres at moderate speeds forthe
/r st 100 km.
R Replace the tyres aTer six years at the latest,
re ga rdless of wear.
R When r
When r eplacing wit eplacing wit h tyr
h tyres t
es that do no
hat do no t f
t featur
eatur e
e
r
r un-0at
un-0at c
char
har act
act er
er is
istics:
tics: vehicles with
MOExtended tyres are not equipped with a
TIREFIT kit at thefa ctor y.Equip theve hicle
with a TIREFIT kit aTer replacing with tyres
th at do not feature run-0at characteristics,
e.g. winter tyres.
% You can permanently limit the maximum
speed for driving with winter tyres
(/ page 235).
Fo r more information on wheels and tyres, con-
ta ct a quali/ed specialist workshop.
Be sure toalso obser vethefo llowing fur ther rela-
te d subjects:
R Notes on tyre pressure (/ page 375)
R Tyre pressure table (/ page 376) R
Notes on the emer gency spa rewheel
(/ page 389) N
No
ot
tes on int
es on int erc
erchanging wheels
hanging wheels &
W
WARNING
ARNING Risk of injury thro ugh di.erent
wheel sizes
Inter changing the front and rear wheels can
se verely impair the driving characteristics.
The disk brakes or wheel suspension compo-
nents may also be damaged. #
Only inter change the front and rear
wheels if the wheels and tyres ha vethe
same dimensions. Inter
changing the front and rear wheels if the
wheels or tyres ha vedi.erent dimensions can
re nder thege neral ope rating permit in valid.
The wear patterns on the front and rear wheels
di.er:
R front wheels wear more on the tyre shoulder
R rear wheels wear more in the centre of the
tyre 382
382
Wheels and tyres

Do not drive with tyres
that ha vetoo little tread
dep th. This signi/cantly reduces traction on wet
ro ads (aquaplaning).
On vehicles with the same front and rear wheel
size, you can inter change the wheels every
5,000 to10,000 km, depending on thewe ar.
Ensu rethe direction of rotation is maintained for
th e wheels.
Obser vethe inst ructions and saf ety no tes on
"Changing a wheel" when doing so (/ page 383).N
No
ot
tes on st
es on st or
oring wheels
ing wheels When storing wheels, obser
vethefo llowing no tes:
R ATer removing wheels, store them in a cool,
dry and preferably dark place.
R Protect the tyres from contact with oil, grease
or fuel. Ov Ov
er
ervie
vie w of t
w of t he tyr
he tyr e-c
e-chang
hang e t
e tool kit
ool kit Apart from some count
ry-speci/c variants, vehi-
cles are not equipped with a tyre-change tool kit.
Fo r more information on which tyre-changing to
ols are requ ired and appro vedfo r per form ing a
wheel change on your vehicle, consult a quali/ed
specialist workshop.
Yo ure qu ire thefo llowing tools, forex ample, to
ch ange a wheel:
R Jack
R Chock
R Wheel wrench
R Centring pin
% The jack weighs appr oximately 3.4 kg.
The maximum load capacity of the jack can
be found on the stic ker a1xed tothe jac k.
The jack is maintenance-free. If there is a
malfunction, please contact a quali/ed spe-
cialist workshop.
The tyre-change tool kit is located in tool bag 1
in the load compartment.
% Depending on theve hicle equipment, theto ol
bag may be located in other positions in the
load compartment. The
tool bag contains:
R Jack
R Gloves
R Wheel wrench
R Centring pin
R Folding chock
R Ratchet for jack Pr Pr
epar
epar ing t
ing the v
he vehicle f
ehicle f or a wheel c
or a wheel c hange
hange R
R
eq
eq uir
uir ements:
ements:
R The vehicle is not on a slope. Wheels and tyres
383
383

R
The vehicle is on solid, non-slippery and le vel
gr ound.
R The requ ired tyre-change tool kit is available.
% Ifyo ur vehicle is not equipped with the tyre-
ch ange tool kit, consult a quali/ed specialist
wo rkshop to/nd out about sui table tools. #
Apply the electric parking brake manuall y.#
Movethe front wheels tothe straight-ahead
position. #
V
Vehicles wit
ehicles wit h manual tr
h manual tr ansmission:
ansmission: engage
/rst or reve rsege ar. #
V
Vehicles wit
ehicles wit h aut
h automatic tr
omatic tr ansmission:
ansmission: shiTto
position 005D. #
Switch o. theve hicle. #
Make sure that theve hicle cann otbe star ted. #
Place choc ks orother suitable items under the
front and rear of the wheel that is diagonal ly
opposite the wheel you wish tochange. #
If necessar y,remo vethe wheel trim/hub caps
(/ page 384). #
Raise theve hicle (/ page 384). R
R
emo
emo ving and
ving and /tting
/ttingt
the wheel tr
he wheel tr im/hub caps
im/hub caps R
R
eq
eq uir
uir ements:
ements:
R The vehicle is prepared for a wheel change
(/ page 383).
Wheel tr
Wheel tr im
im
The wheel trim co vers the wheel bolts on vehicles
with steel wheels. Before unscr ewing the wheel
bolts, remo vethe wheel trim. #
T
T o r
o r emov
emov e:
e: using bo thhands, carefully reach
into two wheel trim openings and remo vethe
wheel trim. Plas Plas
tic hub cap tic hub cap #
T
To r
o r emov
emov e:
e:turn the centre co ver of the hub
cap anti-clockwise and remo vethe hub cap. #
T
To
o /t:
/t: make sure that the centre co ver of the
hub cap is turned anti-clockwise. #
Position the hub cap and turn the centre co ver
clockwise until the hub cap engages ph ysically
and audibl y. R
R
aising t
aising t he v
he vehicle when c
ehicle when c hanging a wheel
hanging a wheel R R
eq eq uir
uir ements:
ements:
R There are no persons in theve hicle.
R The vehicle has been prepared for a wheel
ch ange (/ page 383).
R The wheel trims and hub caps ha vebeen
re mo ved (/ page 384).
Impor tant no tes on using the jack:
R Use only a vehicle-speci/c jack that has been
appr ovedby Mercedes-Benz toraise theve hi-
cle.
R The jack is only designed forra ising and hold-
ing theve hicle for a short time while a wheel 384
384
Wheels and tyres

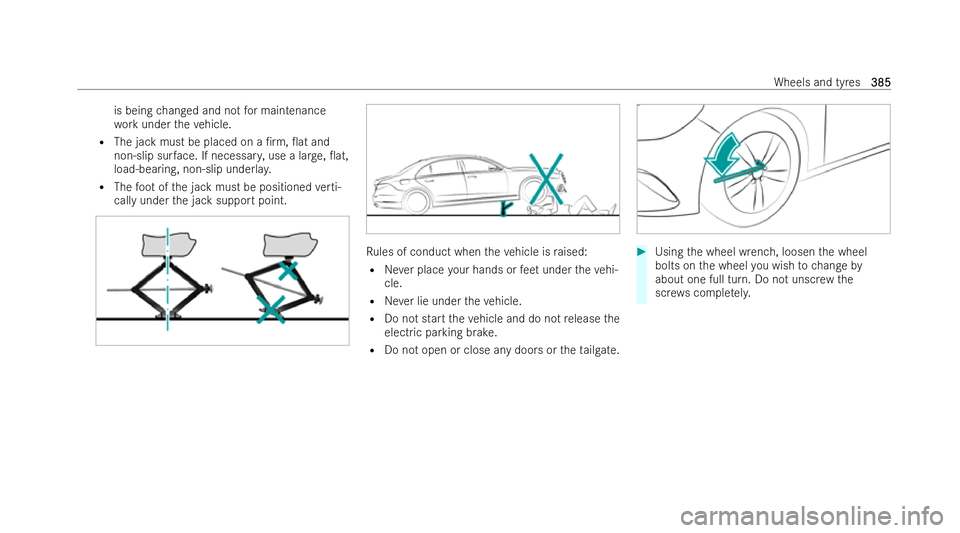

is being
changed and not for maintenance
wo rkunder theve hicle.
R The jack must be placed on a /rm, 0at and
non-slip sur face. If necessar y,use a lar ge, 0at,
load-bearing, non-slip underla y.
R The foot ofthe jack must be positioned verti-
cally under the jack support point. Ru
les of conduct when theve hicle is raised:
R Never place your hands or feet under theve hi-
cle.
R Never lie under theve hicle.
R Do not start theve hicle and do not release the
electric parking brake.
R Do not open or close any doors or theta ilgate. #
Using the wheel wrench, loosen the wheel
bolts on the wheel you wish tochange by
about one full turn. Do not unscr ewthe
scr ews comple tely. Wheels and tyres
385 385

Po
sition of jack support points &
W
WARNING
ARNING Risk of injury from inco rrect
positioning of the jack
If yo u do not position the jack cor rectly at the
appropriate jacking point of theve hicle, the
jack could tip wi th theve hicle raised. #
Only position the jack at the appropriate
jacking point of theve hicle. The base of
th e jack must be positioned vertically
under the jacking point of theve hicle. *
N
NOOTE
TE Vehicle damage from the jack If
yo u do not position the jack cor rectly at the
appropriate jack support point of theve hicle,
th e jack could tip over with theve hicle raised. #
The jack is designed exclusively for jac k-
ing up theve hicle at the jack support
points. #
Take thera tchet out of the tyre-change tool kit
and place it on the he xagon nut of the jack so
th at the letters "AUF" are visible. #
Position support 2of jack 4on jack sup-
port point 1.
% Ifth ere is a tota l loss of pressure in a tyre, it
may be possible that the jack cannot be posi-
tioned at jack support point 1. Inthis case,
unload theve hicle. 386
386
Wheels and tyres

#
Turn ratchet 3clockwise until support 2
sits comple tely on jack support point 1and
th e base of the jack lies evenly on thegr ound. #
Turn ratchet 3until the tyre is raised a maxi-
mum of 3 cm from thegr ound. #
Loosen and remo vethe wheel (/ page 387). R
R
emo
emo ving a wheel
ving a wheel R
R
eq
eq uir
uir ements:
ements:
R The vehicle is raised (/ page 384).
When changing a wheel, avoid applying any force
to the brake disks, as this could impair the le vel of
comfort when braking.
* NO
NOTE
TEDamage tothre ading from dirt on
wheel bolts #
Do not place wheel bolts in sand or on a
dirty sur face. #
Unscr ewthe uppermost wheel bolt com-
ple tely. #
Screw cent ring pin 1into theth re ad ins tead
of the wheel bolt. #
Unscr ewthere maining wheel bolts com-
ple tely. #
Remo vethe wheel and, if necessar y,store it in
th e load compartment. #
Notes on removing an emer gency spa rewheel
(/ page 389). F
F
itting a ne
itting a ne w wheel
w wheel R R
eq
eq uir
uir ements:
ements:
R The wheel tobe changed is remo ved and the
cent ring pin is sc rewe d in (/ page 387). &
W WARNING
ARNING Risk of accident from losing a
wheel
Oiled, greased or damaged wheel bolt/wheel
nut thre ads or wheel hub/wheel mounting
bolt thre ads can cause the wheel bolts/wheel
nuts tocome loose.
As a result, you could lose a wheel while driv-
ing. #
Never oil or grease theth re ads. #
Intheev ent of damage totheth re ads,
contact a quali/ed specialist workshop
immediatel y. #
Have the damaged wheel bolts or dam-
aged hub thre ads replaced. #
Do not continue driving. #
Obser vethe information on thech oice of tyres
(/ page 379).
Fo r tyres with a speci/ed direction of rotation, an
ar ro w on the side wall of the tyre indicates the
cor rect direction of rotation. Obser vethe direc-
tion of rotation when /tting. Wheels and tyres
387
387

#
Slide the wheel tobe mounted onto the cen-
tring pin and push it on. #
Obser vethe no tes on /tting an emer gency
spa rewheel (/ page 389). &
W
WARNING
ARNING Risk of injury from tightening
wheel bolts and nuts
If yo u tighten the wheel bolts or wheel nuts
when theve hicle is raised, the jack could tip. #
Only tighten wheel bolts or wheel nuts
when theve hicle is on thegr ound. #
Obser vethe inst ructions and saf ety no tes on
"Changing a wheel" (/ page 379).#
For saf etyre asons, only use wheel bolts which
ha ve been appr oved byMercedes-Benz and
fo rth e wheel in question. #
Tighten the wheel bolts evenly in a diagonal
pattern in the order indicated until they are
/nger-tight. #
Unscr ewand remo vethe centring pin. #
Tighten the last wheel bolt until it is /n ger-
tight. #
Lowe rth eve hicle (/ page 388). Low Low
er
ering t
ing t he v
he vehicle
ehicle aTer
aTera wheel c
a wheel c hange
hange R
R
eq
eq uir
uir ements:
ements:
R The new wheel has been /tted (/ page 387). #
T
To low
o low er t
er the v
he v ehicle:
ehicle: placethera tchet onto
th e he xagon nut of the jack so that the letters
"AB" are visible and turn anti-clockwise. #
Tighten the wheel bolts evenly in a diagonal
pattern in the order indicated 1to5 with
an initial maximum forc e of 80 Nm. #
Tighten the wheel bolts evenly in a diagonal
pattern in the order indicated 1to5 with
th e speci/ed tightening torque of 130 Nm. &
W
WARNING
ARNING Risk of accident due toincor-
re ct tightening torque
The wheels could come loose if the wheel
bolts or wheel nuts are not tightened tothe
prescribed torque. #
Ensure that the wheel bolts or wheel
nuts are tightened tothe prescribed
tightening torque. #
Ifyo u are not sure, do not mo vetheve hi-
cle. Con tact a quali/ed specialist work-
shop and ha vethe tightening torque
ch ecked immediatel y. #
Check the tyre pressure of the ne wly/tted
wheel and adjust it if necessar y.
% The following does not apply if the new wheel
is an emer gency spa rewheel. 388
388
Wheels and tyres

#
V
Vehicles wit
ehicles wit h tyr
h tyre pr
e pressur
essur e loss w
e loss w ar
ar ning sy
ning sy s-
s-
t
t em:
em: restart the tyre pressure loss warning
system (/ page 379). #
V
Vehicles wit
ehicles wit h a tyr
h a tyre pr
e pressur
essur e monit
e monit or
oring sy
ing sy s-
s-
t
t em:
em: restart the tyre pressure monitoring sys-
te m (/ page 378). Emerg
Emerg
ency spar
ency spar e wheel
e wheel N
No
ot
tes on t
es on t he emerg
he emerg ency spar
ency spar e wheel
e wheel &
W
W ARNING
ARNING Risk of accident caused by
incor rect wheel and tyre dimensions
The wheel or tyre size and the tyre type of the
emer gency spa rewheel or spare wheel and
th e wheel tobe replaced may di.er. The emer-
ge ncy spa rewheel or spare wheel can signi/-
cantly impair driving characteristics of the
ve hicle.
To prev ent hazardous situations: #
Drive carefull y. #
Never /t more than one emer gency
spa rewheel or spare wheel that di.ers
in size. #
Only use an emer gency spa rewheel or
spare wheel brie0y. #
Do not deacti vate ESP ®
. #
Have the emer gency spa rewheel or
spare wheel of a di.erent size replaced
at the nearest quali/ed specialist work-
shop. The new wheel must ha vethe cor-
re ct dimensions. %
The de0ated emer gency spa rewheel is
secured in the emer gency spa rewheel bag in
th e load compartment and is secured tothe
adjustable load compartment 0oor in the
lo we r position.
Obser vethefo llowing no tes on removing an emer-
ge ncy spa rewheel:
R Before st owing the emer gency spa rewheel,
make sure there is no air leT in the tyre.
If necessar y,allow the air toescape. R
T
To r
o r elease air fr
elease air fr om t
om the tyr
he tyr e:
e: remo vetheva lve
cap of the tyre.
R Press down the me tal insert in theva lve using
a pointed object, e.g. a pen.
R Screw theva lve cap onto theva lve.
% V
V ehicles wit
ehicles wit h adjust
h adjustable load com
able load com par
partment
tment
0oor:
0oor: always st owthe de0ated emer gency
spa rewheel in the lo wer position on the
adjustable load compartment 0oor.
Obser vethefo llowing no tes on /tting an emer-
ge ncy spa rewheel:
R The maximum permissible speed with an
emer gency spa rewheel /tted is 80 km/h.
R Do not /t the emer gency spa rewheel with
snow chains.
R Replace the emer gency spa rewheel aTer six
ye ars at the latest, rega rdless of wear.
R Check the tyre pressure of the emer gency
spa rewheel /tted. Cor rect the pressure as
necessar y.
% The speci/ed tyre pressure is stated on the
label of the emer gency spa rewheel. Wheels and tyres
389
389
