2021 MAZDA MODEL CX-5 sensor

DisplayDistance between vehicle and obstruction
Front ultrasonic sensor/Front ul ‐
trasonic corner sensor Rear ultrasonic sensor/Rear ultra
‐
sonic corner sensor
Yellow
Front ultrasonic sensor:
Approx. 60 ―45 cm (23.6 ―17.7 in)
Front corner ultrasonic sensor:
Approx. 55 ―38 cm (21.6 ―14.9 in) Rear ultrasonic sensor:
Approx. 60 ―45 cm (23.6 ―17.7 in)
Rear corner ultrasonic sensor:
Approx. 55 ―38 cm (21.6 ―14.9 in)
Amber
Front ultrasonic sensor:
Within approx. 35 cm (13.7 in)
Front corner ultrasonic sensor: Within approx. 25 cm (9.8 in) Rear ultrasonic sensor:
Within approx. 35 cm (13.7 in)
Rear corner ultrasonic sensor:Within approx. 25 cm (9.8 in)
4-283
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

When the ignition is switched ON with the parking sensor activated, the indicator light turns
on.
Press the switch again to stop the operation.
Indicator light
Operation conditions
The parking sensor system can be used when all of the following conditions are met:
The ignition is switched ON.
The parking sensor sw itch is turned on.
NOTE
The detection indicator and buzzer of the front sensors/front corner sensors do not
operate when the selector lever is in the P position.
The detection indicator and buzzer sound do not activate when the parking brake is
applied.
▼Obstruction Detection Indication
The position of a sensor which has detected an obstruction is indicated. The gauge
illuminates in different areas depending on the distance to an obstruction detected by the
sensor.
When Driving
Parking Sensor System (M
azda Connect (Type A))
4-284
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

As the vehicle approaches closer to an obstruction, the zone in the gauge closer to the
vehicle illuminates.

Rear ultrasonic sensor
Left front corner
ultrasonic sensor
Left rear corner
ultrasonic sensor Right front corner
ultrasonic sensor
Right rear corner
ultrasonic sensor
Front ultrasonic sensor
NOTE
The detection indicator can switch
between display and non-display.
Refer to the Settings section in the Mazda Connect Owner's Manual.
When the detection indicator is set to “Display”, even with the 360° view monitor not
displayed, if a front ultrasonic sensor or a front corner ultrasonic sensor detects an
obstruction, the 360° view monitor switches automatically to display. When an obstruction
is no longer detected, the display switches to the display before the obstruction was
detected. However, while the 360° view monito r is displayed, it continues to display no
matter if an obstruction is detected or not.
System problem notification
If a problem occurs, the driver is notified of the problem by the following indications.
Detection Indicator Solution
Disconnection
The system may have a malfunction. Have the
vehicle inspected at an Authorized Mazda Deal ‐
er as soon as possible.
When Driving
Parking Sensor System (M azda Connect (Type A))
4-285
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

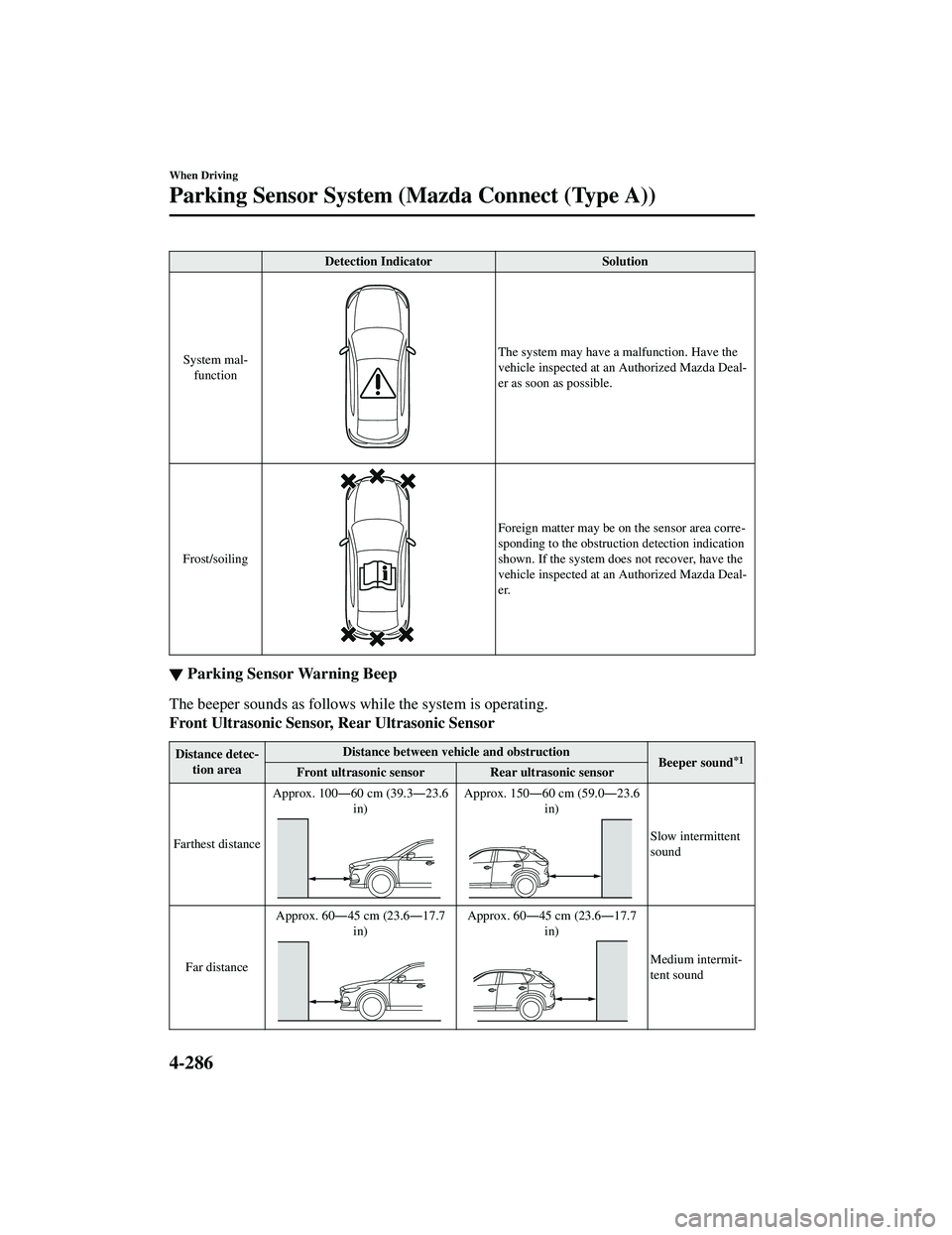

Detection IndicatorSolution
System mal ‐
function
The system may have a malfunction. Have the
vehicle inspected at an Authorized Mazda Deal ‐
er as soon as possible.
Frost/soiling
Foreign matter may be on the sensor area corre ‐
sponding to the obstruc tion detection indication
shown. If the system does not recover, have the
vehicle inspected at an Authorized Mazda Deal ‐
er.
▼ Parking Sensor Warning Beep
The beeper sounds as follows while the system is operating.
Front Ultrasonic Sensor, Rear Ultrasonic Sensor
Distance detec
‐
tion area Distance between vehicle and obstruction
Beeper sound*1Front ultrasonic sensorRear ultrasonic sensor
Farthest distance Approx. 100
―60 cm (39.3 ―23.6
in)
Approx. 150 ―60 cm (59.0 ―23.6
in)
Slow intermittent
sound
Far distance Approx. 60
―45 cm (23.6 ―17.7
in)
Approx. 60 ―45 cm (23.6 ―17.7
in)
Medium intermit ‐
tent sound
When Driving
Parking Sensor System (M azda Connect (Type A))
4-286
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Distance detec‐tion area Distance between vehicle and obstruction
Beeper sound*1Front ultrasonic sensorRear ultrasonic sensor
Middle distance Approx. 45
―35 cm (17.7 ―13.7
in)
Approx. 45 ―35 cm (17.7 ―13.7
in)
Fast intermittent
sound
Close distance Within approx. 35 cm (13.7 in)
Within approx. 35 cm (13.7 in)
Continuous sound
*1 The rate at which the intermittent sound beeps incr
eases as the vehicle approaches the obstruction.
Front Corner Ultrasonic Sensor, Rear Corner Ultrasonic Sensor
Distance detection areaDistance between vehicle and obstruction
Beeper sound*1Front corner ultrasonic/Rear corner ultrasonicsensor
Far distance Approx. 55
―38 cm (21.6 ―14.9 in)
Medium intermittent sound
Middle distance Approx. 38
―25 cm (14.9 ―9.8 in)
Fast intermittent sound
Close distance Within approx. 25 cm (9.8 in)
Continuous sound
*1 The rate at which the intermittent sound beeps incr
eases as the vehicle approaches the obstruction.
When Driving
Parking Sensor System (Mazda Connect (Type A))
4-287
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

NOTE
If an obstruction is detected in a zone for 6 seconds or more, the beep sound is stopped
(except for the close-distance zone). If the same obstruction is detected in another zone, the
corresponding beep sound is heard.
▼When Warning Indicator/Beep is Activated
The system notifies the driver of an abnormality by activating the beep sound and the
indicator light.
Indicator/Beep
How to check
The indicator light flashes when
the parking sensor switch is
pressed at a vehicle speed of 10
km/h (6 mph) or less. The system may have a malfunction. Ha
ve the vehicle inspected at an Author‐
ized Mazda Dealer as soon as possible.
The beep sound is not heard. The system may have a malfunction. Ha
ve the vehicle inspected at an Author‐
ized Mazda Dealer as soon as possible.
The intermittent sound of the
buzzer is heard 5 times. Remove any foreign material from the sensor area. If the system does not re
‐
cover, have the vehicle inspected at an Authorized Mazda Dealer.
A certain obstruction detection
indicator is continuously dis ‐
played. Refer to Obstruction Detecti
on Indication on page 4-284.
When Driving
Parking Sensor System (M azda Connect (Type A))
4-288
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Parking Sensor System (Mazda Connect (Type B))*
The parking sensors use ultrasonic sensors which detect obstructions around the vehicle
when the vehicle is driven at low speeds, such as during garage or parallel parking, and a
buzzer sound and detection indicator notify th e driver of the approximate distance from the
vehicle to the surrounding obstruction.

Rear corner ultrasonic sensor
Front corner ultrasonic sensor Rear ultrasonic sensor
Front ultrasonic sensor
WARNING
Do not rely completely on the parking sensor system and be sure to confirm the safety around
your vehicle visually when driving:
This system can assist the driver in operat ing the vehicle in the forward and backward
directions while parking. The detection ranges of the sensors are limited, therefore, driving the
vehicle while relying only on the system may cause an accident. Always confirm the safety
around your vehicle visually when driving.
NOTE
Do not install any accessories within the detection ranges of the sensors. It may affect the
system operation.
Depending on the type of obstruction and the surrounding conditions, the detection range
of a sensor may narrow, or the sensors may not be able to detect obstructions.
The system may not operate normally under the following conditions:
Mud, ice, or snow is adhering to the sensor area (Returns to normal operation when
removed).
The sensor area is frozen (Returns to normal operation when the ice is thawed).
The sensor is covered by a hand.
The sensor is excessively shocked.
The vehicle is excessively tilted.
Under extremely hot or cold weather conditions.
The vehicle is driven on bumps, inclines, gravel, or grass covered roads.
When Driving
Parking Sensor System (Mazda Connect (Type B))
*Some models.4-289
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Anything which generates ultrasound is near the vehicle, such as another vehicle's
horn, the engine sound of a motorcycle, the air brake sound of a large-sized vehicle, or
another vehicle's sensors.
The vehicle is driven in heavy rain or in road conditions causing water-splash.
A commercially-available fender pole or an antenna for a radio transmitter is installed
to the vehicle.
The vehicle is moving towards a tall or square curbstone.
An obstruction is too close to the sensor.
Obstructions under the bumper may not be detected. Obstructions that are lower than the
bumper or thin which may have been initially detected may no longer be detected as the
vehicle approaches more closely to the obstruction.
The following types of obstructions may not be detected:
Thin objects such as wire or rope
Things which absorb sonic waves easily such as cotton or snow
Angular shaped objects
Very tall objects, and those which are wide at the top
Small, short objects
Always have the system inspected at an Authorized Mazda Dealer if any shock is applied
to the bumpers, even in a minor accident. If the sensors are deviated, they cannot detect
obstructions.
The system may have a malfunction if the b eep does not operate or the indicator light
does not illuminate when the parking sensor switch is turned on. Consult an Authorized
Mazda Dealer.
The system may have a malfunction if the beep sound which indicates a system
malfunction is heard and the indicator light flashes. Consult an Authorized Mazda Dealer.
The beeper which indicates a system malfunction may not be heard if the ambient
temperature is extremely cold, or mud, ice, or snow adheres to the sensor area. Remove
any foreign material from the sensor area.
When installing a trailer hitch, c onsult an Authorized Mazda Dealer.
