2021 LINCOLN NAVIGATOR remote start

Ventilated Seats
Note:
The ventilated seats switch on during
a remote start if they are enabled. See
Remote Start (page 171).
Note: The ventilated seats may also switch
on when you start your vehicle if they were
on when you previously switched your
vehicle off.
Note: Do not do the following:
• Spill liquid on the front seats. This may
cause the air vent holes to become
blocked and not work properly.
• Place cargo or objects under the seats.
They may block the air intake causing
the air vents to not work properly.
The ventilated seats only function when the
engine is running. Press this symbol to cycle through the
various ventilation settings and off. More
indicator lights indicate higher fan speeds.
If the engine falls below 350 RPM while the
ventilated seats are on, the feature turns
itself off. You need to reactivate it.
Automatic Climate Controlled Seats
(If
Equipped)
When you switch the auto setting on, the
climate controlled seats switch between the
heated seats and ventilated seats to match
your climate control setting.
194
Navigator (TB9) Canada/United States of America, enUSA, First-Printing SeatsE224689

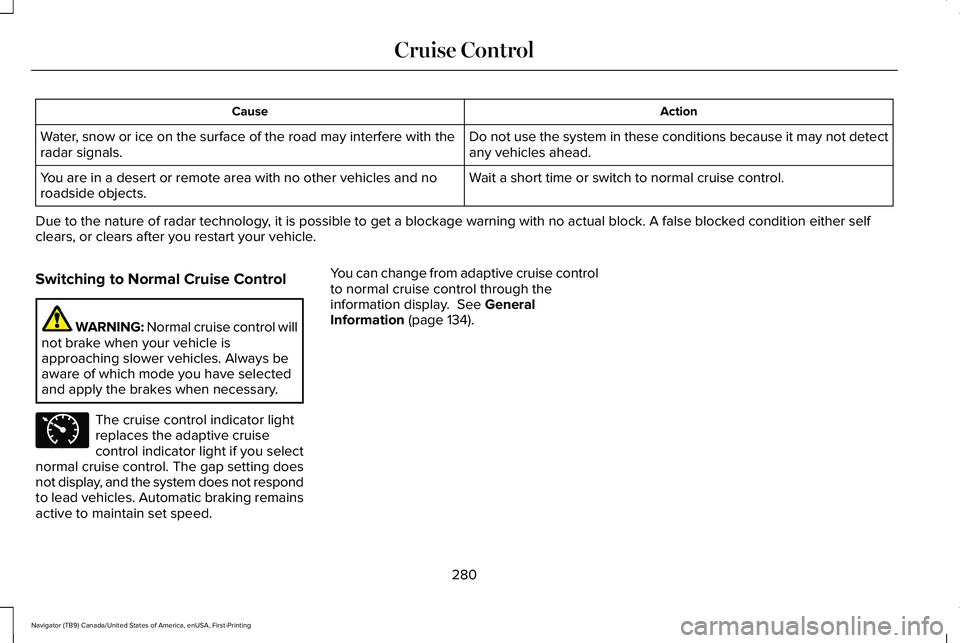

Action
Cause
Do not use the system in these conditions because it may not detect
any vehicles ahead.
Water, snow or ice on the surface of the road may interfere with the
radar signals.
Wait a short time or switch to normal cruise control.
You are in a desert or remote area with no other vehicles and no
roadside objects.
Due to the nature of radar technology, it is possible to get a blockage warning with no actual block. A false\
blocked condition either self
clears, or clears after you restart your vehicle.
Switching to Normal Cruise Control WARNING: Normal cruise control will
not brake when your vehicle is
approaching slower vehicles. Always be
aware of which mode you have selected
and apply the brakes when necessary. The cruise control indicator light
replaces the adaptive cruise
control indicator light if you select
normal cruise control. The gap setting does
not display, and the system does not respond
to lead vehicles. Automatic braking remains
active to maintain set speed. You can change from adaptive cruise control
to normal cruise control through the
information display.
See General
Information (page 134).
280
Navigator (TB9) Canada/United States of America, enUSA, First-Printing Cruise ControlE71340

•
Make sure that you have the correct
tire and wheel size.
• Lubricate the tire bead and wheel
bead seat area again.
• Stand at a minimum of 12 ft (3.66 m)
away from the wheel and tire
assembly.
• Use both eye and ear protection. WARNING:
For a mounting
pressure more than 20 psi (1.38 bar)
greater than the maximum pressure,
a Ford dealer or other tire service
professional should do the mounting. WARNING:
Always inflate steel
carcass tires with a remote air fill with
the person inflating standing at a
minimum of
12 ft (3.66 m) away from
the wheel and tire assembly.
Important:
Remember to replace the
wheel valve stems when the road tires
are replaced on your vehicle. The two front tires or two rear tires
should generally be replaced as a pair,
except if the vehicle is equipped with
four wheel drive. Vehicles equipped with
four wheel drive should have all four
tires replaced simultaneously. Unevenly
worn tires, mismatched makes, models
or brands can be different in size,
resulting in potential damage to the four
wheel drive system.
The tire pressure sensors mounted in
the wheels are not designed to be used
in aftermarket wheels.
The use of wheels or tires not
recommended by us may affect the
operation of your tire pressure
monitoring system.
If the tire pressure monitoring system
indicator is flashing, the system is
malfunctioning. Your replacement tire
might be incompatible with your tire
pressure monitoring system, or some
component of the system may be
damaged.
Safety Practices WARNING:
If your vehicle is
stuck in snow, mud or sand, do not
rapidly spin the tires; spinning the tires
can tear the tire and cause an
explosion. A tire can explode in as little
as three to five seconds. WARNING:
Do not spin the
wheels at over 34 mph (55 km/h). The
tires may fail and injure a passenger
or bystander.
Driving habits have a great deal to do
with your tire mileage and safety.
*Observe posted speed limits
*Avoid fast starts, stops and turns
*Avoid potholes and objects on the road
*Do not run over curbs or hit the tire
against a curb when parking
421
Navigator (TB9) Canada/United States of America, enUSA, First-Printing Wheels and Tires

Possible Cause and Solution
Symptom
You did not create a personal profile.
My profile will not recall. Personal Profiles is turned off.
The profile you requested is already active.
You did not link the memory button you are using to a profile.
You did not link the remote control you are using to a profile.
You are using the wrong remote control.
You are pressing a button other than the unlock or remote start on a link\
ed remote control.
You deleted the personal profile.
You switched the personal profiles off.
My preset positions recall, but my profile does
not.
The vehicle is in motion.
My profile recalls but my preset positions do
not. The preset positions are the same as the guest or previously active prof\
ile.
Unlink and relink your remote control in the Personal Profiles menu. You may need to see
your authorized dealer.
I lost a remote control.
You erased and reprogrammed the remote controls. This could happen if you\
let a dealership
add a new remote control to replace a lost one.
I lost all profiles.
Someone performed a master reset without your knowledge.
532
Navigator (TB9) Canada/United States of America, enUSA, First-Printing SYNC™ 3

Hill Start Assist.....................................................148
Keys and Intelligent Access..............................148
Lane Keeping System........................................149
Maintenance.........................................................150
MyKey......................................................................151
Off Road.................................................................152
Park Aid..................................................................153
Park Brake.............................................................153
Power Steering....................................................154
Pre-Collision Assist.............................................155
Pro Trailer Backup Assist™................................155
Remote Start.........................................................156
Seats.......................................................................157
Stability Control....................................................157
Starting System ...................................................158
Tire Pressure Monitoring System....................158
Trailer......................................................................159
Transmission.........................................................160
Installing Child Restraints.............................26 Child Seats.............................................................26
Combining Seatbelt and LATCH Lower
Anchors for Attaching Child Safety
Seats....................................................................34
Using Lap and Shoulder Belts...........................26
Using Lower Anchors and Tethers for CHildren (LATCH).............................................32
Using Tether Straps..............................................34 Installing the Vehicle Identification
Card...............................................................454
Instrument Cluster.........................................127
Instrument Lighting Dimmer........................112
Instrument Panel
..............................................21
Interior Air Quality.........................................173
Interior Lamps
.................................................114
Front Interior Lamp..............................................115
Rear Interior Lamps..............................................115
Interior Mirror
.................................................122
Auto-Dimming Mirror..........................................123
Introduction.........................................................9
J
Jump Starting the Vehicle..........................346 Connecting the Jumper Cables......................347
Jump Starting.......................................................347
Preparing Your Vehicle.....................................346
Removing the Jumper Cables.........................348
K
Keyless Entry
....................................................88
Displaying the Factory-Set Code.....................90
Locking and Unlocking.......................................89
SECURICODE™ KEYLESS ENTRY
KEYPAD..............................................................88 Keyless Starting............................................207
Switching the Ignition On.................................207
Keys and Remote Controls
..........................69
L
Lane Keeping System.................................282 Switching the System On and Off..................283
System Display...................................................285
System Settings..................................................284
Troubleshooting.................................................286
Liftgate................................................................91
Liftgate Window
.............................................125
Opening the Liftgate Window..........................125
Lighting Control..............................................110 Flashing the Headlamp High Beam.................111
Headlamp High Beam..........................................111
Lighting.............................................................110 General Information.............................................110
Limited Slip Differential..............................240 Spare Tire.............................................................240
Trailer Towing......................................................240
Lincoln Automotive Financial Services......16
Lincoln Protect..............................................536 Lincoln Protect (CANADA ONLY)....................537
Lincoln Protect Extended Service Plans (U.S.
Only)..................................................................536
628
Navigator (TB9) Canada/United States of America, enUSA, First-Printing Index

Rear Parking Aid...........................................252
Object Distance Indicator................................253
Rear Passenger Climate Controls.............169 Directing Air to the Rear Console Air
Vents..................................................................169
Directing Air to the Rear Footwell Air Vents..................................................................170
Rear Climate Control Lock Indicator..............170
Setting the Rear Blower Motor Speed...........170
Setting the Rear Temperature..........................170
Switching Rear Auto Mode On........................
170
Switching the Rear Climate Control On and Off........................................................................\
171
Switching the Rear Heated Seats On and Off........................................................................\
171
Switching the Rear Ventilated Seats On and Off........................................................................\
171
Rear Seats
.......................................................187
Adjusting the Manual Second Row Outermost
Seats for Easy Entry.......................................187
Adjusting the Power Second Row Outermost Seats for Easy Entry.......................................188
Adjusting the Second Row Center Seat.......190
Adjusting the Second Row Outermost Seats for Easy Exit......................................................189
Folding the Power Rear Seats..........................191
Folding the Second Row Center Seat ..........190 Folding the Second Row Outermost Seats
........................................................................\
.....187
Reclining the Second Row Outermost Seat Backrest............................................................189
Rear Under Floor Storage..........................305 Advanced System: Forward Divider, Cargo
Shelf and Rear Barrier (Bulkhead
Position)............................................................306
Cargo Management System............................305
Rear View Camera.......................................266 Camera Guidelines............................................267
Manual Zoom......................................................268
Obstacle Distance Indicator............................
268
Rear Camera Delay............................................268
Using the Rear View Camera System...........
266
Rear View Camera See: Rear View Camera...................................266
Rear Window Wiper and Washers............108 Rear Window Washer.........................................109
Rear Window Wiper............................................108
Recommended Towing Weights...............327
Reduced Engine Performance
...................341
Refueling.........................................................218 Refueling System Overview.............................218
Refueling System Warning...............................220
Refueling Your Vehicle.......................................219
Remote Control
...............................................69
Car Finder...............................................................72 Intelligent Access Key.........................................69
Memory Feature....................................................74
Remote Start...........................................................73
Replacing the Battery............................................71
Sounding the Panic Alarm..................................72
Using the Key Blade.............................................70
Remote Start
....................................................171
Automatic Settings..............................................172
Heated and Cooled Features...........................172
Last Settings.........................................................172
Repairing Minor Paint Damage.................403
Replacement Parts Recommendation
........17
Collision Repairs.....................................................17
Scheduled Maintenance and Mechanical
Repairs..................................................................17
Warranty on Replacement Parts.........................17
Replacing a Lost Key or Remote Control.............................................................74
Replacing the Cabin Air Filter.....................173
Reporting Safety Defects (Canada Only)..............................................................358
Reporting Safety Defects (U.S. Only)......358
Resuming the Set Speed
............................273
Roadside Assistance...................................344
Vehicles Sold in Canada: Getting Roadside
Assistance........................................................345
Vehicles sold in the United States: Getting Roadside Assistance.....................................344
631
Navigator (TB9) Canada/United States of America, enUSA, First-Printing Index

Towing the Vehicle on Four Wheels........338
Four-wheel-down Towing.................................339
Recreational Towing..........................................338
Towing..............................................................315
Traction Control............................................247 Principle of Operation.......................................247
Trailer Reversing Aids..................................316
Principle of Operation........................................316
Pro Trailer Backup Assist™.................................316
Setting Up Pro Trailer Backup Assist..............317
Troubleshooting ..................................................322
Using Pro Trailer Backup Assist.....................320
Trailer Sway Control
.....................................327
Transfer Case Fluid Check.........................388
Transmission..................................................227
Transporting the Vehicle
............................349
U
Under Hood Overview................................379
Unique Driving Characteristics
..................212
Universal Garage Door Opener................197 HomeLink Wireless Control System...............197
USB Port...........................................................471 Locating the USB Ports.....................................472
Using Adaptive Cruise Control
.................273
Automatic Cancellation.....................................277
Blocked Sensor...................................................279 Canceling the Set Speed..................................277
Changing the Set Speed..................................276
Detection Issues.................................................277
Following a Vehicle............................................275
Following a Vehicle to a Complete
Stop...................................................................275
Hilly Condition Usage........................................277
Overriding the Set Speed................................276
Park Brake Application......................................277
Resuming the Set Speed..................................277
Setting the Adaptive Cruise Speed...............274
Setting the Adaptive Cruise Speed When Your Vehicle is Stationary......................................274
Setting the Gap Distance.................................275
Switching Adaptive Cruise Control Off.........277
Switching Adaptive Cruise Control On.........274
Switching to Normal Cruise Control..............280
System Not Available........................................279
Using Four-Wheel Drive
.............................233
4X4 Indicator Lights...........................................233
4X4 Modes...........................................................233
Driving Off-Road with Truck and Utility
Vehicles............................................................236
How Your Vehicle Differs from Other Vehicles............................................................235
Operating Four-Wheel Drive Vehicles with Spare or Mismatched Tires.........................235 Using Hill Descent Control........................250
Hill Descent Modes...........................................250
Using MyKey With Remote Start Systems..........................................................82
Using Power Running Boards.....................99 Automatic Power Deploy....................................99
Automatic Power Stow........................................99
Bounce-back........................................................100
Enabling and Disabling......................................100
Manual Power Deploy.......................................100
Using Snow Chains
......................................423
Using Stability Control................................249 Stability Control and Traction Control with Roll
Stability Control™ (RSC™)...............................249
Using the Backup Start Passcode..............76 System Lockout.....................................................77
Using the Valet Mode....................................76
Using Traction Control................................247 Switching the System On and Off..................247
System Indicator Lights and Messages........247
Using Voice Recognition............................475 Audio Voice Commands...................................477
Climate Voice Commands................................
478
Mobile App Voice Commands........................484
Navigation Voice Commands...........................481
Phone Voice Commands..................................
479
SiriusXM Traffic and Travel Link Voice Commands......................................................484
634
Navigator (TB9) Canada/United States of America, enUSA, First-Printing Index
