2021 LINCOLN CORSAIR window

7. On the Select preferred WEEKDAY or
WEEKEND Charge Times screen, use the
circular 24 hour clock to select your
charging time windows. You can select
up to two time windows by pressing and
dragging across the hour buttons. When
you have selected your preferred times
then press Next to return to the Preferred
Charge Times screen. Repeat for
WEEKEND or WEEKDAY as desired.
Once you are done setting preferred
charge times, press Save.
Note: Selecting all or none of the 24 hours
results in any time of day given equal priority
for charging.
8. Your saved location now shows on the Charge Times screen. Select Done to
return to the main charge settings screen.
Whenever your vehicle is at a saved
charging location, the charge settings
screen displays the location name, and
the charging times are based on your
Charge Time settings for that location
plus the next Departure Time. Note:
Reaching your max charge level by
your next Departure Time is always the
priority. When Charge Times are set,
charging outside your preferred charging
time windows could be necessary in order
to finish by your next Departure Time.
Departure Time Settings
1. Select Charge Preferences on the Charge Settings screen.
2. Select Departure Time Setup on the Edit
Charge Preferences screen.
3. Two time settings show for each day of the week on the Departure Times
schedule screen. Select any one.
4. On the Departure Time settings screen, set your desired departure time, cabin
temperature and days of the week to
repeat. Press Save.
5. Your settings are now shown on the Departure Times schedule screen. Press
Back two times to return to the main
charge settings screen. The next
departure time and cabin temperature
setting display. Note:
Cabin conditioning can perform
differently depending on if you plug in with
the included convenience cord or a higher
power charging station. The power available
for conditioning is limited to the charging
station power available.
Note: Your vehicle may not always reach
the set cabin temperature due to charging
and ambient temperature conditions. This is
normal operation
APPS
The system allows you interact with select
mobile apps while keeping your eyes on the
road. Voice commands, your steering wheel
buttons, or a quick tap on your touchscreen
give you advanced control of compatible
mobile apps. You can also stream your
favorite music or podcasts, share your time
of arrival with friends, and keep connected
safely.
523
Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202007, First-Printing SYNC™ 3

Driver Assist (If Equipped)
Select this tile to adjust Driver Assist features
like Parking Aids, Lane Keeping system,
Pedestrian Detection, and Auto-Start-Stop.
Vehicle
Select this tile to adjust vehicle settings like
windows, alarm, lighting, backup starting
passcode, and MyKey settings.
Lincoln Way
Select this tile to adjust the Lincoln Way
settings.
General
Select this tile to adjust settings like
language, measurement units, or to reset the
system.
911 Assist
(If Equipped)
Select this tile to switch 911 Assist on and off. Automatic Updates
Select this tile to adjust automatic update
settings.
Mobile Apps
Select this tile to adjust permissions, enable,
disable, and update mobile apps.
Display
Select this tile to adjust display settings like
brightness and auto dim.
Charge Settings
(If Equipped)
Select this tile to adjust the electric vehicle
charge setting.
Voice Control
Select this tile to adjust voice control settings
like command confirmations and displayed
lists.
Navigation
(If Equipped)
Select this tile to adjust navigation settings
like map preferences and route guidance. Multi Contour Seats
(If Equipped)
Select this tile to adjust the position and
massage function of your multi contour seats.
Seats
(If Equipped)
Select this tile to adjust the lumbar function
of your seat.
Message Center
(If Equipped)
Select this tile to view vehicle messages.
Personal Profiles
(If Equipped)
Select this tile to adjust recalled memory
features when using personal profiles.
Valet Mode
(If Equipped)
Select this tile to enable and disable valet
mode.
Ambient Lighting
(If Equipped)
Select this tile to change the color or
intensity of the interior lighting.
527
Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202007, First-Printing SYNC™ 3

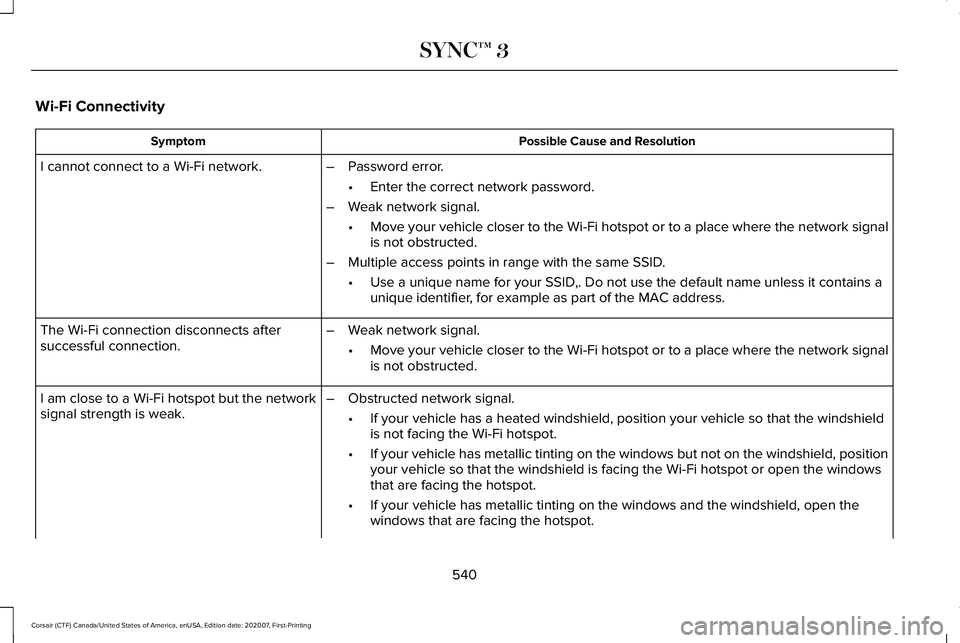

Wi-Fi Connectivity
Possible Cause and Resolution
Symptom
I cannot connect to a Wi-Fi network. –Password error.
•Enter the correct network password.
– Weak network signal.
•Move your vehicle closer to the Wi-Fi hotspot or to a place where the ne\
twork signal
is not obstructed.
– Multiple access points in range with the same SSID.
•Use a unique name for your SSID,. Do not use the default name unless it contains a
unique identifier, for example as part of the MAC address.
The Wi-Fi connection disconnects after
successful connection. –
Weak network signal.
•Move your vehicle closer to the Wi-Fi hotspot or to a place where the ne\
twork signal
is not obstructed.
I am close to a Wi-Fi hotspot but the network
signal strength is weak. –
Obstructed network signal.
•If your vehicle has a heated windshield, position your vehicle so that t\
he windshield
is not facing the Wi-Fi hotspot.
• If your vehicle has metallic tinting on the windows but not on the winds\
hield, position
your vehicle so that the windshield is facing the Wi-Fi hotspot or open \
the windows
that are facing the hotspot.
• If your vehicle has metallic tinting on the windows and the windshield, \
open the
windows that are facing the hotspot.
540
Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202007, First-Printing SYNC™ 3

Multi-Point Inspection
Hazard warning system operation
Accessory drive belt(s)
Horn operation
Battery performance
Radiator, cooler, heater and air conditioning hoses
Engine air filter
Suspension components for leaks or damage
Exhaust system
Steering and linkage
Exterior lamps operation
Tires (including spare) for wear and proper pressure2
Fluid levels 1
; fill if necessary
Windshield for cracks, chips or pits
For oil and fluid leaks
Washer spray and wiper operation
Half-shaft dust boots
1 Brake, coolant recovery reservoir, automatic transmission and window washer
2 If your vehicle is equipped with a temporary mobility kit, check the tir\
e sealant expiration Use By date on the canister. Replace as needed.
Be sure to ask your dealership service
advisor or technician about the multi-point
vehicle inspection. It is a comprehensive way
to perform a thorough inspection of your
vehicle. Your checklist gives you immediate
feedback on the overall condition of your
vehicle.
554
Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202007, First-Printing Scheduled Maintenance

Locks......................................................................453
Washer Reservoir...............................................453
Capacities and Specifications - 2.5L, Plug-In Hybrid Electric Vehicle
(PHEV)...........................................................454
Air Conditioning System...................................454
Engine Coolant...................................................455
Engine Oil.............................................................456
Fuel Tank..............................................................457
Grease...................................................................457
Hydraulic Brake System...................................458
Locks.....................................................................459
Washer Reservoir...............................................459
Capacities and Specifications...................433
Car Wash See: Cleaning the Exterior...............................387
Catalytic Converter
......................................222
On-Board Diagnostics (OBD-II).......................223
Readiness for Inspection and Maintenance (I/M) Testing.....................................................224
Changing a Bulb
...........................................385
Changing a Fuse..........................................363
Engine Compartment Fuse Box......................363
Fuse Types...........................................................364
General Information...........................................363
Changing a Road Wheel.............................423 Dissimilar Spare Wheel and Tire Assembly
Information.......................................................424 Tire Change Procedure....................................425
Changing the 12V Battery..........................380 Remove and Reinstall the Battery..................382
Changing the Engine Air Filter - 2.0L/ 2.3L................................................................372
Gas Engines.........................................................372
Changing the Engine Air Filter - 2.5L, Plug-In Hybrid Electric Vehicle
(PHEV)...........................................................373
Changing the Vehicle Wi-Fi Hotspot Name or Password
................................................466
Changing the Wiper Blades......................384 Front Wiper Blades............................................384
Rear Window Wiper Blade...............................385
Charging the High Voltage Battery.........225 IMPORTANT SAFETY INSTRUCTIONS.........
225
Checking MyKey System Status.................74
Checking the Wiper Blades.......................384
Child Restraint and Seatbelt Maintenance..................................................48
Child Restraint Positioning............................37
Child Safety......................................................26 General Information.............................................26
Child Safety Locks..........................................39 Left-Hand Side.......................................................40
Right-Hand Side....................................................40
Cleaning Leather Seats...............................391 Cleaning Products........................................386
Materials...............................................................386
Cleaning the Engine
....................................389
Cleaning the Exterior...................................387 Cleaning the Headlamps..................................387
Exterior Chrome Parts.......................................388
Exterior Plastic Parts..........................................388
Stripes or Graphics............................................388
Underbody...........................................................388
Under Hood.........................................................388
Cleaning the Instrument Panel and Instrument Cluster Lens...........................390
Cleaning the Interior...................................390
Cleaning the Wheels...................................392
Cleaning the Windows and Wiper Blades...........................................................389
Clearing All MyKeys........................................73
Clearing the Garage Door Opener
...........190
Climate............................................................504
Accessing Rear Climate Controls...................507
Accessing the Climate Control Menu...........
504
Directing the Airflow..........................................504
Rear Climate Control Lock Indicator.............
507
Setting the Blower Motor Speed...................505
Setting the Temperature..................................505
Switching Auto Mode On and Off..................505
Switching Dual Zone Mode On and Off.......505
620
Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202007, First-Printing Index

Switching Maximum Air Conditioning On and
Off......................................................................506
Switching Maximum Defrost On and Off......................................................................506
Switching Rear Auto Mode On and Off........507
Switching Recirculated Air On and Off.........506
Switching the Air Conditioning On and Off......................................................................505
Switching the Climate Controlled Seats On and Off..............................................................505
Switching the Climate Control On and Off......................................................................505
Switching the Heated Exterior Mirrors On and Off......................................................................506
Switching the Heated Rear Window On and Off......................................................................506
Switching the Heated Seats On and Off......................................................................506
Switching the Heated Steering Wheel On and Off......................................................................506
Switching the Heated Windshield On and Off......................................................................506
Switching the Rear Climate Controlled Seats On and Off.......................................................507
Switching the Rear Heated Seats On and Off......................................................................507
Switching the Rear Ventilated Seats On and Off......................................................................507 Switching the Ventilated Seats On and
Off......................................................................507
Climate Control..............................................164
Closing the Liftgate........................................88
Closing the Hands-Free Liftgate.......................89
Closing the Liftgate From Inside Your
Vehicle................................................................88
Closing the Liftgate From Outside Your Vehicle................................................................88
Closing the Liftgate Using the Remote Control................................................................89
Connecting the Vehicle to a Mobile Network.......................................................462
Enabling the Modem Using The Lincoln Way....................................................................462
Enabling the Modem Using the Touchscreen....................................................462
What Is the Modem............................................462
Coolant Check See: Engine Coolant Check.............................
374
Crash Sensors and Airbag Indicator..........59
Creating a MyKey
............................................73
Creating a Vehicle Wi-Fi Hotspot.............466 Connecting a Device to the Wi-Fi
Hotspot.............................................................466
Finding the Wi-Fi Hotspot Name and Password.........................................................466 Cross Traffic Alert..........................................301
Cross Traffic Alert Behavior When Trailer is
Attached...........................................................304
Cross Traffic Alert Indicator.............................305
Cross Traffic Alert Information Messages.........................................................305
Cross Traffic Alert System Limitations..........304
Cross Traffic Alert System Sensors...............304
Switching the System On and Off..................304
Using Cross Traffic Alert....................................301
Cruise Control
...............................................276
Cruise Control Indicators............................277
Customer Assistance
...................................343
D
Data Recording
.................................................14
Comfort, Convenience and Entertainment
Data.......................................................................16
Event Data...............................................................15
Service Data............................................................14
Services That Third Parties Provide..................16
Services That We Provide...................................
16
Vehicles With a Modem........................................17
Vehicles With an Emergency Call System.......18
Vehicles With SYNC..............................................17
621
Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202007, First-Printing Index

Fuel Filter........................................................384
Fuel Quality - Gasoline................................210
Choosing the Right Fuel....................................210
Fuel Quality - Plug-In Hybrid Electric Vehicle (PHEV).............................................211
Choosing the Right Fuel.....................................211
Fuel Shutoff....................................................337
Fuses
...............................................................352
Fuse Specification Chart............................352 Engine Compartment Fuse Box.....................352
Passenger Compartment Fuse Box..............
360
G
Garage Door Opener...................................187
Garage Door Opener Limitations..............188
Garage Door Opener Precautions............187
Garage Door Opener Radio Frequencies.................................................190
FCC and RSS-210 Industry Canada Compliance......................................................190
Gauges - Plug-In Hybrid Electric Vehicle (PHEV), Vehicles With: 12.3 Inch
Instrument Cluster Display Screen
.........118
Battery Gauge......................................................120
Engine Coolant Temperature Gauge..............
121
Fuel Gauge...........................................................120
Left and Right Information Group...................
120 Low Fuel Reminder.............................................120
Status Bar..............................................................120
Vehicle Driving Range.........................................121
Gauges - Vehicles With: 12.3 Inch Instrument Cluster Display Screen........124
Engine Coolant Temperature Gauge.............126
Fuel Gauge...........................................................125
Left and Right Information Group...................125
Status Bar..............................................................125
Gauges - Vehicles With: 6.5 Inch Instrument Cluster Display Screen........122
Engine Coolant Temperature Gauge.............
123
Fuel Gauge............................................................123
Information Bar....................................................123
Information Display.............................................123
Gearbox See: Transmission..............................................232
General Information on Radio Frequencies...................................................64
Intelligent Access..................................................64
General Maintenance Information
...........550
Multi-Point Inspection........................................553
Owner Checks and Services...........................552
Protecting Your Investment.............................550
Why Maintain Your Vehicle?............................550
Why Maintain Your Vehicle at Your
Dealership?.....................................................550 Getting Assistance Outside the U.S. and
Canada.........................................................347
Getting the Services You Need................343 Away From Home...............................................343
Global Opening and Closing.......................113 Closing the Windows...........................................113
Opening the Windows........................................113
H
Hazard Flashers
............................................337
Headlamp Adjusting See: Adjusting the Headlamps.......................382
Headlamp Exit Delay
....................................104
Headlamp Removal See: Removing a Headlamp............................
385
Headrest See: Head Restraints...........................................171
Head Restraints
...............................................171
Installing the Head Restraint.............................173
Lowering the Head Restraint............................172
Raising the Head Restraint................................172
Removing the Head Restraint..........................172
Tilting the Front Seat Head Restraint.............172
Head Up Display............................................157 Configuring The Head Up Display..................158
Head Up Display Overview..............................159
Maintaining Your Head Up Display.................160
624
Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202007, First-Printing Index

Heated Exterior Mirrors...............................168
Heated Rear Window...................................167
Heated Seats..................................................182
Front Seats............................................................182
Rear Seats.............................................................183
Heated Windshield
.......................................167
Windshield Wiper De-Icer.................................167
Heating See: Climate Control..........................................164
High Voltage Battery...................................225 General Information...........................................225
Hill Start Assist..............................................248 Switching the System On and Off..................248
Using Hill Start Assist........................................
248
Hints on Controlling the Interior Climate..........................................................166
Defogging the Side Windows in Cold Weather.............................................................167
General Hints.......................................................166
Quickly Cooling the Interior..............................
167
Quickly Heating the Interior..............................167
Recommended Settings for Cooling..............167
Recommended Settings for Heating..............167
Hints on Driving With Anti-Lock Brakes..........................................................246
Hood Lock See: Opening and Closing the Hood............365
Horn...................................................................98 How Does Adaptive Cruise Control With
Stop and Go Work.....................................278
How Does Speed Sign Recognition Work...............................................................315
How Does the Garage Door Opener Work
...............................................................187
How Does the Rear Occupant Alert System Work...............................................................185
Hybrid Vehicle Frequently Asked Questions....................................................207
I
In California (U.S. Only)...............................344
Information Displays
......................................131
General Information.............................................131
Information Messages
..................................137
Active Park............................................................138
Adaptive Cruise Control....................................138
Adaptive Headlamps..........................................139
AdvanceTrac ™ and Traction Control................139
Alarm......................................................................140
Automatic Engine Shutdown............................140
AWD........................................................................\
.141
Battery and Charging System (12 Volt)..........142
Battery and Charging System (High Voltage).............................................................143 Blind Spot Information and Cross Traffic Alert
System...............................................................144
Doors and Locks..................................................144
Driver Alert............................................................145
Fuel........................................................................\
.146
Hill Start Assist.....................................................146
Keys and Intelligent Access..............................147
Lane Keeping System........................................148
Maintenance.........................................................148
MyKey.....................................................................150
Park Aid...................................................................151
Park Brake.............................................................152
Power Steering....................................................153
Pre-Collision Assist.............................................154
Remote Start.........................................................154
Seats.......................................................................154
Starting System ...................................................155
Tire Pressure Monitoring System....................155
Transmission.........................................................156
Installing Child Restraints.............................28 Child Restraints.....................................................28
Using Lap and Shoulder Belts...........................28
Using Lower Anchors and Tethers for
CHildren (LATCH)..............................................31
Using Tether Straps..............................................33
Instrument Cluster
..........................................118
Instrument Lighting Dimmer.......................103
Instrument Panel
.............................................23
625
Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202007, First-Printing Index
