2021 LEXUS RC350 Owners Manual

571-3. Theft deterrent system
1
For safety and security
■Items to check before locking the
vehicle
To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:
 Nobody is in the vehicle.
 The windows and moon roof (if
equipped) are closed before the
alarm is set.
 No valuables or other personal items are left in the vehicle.
■Setting
Close the doors, trunk and hood, and
lock both side doors. The system will
be set automatically after 30 seconds.
The indicator light changes from being on
to flashing when the system is set.
■Canceling or stopping
Do one of the following to deactivate
or stop the alarms:
 Unlock the doors.
 Open the trunk using the entry
function or wireless remote control.
 Turn the engine switch to ACCES-
SORY or IGNITION ON mode, or
start the engine. (The alarm will be
deactivated or stopped after a few
seconds.)
■System maintenance
The vehicle has a maintenance-free type
alarm system.
■Triggering of the alarm
The alarm may be triggered in the following
situations:
(Stopping the alarm deactivates the alarm
system.)
●For Canada: The doors are unlocked
using the mechanical key.
Alarm
The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the follow-
ing situations when the alarm is set:
 Except for Canada: A locked
door is unlocked or opened in any
way other than using the entry
function, wireless remote control
or mechanical key. (The doors will
lock again automatically.)
 For Canada: A locked door is
unlocked or opened in any way
other than using the entry func-
tion or wireless remote control.
(The doors will lock again auto-
matically.)
 The trunk is opened in any way
other than using the entry func-
tion or wireless remote control.
 The hood is opened.
Setting/canceling/stopping the
alarm system

581-3. Theft deterrent system
●The trunk is opened using the mechanical
key.
●A person inside the vehicle opens a door,
the trunk or hood, or unlocks the vehicle
using an inside lock button.
●The battery is rech arged or replaced
when the vehicle is locked. ( P.321)
■Alarm-operated door lock
In the following cases, depending on the sit-
uation, the door may automatically lock to
prevent improper entry into the vehicle:
●When a person remaining in the vehicle
unlocks the door and the alarm is acti-
vated.
●While the alarm is activated, a person remaining in the vehicle unlocks the door.
●When recharging or replacing the bat-
tery
NOTICE
■To ensure the system operates cor-
rectly
Do not modify or remove the system. If
modified or removed, the proper opera-
tion of the system cannot be guaranteed.

591-3. Theft deterrent system
1
For safety and security

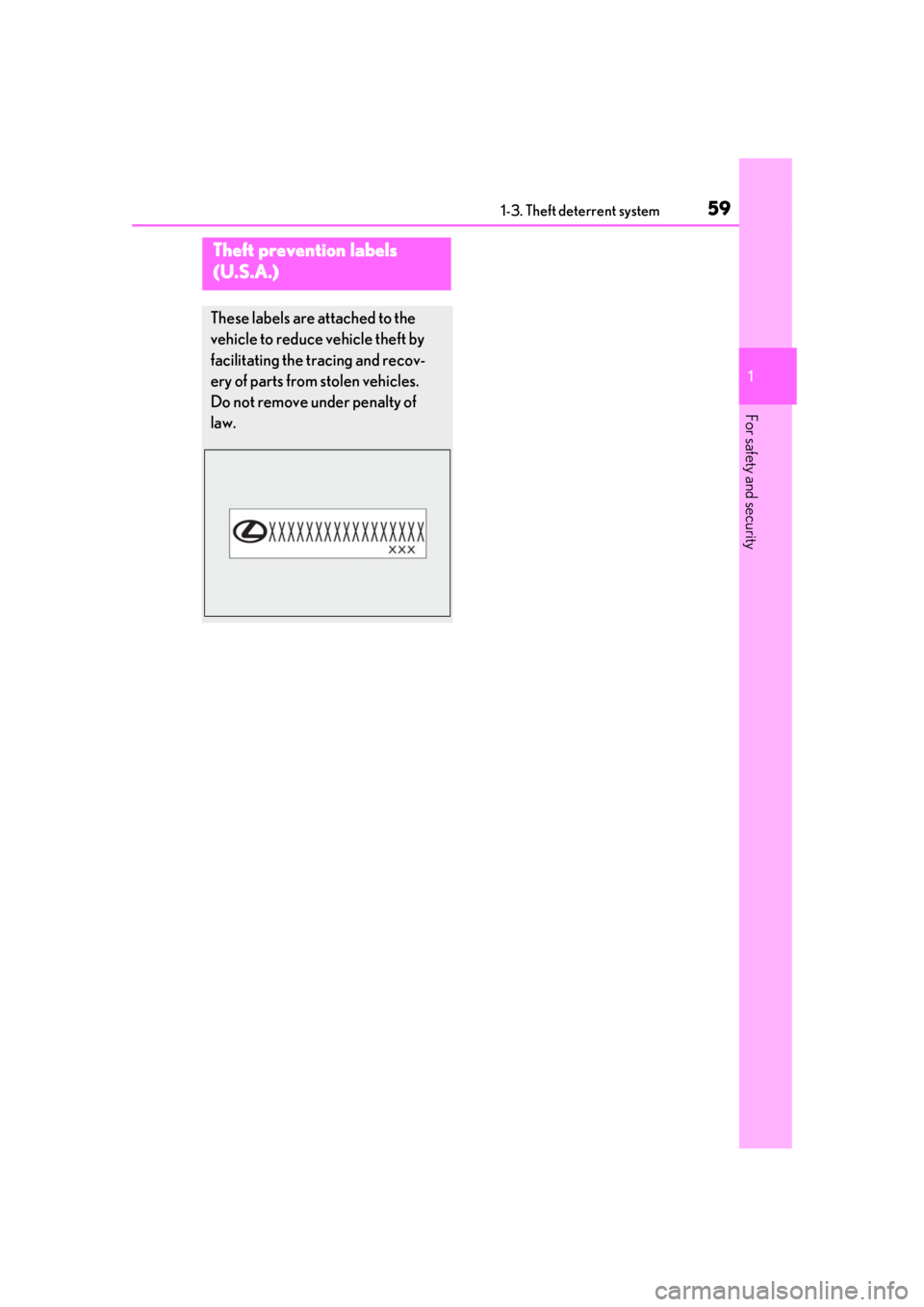

Theft prevention labels
(U.S.A.)
These labels are attached to the
vehicle to reduce vehicle theft by
facilitating the tracing and recov-
ery of parts from stolen vehicles.
Do not remove under penalty of
law.

601-3. Theft deterrent system

61
2
2
Vehicle status information and indicators
Vehicle status informationand indicators
.2-1. Instrument cluster
Warning lights and indicators........................................................... 62
Gauges and meters .................... 66
Multi-information display............ 71
Fuel consumption information ........................................................... 79

622-1. Instrument cluster
2-1.Instrument cluster
For the purpose of explanation, the following illustrations display all warning lights
and indicators illuminated.
Except F SPORT models
F SPORT models
The units used on the meters and some indicators may differ depending on the target
region.
Warning lights and indicators
The warning lights and indicators on th e instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s various
systems.
Warning lights and indicators displayed on the instrument cluster

632-1. Instrument cluster
2
Vehicle status information and indicators
Warning lights inform the driver of mal-
functions in the indicated vehicle sys-
tems.
*1: These lights turn on when the engine switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if a light does not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.
Warning lights
(U.S.A.)
Brake system warning light*1
(  P.295)
(red)
(Canada)
Brake system warning light*1
(  P.295)
(yellow)
Brake system warning light*1
(  P.295)
High coolant temperature
warning light
*2 (  P.295)
Charging system warning
light
*3 (  P.296)
Low engine oil pressure warn-
ing light
*2 (  P.296)
(U.S.A.)
Malfunction indicator lamp*1
(  P.296)
(Canada)
Malfunction indicator lamp*1
(  P.296)
SRS warning light
*1 (  P.296)
(U.S.A.)
ABS warning light*1 ( P.297)
(Canada)
ABS warning light*1 ( P.297)
(flashes)
(U.S.A.)
Parking brake warning light
(  P.300)
(flashes)
(Canada)
Parking brake warning light
(  P.300)
(flashes) Brake hold operated indicator
*1
(  P.295)
Brake Override System warn-
ing light/Drive-Start Control
warning light
*2 (  P.297)
Electric power steering system
warning light
*1 (  P.297)
(orange)
LDA (Lane Departure Alert)
indicator ( P.298)
(flashes or
illuminates)PCS warning light*1 (  P.298)
Slip indicator
*1 (  P.298)
Open door warning light
(  P.299)
Low fuel level warning light
(  P.299)
Driver’s and front passenger’s
seat belt reminder light
(  P.299)
Rear passenger’s seat belt
reminder lights
*4 (  P.299)
Master warning light
*1
(  P.300)
Tire pressure warning light
*1
(  P.300)

642-1. Instrument cluster
*2: This light illuminates on the multi-infor-mation display.
*3: Except F SPORT models: This light illu-minates on the multi-information dis-
play.
F SPORT models: This light illuminates
on the meter.
*4: This light illuminates on the center panel.
The indicators inform the driver of the
operating state of the vehicle’s various
systems.
WARNING
■If a safety system warning light does
not come on
Should a safety system light such as the
ABS and SRS warning light not come on
when you start the engine, this could
mean that these systems are not available
to help protect you in an accident, which
could result in death or serious injury.
Have the vehicle inspected by your
Lexus dealer immediately if this occurs.
Indicators
Turn signal indicator ( P.136)
(U.S.A.)
Headlight indicator ( P.142)
(Canada)
Tail light indicator ( P.142)
Headlight high beam indicator
(  P.143)
Automatic High Beam indica-
tor
*1 (  P.144)
PCS warning light
*1, 2 (  P.164)
Cruise control indicator
(  P.182)
Dynamic radar cruise control
indicator ( P.176)
Cruise control “SET” indicator
(  P.176)
(white)
LDA (Lane Departure Alert)
indicator ( P.171)
(green)
LDA (Lane Departure Alert)
indicator ( P.171)
(orange)
(flashes)
LDA (Lane Departure Alert)
indicator ( P.171)
BSM (Blind Spot Monitor) out-
side rear view mirror indica-
tors
*3, 4 (if equipped) ( P.191)
Intuitive parking assist indicator
(if equipped) ( P.185)
(flashes)
Slip indicator*1 ( P.202)
VSC OFF indicator
*1, 2
(  P.202)
(U.S.A.) Parking brake indicator
(
 P.137)
(Canada) Parking brake indicator
(
 P.137)
Brake hold standby indicator
*1
(  P.139)
Brake hold operated indicator
*1
(  P.139)
Security indicator
*5 (  P.56,
57)
Low outside temperature indi-
cator
*6 (  P.66)
Eco Driving Indicator Light
*1
(  P.74)
