2021 KIA SPORTAGE Screen off

3

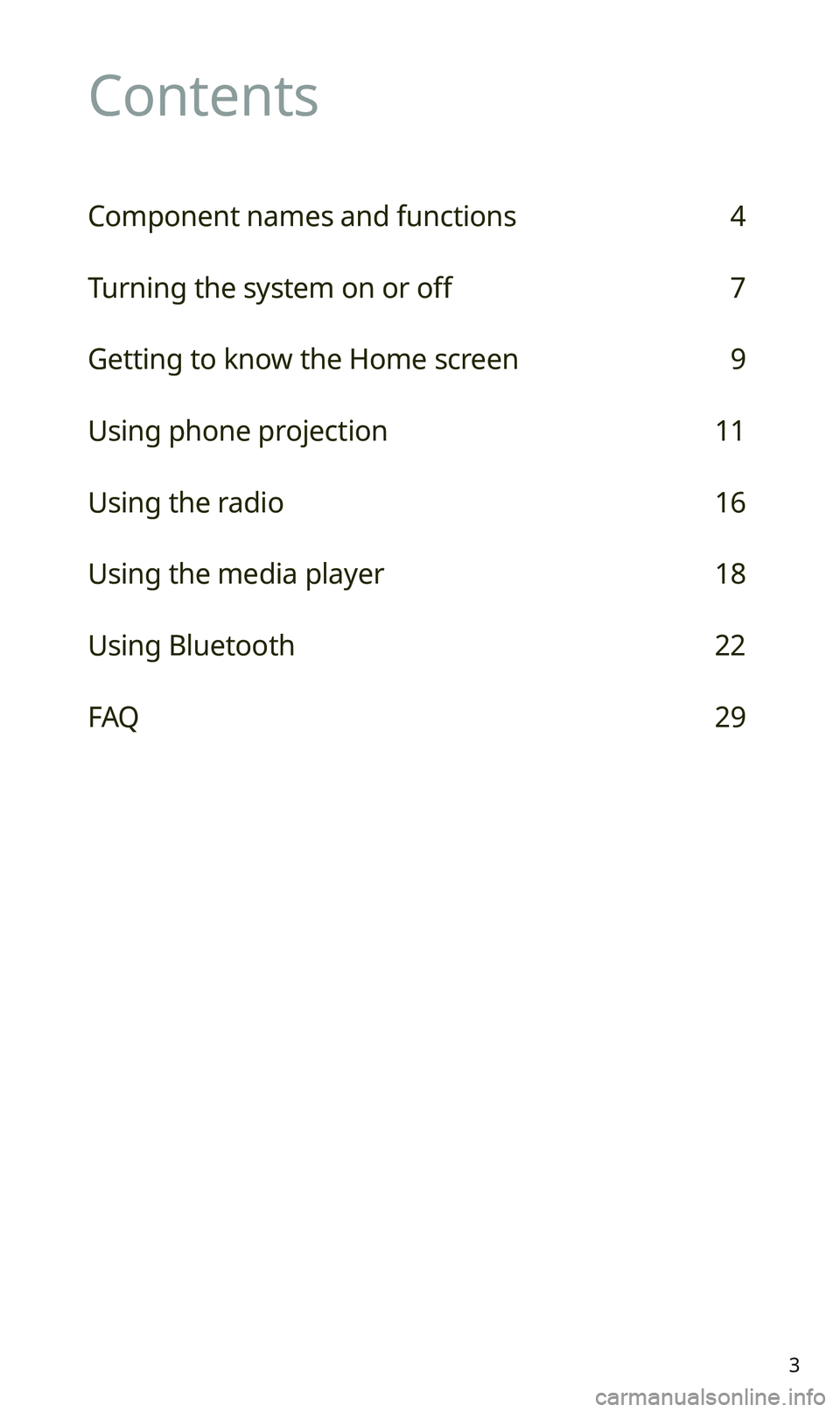

Contents
Component names and functions 4
Turning the system on or off 7
Getting to know the Home screen 9
Using phone projection 11
Using the radio 16
Using the media player 18
Using Bluetooth 22
FAQ 29

4

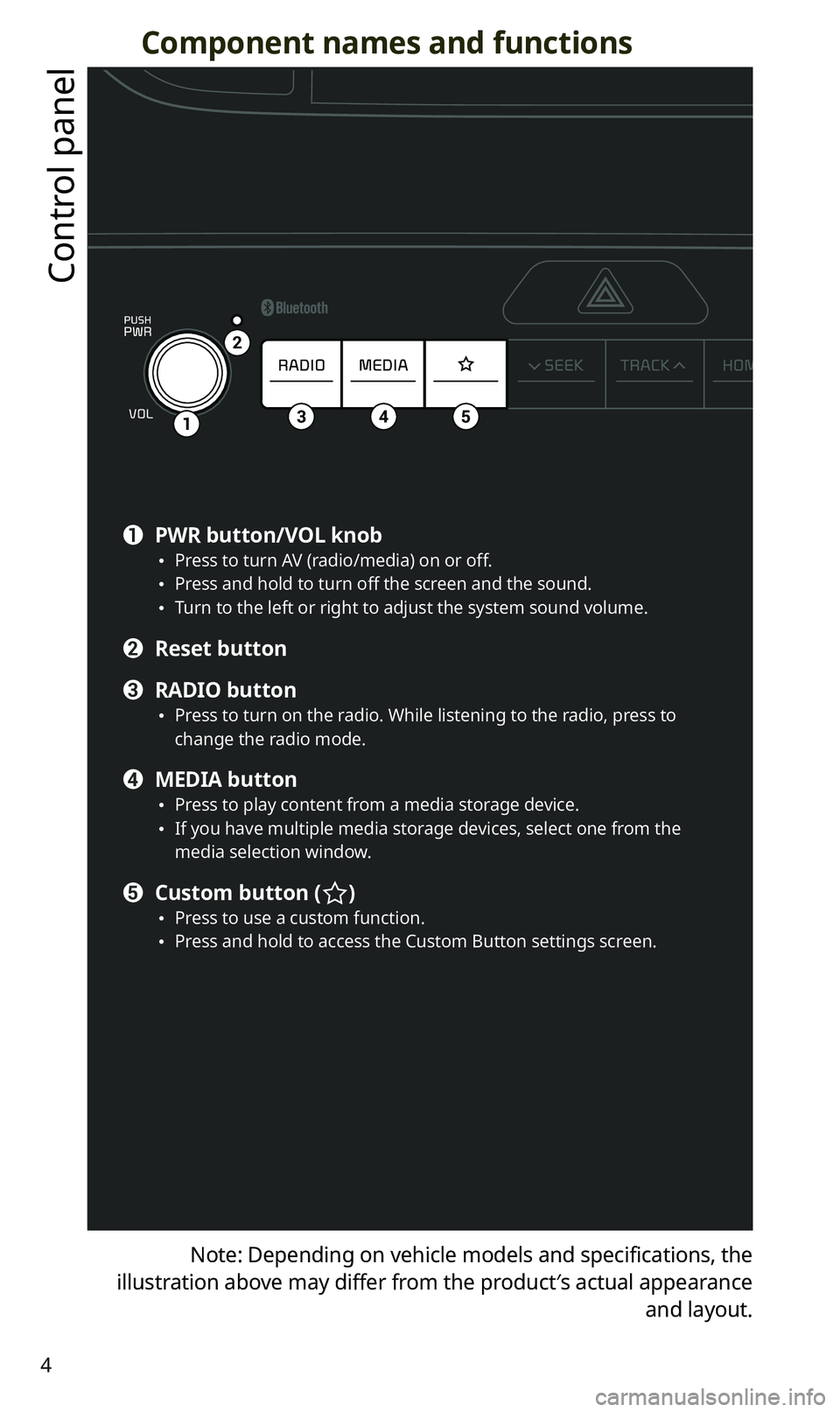

Component names and functions
Control panel
Note: Depending on vehicle models and specifications, the
illustration above may differ from the product′s actual appearance and layout.
12341
2
345
a PWR button/VOL knob \225Press to turn AV (radio/media) on or off. \225Press and hold to turn off the screen and the sound. \225Turn to the left or right to adjust the system sound volume.
b Reset button
c RADIO button \225Press to turn on the radio. While listening to the radio, press to
change the radio mode.
d MEDIA button \225Press to play content from a media storage device. \225If you have multiple media storage devices, select one from the
media selection window.
e Custom button () \225Press to use a custom function. \225Press and hold to access the Custom Button settings screen.

7

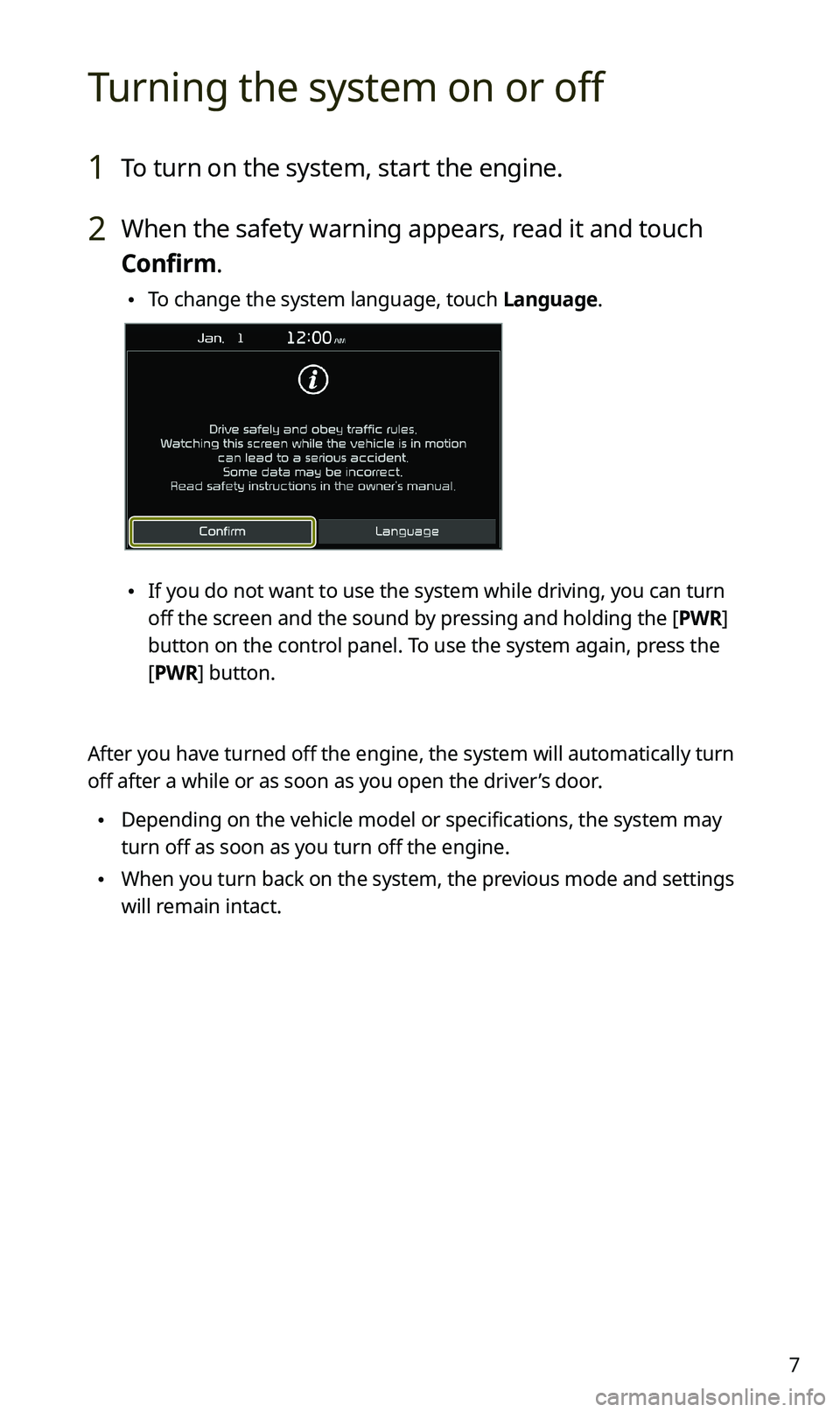

Turning the system on or off
1 To turn on the system, start the engine.
2 When the safety warning appears, read it and touch
Confirm.
\225To change the system language, touch Language.
\225If you do not want to use the system while driving, you can turn
off the screen and the sound by pressing and holding the [ PWR]
button on the control panel. To use the system again, press the
[ PWR] button.
After you have turned off the engine, the system will automatically turn\

off after a while or as soon as you open the driver’s door.
\225 Depending on the vehicle model or specifications, the system may
turn off as soon as you turn off the engine.
\225When you turn back on the system, the previous mode and settings
will remain intact.

10

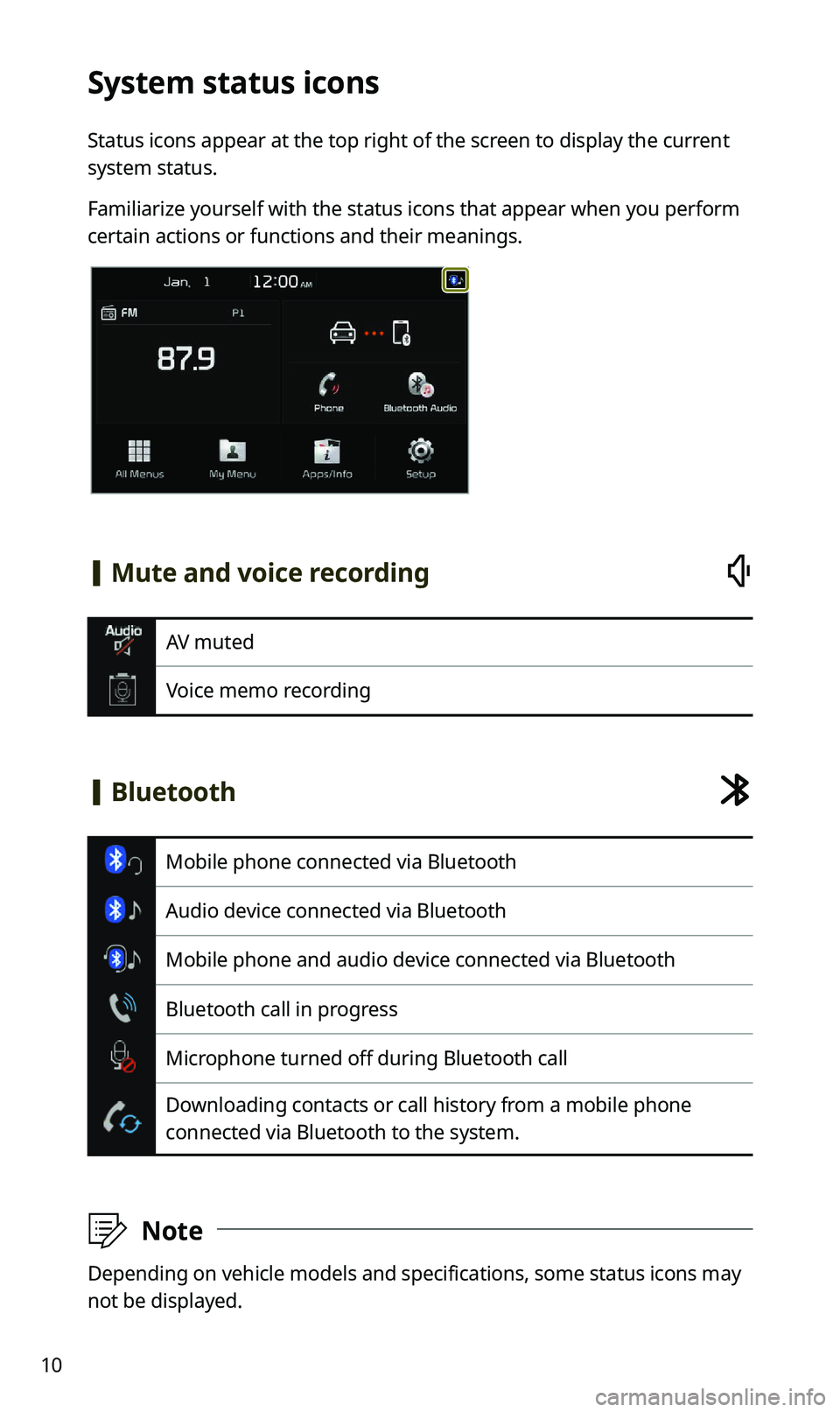

System status icons
Status icons appear at the top right of the screen to display the current
system status.
Familiarize yourself with the status icons that appear when you perform
certain actions or functions and their meanings.
[Mute and voice recording
AV muted
Voice memo recording
[Bluetooth
Mobile phone connected via Bluetooth
Audio device connected via Bluetooth
Mobile phone and audio device connected via Bluetooth
Bluetooth call in progress
Microphone turned off during Bluetooth call
Downloading contacts or call history from a mobile phone
connected via Bluetooth to the system.
\333 Note
Depending on vehicle models and specifications, some status icons may
not be displayed.
