ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER51
SEATING
Driver Position Memory System*†1 4
To store a seating position into memory, first place the shifter into P (Park)
while the ignition switch is ON. Then:
1. Adjust the driver’s seat
2. Press the SET button A on the control panel. System will beep once
3. Press one of the memory buttons B within 5 seconds. The system
will beep twice when memory has been stored
4. “Driver (1 or 2) set is memorized” will appear
on the instrument cluster LCD screen
Do not attempt to operate the driver position memory system while the vehicle is moving. This could result in a loss of control of the vehicle.
Front Seat Headrest Adjustment†1 4
To raise headrest: Pull headrest up.
To lower headrest: Press lock C, then press the headrest down.
SET
1
2
For easy adjustments, hold a headrest post with one hand while using the other hand to pull the headrest from underneath.
QUICK TIP
Do not operate the vehicle with the headrests removed. Headrests can provide critical neck and head support in an accident.
AB
C
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
QR CODES
Rear Occupant Alert (ROA) with Door Monitoring video
SEATING
Check rear seats
: Alarm OffOK
Rear Occupant Alert (ROA)
with Door Monitoring
The Rear Occupant Alert (ROA) with
Door Monitoring can help alert the driver
when a rear passenger may be left in the
vehicle. The alert will be a message on the
Instrument Cluster stating to “Check rear
seats” D and a chime will sound.
The factory default is set to OFF. To turn
the system ON or OFF, go to User Settings
in the Instrument cluster or Vehicle
Settings*, on the audio head unit select
Convenience, then Rear Occupant Alert
and check /uncheck the box.
REMINDER: Always be sure to check the passenger areas before leaving the vehicle.
ROA is not a substitute for one’s attention. Always check the vehicle’s interior before exiting.
See section 4 in the Owner’s Manual for more information.
Image is for illustrative purposes only and may not reflect actual feature or operation.
D

*IF EQUIPPED54NIRO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
HOLD
HOLD
HOLDHOLD
Remote Keyless Entry (Folding Key)*
A Press the release button to unfold the key
B Press to lock All doors; Press twice within two seconds to sound the horn
C Press to unlock Driver’s Door; Press twice in 4 seconds to unlock All Doors
and Liftgate
D Press and hold for more than 1 second to unlock Liftgate. Then lift by the
handle to manually open Liftgate
E Press and hold more than a half second for Panic Alarm. To turn off Alarm,
press any button
Remote button configuration may vary depending on vehicle options. To turn OFF Alarm, press any button.
Refer to section 4 in the Owner’s Manual for more information.
A
B
C
D
E
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
QR CODES
Kia Smart & Folding Key Fobs Video
OTHER KEY FEATURES
OTHER KEY FEATURES

ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER55

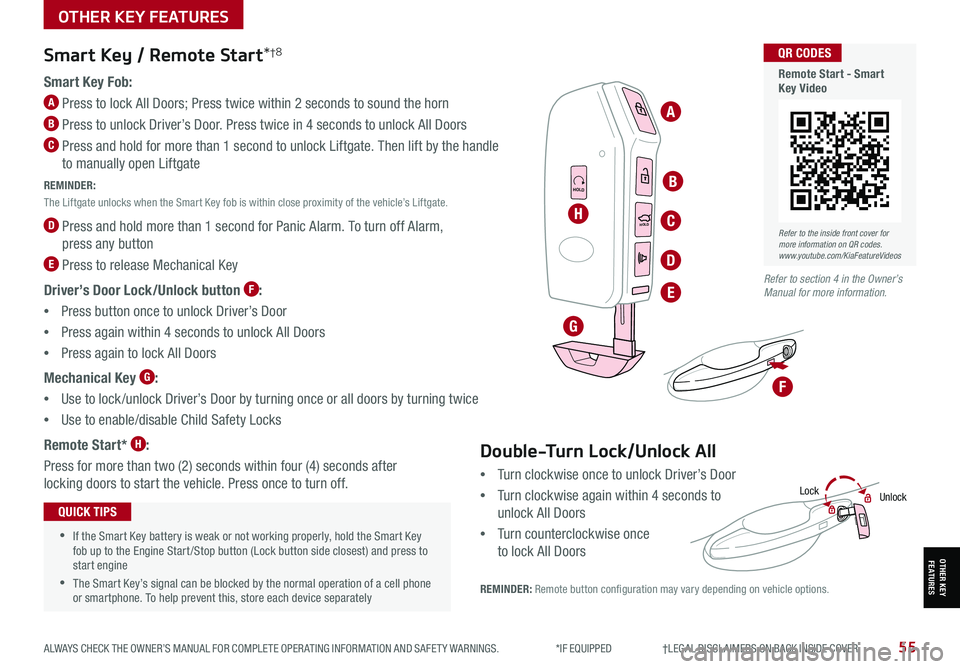

Smart Key / Remote Start*†8
Smart Key Fob:
A Press to lock All Doors; Press twice within 2 seconds to sound the horn
B Press to unlock Driver’s Door. Press twice in 4 seconds to unlock All Doors
C Press and hold for more than 1 second to unlock Liftgate. Then lift by the handle
to manually open Liftgate
REMINDER:

The Liftgate unlocks when the Smart Key fob is within close proximity of the vehicle’s Liftgate.
D Press and hold more than 1 second for Panic Alarm. To turn off Alarm,
press any button
E Press to release Mechanical Key
Driver’s Door Lock/Unlock button F:
•
Press button once to unlock Driver’s Door
•Press again within 4 seconds to unlock All Doors
•Press again to lock All Doors
Mechanical Key G:
•Use to lock /unlock Driver’s Door by turning once or all doors by turning twice
•
Use to enable/disable Child Safety Locks
Remote Start* H:
Press for more than two (2) seconds within four (4) seconds after
locking doors to start the vehicle. Press once to turn off.

•If the Smart Key battery is weak or not working properly, hold the Smart Key fob up to the Engine Start /Stop button (Lock button side closest) and press to start engine
•The Smart Key’s signal can be blocked by the normal operation of a cell phone or smartphone. To help prevent this, store each device separately
QUICK TIPS
REMINDER: Remote button configuration may vary depending on vehicle options.
Double-Turn Lock/Unlock All
•Turn clockwise once to unlock Driver’s Door
•Turn clockwise again within 4 seconds to
unlock All Doors
•Turn counterclockwise once
to lock All Doors
LockUnlock
F
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
QR CODES
Remote Start - Smart Key Video
Refer to section 4 in the Owner’s Manual for more information.
HOLD
HOLD
HOLDHOLDG
H
OTHER KEY FEATURES
OTHER KEY FEATURES
A
B
C
D
E

*IF EQUIPPED56NIRO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
OTHER KEY FEATURES
OTHER KEY FEATURES
Map/Room Lamps
Automatic turn off function*
The interior lights automatically turn
off approximately 30 seconds after
the Engine Start /Stop button is OFF.
Map Lamp/Room Lamp Operation
Push the lens A to turn the map
lamp ON/OFF. This light produces a
spot beam for convenient use as a
map lamp or as a personal lamp for
the driver or the front passenger.
Map/Room Lamp Button – Press
button B to turn the front and rear
room lamps on and off.
Door Mode Button – Press button C
to enable or disable Door Mode. In Door
Mode the map and room lamps turn on when any door is
opened. When all doors are locked or the ignition is on,
the map and room lamp will turn off immediately.
Rear Room Lamps – Press the button D to turn the
rear passenger lamp ON/OFF.

•When doors are unlocked by the Smart Key*, the lamp turns ON for approximately 30 seconds
•If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 3 seconds after the system is in armed stage
•Using interior lights for an extended period of time may cause battery discharge
QUICK TIPS
Sunroof Operation*
The Sunroof and Sunshade operation is controlled
through a multidirectional switch/lever, and the
ignition needs to be in the ON position to operate
the Sunroof/Sunshade.
Slide the Sunshade and Sunroof:
•
Auto Open: Slide lever E backward to the
farthest position and release
•
Auto Close (Sunroof only): Slide the lever E
forward to the farthest position and release
Slide the Sunroof (with Sunshade open):
•
Open: Press the Sunroof lever E backward
and press again forward/backward until you
reach the desired detent position (manual
slide feature)
• Close: Press the Sunroof lever E forward and press again forward/backward
until you reach the desired detent position (manual slide feature)
Tilt the Sunroof:
•Raise: Push lever E upward
•Lower: Push lever E forward
REMINDER: Sunshade needs to remain OPEN while Sunroof is open and vehicle is moving.
To stop the Sunroof at any position, push or pull the Sunroof control lever in any direction.
QUICK TIP
Do not adjust the Sunroof or Sunshade while driving. This could result in loss of control of the vehicle.
( Type A )
( Type B)
D
C
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
QR CODES
Sunroof Video
Refer to section 4 in the Owner’s Manual for more information.
AA
B
E
