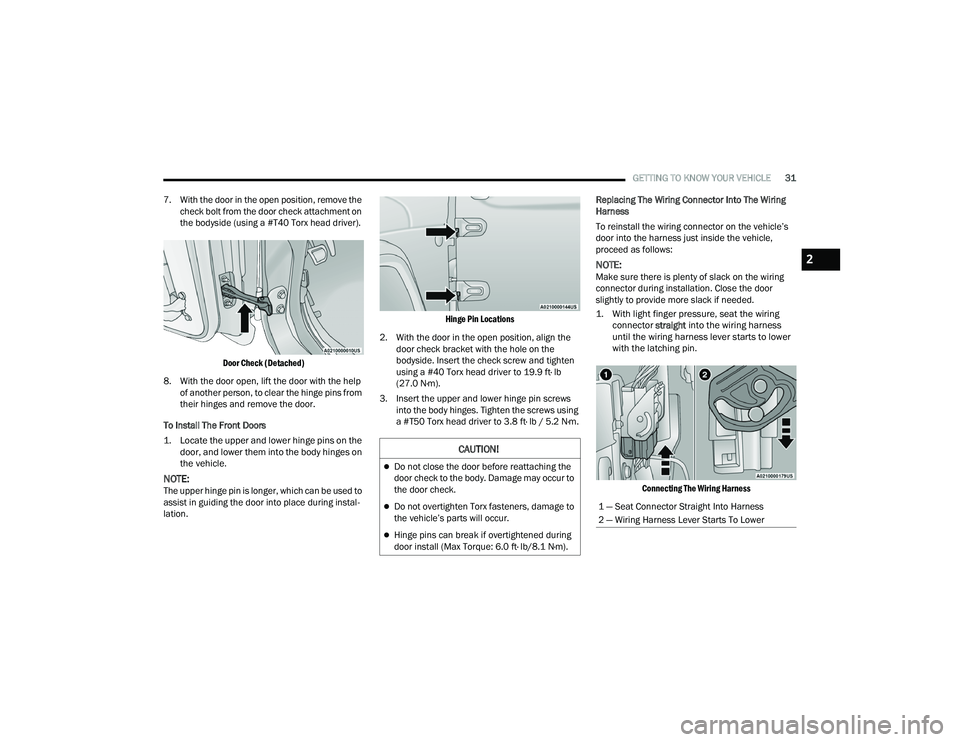

CAUTION!
Do not close the door before reattaching the
door check to the body. Damage may occur to
the door check.
Do not overtighten Torx fasteners, damage to
the vehicle’s parts will occur.
Hinge pins can break if overtightened during
door install (Max Torque: 6.0 ft· lb/8.1 N·myf .
1 — Seat Connector Straight Into Harness
2 — Wiring Harness Lever Starts To Lower
2
21_JL_OM_EN_USC_t.book Page 31
WARNING!
Do not drive your vehicle on public roads with
the door frame(syf U H P R Y H G D V \ R X Z L O O O R V H W K H
protection that they can provide. This proce-
dure is furnished for use during off-road oper -
ation only.
Do not drive your vehicle on public roads with
the doors removed as you will lose the protec -
tion that they can provide. This procedure is
furnished for use during off-road operation
only.

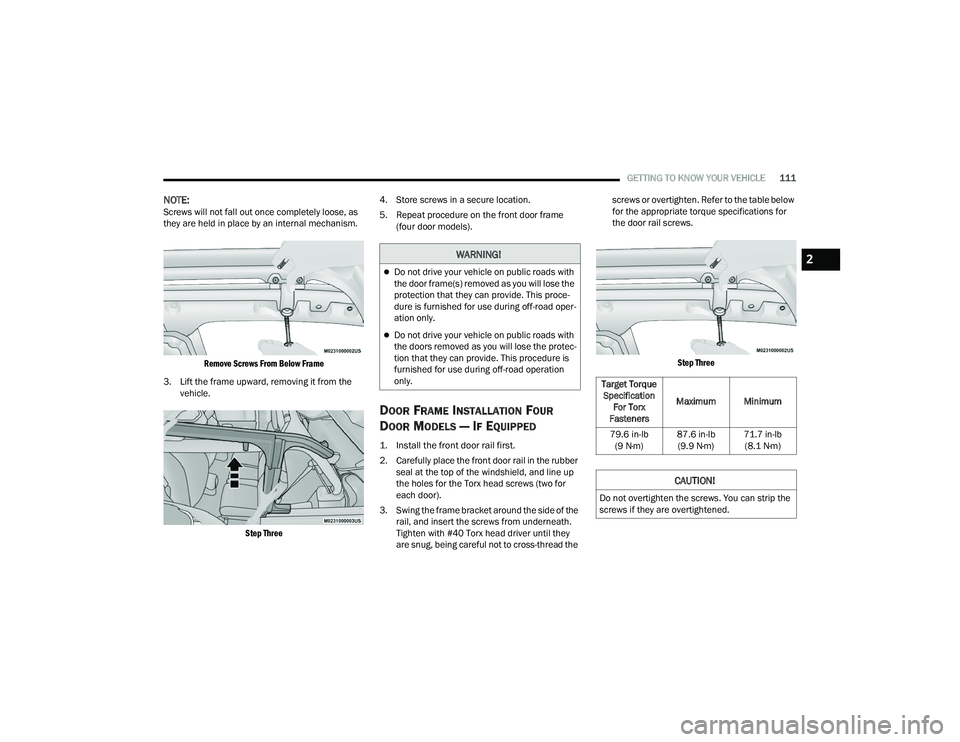

Target Torque Specification For Torx
Fasteners Maximum Minimum
79.6 in-lb (9 N·myf 87.6 in-lb
(9.9 N·myf 71.7 in-lb
(8.1 N·myf
CAUTION!
Do not overtighten the screws. You can strip the
screws if they are overtightened.
2
21_JL_OM_EN_USC_t.book Page 111
: $ 5 1 , 1 *
In the ESC “Full Off” mode, the engine torque
reduction and stability features are disabled.
Therefore, enhanced vehicle stability offered
by the ESC system is unavailable. In an emer-
gency evasive maneuver, the ESC system will
not engage to assist in maintaining stability.
ESC “Full Off” mode is intended for
off-highway or off-road use only.
The Electronic Stability Control (ESCyf F D Q Q R W
prevent the natural laws of physics from
acting on the vehicle, nor can it increase the
traction afforded by prevailing road condi -
tions. ESC cannot prevent all accidents,
including those resulting from excessive
speed in turns, driving on very slippery
surfaces, or hydroplaning. ESC also cannot
prevent collisions.
6
