2021 INFINITI QX80 Owner's Manual

0-12Illustrated table of contents
JVC1182X
1. Tachometer (P.2-8)
2. Warning and indicator lights (P.2-11)
3. Vehicle information display (P.2-20)/Odometer/twin trip odometer (P.2-7)
4. Speedometer (P.2-7) 5. Engine coolant temperature gauge
(P.2-8)
6. Fuel gauge (P.2-9)
METERS AND GAUGES

WAA0134X
VK56VD ENGINE
1. Window washer fluid reservoir(P.8-10)
2. Fuse/fusible link holder (P.8-18)
3. Engine oil dipstick (P.8-6)
4. Power steering fluid reservoir (P.8-8) 5. Engine oil filler cap (P.8-6)
6. Brake fluid reservoir (P.8-9)
7. Fuse/fusible link holder (P.8-18)
8. Battery (P.8-11)
9. Radiator filler cap (P.8-4)
10. Engine coolant reservoir (P.8-4)11. Drive belts (P.8-13)
12. Air cleaner (P.8-14)
Illustrated table of contents0-13
ENGINE COMPARTMENT

0-14Illustrated table of contents
Red lightNamePage
Automatic Transmission (AT)
oil temperature warning light 2-12
Automatic Transmission (AT)
park warning light2-12
Brake warning light
2-12
Charge warning light 2-13
Engine oil pressure warning
light2-13
Master warning light 2-14
Seat belt warning light 2-14
Security indicator light 2-14
Supplemental air bag warn-
ing light2-14Yellow
light Name Page
Adaptive Front lighting Sys-
tem (AFS) indicator light (if so
equipped) 2-15
Anti-lock Braking System
(ABS) warning light
2-15
Automatic Transmission (AT)
check warning light2-15
Check suspension indicator
light2-15
Four-Wheel Drive (4WD)
warning light (4WD models)
2-15
Forward Emergency Braking
(FEB) system warning light2-16
Low tire pressure warning
light
2-16
Malfunction Indicator Light
(MIL) 2-17
Master warning light 2-18
Vehicle Dynamic Control
(VDC) off indicator light2-18
Vehicle Dynamic Control
(VDC) warning light
2-18Other
light Name Page
Exterior light indicator
2-19
Front fog light indicator light2-19
Front passenger air bag sta-
tus light2-19
High beam assist indicator
light
2-19
High beam indicator light
2-19
TOW mode indicator light 2-19
Turn signal/hazard indicator
lights2-19
WARNING AND INDICATOR LIGHTS

1 Safety — seats, seat belts and supplementalrestraint system
Seats ........................................................................\
.............. 1-3
Front seats .................................................................... 1-4
2nd row seats ............................................................... 1-5
3rd row seats ............................................................... 1-8
Armrest (if so equipped) .......................................... 1-10
Flexible seating .......................................................... 1-10
Head restraints/headrests ........................................... 1-13 Adjustable head
restraint/headrest components ............................ 1-14
Non-adjustable head
restraint/headrest components ............................ 1-15
Remove ........................................................................\
1-15
Install ........................................................................\
.... 1-16
Adjust ........................................................................\
... 1-16
Front-seat Active Head Restraint ........................ 1-17
Seat belts ........................................................................\
.. 1-18
Precautions on seat belt usage ............................. 1-18
Pregnant women ....................................................... 1-21
Injured persons ........................................................... 1-21
Pre-crash seat belts with comfort function
(if so equipped for front seats) ............................. 1-21
Three-point type seat belt ...................................... 1-21
Seat belt extenders ................................................... 1-28
Seat belt maintenance ............................................. 1-28 Child safety ...................................................................... 1-29
Infants ........................................................................\
1-30
Small children ........................................................... 1-30
Larger children ......................................................... 1-30
Child restraints ................................................................ 1-31 Precautions on child restraints ............................ 1-31
Lower Anchors and Tethers for CHildren
System (LATCH) ...................................................... 1-33
Top tether strap child restraint ........................... 1-36
Rear-facing child restraint installation
using LATCH ............................................................ 1-37
Rear-facing child restraint installation using
the seat belts ............................................................ 1-39
Forward-facing child restraint installation
using LATCH ............................................................ 1-41
Forward-facing child restraint installation
using the seat belts ................................................ 1-44
Booster seats ........................................................... 1-48
Supplemental restraint system .................................. 1-52
Precautions on supplemental
restraint system ....................................................... 1-52
INFINITI Advanced Air Bag System
(front seats) .............................................................. 1-58
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
and rollover supplemental air bag systems ..... 1-65

Seat belts with pretensioners (front seats) ....... 1-67
Supplemental air bag warning labels .................. 1-68Supplemental air bag warning light ................... 1-69
Repair and replacement procedure .................... 1-69

SSS0133

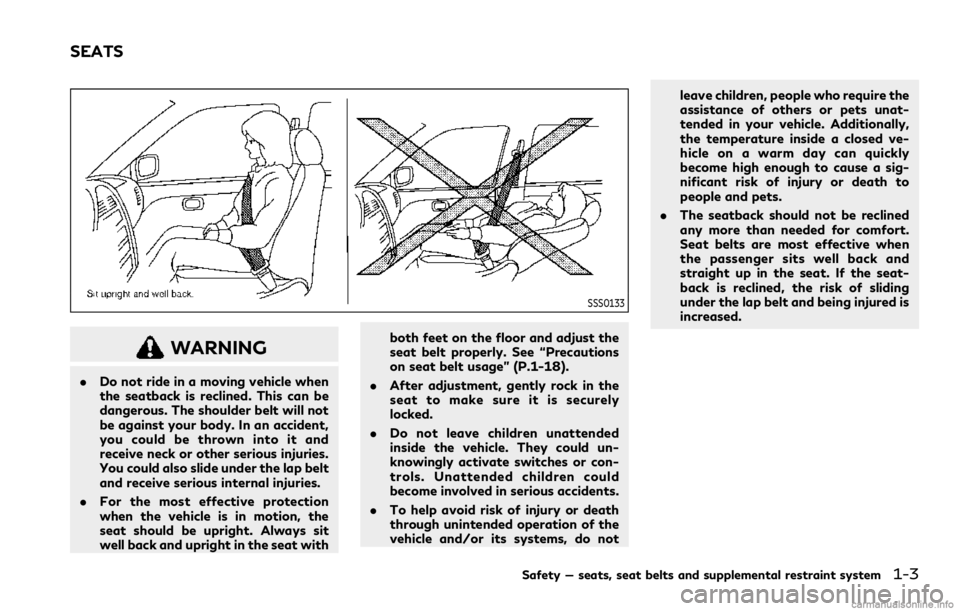

WARNING
.Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and
receive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back and upright in the seat with both feet on the floor and adjust the
seat belt properly. See “Precautions
on seat belt usage” (P.1-18).
. After adjustment, gently rock in the
seat to make sure it is securely
locked.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious accidents.
. To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly
become high enough to cause a sig-
nificant risk of injury or death to
people and pets.
. The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured is
increased.
Safety — seats, seat belts and supplemental restraint system1-3
SEATS

1-4Safety — seats, seat belts and supplemental restraint system
FRONT SEATS
Front power seat adjustment
Operating tips:
.The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
. Do not operate the power seat switch for
a long period of time when the engine is
off. This will discharge the battery.
See “Automatic drive positioner” (P.3-40)
for the seat position memory function.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damages.
SSS1051
Forward and backward:
Moving the switch
forward or backward
will slide the seat forward or backward to
the desired position.
Reclining:
Move the recline switch
backward until
the desired angle is obtained. To bring the
seatback forward again, move the switch
forward.
The reclining feature allows adjustment of
the seatback for occupants of different sizes
for added comfort and to help obtain proper
seat belt fit. (See “Precautions on seat belt
usage” (P.1-18).) Also, the seatback can be
reclined to allow occupants to rest when the vehicle is stopped and the transmission is in
the P (Park) position.

SSS1052
Seat lifter:
1. Pull up or push down the adjustingswitch to adjust the seat height until
the desired position is achieved.
2. Tilt up or down the adjusting switch to adjust the front angle of the seat until
the desired position is achieved (for
driver’s seat).
SSS1053
Lumbar support:
The lumbar support feature provides lower
back support to the occupants.
Push the front or back end of the switch to
adjust the seatback lumbar area.
2ND ROW SEATS

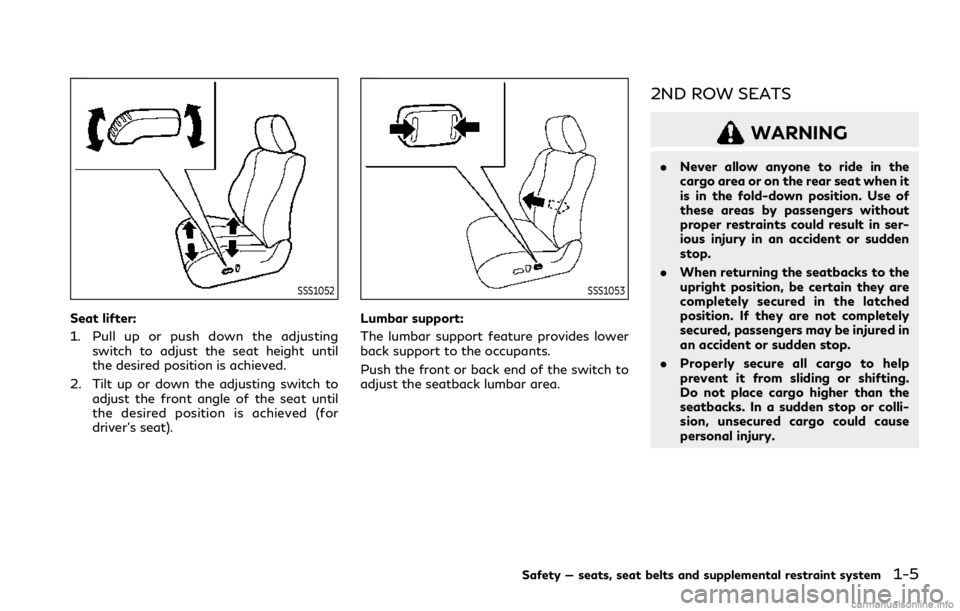

WARNING
.Never allow anyone to ride in the
cargo area or on the rear seat when it
is in the fold-down position. Use of
these areas by passengers without
proper restraints could result in ser-
ious injury in an accident or sudden
stop.
. When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched
position. If they are not completely
secured, passengers may be injured in
an accident or sudden stop.
. Properly secure all cargo to help
prevent it from sliding or shifting.
Do not place cargo higher than the
seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause
personal injury.
Safety — seats, seat belts and supplemental restraint system1-5
