2021 HYUNDAI TUCSON HYBRID tailgate

04
4-37

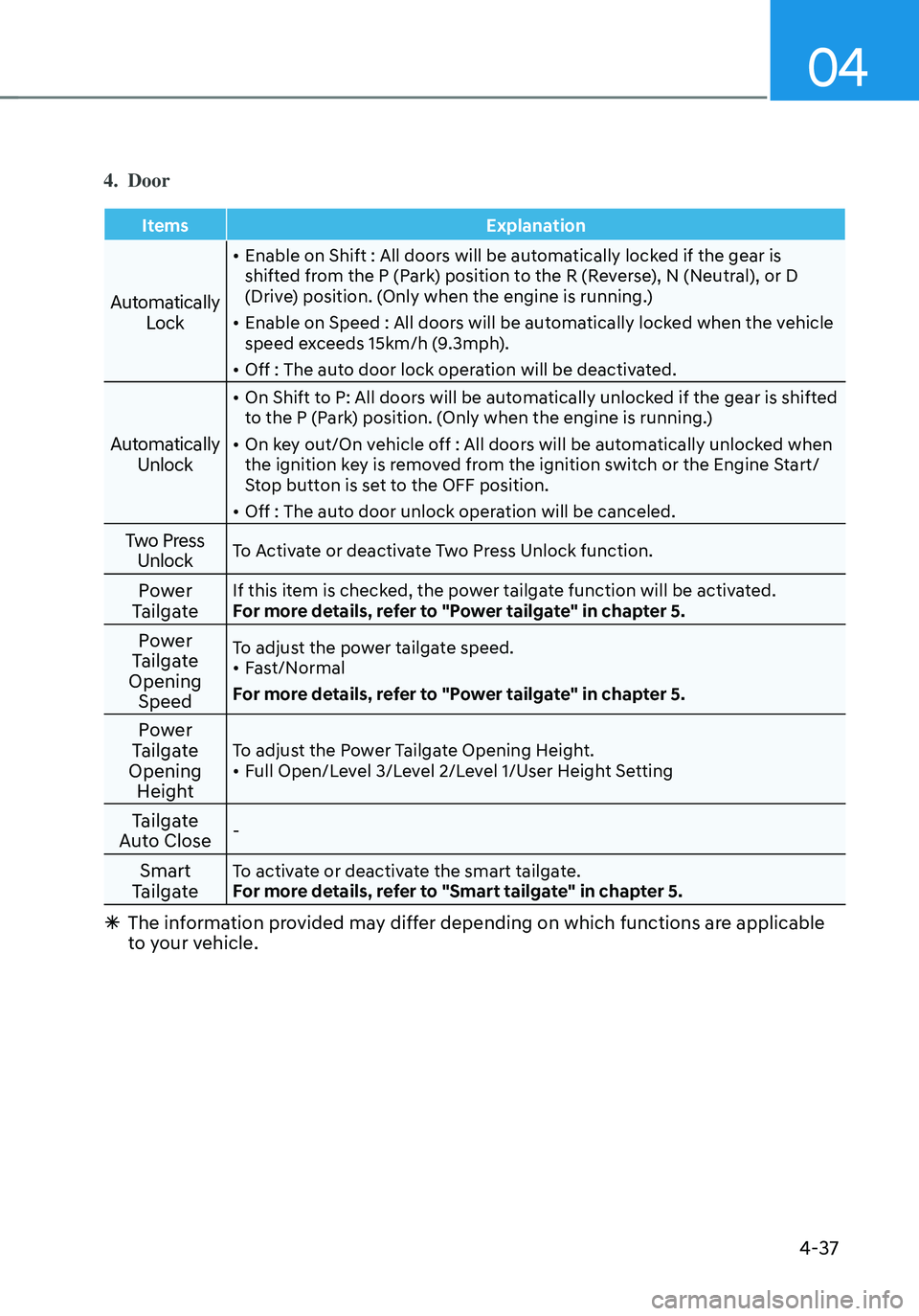

4. Door
ItemsExplanation
Automatically
Lock
• Enable on Shift : All doors will be automatically locked if the gear is
shifted from the P (Park) position to the R (Reverse), N (Neutral), or D
(Drive) position. (Only when the engine is running.)
• Enable on Speed : All doors will be automatically locked when the vehicle
speed exceeds 15km/h (9.3mph).
• Off : The auto door lock operation will be deactivated.
Automatically Unlock
• On Shift to P: All doors will be automatically unlocked if the gear is shifted
to the P (Park) position. (Only when the engine is running.)
• On key out/On vehicle off : All doors will be automatically unlocked when
the ignition key is removed from the ignition switch or the Engine Start/
Stop button is set to the OFF position.
• Off : The auto door unlock operation will be canceled.
Two Press UnlockTo Activate or deactivate Two Press Unlock function.
Power
TailgateIf this item is checked, the power tailgate function will be activated.
For more details, refer to "Power tailgate" in chapter 5.
Power
Tailgate
Opening SpeedTo adjust the power tailgate speed.• Fast/Normal
For more details, refer to "Power tailgate" in chapter 5.
Power
Tailgate
Opening HeightTo adjust the Power Tailgate Opening Height.• Full Open/Level 3/Level 2/Level 1/User Height Setting
Tailgate
Auto Close-
Smart
TailgateTo activate or deactivate the smart tailgate.
For more details, refer to "Smart tailgate" in chapter 5.
à The information provided may differ depending on which functions are applicable
to your vehicle.

05
5-75

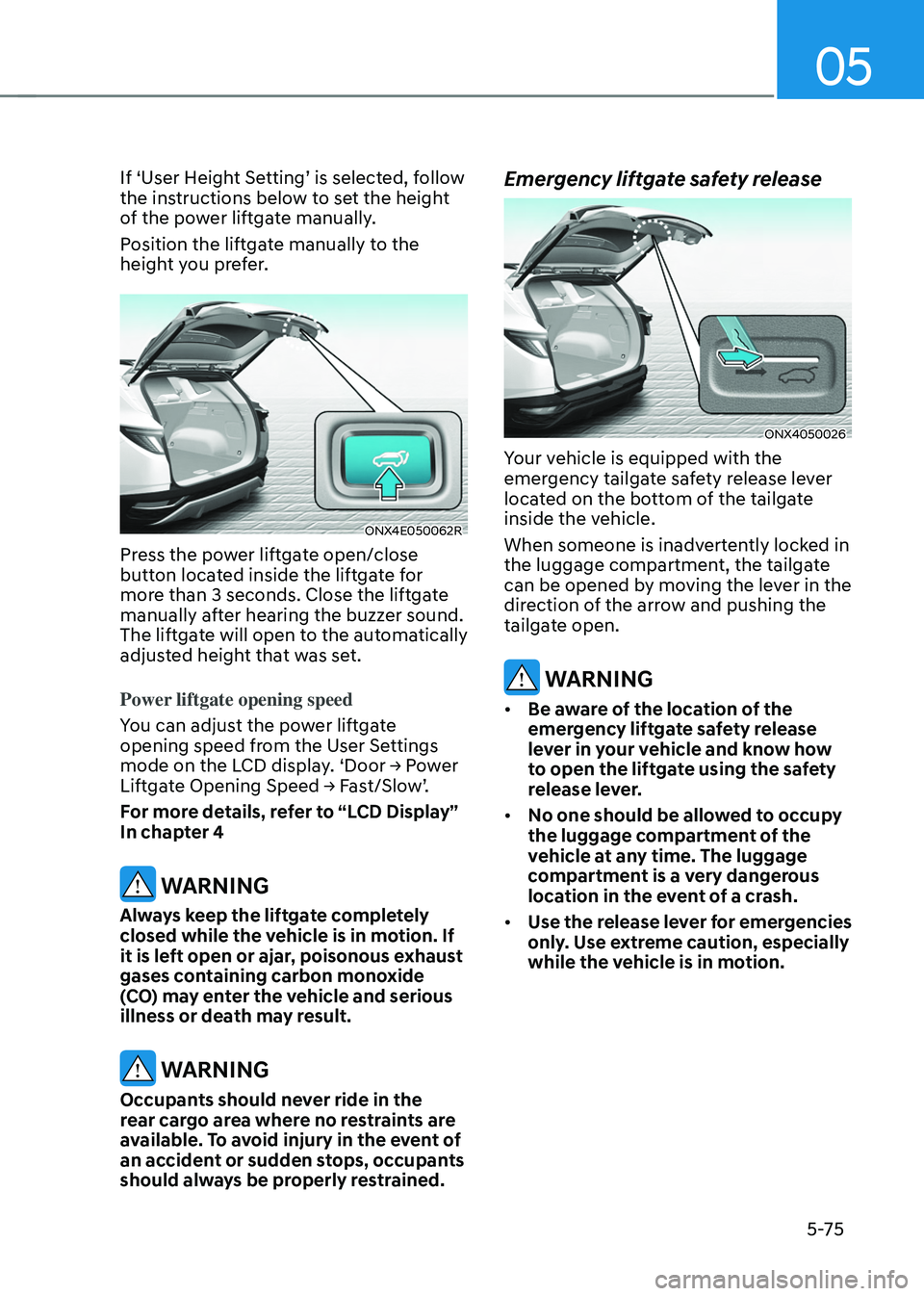

If ‘User Height Setting’ is selected, follow
the instructions below to set the height
of the power liftgate manually.
Position the liftgate manually to the
height you prefer.
ONX4E050062R
Press the power liftgate open/close
button located inside the liftgate for
more than 3 seconds. Close the liftgate
manually after hearing the buzzer sound.
The liftgate will open to the automatically
adjusted height that was set.
Power liftgate opening speed
You can adjust the power liftgate
opening speed from the User Settings
mode
on the L
CD
displa
y.
‘Door → P
ower
Liftga

te
Opening Speed → F
ast/Slow’.
For more details, refer to “LCD Display”
In chapter 4
WARNING
Always keep the liftgate completely
closed while the vehicle is in motion. If
it is left open or ajar, poisonous exhaust
gases containing carbon monoxide
(CO) may enter the vehicle and serious
illness or death may result.
WARNING
Occupants should never ride in the
rear cargo area where no restraints are
available. To avoid injury in the event of
an accident or sudden stops, occupants
should always be properly restrained.
Emergency liftgate safety release
ONX4050026
Your vehicle is equipped with the
emergency tailgate safety release lever
located on the bottom of the tailgate
inside the vehicle.
When someone is inadvertently locked in
the luggage compartment, the tailgate
can be opened by moving the lever in the
direction of the arrow and pushing the
tailgate open.
WARNING
• Be aware of the location of the
emergency liftgate safety release
lever in your vehicle and know how
to open the liftgate using the safety
release lever.
• No one should be allowed to occupy
the luggage compartment of the
vehicle at any time. The luggage
compartment is a very dangerous
location in the event of a crash.
• Use the release lever for emergencies
only. Use extreme caution, especially
while the vehicle is in motion.

Maintenance
9-44
Instrument panel fuse panel
Fuse Name Fuse ratingCircuit Protected
DR Lock 20ADead Lock Relay, Data Link Connector, Door Unlock/Lock
Relay
P/WDW RH 25A Power Window Main Switch, Passenger Power Window
Switch (LHD)
P/WDW LH 25A Power Window Main Switch, Passenger Power Window
Switch (RHD)
Seat Warmer (RR) 20A
Rear Seat Warmer Control Module
Seat Warmer (DR/PS) 20AFront Seat Warmer Control Module, Front Air Ventilation
Seat Control Module
P/Seat(PS) 30APassenger Power Seat Switch, Passenger Seat Relay Unit
ECS 15A ECS Unit
Safety
Window RH 25ADriver(LHD)/Passenger(RHD) Safety Power Window Module,
Rear Safety Power Window Module RH
Sunroof1 20ASunroof Control Unit (Blind)
P/Seat(DR) 30ADriver Power Seat Switch, Driver IMS Control Module
A/BAG2 10ASRS Control Module
AMP 25A AMP
Module17 10A"Driver/Passenger Smart Key Outside Handle, Crash Pad
Switch, Hazard Switch, UIP Sensor
UIP Siren, Data Link Connector, Rain Sensor"
Sunroof1 20ASunroof Control Unit (Glass)
IBU2 10AIBU, Ignition Switch
Safety
Window LH 25ADriver(RHD)/Passenger(LHD) Safety Power Window Module,
Rear Safety Power Window Module LH
10A 10AOutside Mirror Folding/Unfolding Relay, ROA Sensor, Driver
IMS Control Module, Power Tailgate Unit, Driver/Passenger
Door Mood Lmap, A/C Control Module, Console Mood
Lamp, Instrument Cluster, Mood Lamp Unit, A/C Control
Switch, Crash Pad Mood Lamp
Brake Switch 10AIBU, Stop Lamp Switch

09
9-45
Fuse Name Fuse ratingCircuit Protected
E-Call 10AE-Call Unit
Module7 7.5A IBU PTG 10ATailgate Relay
Multi Media 20AAudio, A/V & Navigation Head Unit
Washer 15A Multifunction Switch
Module8 7.5A Front/Rear Seat Warmer Control Module, Front Air
Ventilation Seat Control Module
A/BAG1 15A SRS Control Module
A/C 7.5A Electronic A/C Compressor, Front/Rear A/C Control Switch
A/C Control Module, E/R Junction Block (RLY.10, RLY.13)
Module2 15A Front USB Charge Connector, Rear USB Charge Connector
Module1 10AE-Call Unit, Audio, A/V & Navigation Head Unit, AMP, Audio
Keyboard, A/V & Navigation Keyboard, IBU, BMS, Integrated
Parking Assist Unit, Power Outside Mirror Switch
Module6 10AFront Console Switch, EPB Switch
IBU1 7.5A IBU
Module5 10AFront/Rear Seat Warmer Control Module, E-Call Unit, AMP,
Driver IMS Control Module, Front/Rear A/C Control Switch,
Audio, A/V & Navigation Head Unit, Wireless Charger
Unit, Front Air Ventilation Seat Control Module, Data Link
Connector, A/C Control Module, Heat Lamp LH/RH, Electro
Chromic Mirror
A/BAG IND. 7.5A Instrument Cluster, Overhead Console Lamp
IG3 4 10AHPCU
IG3 2 10AElectronic Water Pump (HEV)
Module4 7.5A Multifunction Front View Camera, IBU, AWD ECM, VESS
Unit, Crash Pad Switch, ECS Unit, Integrated Parking Assist
Unit
E-Shifter 7.5A Electronic Shift Switch, SCU

Maintenance
9-48
Engine compartment fuse panel
Fuse Name Fuse ratingCircuit Protected
MDPS 80A/100A MDPS Unit (Column Type-80A) / MDPS Unit (Rack Type-
100A)
C/FAN 80ACooling Fan Motor
B+1 60AICU Junction Block (IPS01, IPS02, IPS03, IPS04, IPS05)
B+3 60AICU Junction Block (Power Window Main Relay, Fuse : F2,
F3, F5, F6, F8, F9, F11, F12, F18, F15)
CVVD 50ACVVD Actuator
Bower 40AE/R Junction Block (RLY.10)
IEB3 40AIEB Unit
Rear Defogger 40AE/R Junction Block (RLY.14)
Trailer1 50ATrailer Connector Unit
B+4 50AICU Junction Block (Long Term Load Latch Relay, Fuse : F1,
F4, F14, F17, F20, F21, F24, F27)
IEB2 60AIEB Unit
IEB1 60AIEB Unit
B+2 50AICU Junction Block (IPS06, IPS07, IPS08, IPS10, IPS11)
PTC Heater 50AE/R Junction Block (RLY.13)
PTG 40APower Tailgate Unit
E-Shifter1 30ASCU
Fuel Pump 20AE/R Junction Block (RLY.7)
AWD 20AAWD ECM
ECU4 10AECM
IG3 20AE/R Junction Block (RLY.3)
