Vehicle Information, Consumer Information and Reporting Safety Defects
1. Inside door handle .................................
5- 32
2.
Po
wer window switches
...................... 5-58
3.
Po

wer window lock button /
............... 5-60
Electr

onic child safety lock button
......5-

36
4.
Side view mirr

or folding button
.................5-56
5.
Side view mirr

or control switch
.................5-56
6.
Centr

al door lock switch
...................... 5-

33
7.
Instrumen

t panel illumination control
switch
...................................................... 4-5
8.
Lane Saf

ety button
................................ 7

-19
9.
Po

wer Liftgate open/close button
......5-

7010. ESC (Electronic S
tability Control) OFF
button
.................................................... 6-44
11.
EPB (Electronic P

arking Brake)
switch
.................................................... 6-35
12.
St

eering wheel
......................................5-42
13.
St

eering wheel tilt/telescopic switch.. 5-43
14.
Fuse bo

x
................................................9-42
15.
Hood r

elease lever
................................5-67
16.
Seat .......................................................... 3-3
INTERIOR OVERVIEW
The actual shape may differ from the illustration.
OTMA020001C

AUTO STOP indicator light ........................................................................\
..............4-20
T urn signal indicator light ........................................................................\
................. 4-
21
High beam indicator light
........................................................................\
................ 4-

21
High Beam Assist indicator light
........................................................................\
...... 4-

21
Cruise Indicator Light
........................................................................\
....................... 4-

21
SPORT Mode Indicator Light
........................................................................\
........... 4-

22
ECO Mode Indicator Light
........................................................................\
............... 4-

22
SMART Mode Indicator Light
........................................................................\
.......... 4-22
Mas

ter warning light
........................................................................\
........................ 4-

22
LCD display messages
........................................................................\
....................... 4-

23
Shift to P (for smart key system)
........................................................................\
..... 4-

23
Low key battery (for smart key system).................................................................. 4-23
Press START button while turning wheel (for smart key system)
......................... 4-

23
Check steering wheel lock system
(for smart key system)
........................................................................\
..................... 4-

23
Press brake pedal to start engine (for smart key system)
.................................... 4-

23
Key not in vehicle (for smart key system)
............................................................... 4-23
K

ey not detected (for smart key system)................................................................ 4-23
Press START button again (for smart key system)
................................................ 4-

23
Press START button with key (for smart key system)
........................................... 4

-24
Check BRAKE SWITCH fuse (for smart key system)
............................................. 4

-24
Shift to P or N to start engine (for smart key system)
.......................................... 4

-24
Battery discharging due to external electrical devices
......................................... 4

-24
Door, Hood, Liftgate open indicator
....................................................................... 4-25
Sunr

oof open indicator
........................................................................\
.................... 4-

25
Low tire pressure
........................................................................\
............................. 4-

25
Lights
........................................................................\
................................................ 4-

26
Wiper
........................................................................\
.....................................

...........4-26
Low washer fluid
........................................................................\
.............................. 4-

26
Low fuel
........................................................................\
.....................................

.......4-26
Low engine oil
........................................................................\
.................................. 4-

26
Engine overheated / Engine has overheated
......................................................... 4-

27
Check exhaust system
........................................................................\
..................... 4-

27
Check headlight
........................................................................\
............................... 4-

27
Check turn signal
........................................................................\
............................. 4-

27
Check headlamp LED
........................................................................\
...................... 4-

27
Check Forward Collision-Avoidance Assist system
............................................... 4-

28
Check Lane Keeping Assist system
........................................................................\
4-28
Check Blind-

Spot Collision Warning system..........................................................4-28
Check Driver Attention Warning system
................................................................ 4-

28
Check High Beam Assist system
........................................................................\
..... 4-

28
Check Smart Cruise Control system
....................................................................... 4-28
4

04
4-25
Door, Hood, Liftgate open indicator
OTM040032
This warning is displayed if any door or
hood or liftgate is left open. The warning
will indicate which door is open in the
display.
CAUTION
Before driving the vehicle, you should
confirm that the door/ hood/liftgate is
fully closed.
Also, check there is no door/hood/
liftgate open warning light or message
displayed on the instrument cluster.
Sunroof open indicator (if equipped)
OTM040034
This warning is displayed if you turn off
the engine when the sunroof is open.
Close the sunroof securely before leaving
your vehicle.
Low tire pressure
OTM040022L
This warning message is displayed if the
tire pressure is low. The corresponding
tire on the vehicle will be illuminated.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.

05

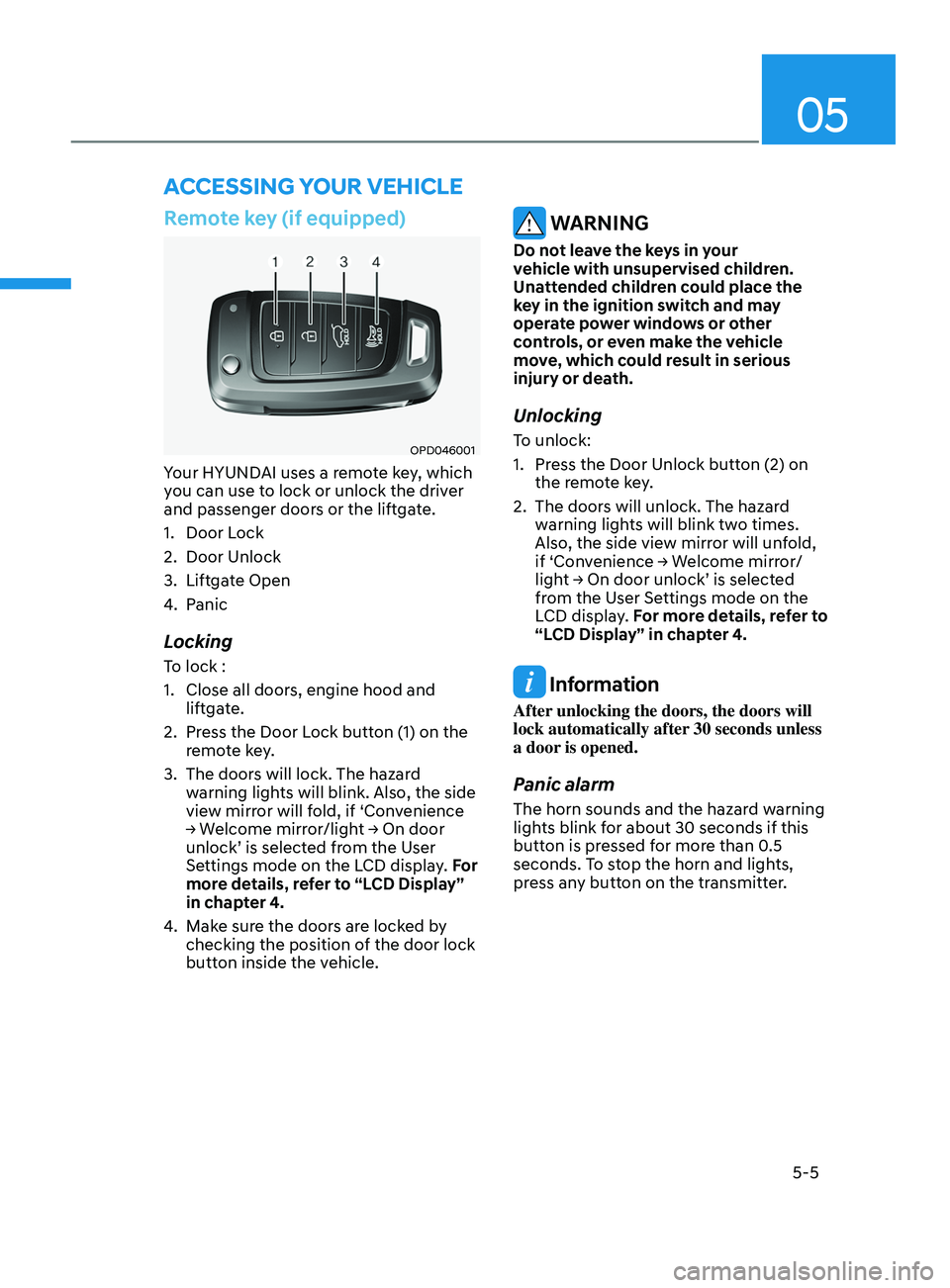

5-5
Remote key (if equipped)
OPD046001
Your HYUNDAI uses a remote key, which
you can use to lock or unlock the driver
and passenger doors or the liftgate.
1.
Door Lock
2.
Door Unlock
3.
Liftga

te Open
4.
Panic
Locking
To lock :
1.
Close all doors, engine hood and
lift

gate.
2.
Press the Door L

ock button (1) on the
remote key.
3.
The doors will lock. The hazar

d
warning lights will blink. Also, the side
view mirror will fold, if ‘Convenience
→
W

elcome
mirr
or/light
→ On door unlock’ is selected fr

om the User
Settings mode on the LCD display. For
more details, refer to “LCD Display”
in chapter 4.
4.
Make sur

e the doors are locked by
checking the position of the door lock
button inside the vehicle.
WARNING
Do not leave the keys in your
vehicle with unsupervised children.
Unattended children could place the
key in the ignition switch and may
operate power windows or other
controls, or even make the vehicle
move, which could result in serious
injury or death.
Unlocking
To unlock:
1.
Press the Door Unlock butt

on (2) on
the remote key.
2.
The doors will unlock. The hazar

d
warning lights will blink two times.
Also, the side view mirror will unfold,
if
‘Con

venience
→ W
elcome
mirr
or/
light
→ On door unlock’ is select

ed
from the U

ser Settings mode on the
LCD display. For more details, refer to
“LCD Display” in chapter 4.
Information
After unlocking the doors, the doors will
lock automatically after 30 seconds unless
a door is opened.
Panic alarm
The horn sounds and the hazard warning
lights blink for about 30 seconds if this
button is pressed for more than 0.5
seconds. To stop the horn and lights,
press any button on the transmitter.
ACCESSING Y OUR VEHICLE

Convenient features

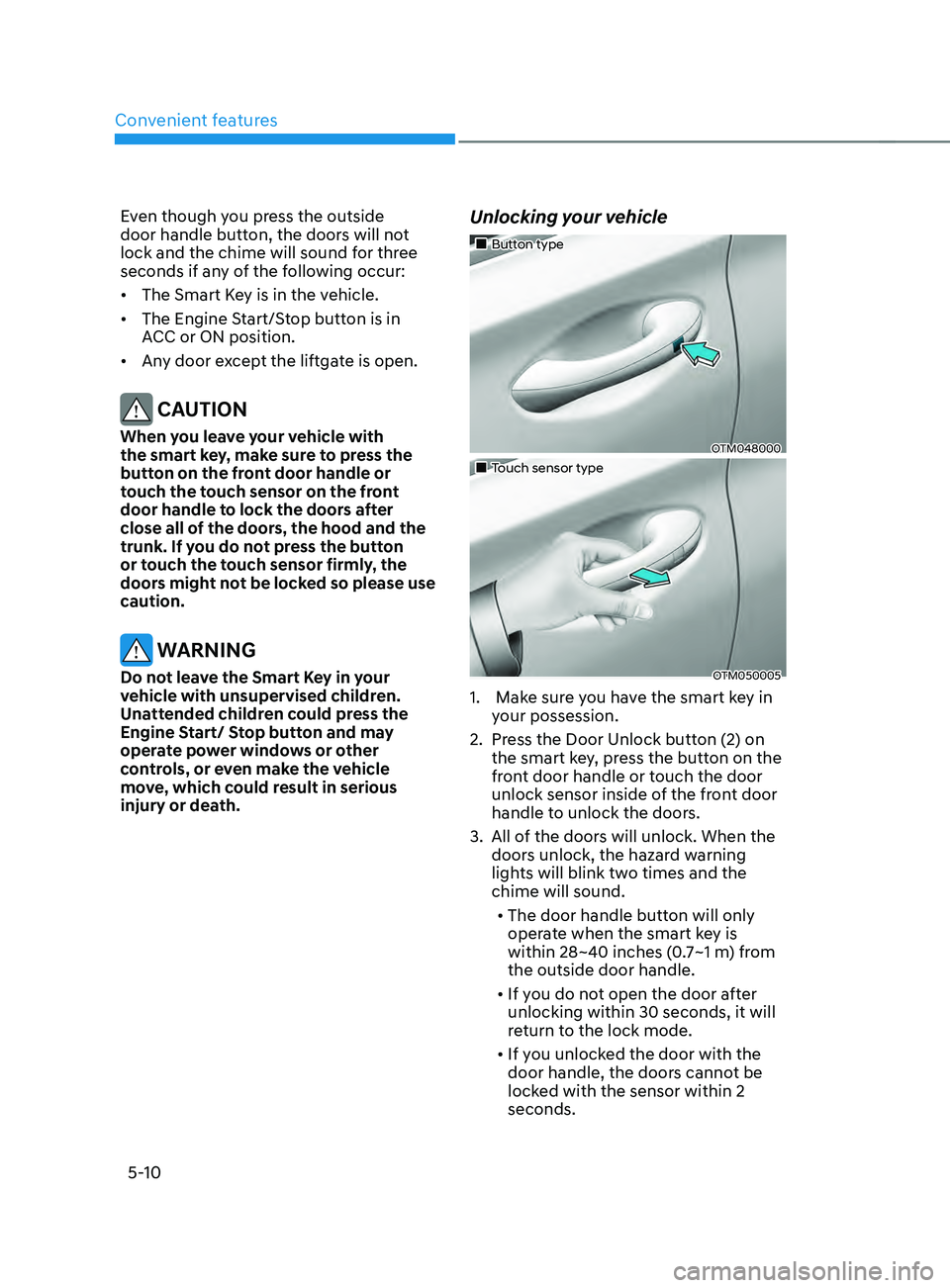

5-10
Even though you press the outside
door handle button, the doors will not
lock and the chime will sound for three
seconds if any of the following occur:
• The Smart Key is in the vehicle.
• The Engine Start/Stop button is in
ACC or ON position.
• Any door except the liftgate is open.
CAUTION
When you leave your vehicle with
the smart key, make sure to press the
button on the front door handle or
touch the touch sensor on the front
door handle to lock the doors after
close all of the doors, the hood and the
trunk. If you do not press the button
or touch the touch sensor firmly, the
doors might not be locked so please use
caution.
WARNING
Do not leave the Smart Key in your
vehicle with unsupervised children.
Unattended children could press the
Engine Start/ Stop button and may
operate power windows or other
controls, or even make the vehicle
move, which could result in serious
injury or death.
Unlocking your vehicle
„„Button type
OTM048000
„„Touch sensor type
OTM050005
1. Make sure you have the smart key in
y
our possession.
2.
Press the Door Unlock butt

on (2) on
the smart key, press the button on the
front door handle or touch the door
unlock sensor inside of the front door
handle to unlock the doors.
3.
All of the door

s will unlock. When the
doors unlock, the hazard warning
lights will blink two times and the
chime will sound.
• The door handle button will only
operate when the smart key is
within 28~40 inches (0.7~1 m) from
the outside door handle.
• If you do not open the door after
unlocking within 30 seconds, it will
return to the lock mode.
• If you unlocked the door with the
door handle, the doors cannot be
locked with the sensor within 2
seconds.

05

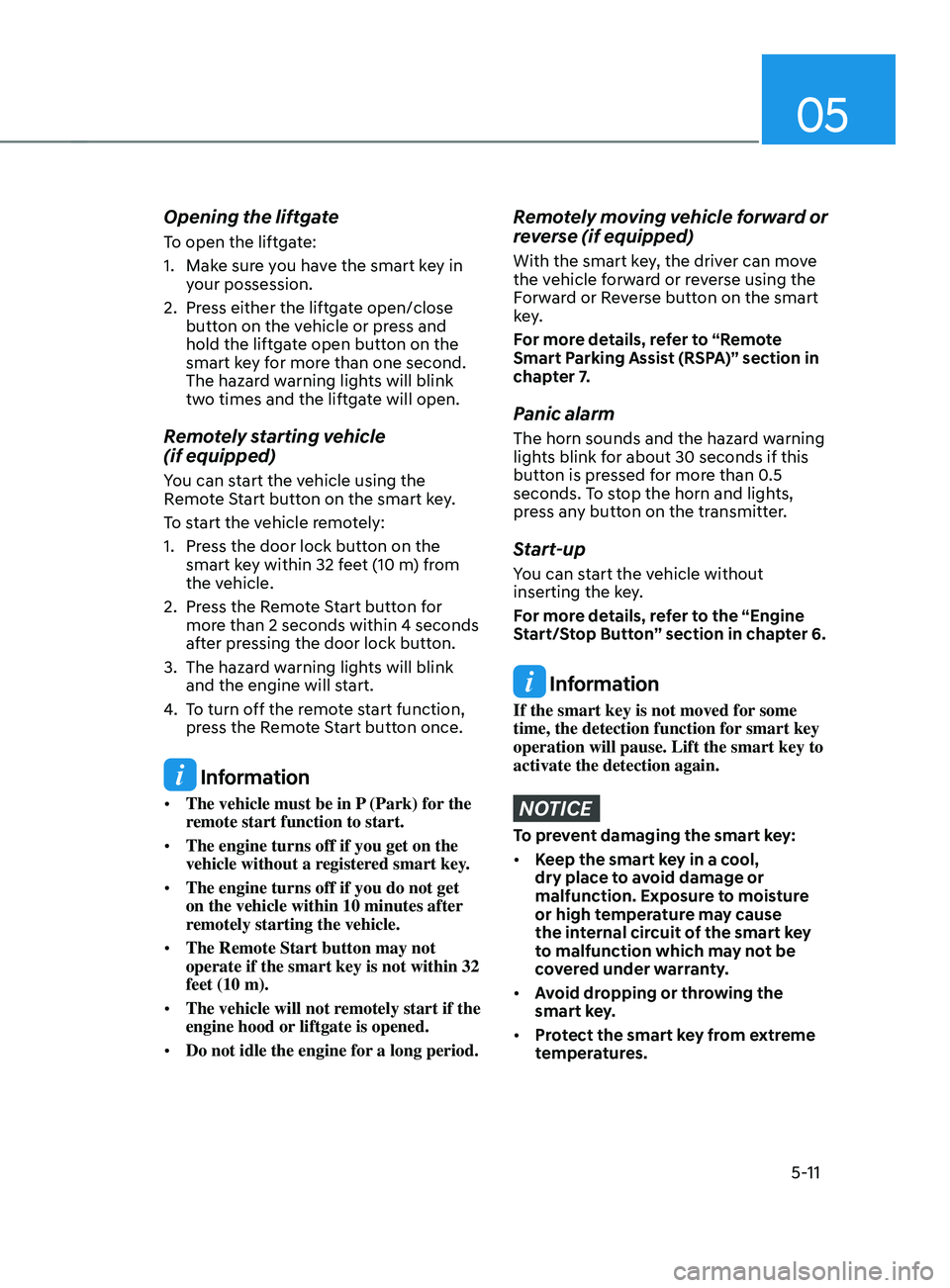

5-11
Opening the liftgate
To open the liftgate:
1.
Make sur
e you have the smart key in
your possession.
2.
Press either the lift

gate open/close
button on the vehicle or press and
hold the liftgate open button on the
smart key for more than one second.
The hazard warning lights will blink
two times and the liftgate will open.
Remotely starting vehicle
(if equipped)
You can start the vehicle using the
Remote Start button on the smart key.
To start the vehicle remotely:
1.
Press the door lock butt

on on the
smart key within 32 feet (10 m) from
the vehicle.
2.
Press the R

emote Start button for
more than 2 seconds within 4 seconds
after pressing the door lock button.
3.
The hazard w

arning lights will blink
and the engine will start.
4.
To turn o

ff the remote start function,
press the Remote Start button once.
Information
• The vehicle must be in P (Park) for the
remote start function to start.
• The engine turns off if you get on the
vehicle without a registered smart key.
• The engine turns off if you do not get
on the vehicle within 10 minutes after
remotely starting the vehicle.
• The Remote Start button may not
operate if the smart key is not within 32
feet (10 m).
• The vehicle will not remotely start if the
engine hood or liftgate is opened.
• Do not idle the engine for a long period.
Remotely moving vehicle forward or
reverse (if equipped)
With the smart key, the driver can move
the vehicle forward or reverse using the
Forward or Reverse button on the smart
key.
For more details, refer to “Remote
Smart Parking Assist (RSPA)” section in
chapter 7.
Panic alarm
The horn sounds and the hazard warning
lights blink for about 30 seconds if this
button is pressed for more than 0.5
seconds. To stop the horn and lights,
press any button on the transmitter.
Start-up
You can start the vehicle without
inserting the key.
For more details, refer to the “Engine
Start/Stop Button” section in chapter 6.
Information
If the smart key is not moved for some
time, the detection function for smart key
operation will pause. Lift the smart key to
activate the detection again.
NOTICE
To prevent damaging the smart key:
• Keep the smart key in a cool,
dry place to avoid damage or
malfunction. Exposure to moisture
or high temperature may cause
the internal circuit of the smart key
to malfunction which may not be
covered under warranty.
• Avoid dropping or throwing the
smart key.
• Protect the smart key from extreme
temperatures.

Convenient features
5-18

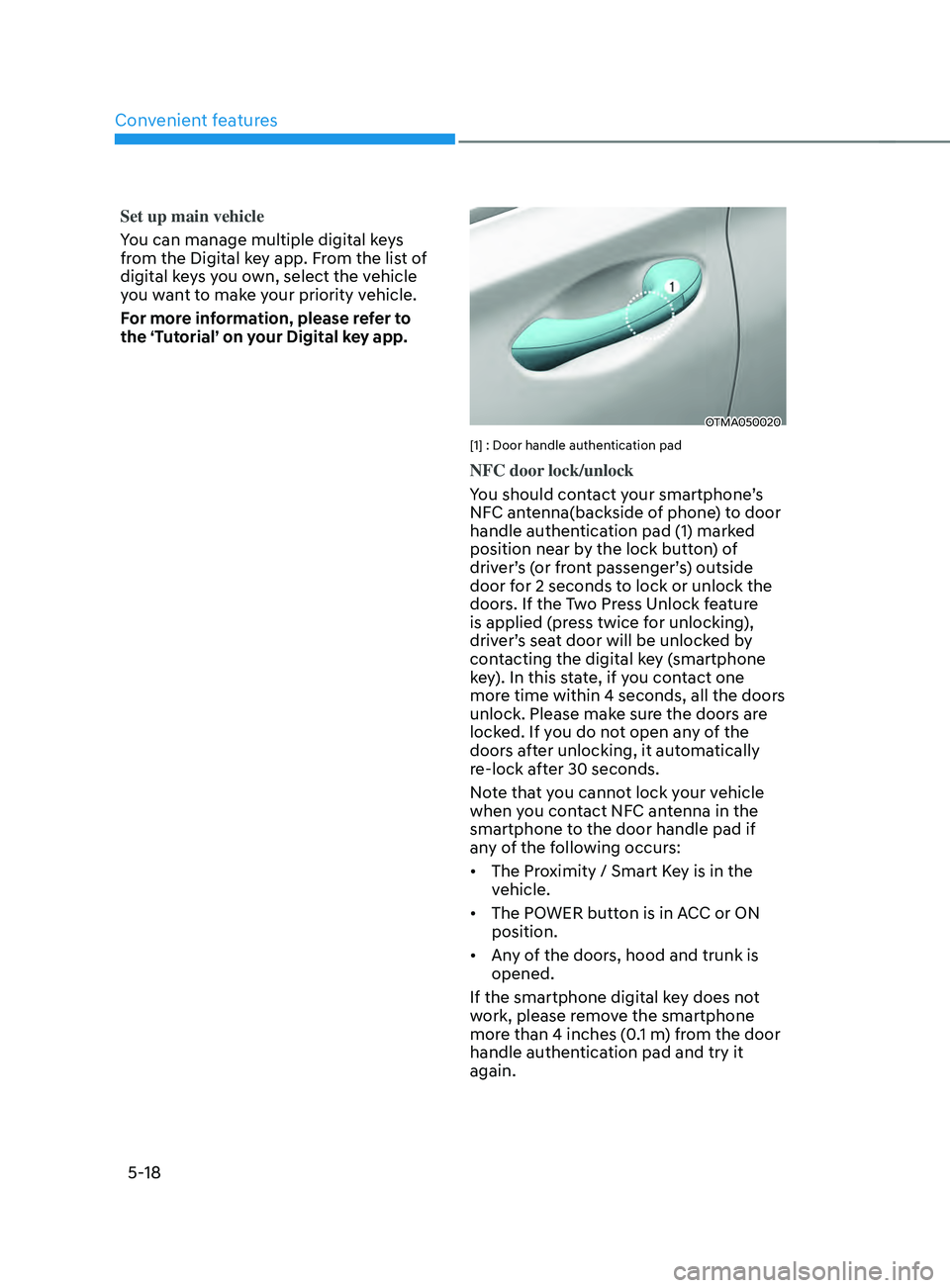

Set up main vehicle
You can manage multiple digital keys
from the Digital key app. From the list of
digital keys you own, select the vehicle
you want to make your priority vehicle.
For more information, please refer to
the ‘Tutorial’ on your Digital key app.
OTMA050020
[1] : Door handle authentication pad
NFC door lock/unlock
You should contact your smartphone’s
NFC antenna(backside of phone) to door
handle authentication pad (1) marked
position near by the lock button) of
driver’s (or front passenger’s) outside
door for 2 seconds to lock or unlock the
doors. If the Two Press Unlock feature
is applied (press twice for unlocking),
driver’s seat door will be unlocked by
contacting the digital key (smartphone
key). In this state, if you contact one
more time within 4 seconds, all the doors
unlock. Please make sure the doors are
locked. If you do not open any of the
doors after unlocking, it automatically
re-lock after 30 seconds.
Note that you cannot lock your vehicle
when you contact NFC antenna in the
smartphone to the door handle pad if
any of the following occurs:
• The Proximity / Smart Key is in the
vehicle.
• The POWER button is in ACC or ON
position.
• Any of the doors, hood and trunk is
opened.
If the smartphone digital key does not
work, please remove the smartphone
more than 4 inches (0.1 m) from the door
handle authentication pad and try it
again.

05
5-25

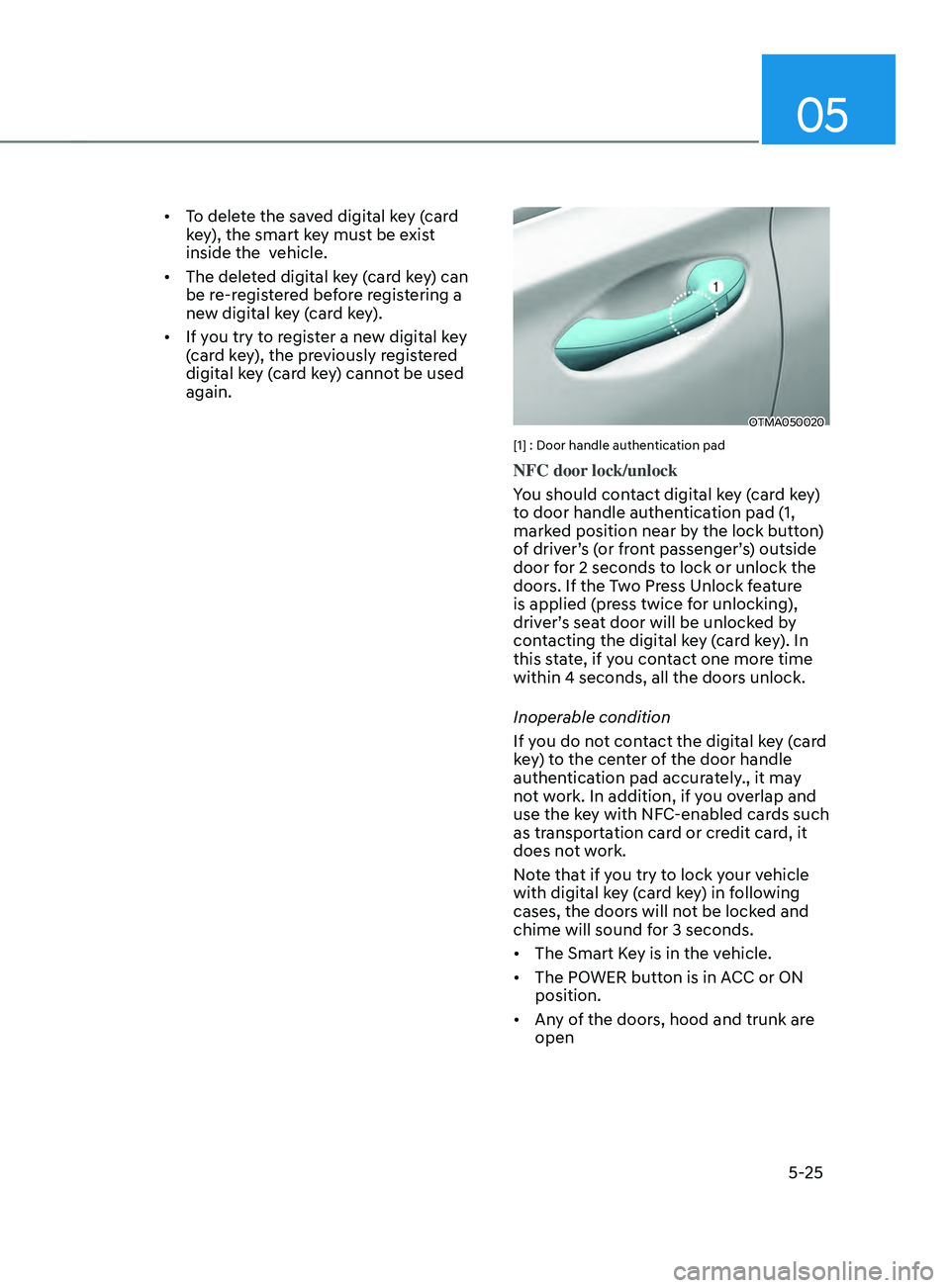

• To delete the saved digital key (card
key), the smart key must be exist
inside the vehicle.
• The deleted digital key (card key) can
be re-registered before registering a
new digital key (card key).
• If you try to register a new digital key
(card key), the previously registered
digital key (card key) cannot be used
again.
OTMA050020
[1] : Door handle authentication pad
NFC door lock/unlock
You should contact digital key (card key)
to door handle authentication pad (1,
marked position near by the lock button)
of driver’s (or front passenger’s) outside
door for 2 seconds to lock or unlock the
doors. If the Two Press Unlock feature
is applied (press twice for unlocking),
driver’s seat door will be unlocked by
contacting the digital key (card key). In
this state, if you contact one more time
within 4 seconds, all the doors unlock.
Inoperable condition
If you do not contact the digital key (card
key) to the center of the door handle
authentication pad accurately., it may
not work. In addition, if you overlap and
use the key with NFC-enabled cards such
as transportation card or credit card, it
does not work.
Note that if you try to lock your vehicle
with digital key (card key) in following
cases, the doors will not be locked and
chime will sound for 3 seconds.
• The Smart Key is in the vehicle.
• The POWER button is in ACC or ON
position.
• Any of the doors, hood and trunk are
open
