2021 HYUNDAI SANTA FE glove box

09
9-59

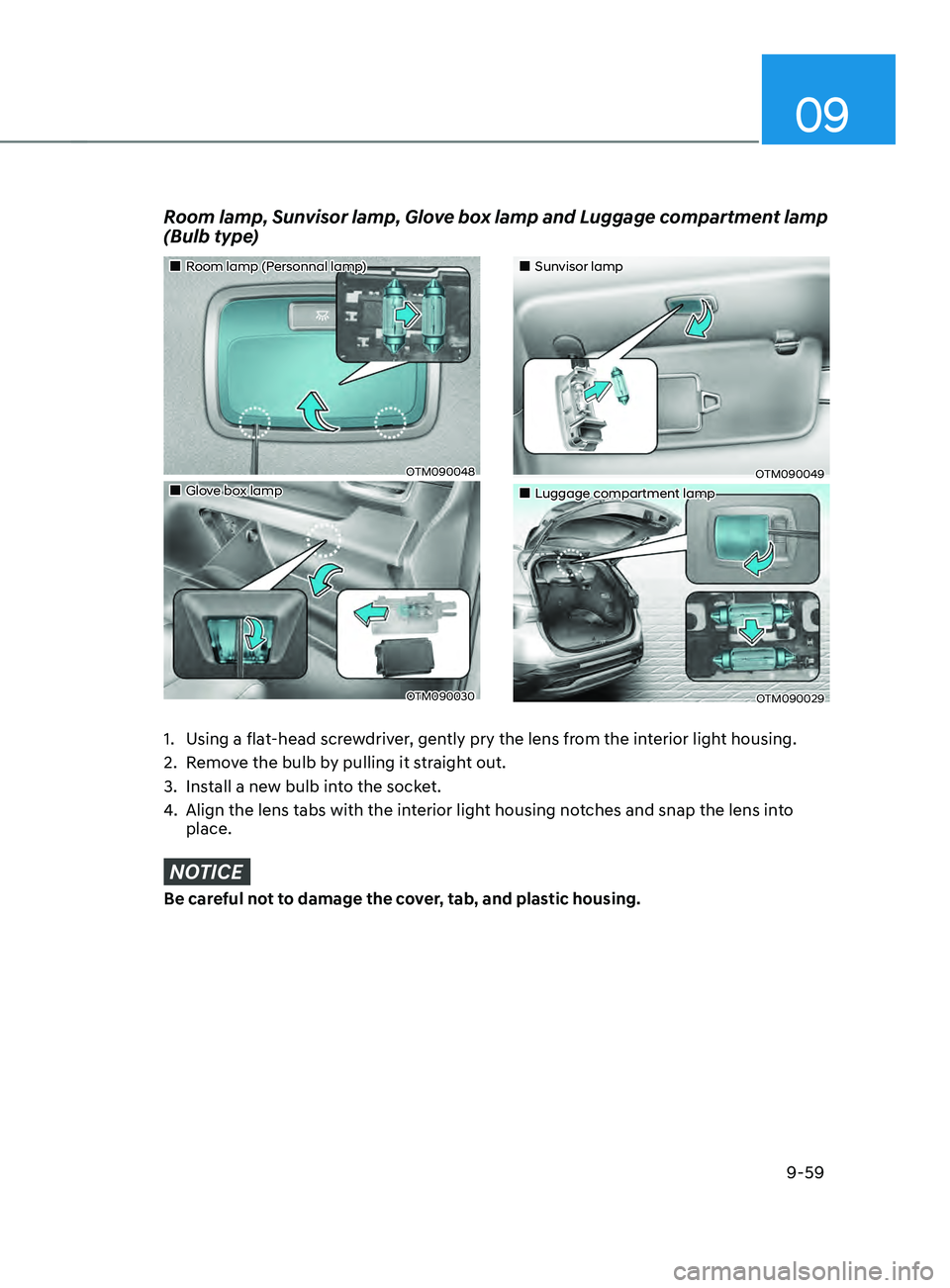

Room lamp, Sunvisor lamp, Glove box lamp and Luggage compartment lamp
(Bulb type)
1. Using a flat-head screwdriver, gently pry the lens from the interior light housing.
2.
Remo
ve the bulb by pulling it straight out.
3.
Install a ne

w bulb into the socket.
4.
Align the lens tabs with the int

erior light housing notches and snap the lens into
place.
NOTICE
Be careful not to damage the cover, tab, and plastic housing.
„„Room lamp (Personnal lamp)
OTM090048
„„Glove box lamp
OTM090030
„„Sunvisor lamp
OTM090049
„„Luggage compartment lamp
OTM090029
