2021 HYUNDAI PALISADE engine

7-49
7
Maintenance
Instrument Panel Fuse
Replacement
1. Turn the engine off.
2. Turn all other switches OFF.
3. Open the fuse panel cover.
4. Refer to the label on the inside of
the fuse panel cover to locate the
suspected fuse location.5. Pull the suspected fuse straight
out. Use the removal tool provided
in the engine compartment fuse
panel cover.
6. Check the removed fuse; replace
it if it is blown. Spare fuses are
provided in the instrument panel
fuse panels (or in the engine com-
partment fuse panel).
7. Push in a new fuse of the same
rating, and make sure it fits tightly
in the clips. If it fits loosely, consult
an authorized HYUNDAI dealer.In an emergency, if you do not have
a spare fuse, use a fuse of the same
rating from a circuit you may not
need for operating the vehicle.
If the headlamps or other electrical
components do not work and the
fuses are undamaged, check the
fuse panel in the engine compart-
ment. If a fuse is blown, it must be
replaced with the same rating.
OLX2079020L
OLX2078021

7-50
Maintenance
Engine Compartment Panel
Fuse Replacement
1. Turn the engine off.
2. Turn all other switches OFF.3. Remove the fuse panel cover by
pressing the tap and pulling up.
4. Check the removed fuse; replace
it if it is blown. To remove or insert
the fuse, use the fuse puller in the
engine compartment fuse panel.
5. Push in a new fuse of the same
rating, and make sure it fits tightly
in the clips. If it fits loosely, consult
an authorized HYUNDAI dealer.
Multi fuse
If the multi fuse is blown, it must be
removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery
cable.
3. Remove the fuse panel cover by
pressing the tab and pulling it up.
4. Remove the nuts shown in the pic-
ture above.
5. Replace the fuse with a new one
of the same rating.
6. Reinstall in the reverse order of
removal.
Information
If the multi fuse is blown, consult an
authorized HYUNDAI dealer.
i
After checking the fuse box in
the engine compartment
securely close the fuse box
cover inside the engine com-
partment, until it clicks.
If the fuse box is not closed
properly, water may leak in side,
possibly causing a malfunction
with the electrical system.
CAUTIONOLX2078024
■Blade type fuse
OLX2078025
■Cartridge type fuse
OLX2078023

7-55
7
Maintenance
Engine compartment fuse panel
Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse panel in your vehicle, refer to
the fuse panel label.
i
OLX2078022
OLX2079055N

7-56
Maintenance
Engine compartment fuse panel
Fuse NameFuse RatingProtected Component
MULTI FUSE
(10P)
MDPS80AMDPS Unit
COOLING FAN 180ACooling Fan Relay (600W)
EPB60AESC Module
B+450AICU Junction Block (Fuse - MODULE 8, S/HEATER FRT, P/WINDOW RH, AMP, SUN-
ROOF)
B+350AICU Junction Block (Fuse - P/WINDOW LH, RR SEAT (LH), P/SEAT (DRV), P/SEAT
(PASS))
B+250AICU Junction Block (IPS 8/IPS 10/IPS 11/IPS 12/IPS 13/IPS 14/IPS 15)
REAR HEATED40ARear Heated Relay
ESC 140AESC Module
BLOWER40ABlower Relay
ESC 240AESC Module
MULTI FUSE
(2P)PTC HEATER 150APTC Heater 1 Relay
PTC HEATER 250APTC Heater 2 Relay

7-57
7
Maintenance
Engine compartment fuse panel
Fuse NameFuse RatingProtected Component
FUSE
B+150AICU Junction Block (IPS 1/IPS 2/IPS 3/IPS 5/IPS 6/IPS 7, Long/Short Term Load Latch
Relay)
B+550AICU Junction Block (Fuse - DOOR LOCK, IBU 1, IBU 2, BRAKE SWITCH, CHILD
LOCK, RR SEAT (RH), SUNROOF 2)
INVERTER30AAC Inverter Unit
POWER LIFTGATE30APower Tail Gate Module
TRAILER 140ATrailer Lamp
IG240AStart Relay, ICU Junction Block (Fuse - A/C, WASHER, WIPER (REAR), MODULE 1,
MODULE 2, REAR A/C)
OIL PUMP40AElectronic Oil Pump Module
COOLING FAN 250ACooling Fan Relay
HEATED MIRROR10ADriver/Passenger Power Outside Mirror, A/C Control Module
A/C 210AA/C Control Module
WIPER FRT 210AWiper (LO) Relay, Front Wiper Motor
ECU 615APCM
Maintenance
7

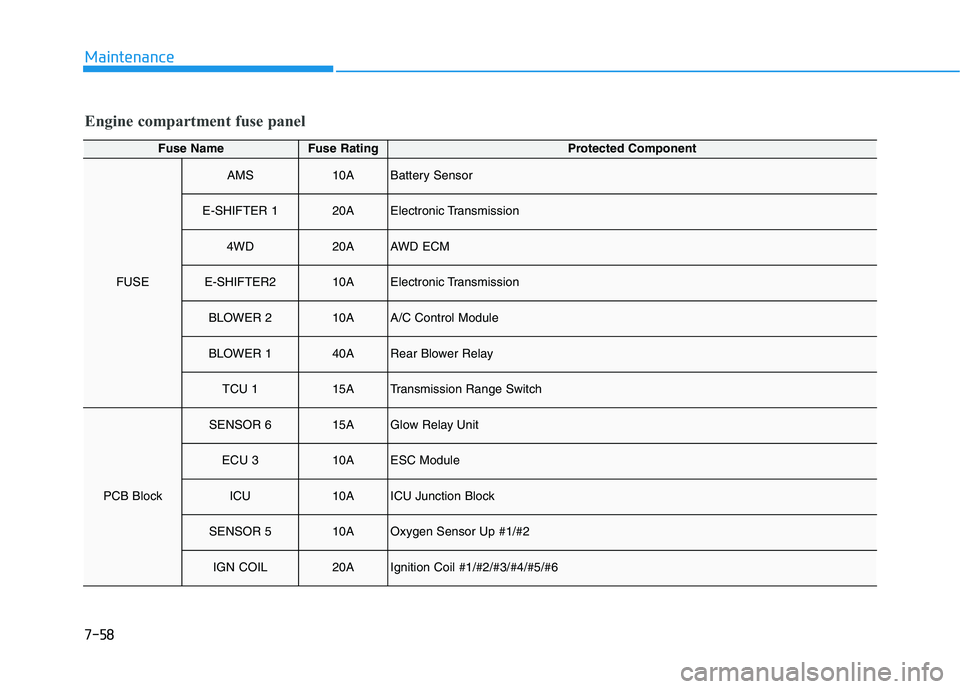

7-58
Maintenance
Engine compartment fuse panel
Fuse NameFuse RatingProtected Component
FUSE
AMS10ABattery Sensor
E-SHIFTER 120AElectronic Transmission
4WD20AAWD ECM
E-SHIFTER210AElectronic Transmission
BLOWER 210AA/C Control Module
BLOWER 140ARear Blower Relay
TCU 115ATransmission Range Switch
PCB Block
SENSOR 615AGlow Relay Unit
ECU 310AESC Module
ICU10AICU Junction Block
SENSOR 510AOxygen Sensor Up #1/#2
IGN COIL20AIgnition Coil #1/#2/#3/#4/#5/#6

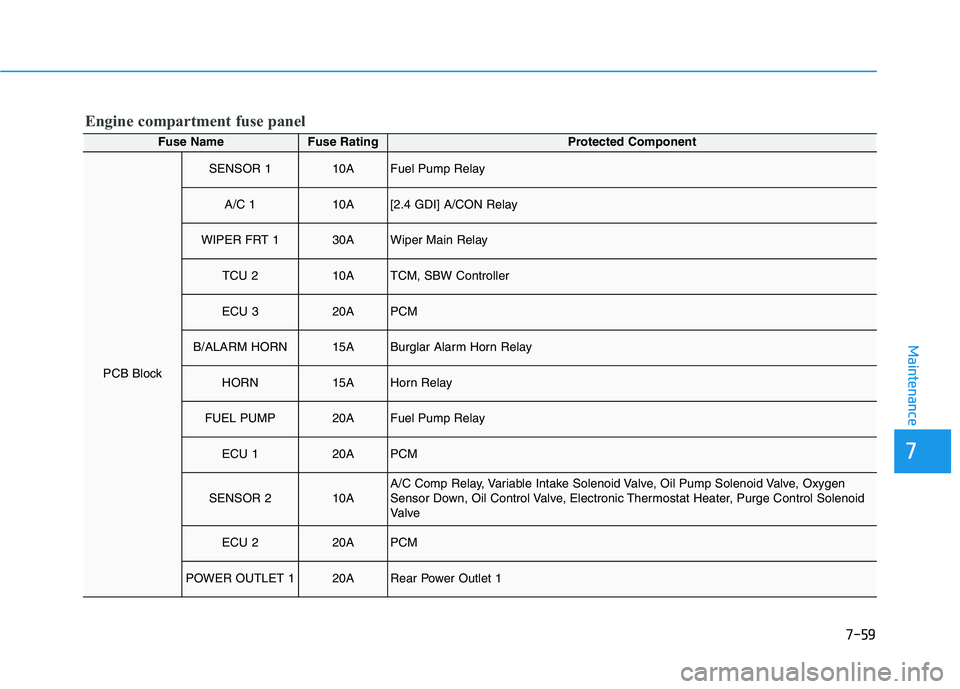

7-59
7
Maintenance
Engine compartment fuse panel
Fuse NameFuse RatingProtected Component
PCB Block
SENSOR 110AFuel Pump Relay
A/C 110A[2.4 GDI] A/CON Relay
WIPER FRT 130AWiper Main Relay
TCU 210ATCM, SBW Controller
ECU 320APCM
B/ALARM HORN15ABurglar Alarm Horn Relay
HORN15AHorn Relay
FUEL PUMP20AFuel Pump Relay
ECU 120APCM
SENSOR 210AA/C Comp Relay, Variable Intake Solenoid Valve, Oil Pump Solenoid Valve, Oxygen
Sensor Down, Oil Control Valve, Electronic Thermostat Heater, Purge Control Solenoid
Valve
ECU 220APCM
POWER OUTLET 120ARear Power Outlet 1
Maintenance
7

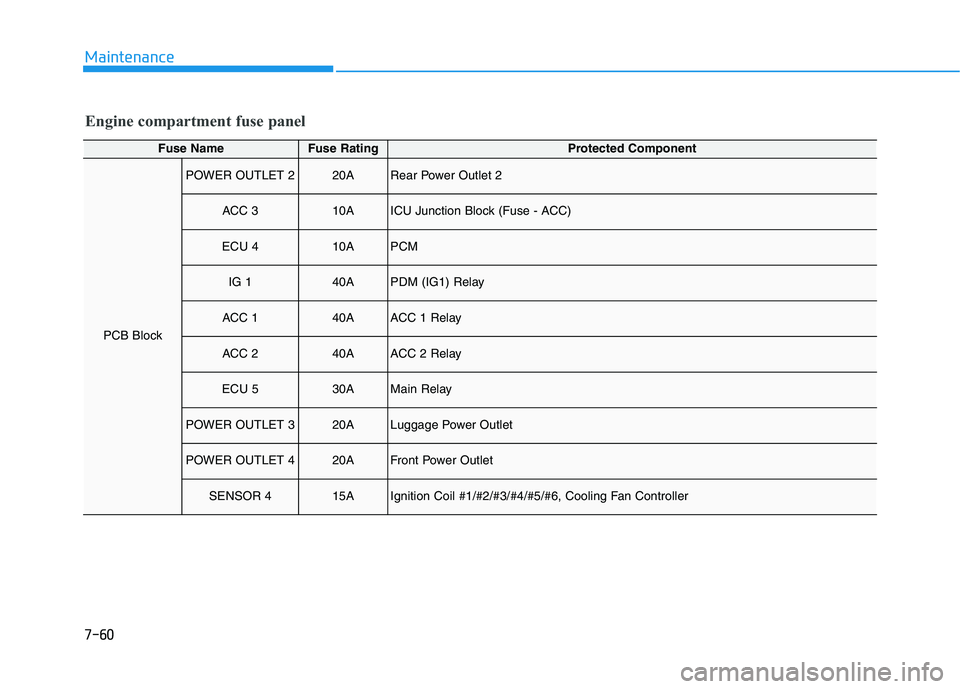

7-60
Maintenance
Engine compartment fuse panel
Fuse NameFuse RatingProtected Component
PCB Block
POWER OUTLET 220ARear Power Outlet 2
ACC 310AICU Junction Block (Fuse - ACC)
ECU 410APCM
IG 140APDM (IG1) Relay
ACC 140AACC 1 Relay
ACC 240AACC 2 Relay
ECU 530AMain Relay
POWER OUTLET 320ALuggage Power Outlet
POWER OUTLET 420AFront Power Outlet
SENSOR 415AIgnition Coil #1/#2/#3/#4/#5/#6, Cooling Fan Controller
