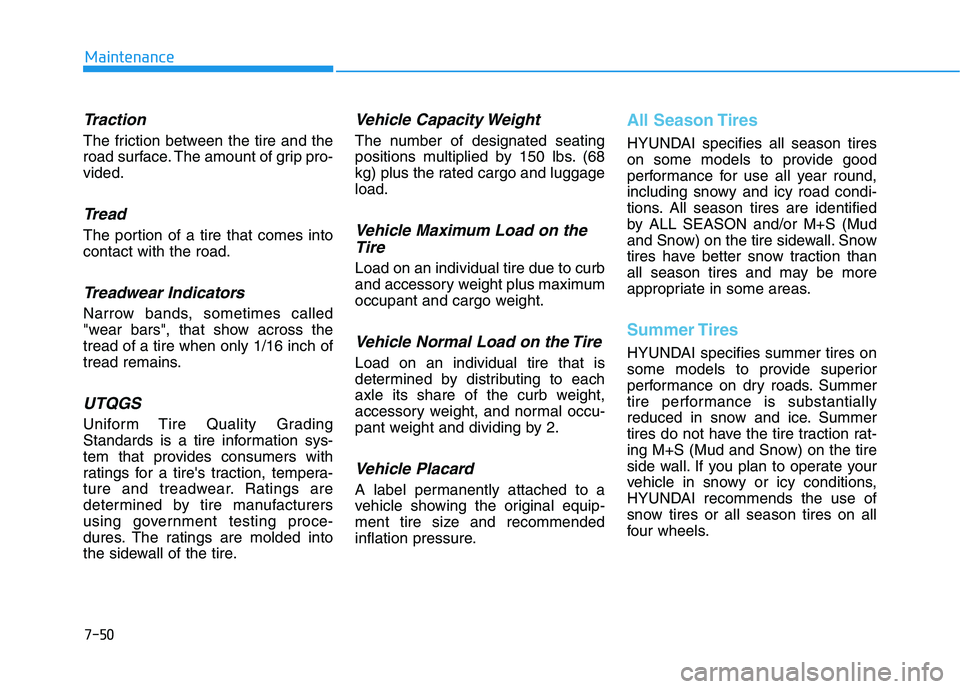

7-50
Maintenance
Traction
The friction between the tire and the
road surface. The amount of grip pro-
vided.
Tread
The portion of a tire that comes into
contact with the road.
Treadwear Indicators
Narrow bands, sometimes called
"wear bars", that show across the
tread of a tire when only 1/16 inch of
tread remains.
UTQGS
Uniform Tire Quality Grading
Standards is a tire information sys-
tem that provides consumers with
ratings for a tire's traction, tempera-
ture and treadwear. Ratings are
determined by tire manufacturers
using government testing proce-
dures. The ratings are molded into
the sidewall of the tire.
Vehicle Capacity Weight
The number of designated seating
positions multiplied by 150 lbs. (68
kg) plus the rated cargo and luggage
load.
Vehicle Maximum Load on the
Tire
Load on an individual tire due to curb
and accessory weight plus maximum
occupant and cargo weight.
Vehicle Normal Load on the Tire
Load on an individual tire that is
determined by distributing to each
axle its share of the curb weight,
accessory weight, and normal occu-
pant weight and dividing by 2.
Vehicle Placard
A label permanently attached to a
vehicle showing the original equip-
ment tire size and recommended
inflation pressure.
All Season Tires
HYUNDAI specifies all season tires
on some models to provide good
performance for use all year round,
including snowy and icy road condi-
tions. All season tires are identified
by ALL SEASON and/or M+S (Mud
and Snow) on the tire sidewall. Snow
tires have better snow traction than
all season tires and may be more
appropriate in some areas.
Summer Tires
HYUNDAI specifies summer tires on
some models to provide superior
performance on dry roads. Summer
tire performance is substantially
reduced in snow and ice. Summer
tires do not have the tire traction rat-
ing M+S (Mud and Snow) on the tire
side wall. If you plan to operate your
vehicle in snowy or icy conditions,
HYUNDAI recommends the use of
snow tires or all season tires on all
four wheels.

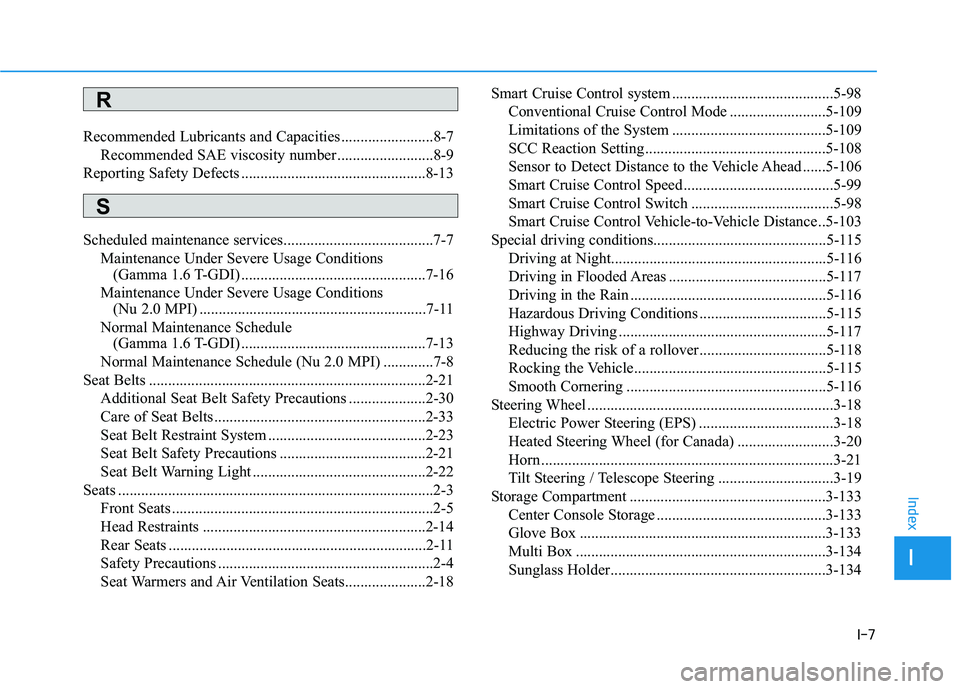

I-7
Recommended Lubricants and Capacities ........................8-7
Recommended SAE viscosity number .........................8-9
Reporting Safety Defects ................................................8-13
Scheduled maintenance services.......................................7-7
Maintenance Under Severe Usage Conditions
(Gamma 1.6 T-GDI) ................................................7-16
Maintenance Under Severe Usage Conditions
(Nu 2.0 MPI) ...........................................................7-11
Normal Maintenance Schedule
(Gamma 1.6 T-GDI) ................................................7-13
Normal Maintenance Schedule (Nu 2.0 MPI) .............7-8
Seat Belts ........................................................................2-21
Additional Seat Belt Safety Precautions ....................2-30
Care of Seat Belts .......................................................2-33
Seat Belt Restraint System .........................................2-23
Seat Belt Safety Precautions ......................................2-21
Seat Belt Warning Light .............................................2-22
Seats ..................................................................................2-3
Front Seats ....................................................................2-5
Head Restraints ..........................................................2-14
Rear Seats ...................................................................2-11
Safety Precautions ........................................................2-4
Seat Warmers and Air Ventilation Seats.....................2-18Smart Cruise Control system ..........................................5-98
Conventional Cruise Control Mode .........................5-109
Limitations of the System ........................................5-109
SCC Reaction Setting...............................................5-108
Sensor to Detect Distance to the Vehicle Ahead ......5-106
Smart Cruise Control Speed .......................................5-99
Smart Cruise Control Switch .....................................5-98
Smart Cruise Control Vehicle-to-Vehicle Distance ..5-103
Special driving conditions.............................................5-115
Driving at Night........................................................5-116
Driving in Flooded Areas .........................................5-117
Driving in the Rain ...................................................5-116
Hazardous Driving Conditions .................................5-115
Highway Driving ......................................................5-117
Reducing the risk of a rollover.................................5-118
Rocking the Vehicle..................................................5-115
Smooth Cornering ....................................................5-116
Steering Wheel ................................................................3-18
Electric Power Steering (EPS) ...................................3-18
Heated Steering Wheel (for Canada) .........................3-20
Horn ............................................................................3-21
Tilt Steering / Telescope Steering ..............................3-19
Storage Compartment ...................................................3-133
Center Console Storage ............................................3-133
Glove Box ................................................................3-133
Multi Box .................................................................3-134
Sunglass Holder........................................................3-134
I
Index
R
S
