2021 HYUNDAI KONA EV height adjustment

2-9
Safety system of your vehicle
2
Seat belts must be snug against your
hips and chest to work properly.
When the seatback is reclined, the
shoulder belt cannot do its job
because it will not be snug against
your chest. Instead, it will be in front
of you. During an accident, you could
be thrown into the seat belt, causing
neck or other injuries.
The more the seatback is reclined,
the greater chance the passenger's
hips will slide under the lap belt or
the passenger's neck will strike the
shoulder belt.
Seat cushion height (for driver’s seat)
To change the height of the seat
cushion:
Push down on the lever several
times, to lower the seat cushion.
Pull up on the lever several times,
to raise the seat cushion.
Power adjustment
(if equipped)
The front seat can be adjusted by
using the control switches located on
the outside of the seat cushion. Before
driving, adjust the seat to the proper
position so that you can easily control
the steering wheel, foot pedals and
controls on the instrument panel.
NEVER allow children in the
vehicle unattended. Children
might push the adjustment
switch accidently and get caught
in the seat mechanisms while the
seat is moving.
WARNING OOS037004

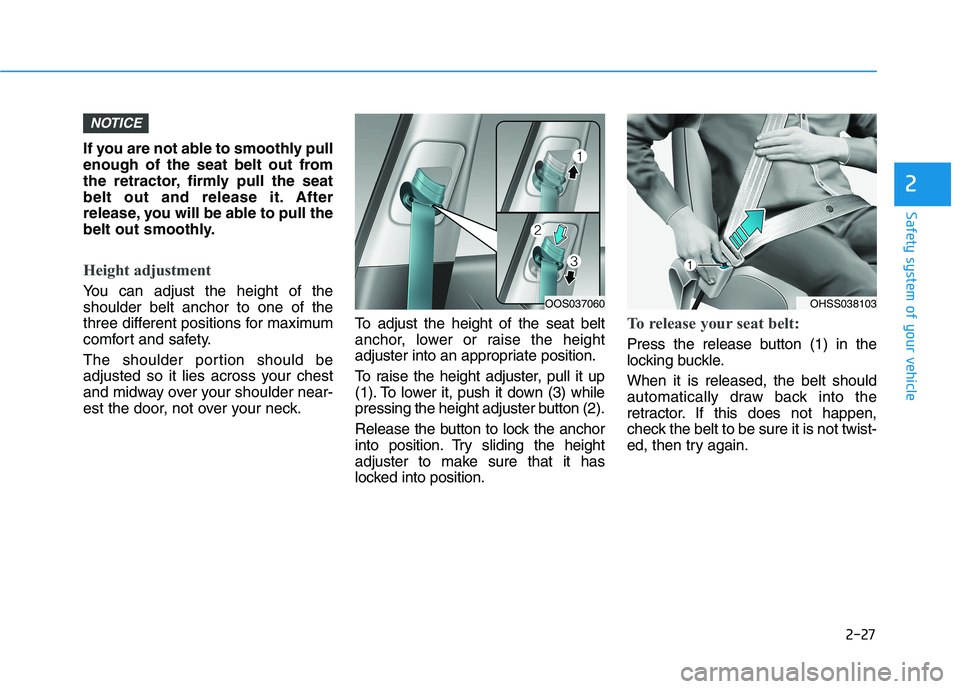

2-27
Safety system of your vehicle
2
If you are not able to smoothly pull
enough of the seat belt out from
the retractor, firmly pull the seat
belt out and release it. After
release, you will be able to pull the
belt out smoothly.
Height adjustment
You can adjust the height of the
shoulder belt anchor to one of the
three different positions for maximum
comfort and safety.
The shoulder portion should be
adjusted so it lies across your chest
and midway over your shoulder near-
est the door, not over your neck.To adjust the height of the seat belt
anchor, lower or raise the height
adjuster into an appropriate position.
To raise the height adjuster, pull it up
(1). To lower it, push it down (3) while
pressing the height adjuster button (2).
Release the button to lock the anchor
into position. Try sliding the height
adjuster to make sure that it has
locked into position.
To release your seat belt:
Press the release button (1) in the
locking buckle.
When it is released, the belt should
automatically draw back into the
retractor. If this does not happen,
check the belt to be sure it is not twist-
ed, then try again.
NOTICE
OOS037060OHSS038103

I-5
Flat tire
Tire Mobility Kit (TMK)............................................6-14
Floor mat anchor(s).......................................................3-145
Fluid
Brake fluid ..................................................................7-13
Washer fluid ...............................................................7-14
Forward Collision-Avoidance Assist (FCA)...................5-49
Front seat adjustment ........................................................2-6
Manual adjustment .......................................................2-7
Power adjustment .........................................................2-9
Seatback pocket ..........................................................2-12
Front seat head restraints
Adjusting the height up and down .............................2-17
Removal/Reinstall ......................................................2-18
Front windshield washers .............................................3-112
Front windshield wipers................................................3-110
Fuse switch .....................................................................7-41
Fuse/relay panel description
Battery terminal cover ................................................7-52
Instrument panel fuse panel .......................................7-43
Motor compartment fuse panel ..................................7-48
Fuses ...............................................................................7-39
Fuse switch .................................................................7-41
Fuse/relay panel description .......................................7-43
Instrument panel fuse replacement.............................7-40
Motor compartment panel fuse replacement..............7-41
Multi fuse ...................................................................7-42Glove box......................................................................3-137
Gross vehicle weight.........................................................8-5
Hazard warning flasher .....................................................6-2
Hazardous driving conditions .......................................5-112
Head restraint ..................................................................2-16
Front seat head restraints............................................2-17
Rear seat Head restraints ............................................2-19
Headlamp delay function ..............................................3-105
Headlamp position ........................................................3-100
Headlight bulb replacement ............................................7-55
Head-up display ..............................................................3-96
Display information....................................................3-98
Display setting ............................................................3-98
ON/OFF switch ..........................................................3-97
Heated steering wheel .....................................................3-18
Heater ............................................................................3-119
Height adjustment ...........................................................2-27
High Beam Assist (HBA) system .................................3-101
High beam operation.....................................................3-101
Highway driving ...........................................................5-114
Hill-start Assist Control (HAC) ......................................5-47
Hood................................................................................3-41
Horn ................................................................................3-18
How to use this manual ....................................................F-6
I
Index
F
H
G

I-10
Range accumulated from Regenerative Braking ............3-51
Rear center seatbelt .........................................................2-29
Rear Cross-Traffic Collision Warning (RCCW) system .5-66
Rear seat adjustment .......................................................2-13
Armrest .......................................................................2-15
Folding the rear seat ...................................................2-13
Rear seat head restraints .................................................2-19
Adjusting the height up and down .............................2-20
Rear view monitor.........................................................3-114
Rear window wiper and washer....................................3-113
Auto rear wiper.........................................................3-113
Recommended cold tire inflation pressures ...................7-25
Recommended lubricants and capacities ..........................8-6
Reducing the risk of a rollover .....................................5-115
Refrigerant label ...............................................................8-8
Regenerative braking level indicator ..............................3-52
Regenerative braking system ..........................................5-19
One pedal driving .......................................................5-20
Removable towing hook .................................................6-21
Replacement light bulb ...................................................7-53
Reporting safety defects .................................................8-10
Reverse parking distance warning (PDW) ...................3-115
Rocking the vehicle.......................................................5-112
Rotation (Tire) ................................................................7-27Safety messages ................................................................F-6
Scheduled maintenance services.......................................7-7
Seat belt warning light
Driver's seat ................................................................2-24
Front passenger's seat ................................................2-25
Seat belts .........................................................................2-23
Additional seat belt safety precautions ......................2-32
Care of seat belts ........................................................2-35
Do not lie down ..........................................................2-32
Height adjustment ......................................................2-27
Keep belts clean and dry ............................................2-35
Lap/shoulder belt ........................................................2-26
One person per belt ....................................................2-32
Periodic inspection .....................................................2-35
Pre-tensioner seat belt ................................................2-29
Rear center seatbelt ....................................................2-29
Seat belt restraint system............................................2-26
Seat belt safety precautions ........................................2-23
Seat belt use and children...........................................2-32
Seat belt use during pregnancy ..................................2-32
Seat belt warning light ...............................................2-24
Transporting an injured person ..................................2-32
When to replace seat belts..........................................2-35
Seat heaters .....................................................................2-20
Index
RS
