2021 HYUNDAI I10 stop start

2-4
Vehicle information
INTERIOR OVERVIEW
The actual shape may differ from the illustration.
OAC3019003R
1. Door handle .......................................................................................................... 5-15
2. Outside rearview mirror control switch . ............................................................... 5-25
3. Power window switches ...................................................................................... 5-26
4. Power window lock switch.................................................................................... 5-30
5. Lane Keeping Assist system button* .................................................................... 6-62
6. Tyre Pressure Monitoring System (TPMS) button* ............................................. 7-10
7. Electronic Stability Control (ESC) ........................................................................ 6-37
8. Headlight levelling device ..................................................................................... 5-43
9. Fuse box............................................................................................................... 8-52
10. Key ignition switch ................................................................................................ 6-7
Engine Start/Stop button* ................................................................................... 6-10
11. Steering wheel .................................................................................................... 5-20
12. Bonnet release lever .......................................................................................... 5-30
)XHO

3-18
Safety system
SEAT BELTS
This section describes how to use the
seat belts properly. It also describes
some of the things not to do when
using seat belts.
Seat belt safety precautions
Always fasten your seat belt and
make sure all passengers have fas-
tened their seat belts before starting
any trip. Air bags (if equipped) are
designed to supplement the seat belt
as an additional safety device, but
they are not a substitute. Most coun-
tries require all occupants of a vehicle
to wear seat belts.
WARNING
Seat belts must be used by ALL
passengers whenever the vehicle
is moving. Take the following pre-
cautions when adjusting and wear-
ing seat belts:
‡ALWAYS properly restrain chil-
dren under age 13 in the rear
seats.
‡NEVER allow children to ride in
the front passenger seat. If a
child age 13 or older must be
seated in the front seat, move the
seat as far back as possible and
properly restrain them in the
seat.
‡NEVER allow an infant or child to
be carried on an occupant’s lap.
‡NEVER ride with the seatback
reclined when the vehicle is mov-
ing.
‡Do not allow children to share a
seat or seat belt.
‡Do not wear the shoulder belt
under your arm or behind your
back.‡Never wear a seat belt over frag-
ile objects. If there is a sudden
stop or impact, the seat belt can
damage it.
‡Do not use the seat belt if it is
twisted. A twisted seat belt will
not protect you properly in an
accident.
‡Do not use a seat belt if the web-
bing or hardware is damaged.
‡Do not latch the seat belt into the
buckles of other seats.
‡NEVER unfasten the seat belt
whilst driving. This may cause
loss of vehicle control resulting
in an accident.
‡Make sure there is nothing in the
buckle interfering with the seat
belt latch mechanism. This may
prevent the seat belt from fasten-
ing securely.
‡No modifications or additions
should be made by the user
which will either prevent the seat
belt adjusting devices from oper-
ating to remove slack, or prevent
the seat belt assembly from
being adjusted to remove slack.
WARNING
Damaged seat belts and seat belt
assemblies will not operate prop-
erly. Always replace:
‡Frayed, contaminated, or dam-
aged webbing.
‡Damaged hardware.
‡The entire seat belt assembly
after it has been worn in an acci-
dent, even if damage to webbing
or assembly is not apparent.

3-19
03
Seat belt warning light
Driver’s seat belt
„ Instrument cluster
1GQA2083
Regardless of the driver’s seat belt
fastening, the warning light will illumi-
nate for approximately 6 seconds
each time you turn the ignition switch
ON. If the driver’s seat belt is not fas-
tened, the warning chime will sound
for about 6 seconds and the waning
light will stay turned ON until the driv-
er’s seat belt is fastened.
If you start to drive without the driv-
er’s seat belt fastened, when you
drive under 12 mph (20 km/h) or stop,
the warning light will illuminate.
When you drive 12 mph (20 km/h) or
faster, the warning light will blink and
warning chime will sound for approxi-
mately 100 seconds.
When the driver’s seat belt is unfas-
tened during driving, the warning light
will illuminate when the speed is
under 12 mph (20 km/h). When the
speed is 12 mph (20 km/h) and fast-
er, the warning light will blink and
warning chime will sound for approxi-
mately 100 seconds.
Front passenger’s seat belt
(if equipped)
Regardless of the passenger’s seat belt
fastening, the warning light will illuminate
for approximately 6 seconds each time
you turn the ignition switch ON. If the
passenger’s seat belt is not fastened,
the waning light will stay turned ON until
the passenger’s seat belt is fastened.
If you start to drive without the pas-
senger’s seat belt fastened, when
you drive under 12 mph (20 km/h) or
stop, the warning light will illuminate.
When you drive 12 mph (20 km/h) or
faster, the warning light will blink and
warning chime will sound for approxi-
mately 100 seconds.
When the passenger’s seat belt is
unfastened during driving, the warn-
ing light will illuminate when the
speed is under 12 mph (20 km/h).
When the speed is 12 mph (20 km/h)
and faster, the warning light will blink
and warning chime will sound for
approximately 100 seconds.
WARNING
Riding in an improper position
adversely affects the front passen-
ger’s seat belt warning system. It
is important for the driver to
instruct the passenger to properly
be seated as instructed in this
manual.

4-9
04
Parking Brake & Brake
Fluid Warning Light
7his warning light illuminates
‡When you set the ignition switch or
the Engine Start/Stop button to the
ON position.
- It illuminates for approximately 3
seconds
- It remains on if the parking brake
is applied.
‡When the parking brake is applied.
‡When the brake fluid level in the
reservoir is low.
- If the warning light illuminates
with the parking brake released, it
indicates the brake fluid level in
the reservoir is low.
If the brake fluid level in the reser-
voir is low
1. Drive carefully to the nearest safe
location and stop your vehicle.
2. With the engine stopped, check
the brake fluid level immediately
and add fluid as required (For
more details, refer to “Brake
Fluid” in chapter 8). After adding
brake fluid, check all brake compo-
nents for fluid leaks. If a brake fluid
leak is found, or if the warning light
remains on, or if the brakes do not
operate properly, do not drive the
vehicle. We recommend that you
have the vehicle inspected by a
HYUNDAI authorised repairer.
'ual-diagonal braking system
Your vehicle is equipped with dual-di-
agonal braking systems. This means
you still have braking on two wheels
even if one of the dual systems should
fail.
With only one of the dual systems
working, more than normal pedal
travel and greater pedal pressure are
required to stop the vehicle.
Also, the vehicle will not stop in as
short a distance with only a portion of
the brake system working.
If the brakes fail whilst you are driv-
ing, shift to a lower gear for additional
engine braking and stop the vehicle
as soon as it is safe to do so.
WARNING
Parking Brake & Brake Fluid
Warning Light
Driving the vehicle with a warning
light ON is dangerous. If the
Parking Brake & Brake Fluid
Warning Light illuminates with the
parking brake released, it indicates
that the brake fluid level is low.
In this case, we recommend that
you have the vehicle inspected by
a HYUNDAI authorised repairer.

4-10
Instrument cluster
Anti-lock Brake
System (ABS) Warning
Light
7his warning light illuminates
‡When you set the ignition switch or
the Engine Start/Stop button to the
ON position.
- It illuminates for approximately 3
seconds and then goes off.
‡When there is a malfunction with
the ABS (The normal braking sys-
tem will still be operational without
the assistance of the anti-lock brake
system).
In this case, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
Electronic Brake Force
Distribution (EBD)
System Warning Light
7hese two warning lights illuminate
at the same time whilst driving
‡When the ABS and regular brake
system may not work normally.
In this case, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
WARNING
Electronic Brake Force
Distribution (EBD) System
Warning Light
When both ABS and Parking Brake
& Brake Fluid Warning Lights are
on, the brake system will not work
normally and you may experience
an unexpected and dangerous sit-
uation during sudden braking.
In this case, avoid high speed driv-
ing and abrupt braking.
We recommend you have the vehi-
cle inspected by a HYUNDAI autho-
rised repairer as soon as possible.
i Information
- Electronic Brake Force
Distribution (EBD) System
Warning Light
When the ABS Warning Light is on or
both ABS and Parking Brake Brake
Fluid Warning Lights are on, the
speedometer, odometer, or tripmeter
may not work. Also, the (PS Warning
Light may illuminate and the steering
effort may increase or decrease.
In this case, we recommend you have
the vehicle inspected by a +<81'AI
authorised repairer as soon as possible.

4-11
04
Electric Power
Steering (EPS)
Warning Light
7his warning light illuminates
‡When you set the ignition switch or
the Engine Start/Stop button to the
ON position.
- It illuminates for approximately 3
seconds and then goes off.
‡When there is a malfunction with
the EPS.
In this case, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
Malfunction Indicator
Lamp (MIL)
7his warning light illuminates
‡When you set the ignition switch or
the Engine Start/Stop button to the
ON position.
- It illuminates for approximately 3
seconds and then goes off.
‡When there is a malfunction with
the emission control system.
In this case, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
NOTICE
Driving with the Malfunction
Indicator Lamp (MIL) on may cause
damage to the emission control
system which could affect drivabil-
ity and/or fuel economy.
CAUTION
If the Malfunction Indicator Lamp
(MIL) illuminates, potential catalyt-
ic converter damage is possible
which could result in loss of engine
power.
In this case, we recommend that
you have the vehicle inspected by
a HYUNDAI authorised repairer as
soon as possible.

4-13
04
NOTICE
‡If the engine does not stop imme-
diately after the Engine Oil
Pressure Warning Light is illumi-
nated, severe damage could
result.
‡If the warning light stays on
whilst the engine is running, it
indicates that there may be seri-
ous engine damage or malfunc-
tion. In this case:
1. Stop the vehicle as soon as it
is safe to do so.
2. Turn off the engine and check
the oil level. If the oil level is
low, fill the engine oil to the
proper level.
3. Start the engine again. If the
warning light stays on after
the engine is started, turn the
engine off immediately. In this
case, we recommend that you
have the vehicle inspected by
a HYUNDAI authorised repair-
er.
Engine Oil Level
Warning Light (if
equipped)
The engine oil level warning light illu-
minates when the engine oil level
should be checked.
If the warning light comes on, check
the engine oil level as soon as possi-
ble and add engine oil as required.
Slowly pour the recommended oil lit-
tle by little into a funnel. (Oil refill
capacity : approximately 0.6 ~ 1.0 l)
Use only the specified engine oil.
(Refer to "Recommended lubricants
and capacities" in chapter 2.)
Do not overfill the engine oil. Make
sure the oil level is not above F (Full)
mark on the dipstick.
i Information
‡ If you travel appro[imately 5 km
a1 km after the engine warms up,
after adding the engine oil, the warn-
ing light will go off.
‡ Cycle the ignition from 2FF to 21 3
times within 1 seconds, the warning
light will go off immediately.
+owever, when you turn off the
warning light without adding the
engine oil, the light will come on
again after travelling appro[imately
5 a 1 km after the engine warms
up.

4-15
04

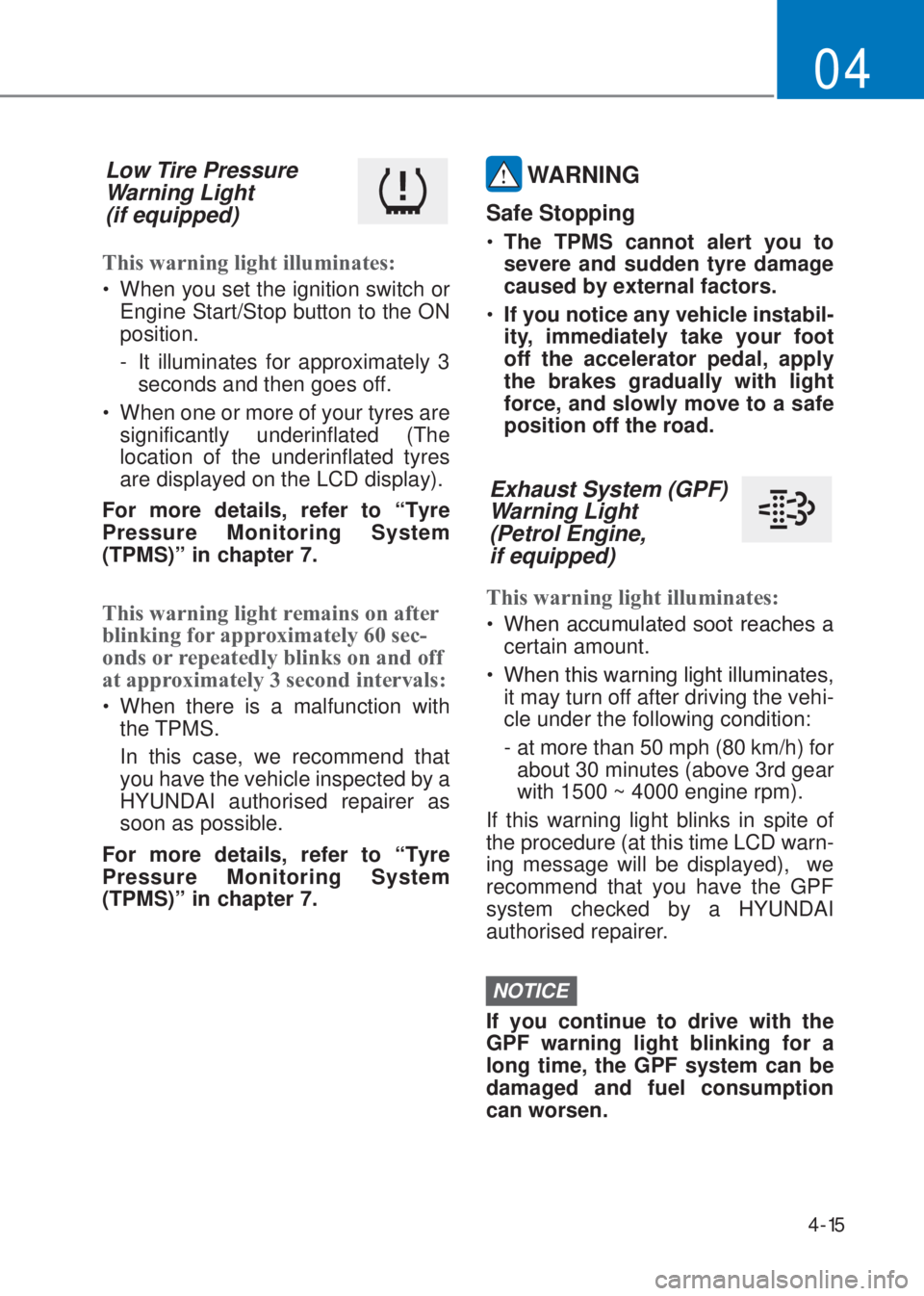

Low Tire Pressure
Warning Light
(if equipped)
7his warning light illuminates
‡When you set the ignition switch or
Engine Start/Stop button to the ON
position.
- It illuminates for approximately 3
seconds and then goes off.
‡When one or more of your tyres are
significantly underinflated (The
location of the underinflated tyres
are displayed on the LCD display).
For more details, refer to “Tyre
Pressure Monitoring System
(TPMS)” in chapter 7.
7his warning light remains on after
blinking for appro[imately 6 sec-
onds or repeatedly blinks on and off
at appro[imately 3 second intervals
‡When there is a malfunction with
the TPMS.
In this case, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer as
soon as possible.
For more details, refer to “Tyre
Pressure Monitoring System
(TPMS)” in chapter 7.
WARNING
Safe Stopping
‡The TPMS cannot alert you to
severe and sudden tyre damage
caused by external factors.
‡If you notice any vehicle instabil-
ity, immediately take your foot
off the accelerator pedal, apply
the brakes gradually with light
force, and slowly move to a safe
position off the road.
Exhaust System (GPF)
Warning Light
(Petrol Engine,
if equipped)
7his warning light illuminates
