6-36
Whilst driving
Using ABS
To obtain the maximum benefit from
\RXU$%6 LQ DQ HPHUJHQF\ VLWXDWLRQ
do not attempt to modulate your
brake pressure and do not try to
pump your brakes. Depress your
brake pedal as hard as possible.
When you apply your brakes under
conditions which may lock the wheels,
you may hear sounds from the
brakes, or feel a corresponding sen-
sation in the brake pedal. This is nor-
PDODQGLWPHDQV\RXU$%6LVDFWLYH
$%6GRHVQRWUHGXFHWKHWLPHRUGLV-
tance it takes to stop the vehicle.
Always maintain a safe distance from
the vehicle in front of you.
$%6ZLOOQRWSUHYHQWDVNLGWKDWUHVXOWV
from sudden changes in direction,
such as trying to take a corner too
fast or making a sudden lane change.
Always drive at a safe speed for the
road and weather conditions.
$%6 FDQQRW SUHYHQW D ORVV RI VWDELOL-
ty. Always steer moderately when
braking hard. Severe or sharp steer-
ing wheel movement can still cause
your vehicle to veer into oncoming
traffic or off the road.
On loose or uneven road surfaces,
operation of the anti-lock brake sys-
tem may result in a longer stopping
distance than for vehicles equipped
with a conventional brake system.
7KH$%6ZDUQLQJOLJKW
) will stay
on for several seconds after the igni-
tion switch is in the ON position.
'XULQJ WKDW WLPH WKH $%6 ZLOO JR
through self-diagnosis and the light
will go off if everything is normal. If
the light stays on, you may have a
SUREOHP ZLWK \RXU $%6 :H UHFRP-
mend that you contact a HYUNDAI
authorised repairer as soon as pos-
sible.
WARNING
If the ABS warning light () is on
and stays on, you may have a
problem with the ABS. Your power
brakes will work normally. To
reduce the risk of serious injury or
death, we recommend that you
contact a HYUNDAI authorised
repairer as soon as possible.
NOTICE
When you drive on a road having
poor traction, such as an icy road,
and apply your brakes continuous-
ly, the ABS will be active continu-
ously and the ABS warning light
(
) may illuminate. Pull your
vehicle over to a safe place and
turn the engine off.
Restart the engine. If the ABS
warning light is off, then your ABS
system is normal.
Otherwise, you may have a prob-
lem with your ABS system. We rec-
ommend that you contact a
HYUNDAI authorised repairer as
soon as possible.
i Information
When you jump start your vehicle
because of a drained battery, the ABS
warning light (
) may turn on at the
same time. 7his happens because of the
low battery voltage. It does not mean
your ABS is malfunctioning. +ave the
battery recharged before driving the
vehicle.

6-44
Whilst driving
The ISG system is to reduce the fuel
consumption by automatically shut-
ting down the engine, when the vehi-
cle is at a standstill (i.e. red stop light,
VWRSVLJQDQGWUDIILFMDP
The engine is automatically started
upon satisfying the starting condi-
tions.
The ISG system is always active,
when the engine is running.
i Information
When the engine is automatically
started by the IS* system, some warn-
ing lights (i.e. ABS, ESC, ESC 2FF,
EPS, and parking brake warning light)
may illuminate for a few seconds due
to the low battery voltage. +owever, it
does not indicate a malfunction with
the IS* system.
To activate the ISG system
Prerequisite for activation
The ISG system operates in the fol-
lowing situations.
‡ 7KHGULYHU‹VVHDWEHOWLVIDVWHQHG

6-46
Whilst driving
At this time, restart the vehicle manu-
DOO\E\
Manual transmission vehicle
Depressing the clutch and brake
pedal with the gear in neutral.
Automated Manual Transmission
vehicle
Depressing the brake pedal with the
shift lever in N (Neutral).
Auto start
7o restart the engine in the auto stop
mode
Manual transmission vehicle

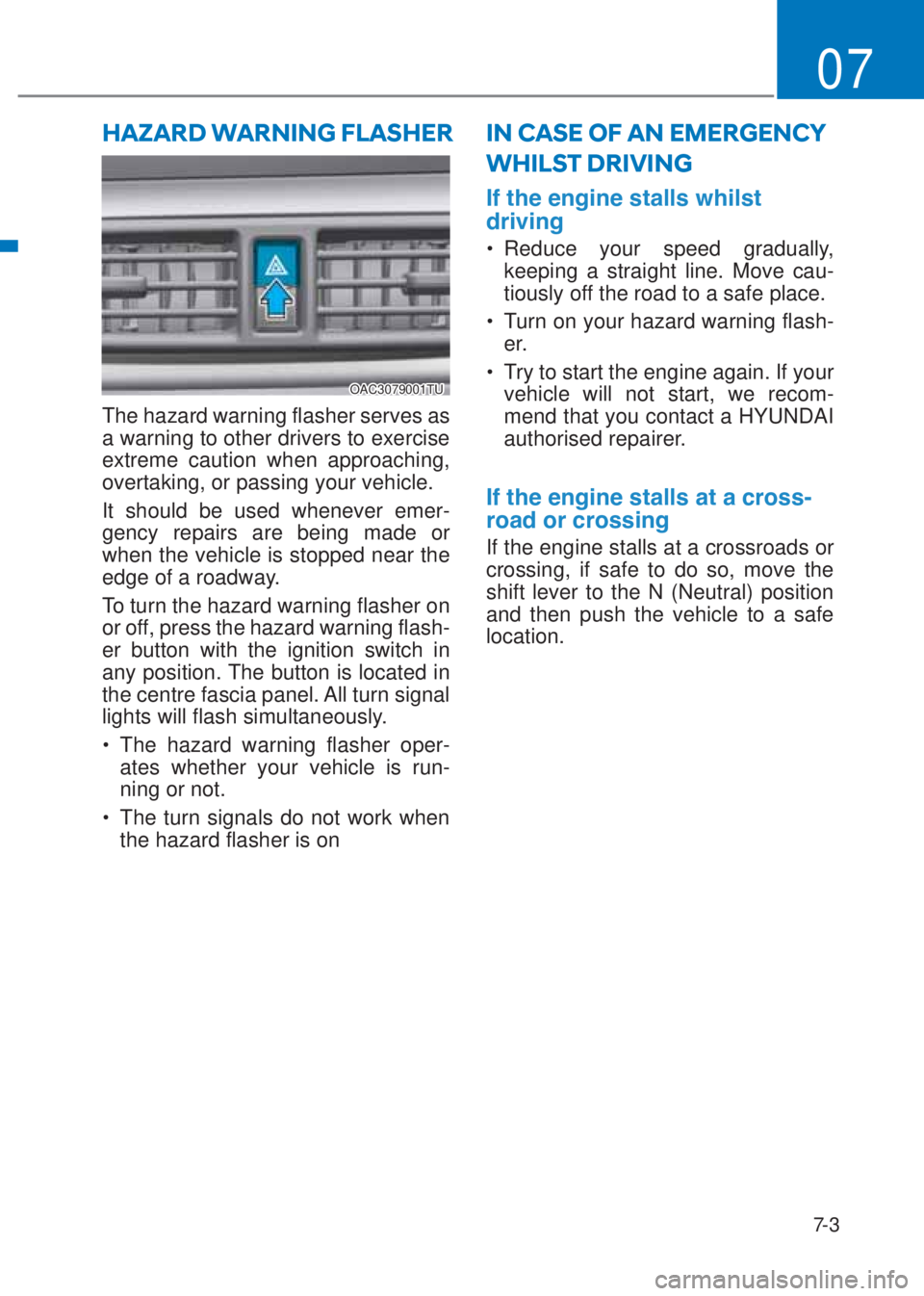

7-3
07
OAC3079001TU
The hazard warning flasher serves as
a warning to other drivers to exercise
extreme caution when approaching,
overtaking, or passing your vehicle.
It should be used whenever emer-
gency repairs are being made or
when the vehicle is stopped near the
edge of a roadway.
To turn the hazard warning flasher on
or off, press the hazard warning flash-
er button with the ignition switch in
any position. The button is located in
the centre fascia panel. All turn signal
lights will flash simultaneously.
‡The hazard warning flasher oper-
ates whether your vehicle is run-
ning or not.
‡The turn signals do not work when
the hazard flasher is on
HAZARD WARNING FLASHER IN CASE OF AN EMERGENCY
WHILST DRIVING
,IWKHHQJLQHVWDOOVZKLOVW
GULYLQJ
‡Reduce your speed gradually,
keeping a straight line. Move cau-
tiously off the road to a safe place.
‡Turn on your hazard warning flash-
er.
‡Try to start the engine again. If your
vehicle will not start, we recom-
mend that you contact a HYUNDAI
authorised repairer.
,IWKHHQJLQHVWDOOVDWDFURVV-
URDGRUFURVVLQJ
If the engine stalls at a crossroads or
crossing, if safe to do so, move the
shift lever to the N (Neutral) position
and then push the vehicle to a safe
location.

I-3
I
Automatic climate control system ....................................................................... 5-62
Automatic heating and air conditioning ........................................................... 5-63
Manual heating and air conditioning ................................................................ 5-64
System operation .............................................................................................. 5-68
System maintenance ......................................................................................... 5-70
B
Battery ................................................................................................................. 8-25
For best battery service .................................................................................... 8-25
Battery capacity label ....................................................................................... 8-27
Battery recharging ............................................................................................ 8-27
Reset items ....................................................................................................... 8-28
Before driving ........................................................................................................ 6-5
Before entering the vehicle ............................................................................... 6-5
Before starting ................................................................................................... 6-5
Bluetooth ........................................................................................................... 5-113
Using a Bluetooth audio device ..................................................................... 5-116
Using a Bluetooth phone ................................................................................ 5-118
Brake/clutch fluid ................................................................................................ 8-16
Checking the brake/clutch fluid level ............................................................... 8-16
Braking system .................................................................................................... 6-33
Power brakes ................................................................................................... 6-33
Disc brakes wear indicator .............................................................................. 6-33
Rear drum brakes ............................................................................................. 6-34
Parking brake ................................................................................................... 6-34
Anti-lock Brake System (ABS) ........................................................................ 6-35
Electronic Stability Control (ESC) ................................................................... 6-37
Vehicle Stability Management (VSM) ............................................................. 6-40
Hill-Start Assist Control (HAC) ....................................................................... 6-41
Emergency Stop Signal (ESS) .......................................................................... 6-42
Good braking practices .................................................................................... 6-42
Bulb wattage .......................................................................................................... 2-9

I-7
I
If you have a flat tyre (with tyre mobility kit) ..................................................... 7-25
Introduction ...................................................................................................... 7-25
Notes on the safe use of the tyre Mobility Kit ................................................. 7-26
Components of the Tyre Mobility Kit .............................................................. 7-27
Using the Tyre Mobility Kit ............................................................................. 7-28
Distributing the sealant ..................................................................................... 7-30
Checking the tyre inflation pressure ................................................................. 7-30
Ignition switch ....................................................................................................... 6-7
Key ignition switch ........................................................................................... 6-7
Engine Start/Stop button ................................................................................. 6-10
Important safety precautions.................................................................................. 3-2
Always wear your seat belt ................................................................................ 3-2
Restrain all children ........................................................................................... 3-2
Air bag hazards ................................................................................................... 3-2
Driver distraction ................................................................................................ 3-2
Control your speed ............................................................................................. 3-3
Keep your vehicle in safe condition ................................................................... 3-3
In case of an emergency whilst driving ................................................................. 7-3
If the engine stalls whilst driving ....................................................................... 7-3
If the engine stalls at a crossroad or crossing ..................................................... 7-3
If you have a flat tyre whilst driving .................................................................. 7-4
Infotainment system............................................................................................. 5-90
USB port ........................................................................................................... 5-90
Antenna ............................................................................................................ 5-90
Steering wheel audio control ............................................................................ 5-91
Audio / Video / Navigation system .................................................................. 5-92
Bluetooth
® Wireless Technology hands-free ................................................... 5-93
How vehicle radio works .................................................................................. 5-93
Infotainment System specifications ................................................................... 5-125
Instrument cluster .................................................................................................. 4-2
Instrument cluster control ................................................................................... 4-3
Gauges and meters ............................................................................................. 4-3
Transmission shift indicator ............................................................................... 4-7
Warning and indicator lights .............................................................................. 4-8
LCD display messages ..................................................................................... 4-20

I-8
Index
Instrument panel overview .................................................................................... 2-5
Intelligent speed limit warning (ISLW) ............................................................... 6-72
System setting and activation ........................................................................... 6-73
Display ............................................................................................................. 6-73
Limitations of the system ................................................................................ 6-76
Interior features ................................................................................................... 5-79
Cigarette lighter ................................................................................................ 5-79
Ashtray ............................................................................................................. 5-79
Cup holder ........................................................................................................ 5-80
Sunvisor ............................................................................................................ 5-81
Power outlet ...................................................................................................... 5-82
USB charger ..................................................................................................... 5-83
Wireless mobile phone charging system .......................................................... 5-83
Clock ................................................................................................................ 5-86
Coat hook ......................................................................................................... 5-86
Floor mat anchor(s) .......................................................................................... 5-87
Luggage net (holder) ........................................................................................ 5-88
Cargo area cover ............................................................................................... 5-88
Interior overview ................................................................................................... 2-4
ISG (Idle Stop and Go) system ............................................................................ 6-44
To activate the ISG system ............................................................................... 6-44
To deactivate the ISG system .......................................................................... 6-47
ISG system malfunction ................................................................................... 6-47
The battery sensor deactivation ........................................................................ 6-48
J
Jump starting .......................................................................................................... 7-6
L
Lane keeping assist (LKA) .................................................................................. 6-61
LKA operation .................................................................................................. 6-62
LKA system function change ........................................................................... 6-63
Warning light and message............................................................................... 6-65
Limitations of the system ................................................................................. 6-67
