2021 HYUNDAI GENESIS GV70 sensor

05
5-27
FINGERPRINT AUTHENTICATION SYSTEM
Fingerprint authentication system allows
the driver to start the engine, make
electronic payments, have access to
personal information, unlock profile
and exit valet mode with a registered
fingerprint.
Fingerprint Authentication
System Settings
To use the system, the driver’s fingerprint
should be registered in the driver’s
profile. Drivers can set or delete their
fingerprint through the infotainment
system. Follow the following procedure.
Registering fingerprint
OJK050003OJK050003[A] : Fingerprint sensor
1. Turn on the vehicle with a smart key.
2. 6HOHFW
S6HWXS

Convenience Features

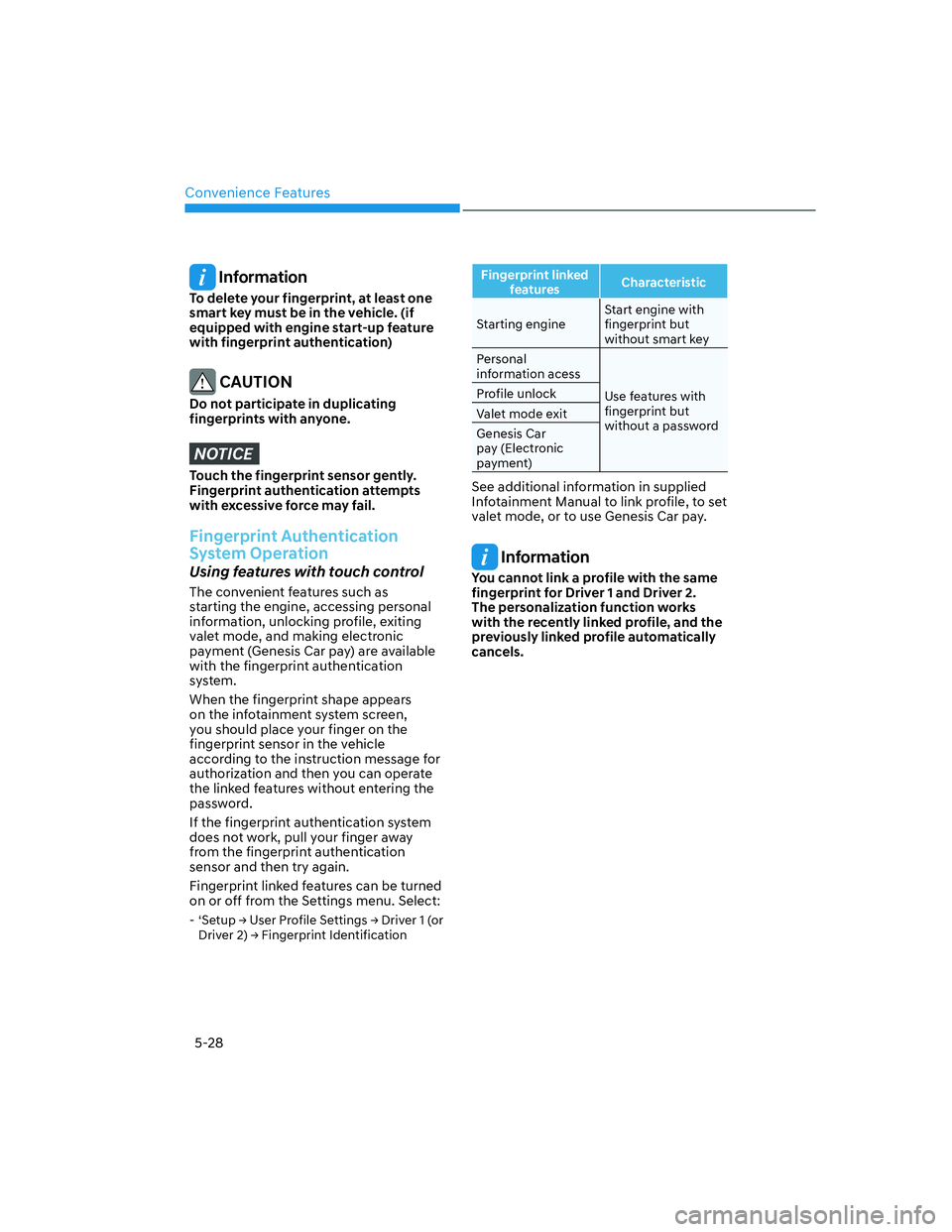

5-28
Information
To delete your fingerprint, at least one
smart key must be in the vehicle. (if
equipped with engine start-up feature
with fingerprint authentication)
CAUTION
Do not participate in duplicating
fingerprints with anyone.
NOTICE
Touch the fingerprint sensor gently.
Fingerprint authentication attempts
with excessive force may fail.
Fingerprint Authentication
System Operation
Using features with touch control
The convenient features such as
starting the engine, accessing personal
information, unlocking profile, exiting
valet mode, and making electronic
payment (Genesis Car pay) are available
with the fingerprint authentication
system.
When the fingerprint shape appears
on the infotainment system screen,
you should place your finger on the
fingerprint sensor in the vehicle
according to the instruction message for
authorization and then you can operate
the linked features without entering the
password.
If the fingerprint authentication system
does not work, pull your finger away
from the fingerprint authentication
sensor and then try again.
Fingerprint linked features can be turned
on or off from the Settings menu. Select:

L
S6HWXS

05
5-29
Starting the engine (if equipped)
OJK050046OJK050046Place your finger on the fingerprint
sensor (1) to verify your fingerprint. After
it is successfully verified, start the engine
by pressing the Engine Start/Stop button
(2) within 30 seconds.
Fingerprint
authentication
statusLight
colorMessage on
cluster
Standby White -
Succeed BlueFingerprint is
verified. You can
start vehicle.
Fail Yellow -
Restricted due
to consecutive
failureRedFingerprint
authorization is
locked out. Try
again in XX min.
For more details on how to start your
vehicle with the Engine Start/Stop
button, refer to “Engine Start/Stop
Button” section in chapter 6.
Information
If you are in the vehicle for an extended
period without starting the engine, the
fingerprint sensor may turn off.
If this occurs, depress the brake pedal and
verify your fingerprint again when the
fingerprint sensor illuminates.
Limitations of Fingerprint
Authentication System
• Fingerprint authentication system
may not work when:
- Trying to authorize with an
unregistered fingerprint.
- The center of the fingerprint sensor
is not touched.
- Any water or substance is on your
finger or the sensor.
- The film on the sensor is not
removed.
- The registered fingerprint is scarred
or swollen.
- Your hand is overly dry.
- The sensor is touched shortly.
• If fingerprint authentication fails
repeatedly, fingerprint authentication
may be temporarily restricted. You
should try it later or try other methods
such as using your smart key or
inputting your password.
If the engine does not start due to
fingerprint sensor malfunction, have
the system inspected by an authorized
retailer of Genesis Branded products.
• When you visit an authorized retailer
of Genesis Branded products to repair
parts due to fingerprint authentication
system or related part failure, your
registered fingerprint might be
deleted. Have your smart key when
you visit an authorized retailer of
Genesis Branded products.

Convenience Features
5-30
• You cannot use the fingerprint sensor
when the vehicle is discharged.
• If ‘Start Vehicle’ is deselected from
the vehicle settings menu for Driver
1 and Driver 2, the fingerprint sensor
will not operate when the vehicle is
off.
• If you turn the engine on or off during
the fingerprint authentication process,
your fingerprint may not be verified
properly.
WARNING
Do not register children’s fingerprints in
the vehicle.
If you register children’s fingerprints
and leave them in the vehicle,
unexpected accidents may occur.
When Purchasing a Used Vehicle
If you purchase a used vehicle, you
should confirm and delete all registered
fingerprints in Driver 1 and Driver 2
profile.
If a fingerprint is registered, the message
“Biometric authentication active”
appears on the cluster once when the
vehicle door is unlocked, and the engine
is started.
Remotely Starting the Vehicle
If ‘Start Vehicle’ is selected from the
Driver 1 or Driver 2 User Profile settings
menu, and the door is unlocked with the
Genesis Digital Key App or the Genesis
Connected Service App while the vehicle
is remotely started, the engine will turn
off if the fingerprint sensor does not
verify your fingerprint.
To remotely start the vehicle with
the Genesis Digital Key App, refer to
“Genesis Digital Key” section in this
chapter. And for Genesis Connected
Service App, see additional information
in a separately supplied manual.

05
5-31
Operating Door Locks From
Outside the Vehicle
Mechanical key
OJX1059013OJX1059013
After pulling the door handle (1), turn the
key (2) toward the front of the vehicle to
lock (A) or turn the key toward the rear of
the vehicle to unlock (B).
If you lock the driver’s door with a
mechanical key, the driver’s door will
lock. If you unlock the driver’s door with
a mechanical key, the driver’s door will
unlock.
Once the doors are unlocked, they may
be opened by pulling the door handle.
When closing the door, push the door by
hand. Make sure that doors are closed
securely.
NOTICE
Do not apply excessive force on the
door and door handle. It may damage
the door and door handle.
Information
:KHQWKHNH\KROHIUHH]HVDQGGRHVQRW
open, lightly tap or indirectly warm (i.e.
hand temperature) the keyhole.
Smart key
OJX1059001OJX1059001
Lock
Touch the touch sensor on the front
outside door handle (the engraved part)
while carrying the Smart Key with you or
press the Door Lock button on the Smart
Key, all doors will lock.
OJX1059002OJX1059002
Unlock
Put your hand in the front outside door
handle while carrying the Smart Key with
you or press the Door Unlock button on
the Smart Key, all doors will unlock.
Once the doors are unlocked, they may
be opened by pulling the door handle.
When closing the door, push the door by
hand. Make sure that doors are closed
securely.
For more details, refer to “Smart Key” in
the previous pages.
DOOR LOCKS

05
5-41
Information
• The second alert is available for
vehicles equipped with the ROA sensor.
• Rear Occupant Alert also activates
when movement is detected in the cargo
area.
• The second alert is activated only after
the prior activation of the first alert.
• „„ClusterCluster„„Steering wheelSteering wheel
OJX1059019LOJX1059019LOJX1059021OJX1059021
If you do not want to use Rear
Occupant Alert, press the OK button
on the steering wheel when the first
alert is displayed on the cluster. Doing
so will deactivate the second alert one
time.
• If the vehicle is started remotely (if
equipped with Remote Start), inside
movement detection will stop.
Advanced Rear Occupant Alert
Precautions
„„SensorSensor
OJK050009OJK050009
• Make sure that all the windows are
closed. If the window is open, the
alert may operate by the sensor
detecting an unintended movement
(e.g. wind or bugs).
• The alert may operate if movement
in the driver or passenger seat is
detected.
• If the doors are locked with a
passenger inside the vehicle, the alert
may operate.
• An alert can occur if there is an impact
on the vehicle.
• If boxes or objects are stacked in the
vehicle, the system may not detect
passengers. Or, the alert may operate
if the boxes or objects fall off.
• The alert may operate when the
vehicle is pushed or shaken, or while
washed, or by surrounding noise or
vibration after the vehicle is locked.
• The alert may operate when there
are metallic or liquid objects in the
vehicle.

Convenience Features
5-42
WARNING
Even if your vehicle is equipped with
Advanced Rear Occupant Alert (ROA),
always make sure to check the rear
seats or cargo area before you leave the
vehicle.
Advanced Rear Occupant Alert (ROA)
may not operate when:
• Movement does not continue for
a certain period of time or the
movement is small.
• A child is not seated in a child
restraint system.
• The detection signal is weak because
the signal is obscured by seat or CRS
(for example, child is restrained in
the forward-facing CRS).
• Movement is detected in areas other
than the rear seats.
• The rear passenger is covered with a
fabric containing metallic substance
such as a blanket.
• An object in the vehicle blocks the
sensor.
• The sensor is contaminated by
foreign material.
• An animal at the rear seat or luggage
compartment is not large enough to
be detected by the sensor or there is
hardly any movement.
• Attaching objects or modifying the
interior ceiling, or the interior ceiling
is deformed or damaged.
• There are electronic interference
around the vehicle.
• Other environmental reasons that
may affect the system.
Declaration of Conformity
The radio frequency components (ROA
Radar Sensor) complies:
- For USA
OANATEL323OANATEL323
- For Canada
OANATEL324OANATEL324

Convenience Features
5-88
Exterior Lights
Lighting control
To operate the lights, turn the knob at
the end of the control lever to one of the
following positions:
OJX1059057OJX1059057
1. OFF position
2. AUTO headlamp position
3. Position lamp position
4. Headlamp position
Daytime Running Light (DRL)
The Daytime Running Lights (DRL) can
make it easier for others to see the front
of your vehicle during the day, especially
after dawn and before sunset. The
Daytime Running Lights (DRL) should
be illuminated whenever you are driving
during daylight hours. The DRL system
will be ON when the headlamp switch is
in the OFF or the AUTO position (when
daylight is detected) and the Electronic
Parking Brake (EPB) is released.
The DRL system will turn off when:
• The headlamps are ON.
• The parking brake is applied.
• The vehicle is turned off.
OJX1059059OJX1059059
AUTO headlamp position
The position lamp and headlamp will
be turned ON or OFF automatically
depending on the amount of daylight as
measured by the ambient light sensor (1)
at the upper end of the windshield glass.
Even with the AUTO headlamp feature
in operation, it is recommended to
manually turn ON the headlamps when
driving at night or in a fog, driving in the
rain, or when you enter dark areas, such
as tunnels and parking facilities.
LIGHTING
