09
9-59
Luggage compartment (Battery junction block)
Fuse Name SymbolFuse
RatingCircuit Protected
TRAILERTRAILER50A Trailer Connector
B+4
B+450AICU Junction Block (Fuse - MODULE4, P/SEAT PASS2,
TRAILER, DOOR LOCK)
B+1
1B+50AICU Junction Block (Long Term Load Latch Relay,
Short Term Load Latch Relay, IPS1, IPS3, IPS4, IPS7)
B+3
B+350AICU Junction Block (Fuse - P/SEAT DRV1, P/SEAT
DRV2, S/HEATER DRV, S/HEATER PASS1, P/SEAT
PASS1, ECS, P/SEAT, SUNROOF, POWER HANDLE, P/
WINDOW LH)
B+5
B+5125A E/R SUB Junction Block (B+)
B+6
B+6100ARear Junction Block (Fuse - S/HEATER PASS2, S/
HEATER RR1, S/HEATER RR1, P/WNDOW RH, B+2,
PRESAFETY SEAT BELT1, PRESAFETY SEAT BELT2)
AMS
AMS10A Battery Sensor
09

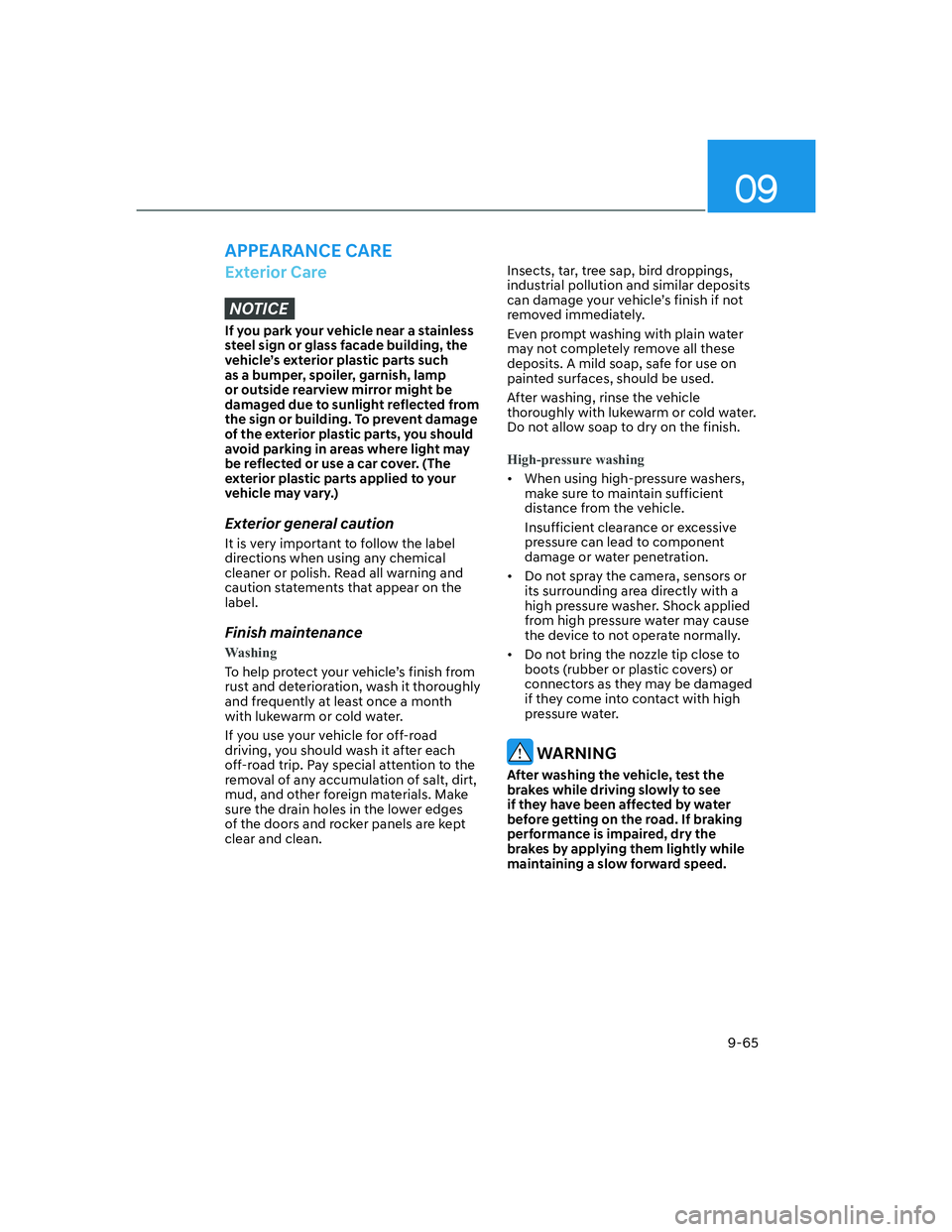

9-65
Exterior Care
NOTICE
If you park your vehicle near a stainless
steel sign or glass facade building, the
vehicle’s exterior plastic parts such
as a bumper, spoiler, garnish, lamp
or outside rearview mirror might be
damaged due to sunlight reflected from
the sign or building. To prevent damage
of the exterior plastic parts, you should
avoid parking in areas where light may
be reflected or use a car cover. (The
exterior plastic parts applied to your
vehicle may vary.)
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning and
caution statements that appear on the
label.
Finish maintenance
Washing
To help protect your vehicle’s finish from
rust and deterioration, wash it thoroughly
and frequently at least once a month
with lukewarm or cold water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to the
removal of any accumulation of salt, dirt,
mud, and other foreign materials. Make
sure the drain holes in the lower edges
of the doors and rocker panels are kept
clear and clean.Insects, tar, tree sap, bird droppings,
industrial pollution and similar deposits
can damage your vehicle’s finish if not
removed immediately.
Even prompt washing with plain water
may not completely remove all these
deposits. A mild soap, safe for use on
painted surfaces, should be used.
After washing, rinse the vehicle
thoroughly with lukewarm or cold water.
Do not allow soap to dry on the finish.
High-pressure washing
• When using high-pressure washers,
make sure to maintain sufficient
distance from the vehicle.
Insufficient clearance or excessive
pressure can lead to component
damage or water penetration.
• Do not spray the camera, sensors or
its surrounding area directly with a
high pressure washer. Shock applied
from high pressure water may cause
the device to not operate normally.
• Do not bring the nozzle tip close to
boots (rubber or plastic covers) or
connectors as they may be damaged
if they come into contact with high
pressure water.
WARNING
After washing the vehicle, test the
brakes while driving slowly to see
if they have been affected by water
before getting on the road. If braking
performance is impaired, dry the
brakes by applying them lightly while
maintaining a slow forward speed.
APPEARANCE CARE
