2021 HYUNDAI ELANTRA SEL Owners Manual

2-2
Vehicle Information
ExtErior ovErviEw
„„Front view
The actual shape may differ from the illustration.OCN7010001
1. Hood ..................................................... 5-59
2.
Headlamp ............................................... 9-51
3.
Tires and wheels ................................... 9-

27
4.
Side view mirr

or
.................................... 5-495.
Sunroo
f .................................................
5-55
6.
Fr
ont windshield wiper blades ............9-22
7.
Window

s
................................................5-51
8.
Fr

ont radar
.............................................7

-14

2-3
02

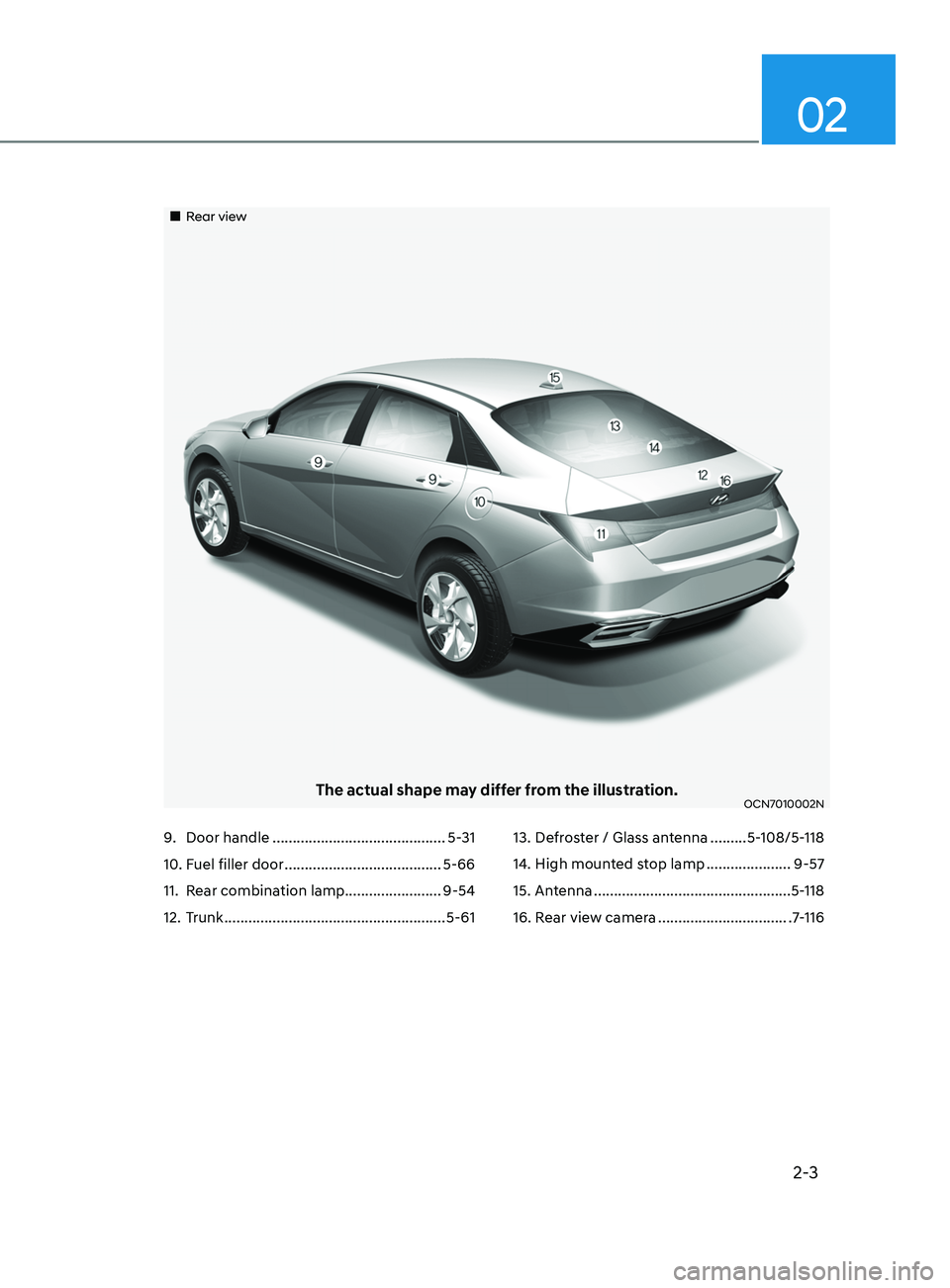

„„Rear view
The actual shape may differ from the illustration.OCN7010002N
9.Door handle ...........................................5-31
10 .
Fuel filler door ....................................... 5-66
11.
Rear combination lamp

........................ 9-54
12.
Trunk ....................................................... 5-6113.
Defros
ter / Glass antenna .........
5-108/5- 118
14.
High mounted s
top lamp
.....................9-57
15.
Antenna ................................................. 5-118
16.
Rear view camer

a
.................................7

-116

2-4
Vehicle Information
The actual shape may differ from the illustration.OCN7010003N
1.Inside door handle ................................ 5-33
2.
Side view mirror con
trol switch
...........5-50
3.
Central door lock s

witch .......................5-33
4.
Pow

er window switches
....................... 5-51
5.
Pow

er window lock button
.................. 5-54
6.
Steering wheel tilt/t

elescopic lever
....5-39
7.
Steering wheel ...................................... 5-38
8.
Instrument panel illumina

tion control
switch
...................................................... 4-59.
ISG (Idle St
op & Go) OFF button ..........
6-38
10 .
Lane Safe
ty button
................................7-3

1
11.
ESC OFF button .................................... 6-34
12.
Fuel filler door release le

ver
.................5-66
13.
Trunk release le

ver
.................................5-61
14.
Hood release le

ver
................................5-59
15.
Light contr

ol/Turn signals
....................5-68
16.
Seat adjusting s

witch
.............................3-3
17

.
Wiper/washer swit
ch
............................5-79

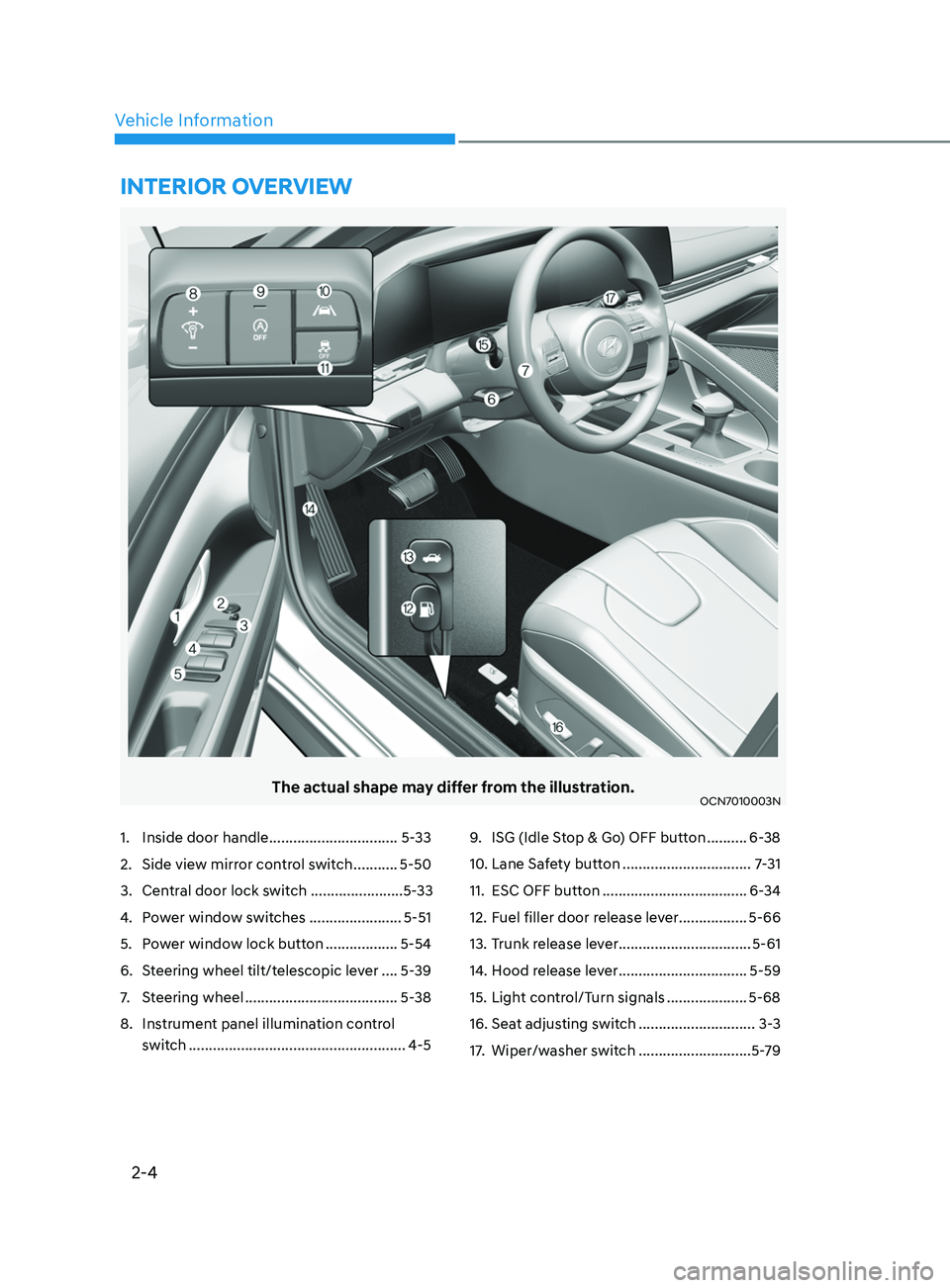

intErior ovErviEw

2-5
02
The actual shape may differ from the illustration.OCN7010004N
instrumEnt PanEl ovErviEw
1.Instrument cluster ..................................4-4
2.
Driver’s fr
ont air bag
.............................. 3-37
3.
Engine start butt

on................................. 6-8
4.
Key ignition s

witch
................................. 6-5
5.
Info

tainment system
............................ 5-117
6.
Hazard warning flasher s

witch
..............8-2
7.
Climate con

trol system
...............5-81/5-92
8.
Passenger’s fr

ont air bag
......................3-
379.Glove bo
x .............................................
5-110
10 .
Manual transmission/
Int

elligent variable transmission
...6-12/6-

15
11.
Drive mode button ............................... 6-42
12.
Parking/View butt

on
............................7-

117
13.
Electronic parking brak

e switch
..........6-25
14

.
AUTO HOLD butt
on
..............................6-29

2-6
Vehicle Information
„„Smartstream G 2.0 Atkinson
The actual engine room in the vehicle may differ from the illustration.OCN7080064L

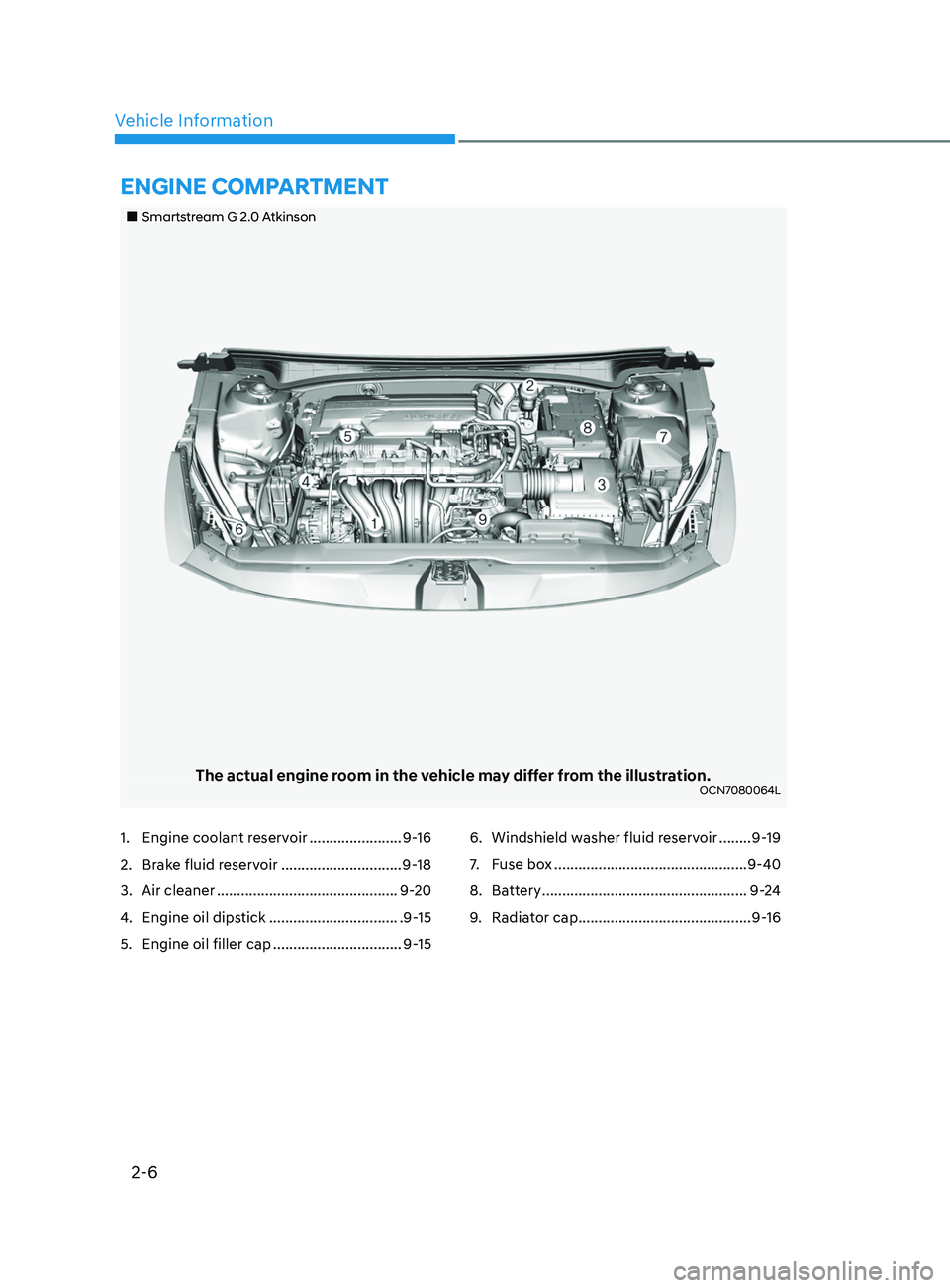

EnginE ComPartmEnt
1. Engine coolant reservoir .......................9- 16
2.
Brak
e fluid reservoir
.............................. 9-

18
3.
Air cleaner ............................................. 9-

20
4.
Engine oil dips

tick
................................ .9-

15
5.
Engine oil filler cap ................................ 9-

156. Windshield washer fluid r
eservoir ........
9- 19
7.
Fuse bo
x
................................................9-40
8.
Batt

ery
...................................................9-2

4
9.
Radiat

or cap
...........................................9-

16

02
2-7

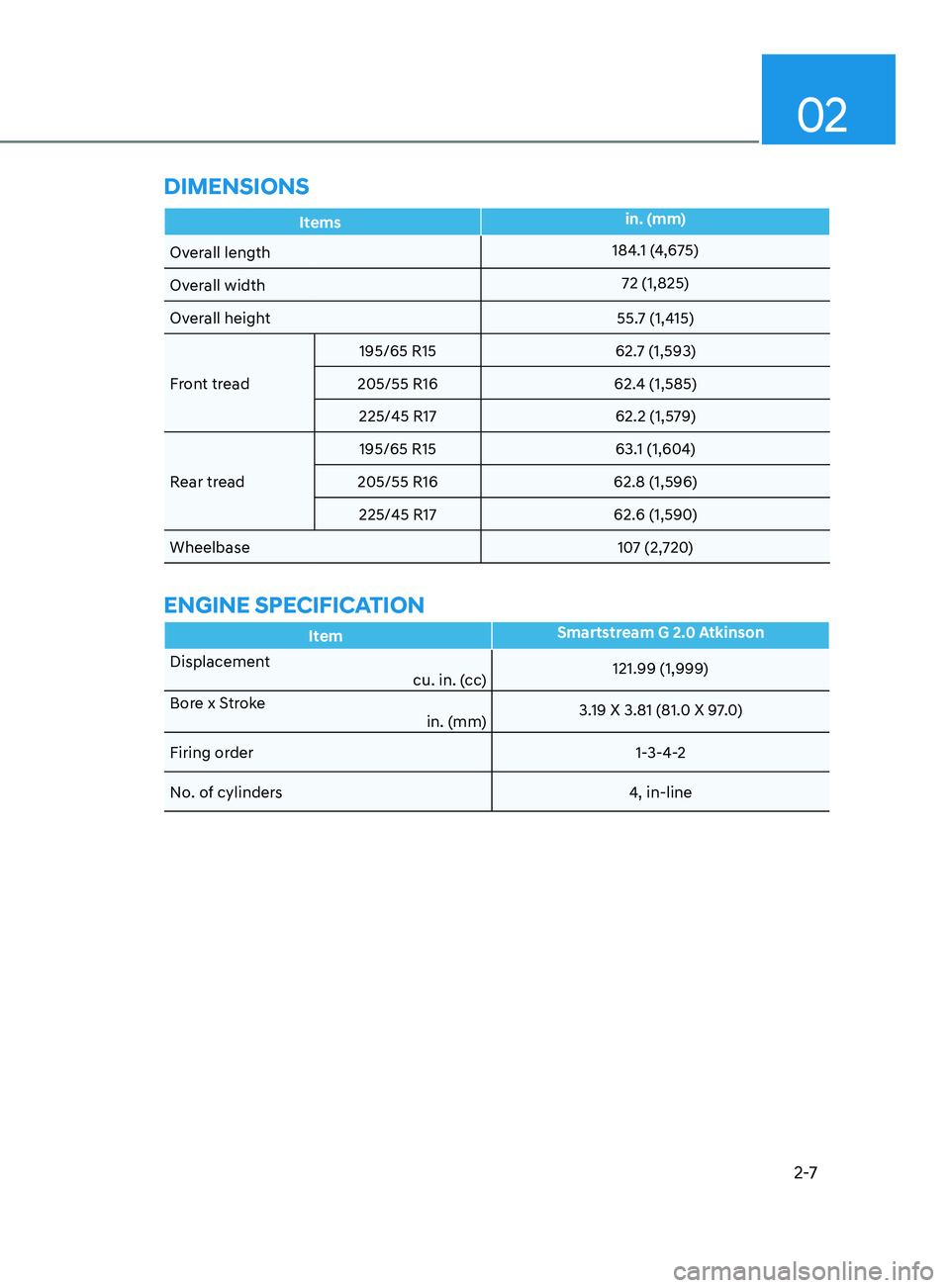

DimEnsions
Itemsin. (mm)
Overall length 184.1 (4,675)
Overall width 72 (1,825)
Overall height 55.7 (1,415)
Front tread 195/65 R15
62.7 (1,593)
205/55 R16 62.4 (1,585)
225/45 R17 62.2 (1,579)
Rear tread 195/65 R15
63.1 (1,604)
205/55 R16 62.8 (1,596)
225/45 R17 62.6 (1,590)
Wheelbase 107 (2,720)
EnginE sPECifiCation
ItemSmartstream G 2.0 Atkinson
Displacement cu. in. (cc) 121.99 (1,999)
Bore x Stroke in. (mm)3.19 X 3.81 (81.0 X 97.0)
Firing order 1-3-4-2
No. of cylinders 4, in-line

Vehicle Information
2-8
BulB wattagE
Light bulbBulb type Wattage
Front Type A
Headlamp
High HB3
60
Low HB3 60
Daytime running lamp (DRL)/Parking lamp LED
LED
Type B Headlamp
High
LED LED
Low
Daytime running lamp (DRL)/Parking lamp LED
LED
Side marker Bulb type W5W
5
LED type LED LED
Turn signal lamp PY21W21
Side repeater lamp (Outside mirror) LEDLED
Rear Type A
Stop lamp
P21W/5W 21
Tail lamp Inner W5W
5
Outer P21/5W 5
Type B Stop lamp
28/8W
(2357NA) 28
Tail lamp LEDLED
Side marker Bulb type W5W
5
LED type LED LED
Turn signal lamp PY21W21
License plate lamp W5W5
Reverse lamp W16W16
High mounted stop lamp P21W21
Interior Map lamp
W10W10
Room lamp FESTOON 8
Vanity mirror lamp FESTOON 5
Trunk room lamp FESTOON 5

02
2-9

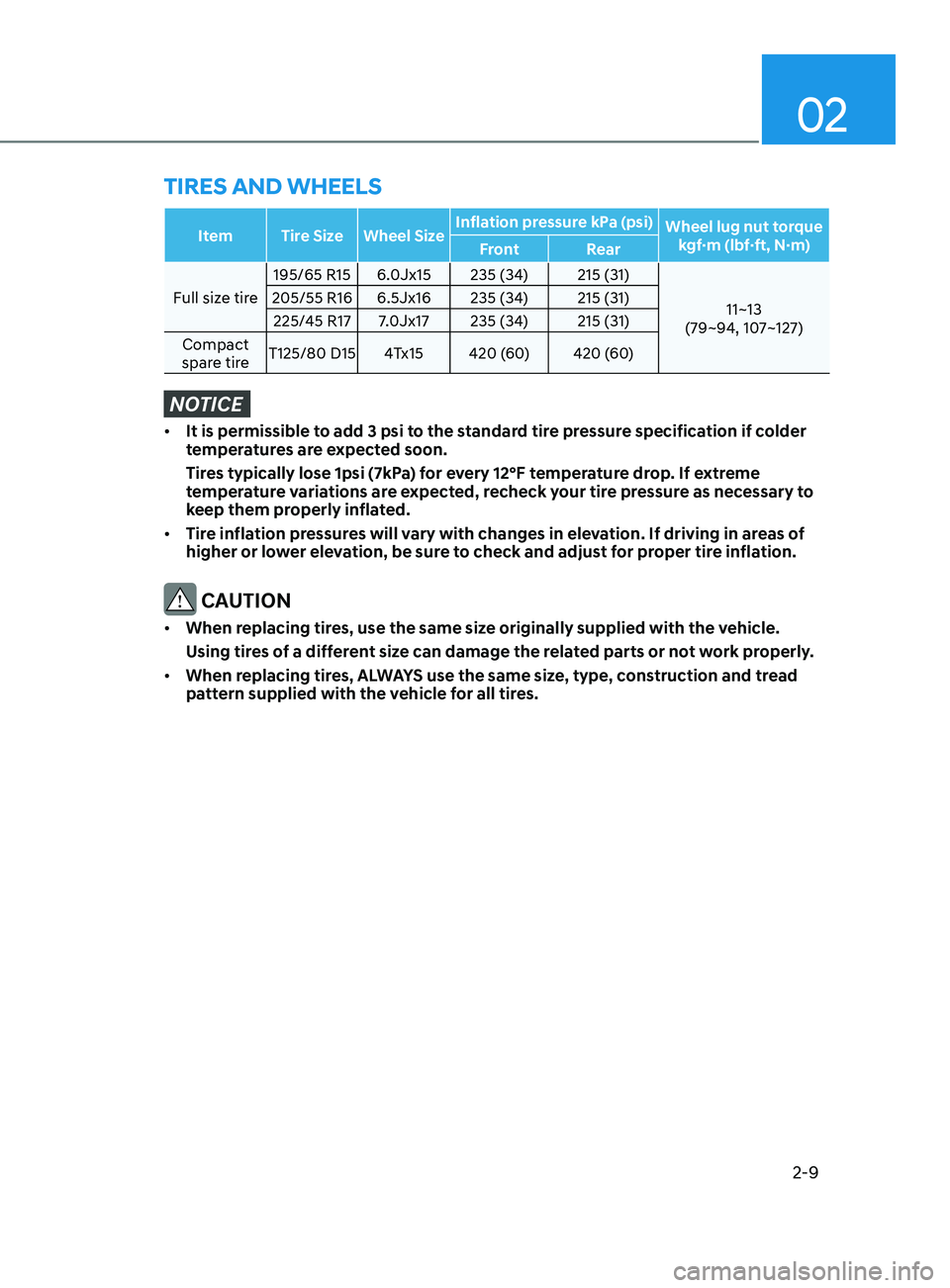

tirEs anD whEEls
Item Tire Size Wheel SizeInflation pressure kPa (psi)
Wheel lug nut torque
kgf·m (lbf·ft, N·m)
Front Rear
Full size tire 195/65 R15 6.0Jx15 235 (34) 215 (31)
11~13
(79~94, 107~127)
205/55 R16 6.5Jx16 235 (34) 215 (31)
225/45 R17 7.0Jx17 235 (34) 215 (31)
Compact
spare tire T125/80 D15 4Tx15 420 (60) 420 (60)
NOTICE
•
It is permissible to add 3 psi to the standard tire pressure specification if colder
temperatures are expected soon.
Tires typically lose 1psi (7kPa) for every 12°F temperature drop. If extreme
temperature variations are expected, recheck your tire pressure as necessary to
keep them properly inflated.
• Tire inflation pressures will vary with changes in elevation. If driving in areas of
higher or lower elevation, be sure to check and adjust for proper tire inflation.
CAUTION
•When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
• When replacing tires, ALWAYS use the same size, type, construction and tread
pattern supplied with the vehicle for all tires.
