2021 HONDA CLARITY FUEL CELL immobilizer

26
Quick Reference Guide

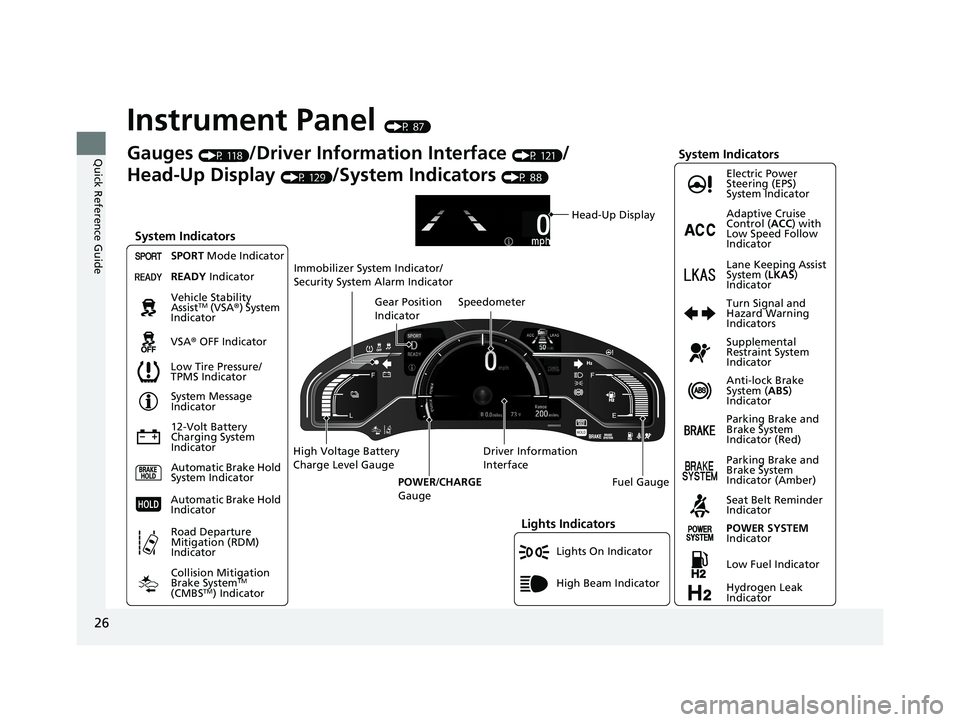

Instrument Panel (P 87)
Lights On Indicator
System Indicators
12-Volt Battery
Charging System
IndicatorAnti-lock Brake
System (
ABS)
Indicator
Vehicle Stability
Assist
TM (VSA
®) System
Indicator
VSA ® OFF Indicator Electric Power
Steering (EPS)
System Indicator
Lights Indicators
High Beam Indicator
Seat Belt Reminder
Indicator
System Indicators
System Message
Indicator
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Gauges (P 118)/Driver Information Interface (P 121)/
Head-Up Display
(P 129)/System Indicators (P 88)
Low Tire Pressure/
TPMS Indicator Turn Signal and
Hazard Warning
Indicators
Speedometer
Automatic Brake Hold
System Indicator Parking Brake and
Brake System
Indicator (Amber)
SPORT
Mode Indicator
Collision Mitigation
Brake System
TM
(CMBSTM) Indicator
Road Departure
Mitigation (RDM)
Indicator
Immobilizer System Indicator/
Security System Alarm Indicator
Automatic Brake Hold
Indicator
Head-Up Display
READY Indicator
POWER SYSTEM
Indicator
Gear Position
Indicator
Fuel Gauge
Driver Information
Interface
High Voltage Battery
Charge Level Gauge
POWER/CHARGE
Gauge
Low Fuel Indicator
Hydrogen Leak
Indicator Adaptive Cruise
Control ( ACC) with
Low Speed Follow
Indicator
Lane Keeping Assist
System ( LKAS)
Indicator
21 CLARITY FCV CSS-31TRT6400_02.book 26 ページ ２０２０年９月２５日　金曜日　午後３時１５分

98

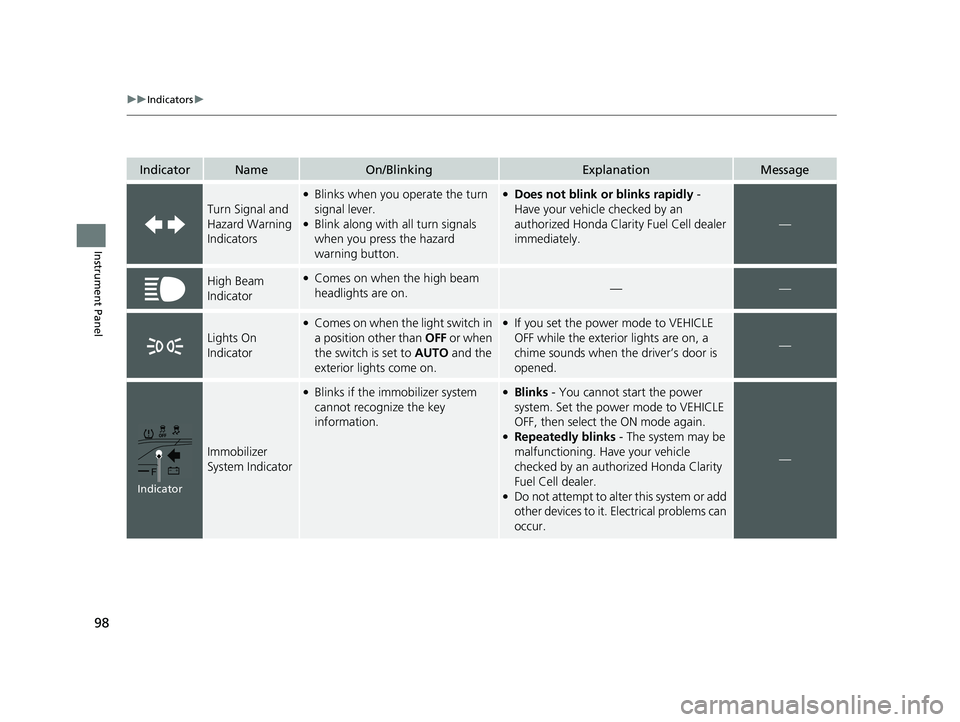

uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Turn Signal and
Hazard Warning
Indicators
●Blinks when you operate the turn
signal lever.
●Blink along with all turn signals
when you press the hazard
warning button.
●Does not blink or blinks rapidly -
Have your vehicle checked by an
authorized Honda Clarity Fuel Cell dealer
immediately.
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
Lights On
Indicator
●Comes on when the light switch in
a position other than OFF or when
the switch is set to AUTO and the
exterior lights come on.●If you set the power mode to VEHICLE
OFF while the exterior lights are on, a
chime sounds when the driver’s door is
opened.
—
Immobilizer
System Indicator
●Blinks if the immobilizer system
cannot recognize the key
information.●Blinks - You cannot start the power
system. Set the power mode to VEHICLE
OFF, then select the ON mode again.
●Repeatedly blinks - The system may be
malfunctioning. Have your vehicle
checked by an author ized Honda Clarity
Fuel Cell dealer.
●Do not attempt to alter this system or add
other devices to it. El ectrical problems can
occur.
—
Indicator
21 CLARITY FCV CSS-31TRT6400_02.book 98 ページ ２０２０年９月２５日　金曜日　午後３時１５分

133
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 134
Locking and Unlocking the Doors Key Types and Functions .................. 135
Low Smart Entry Remote Signal Strength .. 136Locking/Unlocking the Doors from the Outside .......................................... 137
Locking/Unlocking the Doors from the Inside ............................................. 144
Childproof Door Locks ..................... 146
Auto Door Locking/Unlocking .......... 147
Opening and Closing the Trunk ....... 148
Security System ................................ 151
Immobilizer System .......................... 151 Security System Alarm...................... 151
Opening and Closing the Windows ... 154
Operating the Switches Around the
Steering Wheel POWER Button................................. 156
Turn Signals ..................................... 159
Light Switches.................................. 160
Daytime Running Lights ................... 163
Wipers and Washers ........................ 164
Brightness Control ........................... 166
Rear Defogger/Heated Door Mirror Button........................................ 168
Driving Position Memory System ...... 169 Adjusting the Steering Wheel .......... 171
Adjusting the Mirrors ....................... 172
Interior Rearview Mirror ................... 172
Power Door Mirrors ......................... 173
Adjusting the Seats .......................... 174
Front Seats ...................................... 174
Interior Lights/Interior Convenience Items ................................................ 180
Interior Lights .................................. 180
Interior Convenience Items .............. 182
Climate Control System ................... 190
Using Automatic Climate Control .... 190
Automatic Climate Control Sensors ... 198
21 CLARITY FCV CSS-31TRT6400_02.book 133 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

135Continued
Controls

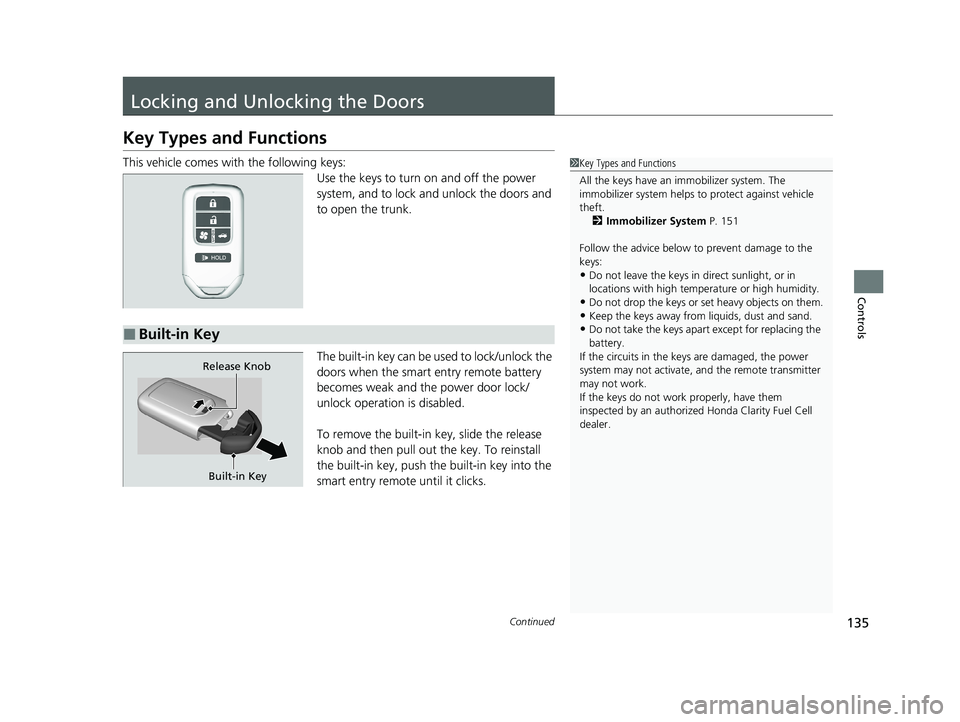

Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:
Use the keys to turn on and off the power
system, and to lock and unlock the doors and
to open the trunk.
The built-in key can be used to lock/unlock the
doors when the smart entry remote battery
becomes weak and the power door lock/
unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
smart entry remote until it clicks.1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 151
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids, dust and sand.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the power
system may not activate, and the remote transmitter
may not work.
If the keys do not work properly, have them
inspected by an authorized Honda Clarity Fuel Cell
dealer.■Built-in Key
Built-in Key
Release Knob
21 CLARITY FCV CSS-31TRT6400_02.book 135 ページ ２０２０年９月２５日　金曜日　午
後３時１５分

151Continued
Controls
Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the power system. Each key cont ains electronic transmitters that use
electronic signals to verify the key.
Pay attention to the follo wing when pressing the POWER button:
• Do not allow objects that emit strong radio waves near the POWER button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehicle’s immobilizer system near the POWER
button.
• Do not put the key near magnetic items. Electronic devices, such as televisions
and audio systems emit strong magnetic fields. Note that even a key chain can
become magnetic.
Security System Alarm
The security system alarm activates when the trunk, hood or doors are forcibly
opened. The alarm does not activate if the trunk or doors are opened with the key,
remote transmitter or smart entry system.
However, the alarm activates if a door is op ened with the key and then the hood is
opened before the power mode is set to ON.
■When the security system alarm activates
The horn sounds intermittently and some exterior lights flash.
■To deactivate the security system alarm
Unlock the vehicle using the key, remote transmitter or smart entry system. The
system, along with the horn and flashing lights, is deactivated.
1 Immobilizer System
NOTICE
Leaving the key in the vehicl e can result in theft or
accidental movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
1 Security System Alarm
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
The security alarm continues for a maximum of two
minutes until the security system alarm deactivates.
21 CLARITY FCV CSS-31TRT6400_02.book 151 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

Continued373
uuWhen Driving uTurning on the Power
Driving
3. Without depressing the accelerator pedal,
press the POWER button while depressing
the brake pedal.
4. Check the READY indicator.
u Keep depressing the brake pedal until
the READY indicator comes on.
u The READY indicator comes on when
the power system is on and you can start
driving.
u If the outside temperature is extremely
low, you cannot drive until conditions are
improved. In this case, the READY
indicator does not come on and a
warning message appears on the driver
information interface.
2 Driver Information Interface
Warning and Information Messages
P. 104
You can turn the power system off when the vehicle is completely stopped.
1. Put the transmission into
(P.
2. Press the POWER button.
1Turning on the Power
The immobilizer system pr otects your vehicle from
theft.
If an improperly coded de vice is used, the power
system does not activate. 2 Immobilizer System P. 151
When you set the power mode to ON, you may feel
as if the brake pedal is sinking down. This is normal.
Bring the smart entry remote close to the POWER
button if the battery in the smart entry remote is
weak.
2 If the Smart Entry Remote Battery is Weak
P. 506
The power system may not activate if the smart entry
remote is subjected to strong radio waves.
Do not hold the POWER button to start the power
system.
If the power system does not start, wait at least 10
seconds before trying again.
■Stopping the Power System
21 CLARITY FCV CSS-31TRT6400_02.book 373 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

546
Index
H
Handling the Unexpected........................ 491
HandsFreeLink® (HFL)............................... 331
Automatic Import of Cellular Phonebook
and Call History ..................................... 344
Displaying Messages ................................ 358
HFL Buttons ............................................. 331
HFL Menus .............................................. 334
HFL Status Display.................................... 333
In Case of Emergency .............................. 362
Limitations for Manua l Operation ............ 333
Making a Call .......................................... 352
Options During a Call .............................. 355
Phone Setup ............................................ 339
Phonebook Phonetic M odification ........... 348
Receiving a Call ....................................... 355
Receiving a Text Message/E-mail .............. 356
Ring Tone ................................................ 343
Selecting a Mail Account ......................... 357
Speed Dial ............................................... 345
To Set Up Text Message/E-mail Options ... 342
Hazard Warning Button ............................... 6
HD Radio
TM................................................ 238
Head Restraints ......................................... 176
Headlights ................................................. 160
Aiming .................................................... 465
Automatic Operation ............................... 161
Dimming ......................................... 160, 163
Operating ................................................ 160
Head-Up Display ....................................... 129
Brightness Control ................................... 167 Heated Door Mirror
................................. 168
Heaters (Seat) ........................................... 188
HFL (HandsFreeLink ®)............................... 331
High Beam Indicator .................................. 98
High Voltage Battery ............................... 422
Hill Start Assist System ............................. 374
HomeLink ® Universal Transceiver ............ 328
Honda App License Agreement .............. 286
Honda Sensing ®........................................ 36
HondaLink ®............................................. 264
I
Identification Numbers
Motor, and Transmission ......................... 534
Vehicle Identification ............................... 534
Illumination Control Buttons ........................................... 166, 167
Immobilizer System .................................. 151
Indicator.................................................... 98
Indicators .................................................... 88
12-Volt Battery Charging System ....... 92, 515
Adaptive Cruise Control (ACC) with Low Speed Follow ......................... 101, 391
Anti-lock Brake System (ABS)..................... 94
Automatic Brake Hold ....................... 89, 431
Automatic Brake Hold System ........... 89, 431
Collision Mitigati on Braking System
TM
(CMBSTM) ....................................... 102, 103
Electric Power Steering (EPS) System .. 95, 516
Gear Position............................................. 93 High Beam ................................................ 98
Hydrogen Leak.......................................... 92
Immobilizer System ................................... 98
Lane Keeping Assist System
(LKAS) ........................................... 102, 410
Lights On .................................................. 98
Low Fuel ................................................... 92
Low Tire Pressure/TPMS ............ 96, 418, 420
Parking Brake and Brake System (Amber) .. 90
Parking Brake and Brake System (Red) ..................... 88, 89, 516, 517
POWER SYSTEM ....................................... 91
READY ...................................................... 92
Road Departure Mitigation (RDM) ........... 100
Seat Belt Reminder .............................. 50, 94
Security System Alarm............................... 99
SPORT Mode..................................... 99, 383
Supplemental Restraint System ........... 68, 95
System Message ....................................... 97
Transmission System ................................. 93
Turn Signal and Hazard Warning ............... 98
Vehicle Stability Assist
TM (VSA ®)
System ............................................ 95, 415
VSA ® OFF .......................................... 95, 416
Information .............................................. 531
Instant Fuel Economy .............................. 124
Instrument Panel ........................................ 87
Brightness Control .................................. 166
Interior Lights ........................................... 180
Interior Rearview Mirror ......................... 172
21 CLARITY FCV CSS-31TRT6400_02.book 546 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

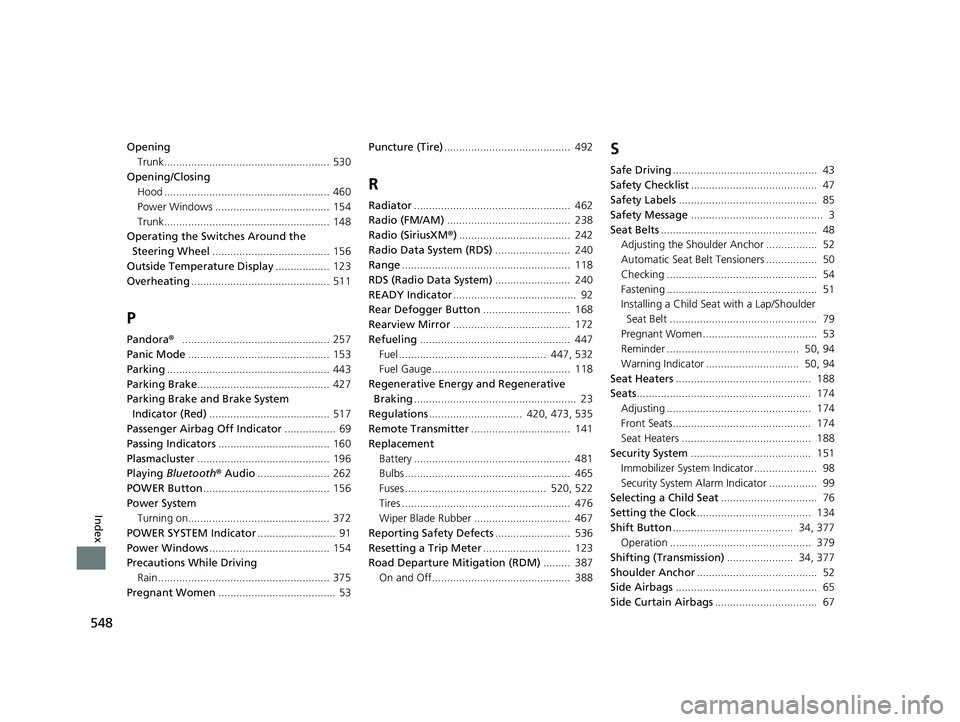

548
Index
OpeningTrunk....................................................... 530
Opening/Closing Hood ....................................................... 460
Power Windows ...................................... 154
Trunk....................................................... 148
Operating the Switches Around the Steering Wheel ....................................... 156
Outside Temperature Display .................. 123
Overheating .............................................. 511
P
Pandora®................................................. 257
Panic Mode ............................................... 153
Parking ...................................................... 443
Parking Brake ............................................ 427
Parking Brake and Brake System
Indicator (Red) ........................................ 517
Passenger Airbag Off Indicator ................. 69
Passing Indicators ..................................... 160
Plasmacluster ............................................ 196
Playing Bluetooth ® Audio ........................ 262
POWER Button .......................................... 156
Power System Turning on............................................... 372
POWER SYSTEM Indicator .......................... 91
Power Windows ........................................ 154
Precautions While Driving Rain ......................................................... 375
Pregnant Women ....................................... 53 Puncture (Tire)
.......................................... 492
R
Radiator.................................................... 462
Radio (FM/AM) ......................................... 238
Radio (SiriusXM ®) ..................................... 242
Radio Data System (RDS) ......................... 240
Range ........................................................ 118
RDS (Radio Data System) ......................... 240
READY Indicator ......................................... 92
Rear Defogger Button ............................. 168
Rearview Mirror ....................................... 172
Refueling .................................................. 447
Fuel ................................................. 447, 532
Fuel Gauge.............................................. 118
Regenerative Energy and Regenerative Braking ...................................................... 23
Regulations ............................... 420, 473, 535
Remote Transmitter ................................. 141
Replacement
Battery .................................................... 481
Bulbs ....................................................... 465
Fuses ............................................... 520, 522
Tires ........................................................ 476
Wiper Blade Rubber ................................ 467
Reporting Safety Defects ......................... 536
Resetting a Trip Meter ............................. 123
Road Departure Mitigation (RDM) ......... 387
On and Off.............................................. 388
S
Safe Driving ................................................ 43
Safety Checklist .......................................... 47
Safety Labels .............................................. 85
Safety Message ............................................ 3
Seat Belts .................................................... 48
Adjusting the Shoulder Anchor ................. 52
Automatic Seat Belt Tensioners ................. 50
Checking .................................................. 54
Fastening .................................................. 51
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 79
Pregnant Women...................................... 53
Reminder ............................................ 50, 94
Warning Indicator ............................... 50, 94
Seat Heaters ............................................. 188
Seats .......................................................... 174
Adjusting ................................................ 174
Front Seats.............................................. 174
Seat Heaters ........................................... 188
Security System ........................................ 151
Immobilizer System Indicator ..................... 98
Security System Alarm Indicator ................ 99
Selecting a Child Seat ................................ 76
Setting the Clock ...................................... 134
Shift Button ........................................ 34, 377
Operation ............................................... 379
Shifting (Transmission) ...................... 34, 377
Shoulder Anchor ........................................ 52
Side Airbags ............................................... 65
Side Curtain Airbags .................................. 67
21 CLARITY FCV CSS-31TRT6400_02.book 548 ページ ２０２０年９月２５日　金曜日　午 後３時１５分
