2021 HONDA CLARITY FUEL CELL battery

509
uuIf the 12-Volt Battery Is Dead u
Continued
Handling the Unexpected
4.Connect the other end of the second
jumper cable to the power system
mounting bolt as shown. Do not connect
this jumper cable to any other part of the
vehicle.
5. If your vehicle is connected to another
vehicle, start the assisting vehicle’s engine,
and increase its rpm slightly.
6. Attempt to start your vehicle’s power
system. If it starts up slowly, check that the
jumper cables have good metal-to-metal
contact.
21 CLARITY FCV CSS-31TRT6400_02.book 509 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

510

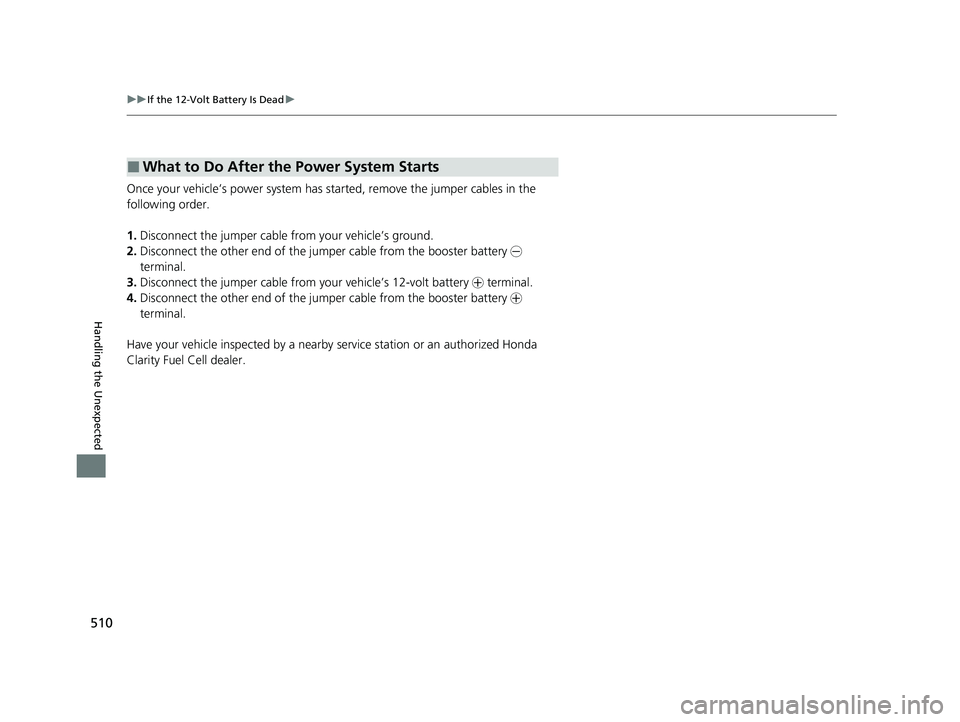

uuIf the 12-Volt Battery Is Dead u
Handling the Unexpected
Once your vehicle’s power system has sta rted, remove the jumper cables in the
following order.
1. Disconnect the jumper cable from your vehicle’s ground.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle’s 12-volt battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a nearby service station or an authorized Honda
Clarity Fuel Cell dealer.
■What to Do After the Power System Starts
21 CLARITY FCV CSS-31TRT6400_02.book 510 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

515
Handling the Unexpected

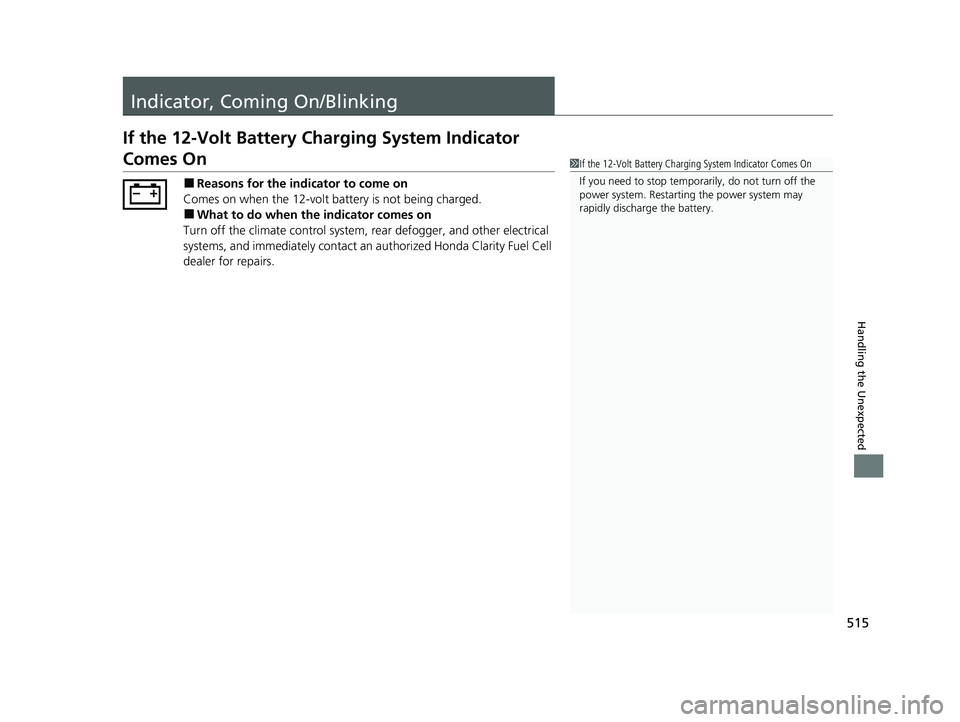

Indicator, Coming On/Blinking
If the 12-Volt Battery Charging System Indicator
Comes On
■Reasons for the indicator to come on
Comes on when the 12-volt battery is not being charged.
■What to do when th e indicator comes on
Turn off the climate control system, rear defogger, and other electrical
systems, and immediately contact an authorized Honda Clarity Fuel Cell
dealer for repairs.
1 If the 12-Volt Battery Chargi ng System Indicator Comes On
If you need to stop temporarily, do not turn off the
power system. Restarting the power system may
rapidly discharge the battery.
21 CLARITY FCV CSS-31TRT6400_02.book 515 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

520
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK),
and check to see if any applicable fuse is
blown.
There are two fuse boxes in the motor
compartment.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the windshield washer
reservoir. Push the tabs to open the box.
■Motor Compartment Fuse Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1BATTERY200 A
2
EPS70 A
ESB40 A
ABS/VSA_FSR20 A
SUB FUSE BOX 440 A
P-ACT30 A
−−
H/L LO MAIN30 A
3
WIPER MOTOR 130 A
WIPER MOTOR 230 A
IG MAIN 130 A
IG MAIN 230 A
4 HAZARD 10 A
5IGB15 A
6 IG CRASH 10 A
7IGA7.5 A
8 P-ACT_DRV 7.5 A
9SHIFTER7.5 A
10 STOP LIGHT 7.5 A
11VBU7.5 A
12 RFC 60 A
FUSE BOX MAIN 3 50 A
FUSE BOX MAIN 1 60 A H/L HI MAIN 40 A
PREMIUM AUDIO 30 A
FUSE BOX MAIN 2 40 A ABS/VSA MOTOR 40 A −−
SMALL MAIN 20 A
SUB FUSE BOX 2-1 40 A
13HEATER MOTOR40 A
14 REAR DEFROSTER 40 A
15BATT FAN15 A
16 BATT SNSR 7.5 A
17H2 PMP30 A
18 A/C MAIN/DRL 10 A
19EGR PMP20 A
20 BATT SNSR (IR) 10 A
21BACK UP10 A
22 AUDIO 15 A
23IGB LEAK SNSR5 A
24 R H/L LO 7.5 A
25L H/L LO7.5 A
26 IGB ECU 5 A
Circuit ProtectedAmps
21 CLARITY FCV CSS-31TRT6400_02.book 520 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

527
uuFusesuInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1.Set the power mode to VEHICLE OFF
(LOCK). Turn headlights and all accessories
off.
2. Check the fuses on the battery in the motor
compartment.
u If the fuse is blown, have it replaced by
an authorized Honda Clarity Fuel Cell
dealer.
3. Remove the fuse box cover.
4. Check the large fuse in the motor
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw, and
replace it with a new one.
5. Inspect the small fuses in the motor
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller, and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage. 2 Fuse Locations P. 520
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.
There is a fuse puller on the back of the cover of the
motor compartment fuse box A.
12-Volt Battery
Blown Fuse
Fuse Puller
21 CLARITY FCV CSS-31TRT6400_02.book 527 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

538

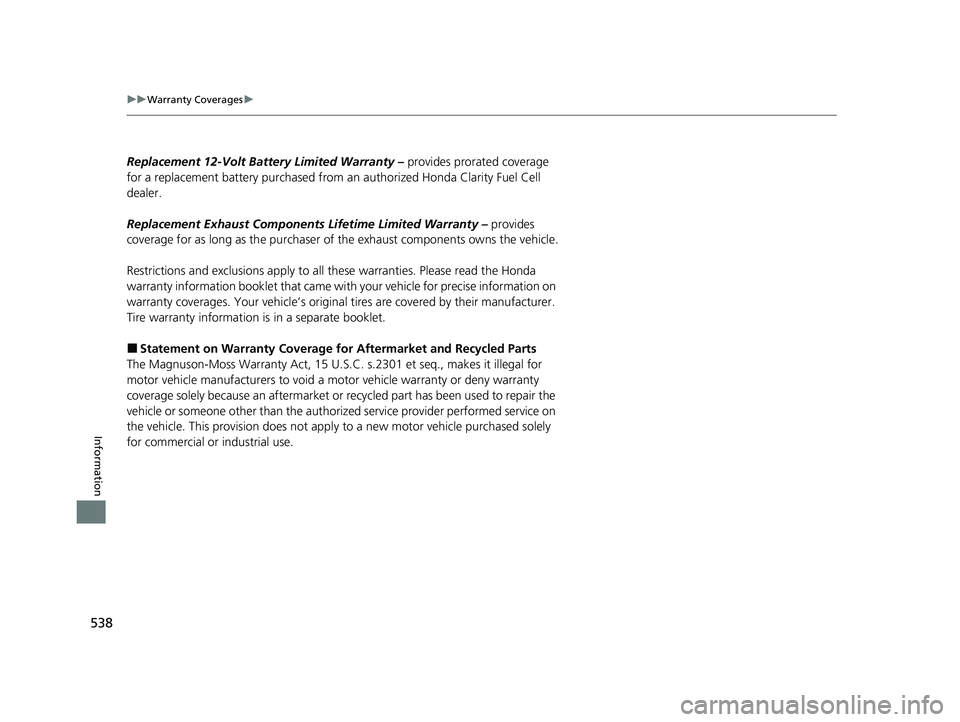

uuWarranty Coverages u
Information
Replacement 12-Volt Batte ry Limited Warranty – provides prorated coverage
for a replacement battery purchased from an authorized Honda Clarity Fuel Cell
dealer.
Replacement Exhaust Components Lifetime Limited Warranty – provides
coverage for as long as th e purchaser of the exhaust components owns the vehicle.
Restrictions and exclusions apply to a ll these warranties. Please read the Honda
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehi cle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Statement on Warranty Coverage for Aftermarket and Recycled Parts
The Magnuson-Moss Warranty Act, 15 U.S.C. s.2301 et seq., makes it illegal for
motor vehicle manufacturers to void a motor vehicle warranty or deny warranty
coverage solely because an aftermarket or re cycled part has been used to repair the
vehicle or someone other than the authoriz ed service provider performed service on
the vehicle. This provision does not apply to a new motor vehicle purchased solely
for commercial or industrial use.
21 CLARITY FCV CSS-31TRT6400_02.book 538 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

Index
543
Index
Index
Numbers
12-Volt Battery Charging System Indicator ................................................... 92
A
ABS (Anti-lock Brake System) .................. 433
Accessories and Modifications ................ 489
Accessory Power Sockets ......................... 186
Acoustic Vehicle Alerting System ............ 384
Adaptive Cruise Control (ACC) with Low Speed Follow .......................... 101, 391
Additives
Coolant .................................................. 461
Washer ................................................... 464
Adjusting
Armrest .................................................. 179
Front Seats.............................................. 174
Head Restraints ....................................... 176
Mirrors.................................................... 172
Steering Wheel ....................................... 171
Temperature ........................................... 123
Agile Handling Assist ............................... 417
Air Conditioning System (Climate Control
System) .................................................... 190
Changing the Mode................................ 192
Defrosting the Windshield and
Windows .............................................. 194
Dust and Pollen Filter .............................. 482
Plasmacluster .......................................... 196
Sensors ................................................... 198 Synchronization Mode ............................. 195
Using Automatic Climate Control ............ 190
Air Pressure ....................................... 471, 533
Airbags ........................................................ 55
Advanced Airbags ..................................... 61
Airbag Care ............................................... 71
Driver’s Knee Airbag .................................. 63
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 58
Indicator .............................................. 68, 95
Passenger Airbag Off Indicator .................. 69
Sensors ...................................................... 55
Side Airbags .............................................. 65
Side Curtain Airbags .................................. 67
AM/FM Radio ............................................ 238
Android Auto
TM........................................ 275
Anti-lock Brake System (ABS) .................. 433
Indicator .................................................... 94
Apple CarPlay
TM........................................ 272
Armrest ..................................................... 179
Audio Remote Controls ............................ 203
Audio System .................................... 200, 206
Adjusting the Sound ................................ 231
Audio/Information Screen ........................ 207
Changing the Home Screen Icon Layout .. 214
Changing the Screen Interface ................. 228
Closing Apps ........................................... 230
Customizing the Meter ............................ 214
Display Setup ........................................... 232
Error Messages ........................................ 279
General Information ................................ 283 Home Screen........................................... 220
Limitations for Manual Operation ............ 233
Menu Customize ..................................... 229
MP3/WMA/AAC ...................................... 259
Reactivating ............................................ 202
Recommended Devices............................ 285
Remote Controls ..................................... 203
Security Code .......................................... 202
Selecting an Audio Source ....................... 233
Status Area ............................................. 227
Theft Protection ...................................... 202
USB Flash Drives ...................................... 285
USB Port.................................................. 201
Wallpaper Setup...................................... 218
Audio/Information Screen ....................... 207
Authorized Manuals ................................ 540
Auto Door Locking/Unlocking ................. 147
Automatic Brake Hold ............................. 431
Indicator............................................ 89, 431
Automatic Brake Hold System Indicator............................................ 89, 431
Automatic Lighting .................................. 161
Average Fuel Economy ............................ 123
Average Fuel Economy Records .............. 126
Average Speed ......................................... 124
21 CLARITY FCV CSS-31TRT6400_02.book 543 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

544
Index
B
Battery12-Volt .................................................... 479
12-Volt Battery Charging System Indicator .......................................... 92, 515
Charging (12-Volt Battery) ....................... 480
High Voltage ........................................... 422
If the 12-Volt Battery Is Dead ................... 508
Maintenance (Checking the 12-Volt Battery) .................................................. 479
Maintenance (Replacing).......................... 481
Belts (Seat) .................................................. 48
Beverage Holders ...................................... 184
Bluetooth ® Audio ..................................... 262
Bluetooth ® HandsFreeLink ®................... 331
Booster Seats (For Children) ....................... 84
Brake System ............................................. 427
Anti-lock Brake System (ABS) ................... 433
Automatic Brake Hold.............................. 431
Brake Assist System ................................. 434
Fluid ........................................................ 463
Foot Brake ............................................... 430
Indicator (Red) ......................................... 517
Parking Brake .......................................... 427
Brake System (Amber)
Indicator .................................................... 90
Brake System (Red) Indicator ...................................... 88, 89, 516
Brightness Control (Head-Up Display) ..... 167
Brightness Control (Instrument Panel) .... 166Bulb Replacement
.................................... 465
Brake/Taillights and Rear Side Marker
Lights .................................................... 466
Front Turn Signal and Front Side Marker Lights .................................................... 465
Headlights ............................................... 465
High-Mount Brake Light .......................... 466
Parking/Daytime Running Lights .............. 465
Rear License Plate Lights .......................... 466
Taillights and Back-Up Lights ................... 466
Taillights/Rear Side Marker, Brake and
Rear Turn Signal Lights .......................... 466
Bulb Specifications ................................... 532
C
Carrying Cargo................................. 367, 369
Certification Label .................................... 534
Changing Bulbs ........................................ 465
Characteristics of Fuel Cell Vehicles .......... 11
Charging System Indicator ....................... 515
Child Safety ................................................. 72
Childproof Door Locks............................. 146
Child Seat .................................................... 72
Booster Seats ............................................ 84
Child Seat for Infants................................. 74
Child Seat for Small Children ..................... 75
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 79
Larger Children ......................................... 83
Rear-facing Child Seat ............................... 74 Selecting a Child Seat ............................... 76
Using a Tether .......................................... 81
Childproof Door Locks ............................. 146
Cleaning the Exterior ............................... 485
Cleaning the Interior ............................... 483
Climate Control System ........................... 190
Changing the Mode................................ 192
Defrosting the Windshield and
Windows .............................................. 194
Dust and Pollen Filter .............................. 482
Sensors ................................................... 198
Using Automatic Climate Control............ 190
Clock ......................................................... 134
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 435
Coat Hook ................................................ 187
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 435
Console Compartment ............................. 183
Controls .................................................... 133
Coolant ..................................................... 461
Adding to the Radiator ........................... 462
Adding to the Reserve Tank .................... 461
Overheating ............................................ 511
Creeping (Transmission) .......................... 376
Cup Holders .............................................. 184
Customer Service Information ................ 541
Customized Features ....................... 128, 302
21 CLARITY FCV CSS-31TRT6400_02.book 544 ページ ２０２０年９月２５日　金曜日　午 後３時１５分
