2021 HONDA CLARITY FUEL CELL automatic transmission

uuWhen Driving uShifting
380
Driving

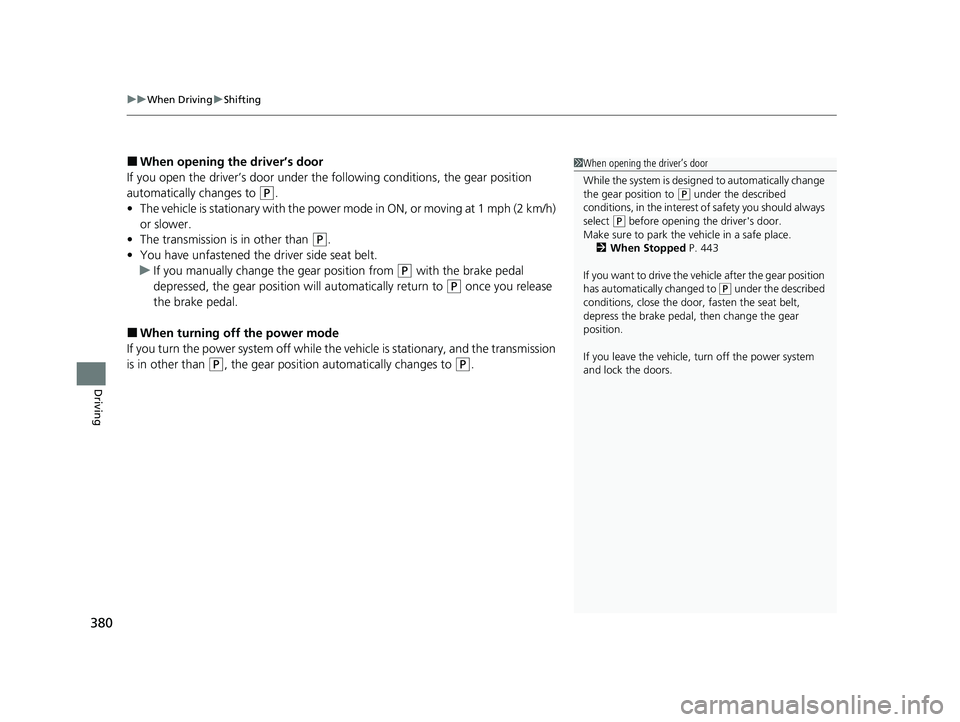

■When opening the driver’s door
If you open the driver’s door under the following conditions, the gear position
automatically changes to
(P.
• The vehicle is stationary with the power mo de in ON, or moving at 1 mph (2 km/h)
or slower.
• The transmission is in other than
(P.
• You have unfastened the driver side seat belt.
u If you manually change the gear position from
(P with the brake pedal
depressed, the gear position will automatically return to
(P once you release
the brake pedal.
■When turning o ff the power mode
If you turn the power system off while the vehicle is stationary, and the transmission
is in other than
(P, the gear position auto matically changes to (P.
1When opening the driver’s door
While the system is designed to automatically change
the gear position to
(P under the described
conditions, in the interest of safety you should always
select
( P before opening the driver's door.
Make sure to park the vehicle in a safe place.
2 When Stopped P. 443
If you want to drive the ve hicle after the gear position
has automatically changed to
( P under the described
conditions, close the door, fasten the seat belt,
depress the brake pedal, then change the gear
position.
If you leave the vehicle, turn off the power system
and lock the doors.
21 CLARITY FCV CSS-31TRT6400_02.book 380 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

Continued381
uuWhen Driving uShifting
Driving
■If you want to keep the transmission in (N position [car wash mode]
With the power system on:
1. Depress the brake pedal.
2. Make sure the READY indicator is on.
3. Press
(N. Within six seconds press and hold (N for two seconds.
u This puts the vehicle in car wash mode which must be used when your vehicle
is pulled through a conveyor type automatic car wash where you or an
attendant do not remain in the vehicle.
If you want to cancel car wash mode, select a position other than
(N.
If you want to reduce fuel consumption in car wash mode:
Press the POWER button during car wash mode.
u Make sure the READY indicator is off.
u The gear position remains in
(N with the power mode in ACCESSORY for 15
minutes, then, it auto matically changes to
(P and the power mode changes to
OFF.
Manually changing to
(P cancels ACCESSORY mode. The (P indicator comes on
and the power mode changes to OFF. You must always shift to
(P when car wash
mode is no longer needed.
1 If you want to keep the transmission in (N position [car wash
mode]
To keep the vehicle in
(N position, you can also
follow this procedure:
While the power system is on, select
( N, and then
within five seconds, press the POWER button.
Note that the transmiss ion may not stay in
(N
position while any of the following indicators is on:
•POWER SYSTEM indicator
•Transmission system indicator
•12-volt battery charging system indicator
21 CLARITY FCV CSS-31TRT6400_02.book 381 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

Continued429
uuBraking uBrake System
Driving

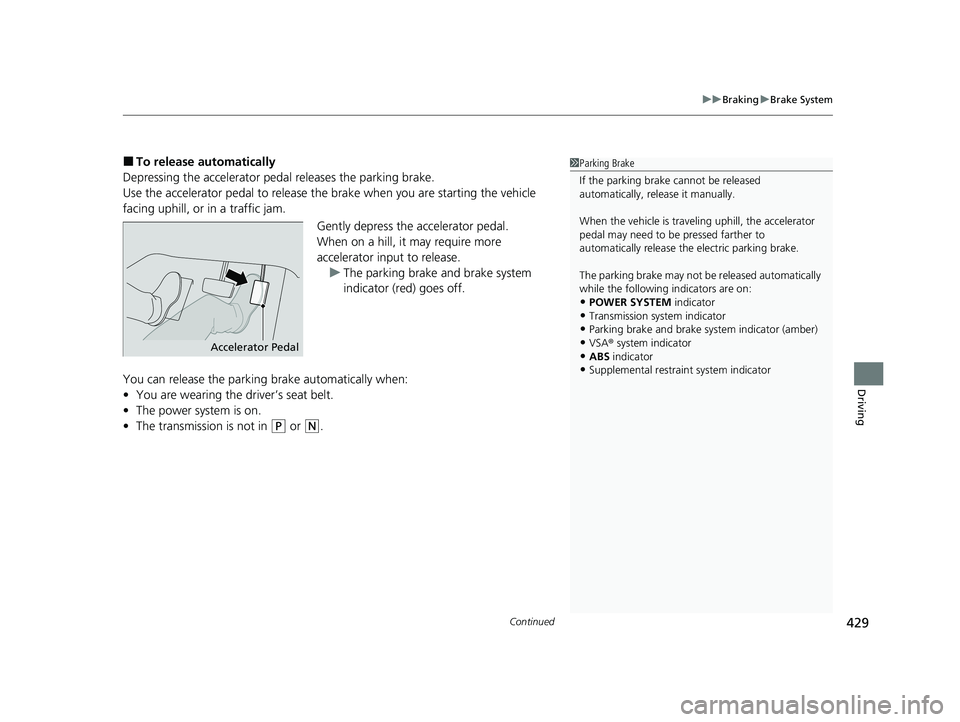

■To release automatically
Depressing the accelerator pedal releases the parking brake.
Use the accelerator pedal to release the brake when you are starting the vehicle
facing uphill, or in a traffic jam.
Gently depress the accelerator pedal.
When on a hill, it may require more
accelerator input to release.u The parking brake and brake system
indicator (red) goes off.
You can release the parking brake automatically when:
• You are wearing the driver’s seat belt.
• The power system is on.
• The transmission is not in
(P or (N.
1Parking Brake
If the parking brake cannot be released
automatically, release it manually.
When the vehicle is travel ing uphill, the accelerator
pedal may need to be pressed farther to
automatically release the electric parking brake.
The parking brake may not be released automatically
while the following indicators are on:
•POWER SYSTEM indicator•Transmission system indicator
•Parking brake and brake system indicator (amber)
•VSA® system indicator•ABS indicator
•Supplemental restraint system indicator
Accelerator Pedal
21 CLARITY FCV CSS-31TRT6400_02.book 429 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

Continued431
uuBraking uBrake System
Driving
Keeps the brake applied after releasing the brake pedal until the accelerator pedal is
pressed. You can use this system while th e vehicle is temporarily stopped, like at
traffic lights and in heavy traffic.
■Automatic Brake Hold1 Automatic Brake Hold
3WARNING
Activating the automatic brake hold system
on steep hills or slippery roads may still
allow the vehicle to move if you remove
your foot from the brake pedal.
If a vehicle unexpectedly moves, it may
cause a crash resulting in serious injury or
death.
Never activate the automatic brake hold
system or rely on it to keep a vehicle from
moving when stopped on a steep hill or
slippery roads.
3WARNING
Using the automatic brake hold system to
park the vehicle may result in the vehicle
unexpectedly moving.
If a vehicle moves unexpectedly, it may
cause a crash, resulting in serious injury or
death.
Never leave the vehicle when braking is
temporarily kept by automatic brake hold
and always park the vehicle by putting the
transmission in
( P and applying the parking
brake.
■Turning on the system
Fasten your seat belt
properly, then start the
power system. Press the
automatic brake hold
button.
●The automatic brake
hold system indicator
comes on. The system
is turned on.
■Activating the system
Depress the brake pedal
to come to a complete
stop. The transmission
must be in
( D or (N.●The automatic brake
hold indicator comes
on. Braking is kept for
up to 10 minutes.
●Release the brake
pedal after the
automatic brake hold
indicator comes on.
■Canceling the system
Depress the accelerator
pedal while the
transmission is in
( D.
The system is canceled
and the vehicle starts to
move.
●The automatic brake
hold indicator goes
off. The system
continues to be on.
Accelerator PedalBrake PedalAutomatic Brake
Hold Button
Goes
Off
On OnComes
On
Comes
On
21 CLARITY FCV CSS-31TRT6400_02.book 431 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

445Continued
Driving

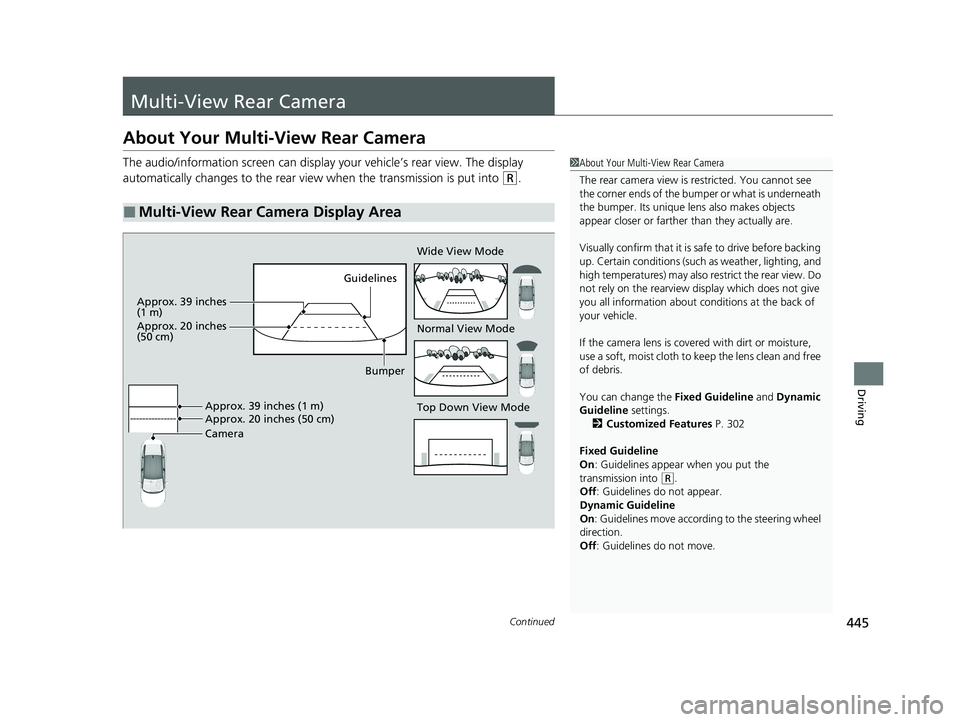

Multi-View Rear Camera
About Your Multi-View Rear Camera
The audio/information screen can display your vehicle’s rear view. The display
automatically changes to the rear view when the transmission is put into
(R.
■Multi-View Rear Camera Display Area
1About Your Multi-View Rear Camera
The rear camera view is restricted. You cannot see
the corner ends of the bumper or what is underneath
the bumper. Its unique le ns also makes objects
appear closer or farther than they actually are.
Visually confirm that it is safe to drive before backing
up. Certain conditions (such as weather, lighting, and
high temperatures) may also restrict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.
If the camera lens is cove red with dirt or moisture,
use a soft, moist cloth to keep the lens clean and free
of debris.
You can change the Fixed Guideline and Dynamic
Guideline settings.
2 Customized Features P. 302
Fixed Guideline
On : Guidelines appear when you put the
transmission into
( R.
Off : Guidelines do not appear.
Dynamic Guideline
On : Guidelines move according to the steering wheel
direction.
Off : Guidelines do not move.
Top Down View Mode Normal View Mode Wide View Mode
Guidelines
Bumper
Camera Approx. 39 inches (1 m)
Approx. 20 inches (50 cm)
Approx. 39 inches
(1 m)
Approx. 20 inches
(50 cm)
21 CLARITY FCV CSS-31TRT6400_02.book 445 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

463
uuMaintenance Under the Hood uTransmission Fluid
Maintenance
Transmission Fluid
Have an authorized Honda Clarity Fuel Cell dealer check the fluid level and replace
if necessary.
Do not attempt to check or change the transmission fluid yourself.
Brake Fluid
The fluid level should be between the MIN
and MAX marks on the side of the reserve
tank.
■Transmission Fluid
Specified fluid: Honda ATF DW-1 (automatic transmission fluid)
Specified fluid: Honda Heav y Duty Brake Fluid DOT 3
■Checking the Brake Fluid
1Transmission Fluid
NOTICE
Do not mix Honda ATF DW-1 with other
transmission fluids.
Using a transmission flui d other than Honda ATF
DW-1 may adversely af fect the operation and
durability of your vehicle’ s transmission, and damage
the transmission.
Any damage caused by using a transmission fluid that
is not equivalent to Honda ATF DW-1 is not covered
by Honda’s new vehi cle limited warranty.
1Brake Fluid
NOTICE
Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.
If the specified br ake fluid is not av ailable, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.
Using any non-Honda brake fluid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and re filled with Honda Heavy
Duty Brake Fluid DOT 3 as soon as possible.
If the brake fluid level is at or below the MIN mark,
have an authorized Honda Clarity Fuel Cell dealer
inspect the vehicle for leaks or worn brake pads as
soon as possible.
Brake Reserve Tank
MAX
MIN
21 CLARITY FCV CSS-31TRT6400_02.book 463 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

485
uuCleaning uExterior Care
Continued
Maintenance

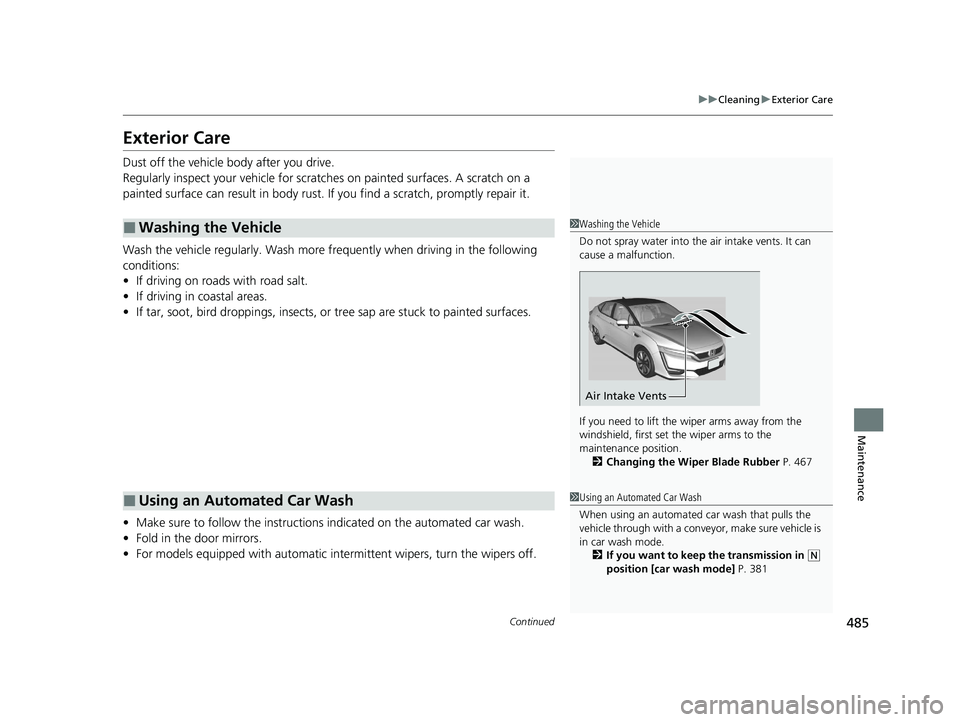

Exterior Care
Dust off the vehicle body after you drive.
Regularly inspect your vehi cle for scratches on painted surfaces. A scratch on a
painted surface can result in body rust. If you find a scratch, promptly repair it.
Wash the vehicle regularly. Wash more frequently when driving in the following
conditions:
• If driving on roads with road salt.
• If driving in coastal areas.
• If tar, soot, bird droppings, insects, or tree sap are stuck to painted surfaces.
• Make sure to follow the instructions indicated on the automated car wash.
• Fold in the door mirrors.
• For models equipped with automatic inte rmittent wipers, turn the wipers off.
■Washing the Vehicle
■Using an Automated Car Wash
1Washing the Vehicle
Do not spray water into the air intake vents. It can
cause a malfunction.
If you need to lift the wiper arms away from the
windshield, first set the wiper arms to the
maintenance position.
2 Changing the Wiper Blade Rubber P. 467
Air Intake Vents
1Using an Automated Car Wash
When using an automated car wash that pulls the
vehicle through with a convey or, make sure vehicle is
in car wash mode. 2 If you want to keep the transmission in
(N
position [car wash mode] P. 381
21 CLARITY FCV CSS-31TRT6400_02.book 485 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

544
Index
B
Battery12-Volt .................................................... 479
12-Volt Battery Charging System Indicator .......................................... 92, 515
Charging (12-Volt Battery) ....................... 480
High Voltage ........................................... 422
If the 12-Volt Battery Is Dead ................... 508
Maintenance (Checking the 12-Volt Battery) .................................................. 479
Maintenance (Replacing).......................... 481
Belts (Seat) .................................................. 48
Beverage Holders ...................................... 184
Bluetooth ® Audio ..................................... 262
Bluetooth ® HandsFreeLink ®................... 331
Booster Seats (For Children) ....................... 84
Brake System ............................................. 427
Anti-lock Brake System (ABS) ................... 433
Automatic Brake Hold.............................. 431
Brake Assist System ................................. 434
Fluid ........................................................ 463
Foot Brake ............................................... 430
Indicator (Red) ......................................... 517
Parking Brake .......................................... 427
Brake System (Amber)
Indicator .................................................... 90
Brake System (Red) Indicator ...................................... 88, 89, 516
Brightness Control (Head-Up Display) ..... 167
Brightness Control (Instrument Panel) .... 166Bulb Replacement
.................................... 465
Brake/Taillights and Rear Side Marker
Lights .................................................... 466
Front Turn Signal and Front Side Marker Lights .................................................... 465
Headlights ............................................... 465
High-Mount Brake Light .......................... 466
Parking/Daytime Running Lights .............. 465
Rear License Plate Lights .......................... 466
Taillights and Back-Up Lights ................... 466
Taillights/Rear Side Marker, Brake and
Rear Turn Signal Lights .......................... 466
Bulb Specifications ................................... 532
C
Carrying Cargo................................. 367, 369
Certification Label .................................... 534
Changing Bulbs ........................................ 465
Characteristics of Fuel Cell Vehicles .......... 11
Charging System Indicator ....................... 515
Child Safety ................................................. 72
Childproof Door Locks............................. 146
Child Seat .................................................... 72
Booster Seats ............................................ 84
Child Seat for Infants................................. 74
Child Seat for Small Children ..................... 75
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 79
Larger Children ......................................... 83
Rear-facing Child Seat ............................... 74 Selecting a Child Seat ............................... 76
Using a Tether .......................................... 81
Childproof Door Locks ............................. 146
Cleaning the Exterior ............................... 485
Cleaning the Interior ............................... 483
Climate Control System ........................... 190
Changing the Mode................................ 192
Defrosting the Windshield and
Windows .............................................. 194
Dust and Pollen Filter .............................. 482
Sensors ................................................... 198
Using Automatic Climate Control............ 190
Clock ......................................................... 134
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 435
Coat Hook ................................................ 187
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 435
Console Compartment ............................. 183
Controls .................................................... 133
Coolant ..................................................... 461
Adding to the Radiator ........................... 462
Adding to the Reserve Tank .................... 461
Overheating ............................................ 511
Creeping (Transmission) .......................... 376
Cup Holders .............................................. 184
Customer Service Information ................ 541
Customized Features ....................... 128, 302
21 CLARITY FCV CSS-31TRT6400_02.book 544 ページ ２０２０年９月２５日　金曜日　午 後３時１５分
